X12SDV-8C-SPT8F + CSE-515M-R000NP2

SYS-110D-8C-FRAN8TP

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10346/image_1920?unique=7c1c8fe

kr 30,711.96 30711.96 NOK kr 30,711.96

kr 30,711.96

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-110D-8C-FRAN8TP is a 1U Rackmount server featuring Intel Xeon D-2733NT Processor, 8 cores at 2.10GHz with 15MB L3 cache. It supports up to 256GB ECC RDIMM in four DIMM slots, suitable for various networking and telecom applications.

    Key Features

    • Intel® Xeon® Processor D-2733NT, CPU TDP 80W
    • Up to 256GB Registered ECC RDIMM, DDR4-2667MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2667MHz, in 4 DIMM slots
    • 2x Internal 2.5" drive bays(2x PCIe 4.0 NVMe x8 SlimSAS and 1x OCuLink options)
    • 4x GbE, 2x 25G SFP28 and 2x 10G Base-T
    • 1x M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)
    • 5x 40x56mm Hot-swap Counter-rotation PWM Fans
    • Redundant 800 W, 100-240 Vac

    Key Applications

    • Intel® QuickAssist Technology
    • Networking Application, Firewall, uCPE, Telecom Application

    Description

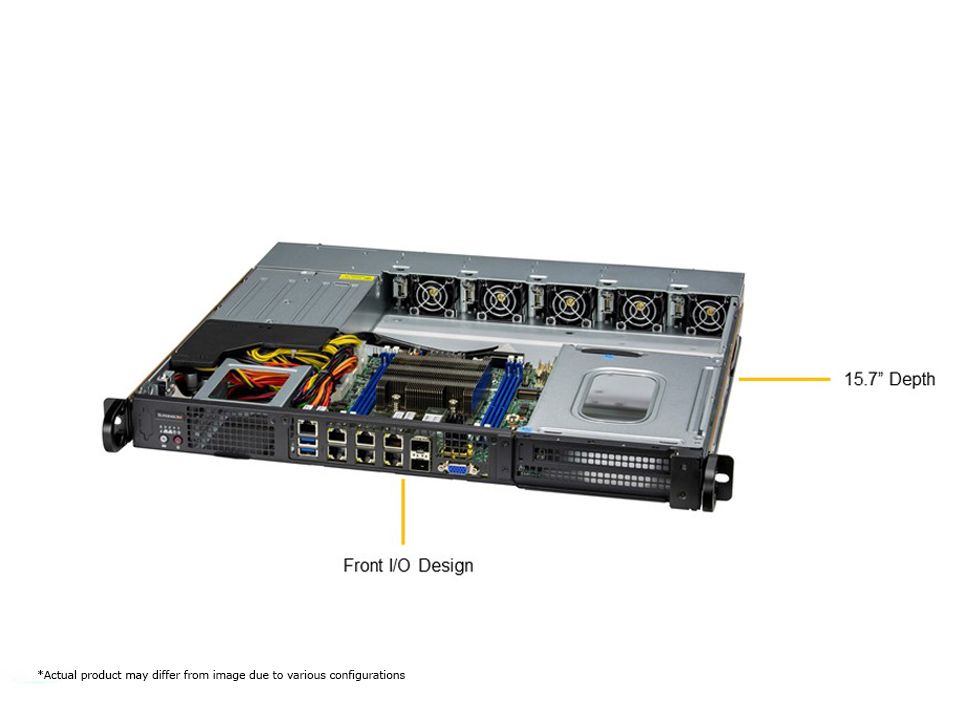

    The SYS-110D-8C-FRAN8TP is a compact IoT/embedded system with Intel Xeon D-2733NT processor, providing 8 cores at 2.10GHz and 80W TDP. The system supports up to 256GB ECC RDIMM in 4 DIMM slots. It features a range of network I/O ports including six RJ45 (four 1GbE, two 10GbE) and two 25GbE SFP28 ports, a dedicated IPMI LAN port, two USB 3.0 ports, and one VGA port. Intel QuickAssist Technology (QAT) enables offloading compute workloads onto dedicated hardware. It includes two internal 2.5" SATA drive bays and one M.2 NVMe/SATA slot. The 1U short-depth system includes five hot-swappable fans and an 800W redundant platinum level power supply.

    Product Specifications

    Product SKUs
    SuperServerSYS-110D-8C-FRAN8TP
    Motherboard
    Super X12SDV-8C-SPT8F
    Processor
    CPUSingle FCBGA-2579
    Intel® Xeon® Processor D-2700 Series
    NoteSupports up to 80W TDP CPUs (Air Cooled)
    GPU
    Max GPU CountUp to 1 double-width or 1 single-width GPU(s)
    Supported GPUNVIDIA PCIe: L4
    CPU-GPU InterconnectPCIe 4.0 x16 CPU-to-GPU Interconnect
    System Memory
    MemorySlot Count: 4 DIMM slots
    Max Memory (1DPC): Up to 256GB/512GB 2667MT/s ECC DDR4 RDIMM/LRDIMM
    View Memory Options
    Memory Voltage1.2V
    On-Board Devices
    ChipsetIntel® SoC
    Network Connectivity4 RJ45 1GBASE-T with Intel® I350
    2 SFP28 25GbE with Intel® SoC
    2 RJ45 10GBASE-T with Intel® X550
    View AOC Options
    Input / Output
    LAN1 RJ45 1 GbE Dedicated IPMI LAN port(s)
    4 RJ45 1 GbE LAN port(s) (Intel® I350)
    2 RJ45 10 GbE LAN port(s) (Intel® X550)
    2 SFP28 25 GbE LAN port(s) (Intel® SOC)
    USB2 port(s)
    Video1 VGA port(s)
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsPower-on mode for AC power recovery
    ACPI Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    System Lockdown
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory
    FANFans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
    TemperatureCPU thermal trip support, PEPI Monitoring for CPU and chassis environment
    Chassis
    Form Factor1U Rackmount
    ModelCSE-515M-R000NP2
    Dimensions and Weight
    Height1.7" (43 mm)
    Width17.2" (437 mm)
    Depth15.7" (399 mm)
    Package7.9" (H) x 26.7" (W) x 23.8" (D)
    WeightGross Weight: 29 lbs (13.15 kg)
    Net Weight: 18 lbs (8.16 kg)
    Available ColorSilver
    Front Panel
    LEDHDD activity
    LAN1 activity
    LAN2 activity
    Power status
    System information
    ButtonsPower On/Off
    UID button
    Expansion Slots
    PCI-Express (PCIe) ConfigurationDefault1 PCIe 4.0 x16 FHFL slot(s)
    View AOC Options
    Drive Bays / Storage
    Drive Bays ConfigurationDefault: Total 2 bay(s)2 internal fixed 2.5" SATA drive bay(s)
    M.21 M.2 NVMe/SATA slot(s) (M-key 2242/2280)
    View M.2 Options
    System Cooling
    Fans5 Counter-rotating, Hot-swappable 40x40x56mm Fan(s)
    Power Supply
    2x 800W2x 800W Redundant (1 + 1) Platinum Level (94%) power suppliesDimension (WxHxL)54.5 x 40.25 x 220 mmAC Input750W: 100-127Vac / 50-60Hz800W: 200-240Vac / 50-60Hz800W: 230-240Vdc / 50-60Hz+12VMax: 62.5A / Min: 0.5A (100Vac-127Vac)Max: 66.6A / Min: 0.5A (200Vac-240Vac)Max: 66.6A / Min: 0.5A (230Vdc-240Vdc)5V SBMax: 4A / Min: 0AOutput TypeBackplanes (gold finger)
    2x 800W2x 800W Redundant (1 + 1) Platinum Level (94%) power suppliesDimension (WxHxL)54.5 x 40.25 x 220 mmAC Input750W: 100-127Vac / 50-60Hz800W: 200-240Vac / 50-60Hz800W: 230-240Vdc / 50-60Hz+12VMax: 62.5A / Min: 0.5A (100Vac-127Vac)Max: 66.6A / Min: 0.5A (200Vac-240Vac)Max: 66.6A / Min: 0.5A (230Vdc-240Vdc)5V SBMax: 4A / Min: 0AOutput TypeBackplanes (gold finger)
    Operating Environment
    Environmental Spec.Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X12SDV-8C-SPT8F1Super X12SDV-8C-SPT8F Motherboard
    CSE-515M-R000NP211U Chassis
    Cable
    Part NumberQuantityDescription
    CBL-0483L27pin SATA (STR to STR), 29cm, PBF
    CBL-OTHR-1214-247FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS
    CBL-0191L1FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,50CM,PBF
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Fan
    Part NumberQuantityDescription
    FAN-0207L4540x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan
    Parts
    Part NumberQuantityDescription
    MCP-260-00099-0B11U Black I/O Shield for A2SDi-TP8F with EMI Gasket
    MCP-260-00078-0B11U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
    Air Shroud
    Part NumberQuantityDescription
    MCP-310-51504-0B1Mylar Air Shroud for SC515M + X11 SDW
    Manual
    Part NumberQuantityDescription
    MNL-2541-QRG1110D-4C/8C/16C/20C-FRA(D)N8TP Quick Reference Guide
    Power Supply
    Part NumberQuantityDescription
    PWS-804P-1R21U 800W 100-240VAC/50-60Hz, and DC240V input
    Riser Card
    Part NumberQuantityDescription
    RSC-S-6G411U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro
    *Power Distributor
    Part NumberQuantityDescription
    PDB-PT515M-242411U support redundancy up to 800W for SC515M chassis with ATX
    *Drive Tray(s)
    Part NumberQuantityDescription
    MCP-220-00137-0N1Dual 2.5 HDD bracket (bracket base follow std 2.5
    *Rear Window
    Part NumberQuantityDescription
    MCP-240-51505-0N1Rear window for SC515M Redundant PWS chassis
    *Front Panel
    Part NumberQuantityDescription
    MCP-280-80901-0N1SC809 FRONT CONTROL PANEL ASSY
    *Rail Set
    Part NumberQuantityDescription
    MCP-290-00102-0N1setOuter rail, quick-release type, 25.6
    MCP-290-00108-0B1 setInner rail, front, short (quick) for 1U 17.2
    *Fan Holder
    Part NumberQuantityDescription
    MCP-320-51501-0N21U hot-swap 4056 dummy fan tray for SC515M (no venting hole)
    MCP-320-51502-0N11U hot-swap 4056 fan tray for FAN-0207L4 in SC515M (with venting hole)

    Optional Part List

    SlimSAS x8 to PCIe 2x SFF-8639&PWR,G4,55CM,85OHM,Ro
    Part NumberQuantityDescription
    CBL-SAST-0953-11SlimSAS x8 to PCIe 2x SFF-8639&PWR,G4,55CM,85OHM,Ro
