  2. Ice Lake SP, 1U/UP/AC, CSE-515M-R804 + X12SPW-TF-001

Ice Lake SP, 1U/UP/AC, CSE-515M-R804 + X12SPW-TF-001

SYS-110P-FRN2T

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10353/image_1920?unique=a1dbe1e

kr 17,815.92 17815.920000000002 NOK kr 17,815.92

kr 17,815.92

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Supermicro SYS-110P-FRN2T offers advanced processing power with up to 32 cores and 2TB memory capacity, ideal for multi-access edge computing, AI/ML applications.

    Key Features

    • Socket P+ (LGA-4189) support 3rd Gen Intel® Xeon® Scalable processors
    • 8x DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM
    • 2x PCIe Gen4 x16 FHFL slot
    • 2x 2.5" drive bays; 1x M.2 NVMe OR 1x M.2 SATA3

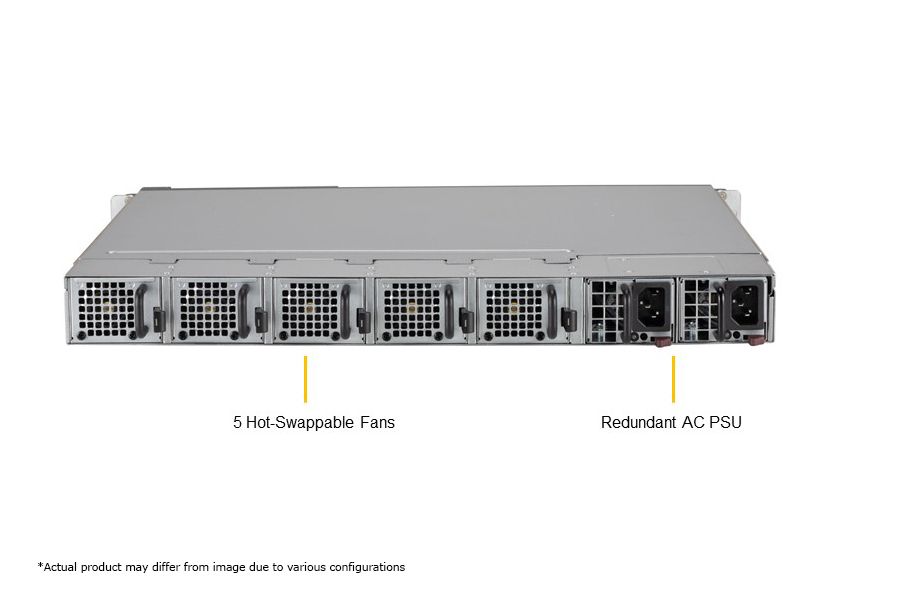

    • 5x hot-swappable counter rotated fans with optimal fan speed control
    • Redundant 800W AC Power Supplies
    • Front-access I/O: 2x 10GBased-T, 1x Dedicated IPMI, 2x USB3.0, 2x USB2.0, 1x COM, 1x VGA

    Key Applications

    • Multi-Access Edge Computing
    • Flex-RAN, Open-RAN vBBU
    • Artificial Intelligence (AI) on Edge, Machine Learning (ML)

    Description

    The SYS-110P-FRN2T is one of the most powerful systems in its form factor. It supports the latest 3rd Gen Intel® Xeon® Scalable processors (up to 32 cores - 205W) and up to 2TB DDR4 memory. This 1U short depth system measures 15.7" (D) x 17.2" (W) x 1.7" (H) and weighs roughly over 18 lbs. It includes front I/O network options with 2 10GbE LAN ports, additional front I/O add-on cards, and PCIe 4.0 slots for GPU or network cards. The system also supports 2.5" internal storage bays and M.2 NVMe/SATA. It's powered by 800W redundant Platinum power supplies.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-110P-FRN2T
    Motherboard
    Installed Motherboard
    • Super X12SPW-TF
    Processor
    CPU
    • Single Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 32C/64T; Up to 48MB Cache
    Note
    • Supports 85W - 205W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1 support
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GBASE-T with Intel® X550
    Input / Output
    LAN
    • 2 RJ45 10 GbE LAN port(s)
    USB
    • 2 USB 3.0 Type-A port(s)
    • 2 USB 2.0 Type-A port(s)
    Video
    • 1 VGA port(s)
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support, PEPI
    Chassis
    Form Factor
    • 1U
    Model
    • CSE-515M-R804
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 15.7" (399 mm)
    Package
    • 8" (H) x 27" (W) x 24" (D)
    Weight
    • Gross Weight: 18 lbs (8.16 kg)
    Available Color
    • Black
    Front Panel
    LED
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Network Activity LEDs
    • Power status LED
    Buttons
    • Power On/Off button
    • System Reset button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 4.0 x16 FHFL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 2 bays:
    • 2 internal fixed 2.5" SATA drive bays

    M.2
    • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110)
    System Cooling
    Fans
    • 5 heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud
    Power Supply
    1x 800W Redundant Platinum Level (94%) power supply
    Dimension (WxHxL):
    • 54.5 x 40.25 x 220 mm

    AC Input:
    • 750W: 100-127Vac / 50-60Hz
    • 800W: 200-240Vac / 50-60Hz
    • 800W: 230-240Vdc / 50-60Hz

    +12V:
    • Max: 62.5A / Min: 0.5A (100Vac-127Vac)
    • Max: 66.6A / Min: 0.5A (200Vac-240Vac)
    • Max: 66.6A / Min: 0.5A (230Vdc-240Vdc)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12SPW-TF1Super X12SPW-TF Motherboard
    CSE-515M-R80411U Chassis
    Cable
    CBL-0483L27pin SATA (STR to STR), 29cm, PBF
    CBL-OTHR-1214-242FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS
    Fan
    FAN-0207L4240x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan
    Air Shroud
    MCP-310-51507-0B1Mylar Air Shroud for SC515M + X11SPW/X12SPW
    Riser Card
    RSC-W-66G411U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0077V1X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
    *Power Supply
    PWS-804P-1R21U 800W 100-240VAC/50-60Hz, and DC240V input
    *Power Distributor
    PDB-PT515M-242411U support redundancy up to 800W for SC515M chassis with ATX

    Optional Part List

    Part Number Quantity Description
    TPM security module
    AOM-TPM-9671V-SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9670V-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
