  2. UP 1U WIO X12SPW-TF, CSV-116TS-R000WNBP2-1, PWS-861A-1R,

UP 1U WIO X12SPW-TF, CSV-116TS-R000WNBP2-1, PWS-861A-1R,

SYS-110P-WTR-EU

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10357/image_1920?unique=a1dbe1e

kr 20,255.76 20255.760000000002 NOK kr 20,255.76

kr 20,255.76

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-110P-WTR-EU is a high-performance 1U rackmount server designed for virtualization, cloud computing, and enterprise applications. It leverages 3rd Gen Intel Xeon Scalable processors and supports up to 2TB of DDR4 memory.

    Key Features

    • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
    • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
    • 2 PCIe 4.0 x16 (FHFL) slots, 1 PCIe 4.0 x16 (LP) slot
    • Intel® Ethernet Controller X550 2x 10GbE RJ45
    • 10x hot-swap 2.5'' SATA3 drive bays with 4 hybrid NVMe/SATA drive bays, SAS3 with additional SAS controller card; Onboard 1x NVMe/SATA M.2
    • Redundant Platinum 750W Power Supply

    Key Applications

    • Virtualization
    • Cloud Computing
    • Enterprise Server
    • Data Center Optimized
    • Database Processing and Storage

    Description

    SYS-110P-WTR Back View

    Supermicro WIO SuperServer® systems allow users to select from a wide range of I/O options to optimize the storage and networking solutions to best fit their applications. In addition to enabling customizable configurations and optimization for a wide range of application requirements, Supermicro WIO SuperServers also provide attractive cost advantages and investment protection.

    The Supermicro SYS-110P-WTR WIO SuperServer® supports Intel® Xeon® Scalable Processors (up to 36 cores) and 3TB ECC DDR4-2933MHz RDIMM/LRDIMM memory in 8 DIMM slots. The SYS-110P-WTR includes 10 hot-swappable 2.5” SATA drive bays which makes changing hard drives easy without needing to open up the server. In addition, this WIO supports up to 2 SuperDOM with built-in power which is designed for use as a boot drive, backup recovery device, license drive, or OS installation device (replacing CD/DVD-ROMs). It can also be utilized as an embedded system storage element (to be deployed into very harsh environments where mechanical hard disk drives would fail or in a thin client due to its small size and power requirements).

    SYS-110P-WTR Front View

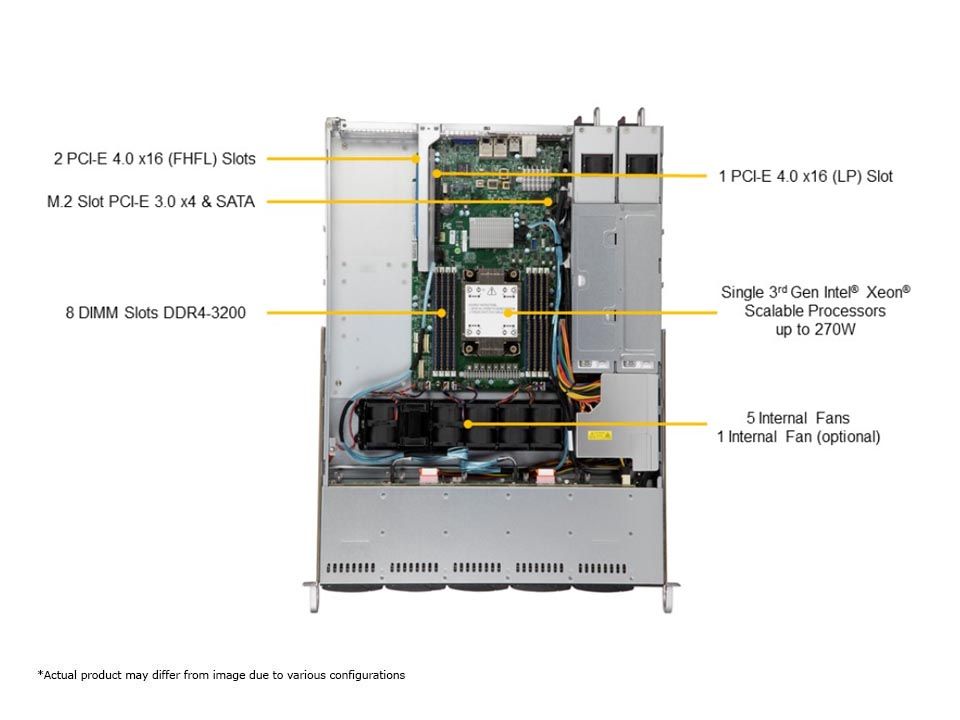

    The 1U UP WIO server supports up to 3 add-on cards (via included riser card) and LAN that supports up to dual 10GBase-T with Intel® Ethernet Controller X550 ports. To power the entire system, there is a 750W Platinum power supply with over a 94% efficiency rating.

    Supermicro WIO SuperServers are optimized for General Purpose, ERP/MRP, and Network and Security Appliance Applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-110P-WTR Standard version with PWS-706P-1R (Platinum Level)
    • SuperServer SYS-110P-WTR-EU European version with PWS-861A-1R (Titanium Level)
    Motherboard
    Installed Motherboard
    • Super X12SPW-TF
    Processor
    CPU
    • Single Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 40C/80T; Up to 60MB Cache
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 single-width GPU
    Supported GPU
    • NVIDIA PCIe: T400, T1000, A2
    CPU-GPU Interconnect
    • PCIe 4.0 x16 CPU-to-GPU Interconnect
    System Memory
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support
    NVMe
    • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GbE with Intel® X550
    Input / Output
    LAN
    • 2 RJ45 10 GbE LAN port(s)
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1)
    USB
    • 2 USB 2.0 port(s) (header)
    • 2 USB 3.2 Gen1 Type-A port(s) (rear)
    • 2 USB 2.0 Type-A port(s) (rear)
    • 2 USB 3.2 Gen1 Type-A port(s) (front)
    • 1 USB 3.2 Gen1 Type-A port(s)
    Video
    • 1 VGA 2 port(s)
    Serial
    • 1 COM port(s) (Rear)
    • 1 COM port(s) (Header)
    DOM
    • 2 Super DOM (Disk on Module) port(s) with built-in power
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-116TS-R706WBP4
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 23.5" (597 mm)
    Package
    • 8" (H) x 24" (W) x 32" (D)
    Weight
    • Gross Weight: 38 lbs (17.24 kg)
    • Net Weight: 25 lbs (11.34 kg)
    Available Color
    • Black
    Front Panel
    LED
    • Device Activity
    • LAN 1 Activity
    • LAN 2 Activity
    • Power status
    • System information
    Buttons
    • Power On/Off
    • UID button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 4.0 x16 FHFL slots
    • 1 PCIe 4.0 x16 LP slot

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 10 bays:
    • 6 front hot-swap 2.5" SAS*/SATA drive bays
    • 4 front hot-swap 2.5" PCIe 4.0 NVMe*/SAS*/SATA drive bays

    • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110)
    System Cooling
    Fans
    • 5 counter-rotation PWM 40x40x56mm Fan(s)
    • 1 AOC cooling Fan(s) (optional)
    Power Supply
    2x 750W Redundant (1 + 1) Platinum Level (94%) power supplies
    Dimension (WxHxL):
    • 54.5 x 40.25 x 320 mm

    AC Input:
    • 700W: 100-140Vac / 50-60Hz
    • 750W: 200-240Vac / 50-60Hz

    +12V:
    • Max: 58A / Min: 0.5A (100Vac-140Vac)
    • Max: 62A / Min: 0.5A (200Vac-240Vac)

    5V SB:
    • Max: 3A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Certification:
    • Platinum Level

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12SPW-TF1Super X12SPW-TF Motherboard
    CSE-116TS-R706WBP411U Chassis
    Backplane
    BPN-SAS3-LB16A-N1011U 10-Slot SFF Backplane Supports 10xSAS3/SATA3/NVMe4 Storag
    Cable
    CBL-SAST-1234A-1001SlimSAS x4 (STR) to 4x SATA,65CM,100 OHM,RoHS
    CBL-SAST-1285-1002Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R
    CBL-0335L1FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Fan
    FAN-0141L4540x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
    Manual
    MNL-2265-QRG1110P-WTR Quick Reference Guide
    Riser Card
    RSC-W-66G411U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
    RSC-WR-611U RHS WIO Riser card with one PCIe 4.0 x16 slot,HF,RoHS
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0077P11U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    *Power Supply
    PWS-706P-1R21U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
    MCP-250-00009-0N1SC113 Redundant Power Distributor Cover
    *Power Distributor
    PDB-PT112-S24241WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424
    *Front Panel
    FPB-FP116-DU31Front control board with two USB 3.0 for SC116/SC119X
    *Parts
    MCP-120-00029-0N2Blank FH L bracket without SCSI cutout for SC815,823
    MCP-120-00030-0N1Blank LP L-bracket (1 raw of capsule hole)
    *Drive Tray(s)
    MCP-220-00047-0B10Black gen 3rd hot-swap 2.5inch HDD tray
    *Rear Window
    MCP-240-00098-0N1WIO rear window for SC113,SC116, SC815 Redundant PWS
    *Rail Set
    MCP-290-00016-0N11U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
    MCP-290-00063-0N1setRail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
    *Air Shroud
    MCP-310-19002-0N1SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB
    *Fan Holder
    MCP-320-00027-0B24Plastic pin for 40x28, 40x56 fan
    MCP-320-00028-0B1Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116
    MCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)

    Optional Part List

    Part Number Quantity Description
    Add-on Card for additional M.2
    AOC-SLG3-2H8M2-Standard LP, PCIe 3.0 x8, supports 2x NVMe/SATA M-Key M.2 Modules; RAID 0,1
    CacheVault
    BTR-CV3916-1U1 (For S3908/S3916)1CacheVault for Broadcom 3908/3916 with SuperCap mounting in 1U 40x56 fan tray
    BTR-CVPM05 + MCP-240-00203-0N (For S3908/S3916)1CacheVault for Broadcom 3908/3916 with SuperCap mounting bracket for PCIe location
    BTR-TFM8G-LSICVM02 + MCP-240-00203-0N (For S3108)1CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCIe location
    BTR-CV3108-1U1 (For S3108)1CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray
    Cooling Fan
    FAN-0141L4140x40x56 mm, 20.5K RPM / 17.6K RPM, Counter-rotating Fan
    Front Bezel
    MCP-210-11601-0B1Black Front Bezel
    Inlet Thermal Sensor
    MCP-280-00033-0N1Universal Thermal sensor kit with 80cm I2C cable
    Intel VROC RAID Key for NVMe
    AOC-VROCSTNMOD1Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
    AOC-VROCPREMOD1Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
    AOC-VROCINTMOD1Intel SSD Only Upgrade module; RAID 0/1/10/5
    NVMe Cable(s)
    CBL-SAST-1231-85-Slimline x8 (STR) to Slimline x8 (STR),INT,30CM, 85 OHM
    NVMe Drive Try(s)
    MCP-220-00167-0B-Tool-less Hot-swap Gen-3 NVMe drive tray, Orange tab, Black
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    Storage Control Card and Cable(s)
    AOC-S3916L-H16iR-32DD + 2x CBL-SAST-1261-1001Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 32HDD; RAID 0, 1, 5, 6, 10, 50, 60
    AOC-S3108L-H8iR-16DD1Standard LP, 8 Internal ports (12Gb/s) PCIe 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
    AOC-S3008L-L8I1Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 63HDD; RAID 0, 1, 10
    AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1261-1001Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
    Storage Control Card and Cable(s) (HBA)
    AOC-S3008L-L8E1Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 122HDD; HBA
    AOC-S3808L-L8IT+ 1x CBL-SAST-1261-1001Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
    AOC-S3816L-L16IT + 2x CBL-SAST-1261-1001Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
    TPM
    AOM-TPM-9670V-S-O1TPM 2.0, vertical form factor, provisioned for server
    AOM-TPM-9671V-S-O1TPM 1.2, vertical form factor, provisioned for server
