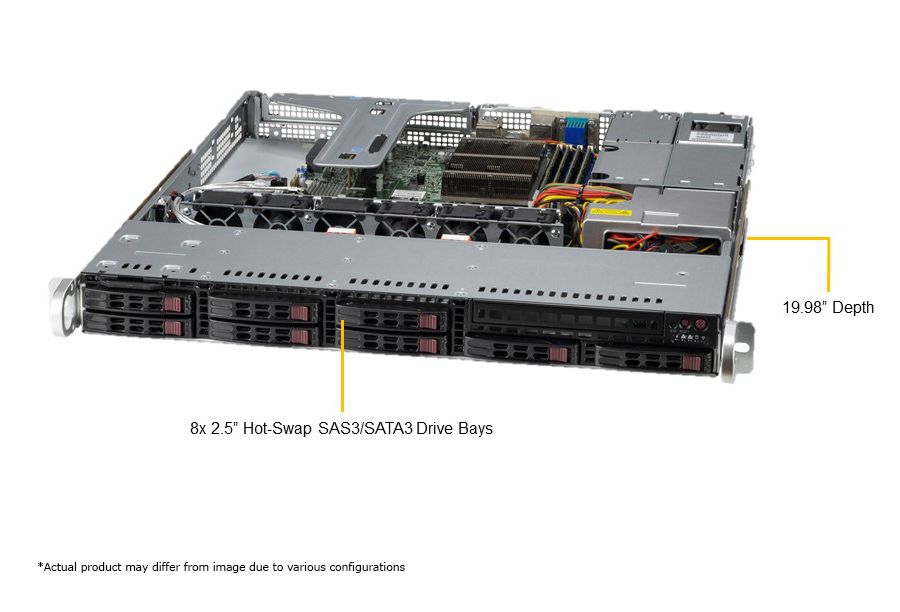

UP 1U X12STH-SYS, CSE-113MFAC2-407RCBP-1P,HF,RoHS

SYS-110T-M

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10364/image_1920?unique=7c1c8fe

kr 14,789.83 14789.83 NOK kr 14,789.83

kr 14,789.83

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-110T-M Mainstream SuperServer offers a robust and efficient entry-level solution for enterprise IT environments. Designed for mainstream applications, it supports up to a single Intel Xeon E-2300 series processor, 128GB DDR4 ECC UDIMM memory, and various configurations of storage and expansion slots, all powered by a 400W Platinum Level power supply.

    Key Features

    • Single Socket H5 (LGA-1200) supports Intel® Xeon® E-2300 series, Intel® Pentium® processors
    • 4 DIMMs; Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz
    • 1 PCIe 4.0 x16 or 2 PCIe 4.0 x8 (FHHL);1 Dedicated Internal HBA slot
    • Intel® Ethernet Controller i210 2x 1GbE RJ45
    • Default single Platinum 400W Power Supply; Optional redundant power by adding 1x Power Supply Module

    Key Applications

    • Web/Hosting Application
    • Database Processing and Storage
    • Encoding Decoding

    Description

    Supermicro's SYS-110T-M Mainstream Application Optimized SuperServer is designed for enterprise IT managers looking for an economic yet powerful server solution. It supports a single Intel Xeon E-2300 series processor with up to 128GB ECC UDIMM DDR4 memory. Featuring numerous PCI-E slots, 2x RJ45 1GbE LAN ports, and a 400W power supply, this 1U rackmount server is ideal for web/hosting applications, database processing and storage, and encoding/decoding. Its design prioritizes CAPEX savings while ensuring energy efficiency.

    Product Specifications

    Product SKUs
    SuperServerSYS-110T-MStandard version with PWS-407P-1R (Platinum Level)
    SuperServerSYS-110T-M-EUEuropean version with PWS-602A-1R (Titanium Level)
    Motherboard
    Super X12STH-SYS
    Processor
    CPUSingle Socket H5 (LGA-1200)
    Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors
    Core CountUp to 8C/16T; Up to 16MB Cache
    NoteSupports up to 95W TDP CPUs (Air Cooled)
    GPU
    Max GPU CountUp to 1 single-width GPU(s)
    Supported GPUNVIDIA PCIe: T400, T1000
    View GPU Options
    CPU-GPU InterconnectPCIe 4.0 x16 CPU-to-GPU Interconnect
    System Memory
    MemorySlot Count: 4 DIMM slots
    Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
    View Memory Options
    Memory Voltage1.2V
    On-Board Devices
    SATASATA (6Gbps) ; RAID 0/1/5/10 support
    ChipsetIntel® C256
    Network Connectivity2 RJ45 1GbE with Intel® I210
    View AOC Options
    Input / Output
    LAN2 RJ45 1 GbE LAN port(s)
    1 RJ45 1 GbE Dedicated IPMI LAN port(s) (IPMI shared on LAN port 1)
    USB4 USB 2.0 port(s) (header)
    2 USB 3.2 Gen1 Type-A port(s) (rear)
    2 USB 2.0 Type-A port(s) (rear)
    2 USB 3.2 Gen1 port(s) (Header)
    1 USB 3.2 Gen1 Type-A port(s) (Header)
    Video1 VGA port(s)
    Serial1 COM port(s) (Rear)
    1 COM port(s) (Header)
    DOM2 SuperDOM(Disk on Module) port(s) with built-in power
    TPM1 TPM header
    System BIOS
    BIOS TypeAMI 32MB SPI Flash EEPROM
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsACPI/APM Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    System Lockdown
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory
    6 + 2 + 1 Phase-switching voltage regulator
    FANFans with tachometer monitoring
    Status monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    Chassis
    Form Factor1U Rackmount
    ModelCSE-113MFTS-407RCBP-1P
    Dimensions and Weight
    Height1.7" (43 mm)
    Width17.2" (437 mm)
    Depth19.98" (507 mm)
    Package8.5" (H) x 24" (W) x 29.5" (D)
    WeightGross Weight: 30.4 lbs (13.8 kg)
    Net Weight: 17.6 lbs (8 kg)
    Available ColorBlack
    Front Panel
    LEDDevice Activity
    LAN 1 Activity
    LAN 2 Activity
    Power status
    System information
    ButtonsPower On/Off
    System Reset
    UID button
    Expansion Slots
    PCI-Express (PCIe) ConfigurationDefault1 PCIe 4.0 x8 FHHL slot(s)1 PCIe 4.0 x8 LP slot(s)
    Option A1 PCIe 4.0 x16 FHHL slot(s)
    View AOC Options
    Drive Bays / Storage
    Drive Bays ConfigurationDefault: Total 8 bay(s)8 front hot-swap 2.5" SATA drive bay(s)
    View Drive Options
    M.21 M.2 PCIe 3.0 x4 SATA slot(s) (M-key 2280/22110)
    View M.2 Options
    System Cooling
    Fans4 middle cooling PWM 40x40x28mm Fan(s)
    2 AOC cooling Fan(s) (optional)
    Power Supply
    1x 400W1x 400W Redundant Platinum Level (94%) power supplyDimension (WxHxL)54.5 x 40.25 x 220 mmAC Input400W: 100-240Vac / 50-60Hz400W: 200-240Vdc / 50-60Hz+12VMax: 33A / Min: 0A (100Vac-240Vac)5V SBMax: 3A / Min: 0AOutput TypeBackplanes (gold finger)
    1x 400W1x 400W Redundant Platinum Level (94%) power supplyDimension (WxHxL)54.5 x 40.25 x 220 mmAC Input400W: 100-240Vac / 50-60Hz400W: 200-240Vdc / 50-60Hz+12VMax: 33A / Min: 0A (100Vac-240Vac)5V SBMax: 3A / Min: 0AOutput TypeBackplanes (gold finger)
    Operating Environment
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X12STH-SYS1Super X12STH-SYS Motherboard
    CSE-113MFTS-407RCBP-1P11U Chassis
    Backplane
    Part NumberQuantityDescription
    BPN-SAS3-113A-N218-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3 Storage Devices
    Cable
    Part NumberQuantityDescription
    CBL-0296L19" 4 PIN FAN PWS EXTENSION CORD, PBF
    CBL-SAST-05681Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s
    CBL-SAST-06311Cross-over Mini SAS HD to 4 SATA w/SB, S. 55cm. 30AWG
    CBL-0335L1FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
    CBL-PWCD-0160-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Air Shroud
    Part NumberQuantityDescription
    MCP-310-81307-0B1Mylar Air Shroud for SC813MF2/SC113MF_RCB with X12STH
    Manual
    Part NumberQuantityDescription
    MNL-2421-QRG1110T-M Quick Reference Guide
    Riser Card
    Part NumberQuantityDescription
    Proprietary Riser Card11U RHS Standard Riser card with one PCIe 4.0 X16 and one PC
    Software
    Part NumberQuantityDescription
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    Part NumberQuantityDescription
    Proprietary Heatsink1Proprietary 1U Passive CPU HS, Rocket Lake (SKT-H5 LGA-1200)
    *Power Supply
    Part NumberQuantityDescription
    PWS-407P-1R1AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
    MCP-250-00016-0V1Redundant Silver plastic PDB cover for SC813M,113M
    MCP-250-00018-0N1PWS dummy cover for 1U redundant power suppy w/ handle (54.5mm wide)
    *Power Distributor
    Part NumberQuantityDescription
    PDB-PT813M-S24241Power distributor with shorter 24pin for SC813M chassis
    *Fan
    Part NumberQuantityDescription
    FAN-0154L4440x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
    *Front Panel
    Part NumberQuantityDescription
    FPB-FP1121Front control board for SC113,113M (U/C share
    *Drive Tray(s)
    Part NumberQuantityDescription
    MCP-220-00047-0B8Black gen 3rd hot-swap 2.5inch HDD tray
    *Rear Window
    Part NumberQuantityDescription
    MCP-240-00195-0N1Non-C Rear window Assy for SC813MF2/SC113MF_RCB redundant PWS
    *Rail Set
    Part NumberQuantityDescription
    MCP-290-00016-0N11U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
    MCP-290-00102-0N1Outer rail, quick-release type, 25.6
    MCP-290-00108-0N1 setInner rail, front, short, quick-release type
    MCP-290-00110-0N1Inner rail, extension (quick) for 1U 17.2
    *Peripheral Drive
    Part NumberQuantityDescription
    MCP-290-00036-0B1Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
    *Parts
    Part NumberQuantityDescription
    MCP-290-00037-0N1SC113 Control panel module (w/o DVD)
    MCP-340-00001-012Dummy fan 40x28mm
    *Fan Holder
    Part NumberQuantityDescription
    MCP-320-00060-0N1Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15")

    Optional Part List

    CacheVault
    Part NumberQuantityDescription
    BTR-L3-00099-02 + MCP-240-81305-0N (For S3908)1CacheVault for Broadcom 3908 with SuperCap mounting bracket for internal fixed location
    BTR-CV3108-U1 + MCP-240-81305-0N (For S3108)1CacheVault for Broadcom 3108 with SuperCap mounting bracket for internal fixed location
    Cooling Fan(s)
    Part NumberQuantityDescription
    FAN-0154L4•-40x40x28 mm, 22.5K RPM, Middle Cooling Fan
    DVD-ROM / DVD-RW
    Part NumberQuantityDescription
    DVM-TEAC-DVD-SBT51TEAC slim DVD-ROM SATA drive
    DVM-TEAC-DVDRW-SBT51PHILPS slim DVD-RW SATA drive
    DVD-ROM Accessory
    Part NumberQuantityDescription
    CDM-USATA-G + 1x CBL-0341L1Slim SATA DVD USB adapter & USB Cable
    Front Bezel
    Part NumberQuantityDescription
    MCP-210-11601-0B1Black Front Bezel
    Inlet Thermal Sensor
    Part NumberQuantityDescription
    MCP-280-00033-0N1Universal Thermal sensor kit with 80cm I2C cable
    Power Supply
    Part NumberQuantityDescription
    PWS-407P-1R•1Optional redundant power supply
    Software
    Part NumberQuantityDescription
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    Storage Control Card and Cable(s)
    Part NumberQuantityDescription
    AOC-S3008L-L8I+ 1x CBL-SAST-0568•1Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 63HDD; RAID 0, 1, 10
    AOC-S3108L-H8iR-16DD+ 1x CBL-SAST-0568•1Standard LP, 8 Internal ports (12Gb/s) PCIe 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
    AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1264-1001Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
    Storage Control Card and Cable(s) (HBA)
    Part NumberQuantityDescription
    AOC-S3008L-L8E+ 1x CBL-SAST-0568•1Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 122HDD; HBA
    AOC-S3808L-L8IT+ 1x CBL-SAST-1264-1001Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
    TPM
    Part NumberQuantityDescription
    AOM-TPM-9670H-O•1TPM 2.0, horizontal form factor
    AOM-TPM-9671H-O1TPM 1.2, horizontal form factor
