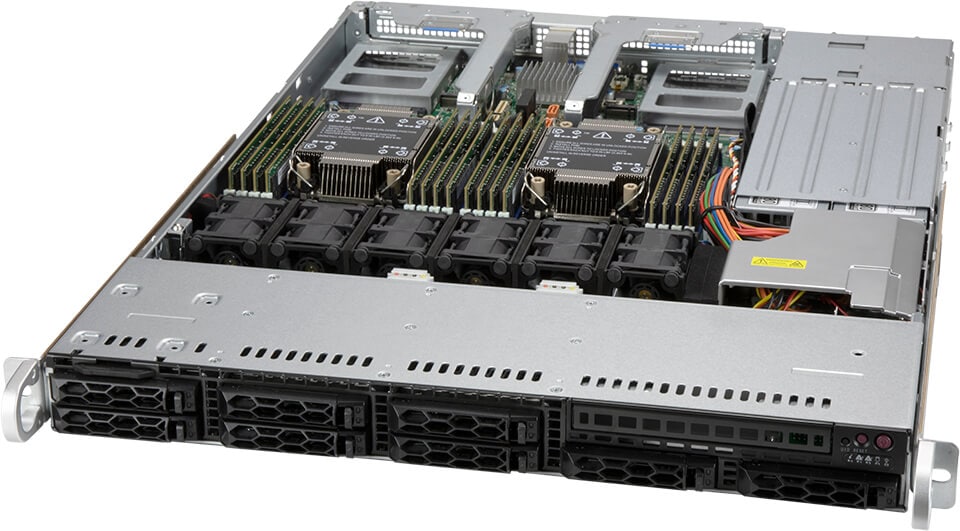

X12 CloudDC 1U, 8x 2.5" SATA, X12DDW-A6, LB13AC2-R860AW

SYS-120C-TR

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC). NIC requirement can either be AIOM or PCIe card.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10333/image_1920?unique=ddaceb9

kr 21,891.18 21891.18 NOK kr 21,891.18

kr 21,891.18

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-120C-TR is designed to deliver high performance and versatility, featuring dual LGA-4189 sockets for 3rd Gen Intel® Xeon® Scalable processors, up to 6TB of DDR4 memory, multiple expansion slots, and redundant power supplies, making it an ideal solution for data center, cloud computing, and edge applications.

    Key Features

    • Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
    • Intel® C621A Chipset
    • 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® Intel® DCPMM
    • 2 PCIe 4.0 x16 FHHL;2 PCIe 3.0 x2 NVMe M.2
    • Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN
    • 8x 2.5" hot-swap SATA/SAS drive bays
    • 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
    • 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
    • 1 VGA, 1 COM, 2 USB 3.0 (rear)

    Key Applications

    • Web Server, Firewall Application
    • Data Center Optimized, Value IaaS
    • Cloud Computing, Compact Server
    • DNS & Gateway Servers, Firewall Application
    • CDN, Edge Nodes

    Description

    The Supermicro SYS-120C-TR is a 1U rackmount server powered by dual 3rd Gen Intel® Xeon® Scalable processors, supporting up to 40C/80T and up to 6TB of DDR4 memory. It includes 8x 2.5" hot-swap drive bays, 6 heavy-duty fans, and redundant Platinum level power supplies. The server's extensive connectivity options, including multiple PCIe slots, AIOM networking, and Intel® Optane™ support, make it suitable for a wide range of enterprise applications such as web servers, firewalls, cloud computing, and data centers.

    Product Specifications

    Product SKUs
    SuperServerSYS-120C-TRStandard version with PWS-860P-1R2 (Platinum Level)
    SuperServerSYS-120C-TR-EUEuropean version with PWS-861A-1R (Titanium Level)
    Motherboard
    Super X12DDW-A6
    Processor
    CPUDual Socket P4 (LGA-4189)
    3rd Gen Intel® Xeon® Scalable processors
    Core CountUp to 40C/80T; Up to 60MB Cache per CPU
    NoteSupports up to 270W TDP CPUs (Air Cooled)*
    *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
    GPU
    Max GPU CountUp to 2 single-width GPU(s)
    Supported GPUNVIDIA PCIe: L4, A2
    Intel PCIe: Intel Data Center GPU Flex 140
    View GPU Options
    System Memory
    MemorySlot Count: 16 DIMM slots
    Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Supports Intel® Optane™ persistent memory 200 series
    View Memory Options
    Memory Voltage1.2V
    On-Board Devices
    SATASATA (6Gbps) ; RAID 0/1/5/10 support
    ChipsetIntel® C621A
    Network ConnectivityVia Slim-AIOM
    View AIOM Options
    View AOC Options
    Input / Output
    LAN1 RJ45 1 GbE Dedicated IPMI LAN port(s)
    USB2 USB 3.0 port(s) (rear)
    Video1 VGA port(s)
    Serial1 COM port(s) (Rear)
    DOM1 SuperDOM(Disk on Module) port(s)
    TPM1 TPM header
    System BIOS
    BIOS TypeAMI 32MB SPI FLASH ROM
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsACPI/APM Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    System Lockdown
    PC Health Monitoring
    FANFans with tachometer monitoring
    Status monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    CPUMonitors for CPU Cores, Chipset Voltages, Memory.
    8 Phase-switching voltage regulator
    Chassis
    Form Factor1U Rackmount
    ModelCSE-LB13TS-R860AWP
    Dimensions and Weight
    Height1.7" (43 mm)
    Width17.2" (437 mm)
    Depth23.5" (597 mm)
    Package7.8" (H) x 23.8" (W) x 32.4" (D)
    WeightGross Weight: 40 lbs (18.1 kg)
    Net Weight: 25 lbs (11.3 kg)
    Available ColorBlack front & silver body
    Front Panel
    LEDDrive activity
    Network activity
    Power status
    Universal Information
    ButtonsPower On/Off
    Reset button
    Unit Identifier (UID)
    Expansion Slots
    PCI-Express (PCIe) ConfigurationDefault2 PCIe 4.0 x16 FHHL slot(s)
    Option A2 PCIe 4.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    View AOC Options
    Drive Bays / Storage
    Drive Bays ConfigurationDefault: Total 8 bay(s)8 front hot-swap 2.5" SAS*/SATA drive bay(s)
    (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    View Drive Options
    M.22 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280(default); VROC required for RAID)
    View M.2 Options
    Peripheral Bays1 slim DVD bay(s) (optional)
    System Cooling
    Fans6x 4cm heavy duty fans with optimal fan speed control
    Air Shroud2 Air Shroud(s)
    Power Supply
    1x 860W1x 860W Redundant Platinum Level (94%) Hot-plug power supplyDimension (WxHxL)54.5 x 40.25 x 322 mmAC Input800W: 100-127Vac / 50-60Hz860W: 200-240Vdc / 50-60Hz860W: 200-240Vac / 50-60Hz+12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc)Max: 71.6A / Min: 0A (200Vac-240Vac)5V SBMax: 4A / Min: 0AOutput TypeBackplanes (gold finger)
    1x 860W1x 860W Redundant Platinum Level (94%) Hot-plug power supplyDimension (WxHxL)54.5 x 40.25 x 322 mmAC Input800W: 100-127Vac / 50-60Hz860W: 200-240Vdc / 50-60Hz860W: 200-240Vac / 50-60Hz+12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc)Max: 71.6A / Min: 0A (200Vac-240Vac)5V SBMax: 4A / Min: 0AOutput TypeBackplanes (gold finger)
    Operating Environment
    ROHSRoHS Compliant
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Operating Relative Humidity: 8% to 90% (Non-Condensing)
    Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

    Optional Part List

    3108 CacheVault
    Part NumberQuantityDescription
    BTR-TFM8G-LSICVM021CacheVault for Broadcom 3108 (requires a SuperCap mount)
    BTR-CV3108-1U11CacheVault for Broadcom 3108 with mount for 1U 40 cm fan slot. (Note: It will replace one fan and lower overall system cooling)
    3108 RAID Card
    Part NumberQuantityDescription
    CBL-SAST-0593•2Internal Mini-SAS HD to Mini-SAS HD 60cm
    AOC-S3108L-H8IR-16DD1Standard LP 8 internal ports (12Gb/s) Gen-3 16HDD RAID 0, 1, 5, 6, 10, 50, 60
    3808 HBA Card
    Part NumberQuantityDescription
    CBL-SAST-1264-1001Slimline x8 (STR) to 2x MiniSAS HD x4 65CM
    AOC-S3808L-L8IT1Standard LP 8 internal ports (12Gb/s) Gen-4 16HDD HBA
    3908 RAID Card
    Part NumberQuantityDescription
    AOC-S3908L-H8IR-16DD1Standard LP 8 internal ports (12Gb/s) Gen-4 122HDD RAID 0, 1, 5, 6, 10, 50, 60
    CBL-SAST-1264-1001Slimline x8 (STR) to 2x MiniSAS HD x4 65CM
    3908/3916 CacheVault
    Part NumberQuantityDescription
    BTR-CVPM051CacheVault for Broadcom 3908/3916 (requires a mount)
    AIOM Network Card(s)
    Part NumberQuantityDescription
    AOC-AG-i2M-OCP 3.0 AIOM 2x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM2
    AOC-ATGC-i2TM-OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X710-AT2
    AOC-ATG-i4SM-OCP 3.0 AIOM 4x 10GbE SFP+ PCIe 3.0 x8 Intel® XL710-BM1
    AOC-A100G-b2CM-OCP 3.0 AIOM 2x 100GbE QSFP28 PCIe 4.0 x16 Broadcom® BCM57508
    AOC-A25G-b2SM-OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Intel® E810-XXVAM2
    AOC-A25G-i2SM-OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1
    AOC-A25G-i4SM-OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1
    AOC-A25G-m2SM-OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Mellanox® CX-6 LX
    AOC-AG-i4M-OCP 3.0 AIOM 4x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM4
    AOC-AG-i4SM-OCP 3.0 AIOM 4x 1GbE SFP PCIe 2.1 x4 Intel® i350-AM4
    AOC-AH25G-m2S2TM-OCP 3.0 AIOM 2x 25GbE SFP28 & 2x 10GbE RJ45 PCIe x8/x4 Mellanox® CX4 Lx EN & Intel® X550-AT2
    AOC-ATG-b2TM-OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Broadcom® BCM57416
    AOC-ATG-i2SM-OCP 3.0 AIOM 2x 10GbE SFP+ PCIe 3.0 x8 Intel® X710-BM2
    AOC-ATG-i2T2SM-OCP 3.0 AIOM 4x 10GbE RJ45 & SFP+ PCIe x8 Intel® X710-TM4
    AOC-ATG-i2TM-OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X550-AT2
    Cable Management Arm
    Part NumberQuantityDescription
    MCP-290-00152-0N•11U Supermicro Cable Management Arm 2nd Gen
    CacheVault Mount
    Part NumberQuantityDescription
    MCP-240-00127-0N1CacheVault mounting tray for 2.5" drive bay
    MCP-240-00203-0N1CacheVault mounting bracket for PCIe slot
    MCP-240-21747-0N1CacheVault mounting card for AIOM slot
    DVD
    Part NumberQuantityDescription
    MCP-220-81502-0N•1Slim SATA DVD mounting kit
    DVM-TEAC-DVDRW-SBT51BLACK TEAC SLIM DVD-RW SATA DRIVE
    CBL-0234L•1Big-4-pin M Y-split to two Big-4-pin F
    CBL-0161L115 cm power Y-split to 2x small 4-pins
    Fan Upgrade
    Part NumberQuantityDescription
    FAN-0163L4•640x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan
    Front USB Kit
    Part NumberQuantityDescription
    MCP-220-00087-0B•1Black USB tray for slim DVD bay
    Inlet Temp Sensor
    Part NumberQuantityDescription
    MCP-280-00033-0N1Universal Thermal sensor kit with 80cm I2C cable
    License
    Part NumberQuantityDescription
    SFT-DCMS-SINGLE•1Supermicro System Managment Software License
    SFT-SDDC-SINGLE1Supermicro Data Center Monitor License
    M.2 Tray
    Part NumberQuantityDescription
    AOC-SLG4-2H8M2-Low Profile PCIe x8 add-on card supports 2 PCIe 4.0 x4 M-Key M.2 NVMe/SATA Modules RAID 0,1
    AOC-SLG3-2M2-Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 NVMe Modules
    AOC-SLG3-2NM2-Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 NVMe Modules RAID 0,1
    AOC-SLG3-2SM2-Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 SATA Modules RAID 0,1
    NC-SI Cable
    Part NumberQuantityDescription
    CBL-PWEX-1099-341FLAT IDC 2X11F/P1.27 TO IDC 2X11F/P1.27 NCSI 0.5A 35CM
    Power Supply Upgrade
    Part NumberQuantityDescription
    PWS-1K27A-1R•21200W Redundant Titanium Level Power Supply
    TPM
    Part NumberQuantityDescription
    AOM-TPM-9672V1SPI capable TPM 2.0 with Infineon 9672 controller vertical form factor
    AOM-TPM-9670V-S-FIPS1SPI capable TPM 2.0 with Infineon 9670 controller w/ FIPS vertical form factor
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller vertical form factor
    AOM-TPM-9672V-FIPS1SPI capable TPM 2.0 with Infineon 9672 controller w/ FIPS vertical form factor
    VROC HW Key
    Part NumberQuantityDescription
    AOC-VROCSTNMOD1Intel VROC Standard RAID 0, 1, 10
    AOC-VROCPREMOD1Intel VROC Premium RAID 0, 1, 5, 10
