X12DPT-PT6,CSE-809H-R1K05P3,AOC-S3808L-L8IT Base

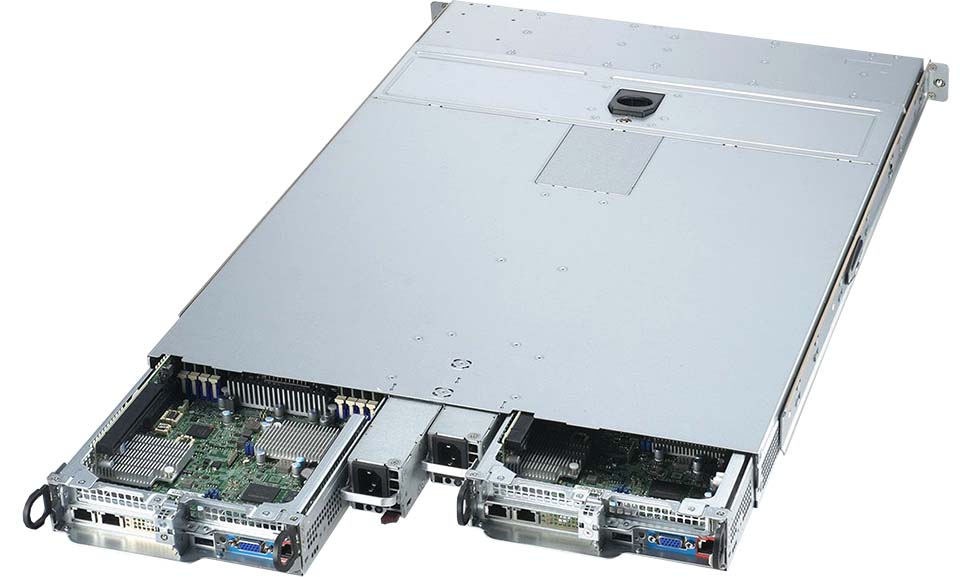

SYS-120TP-DC8TR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10327/image_1920?unique=a1dbe1e

kr 46,979.63 46979.63 NOK kr 46,979.63

kr 46,979.63

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-120TP-DC8TR is a powerful, versatile server designed for tasks requiring high performance computing, hyper-converged infrastructure, and big data applications. It features dual socket P+ (LGA-4189) compatibility, supporting 3rd Gen Intel® Xeon® Scalable Processors, and up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM.

    Key Features

    • Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
    • Intel® C621A Chipset
    • 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
    • 1 PCIe 4.0 x16 (LP), 1 PCIe 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)
    • Intel® X710 Dual port 10GBase-T LAN onboard
    • 4x 2.5" hot-swap SATA/SAS drive bays
    • 6 counter-rotating 4cm PWM fans with optimal fan speed control (Per System)
    • Two 1000W redundant power supplies with PMBus
    • ASPEED AST2600 BMC, 2 USB, VGA. RoTBroadcom® 3808 SAS (12Gbps); 4 slots per node; HBA only, no RAID support.

    Key Applications

    • High Performance Computing
    • Hyper-Converged Infrastructure
    • Big Data / Big Science

    Description

    The Supermicro SYS-120TP-DC8TR is engineered to meet high-performance computing needs with Dual Socket P+ (LGA-4189) for 3rd Generation Intel® Xeon® Scalable Processors, supported by Intel® C621A Chipset. It features 16 DIMM slots supporting up to 4TB 3200MT/s ECC DDR4 RDIMM, a range of PCIe 4.0 slots, hot-swap drive bays, and redundant 1000W power supplies. Advanced management and security features ensure reliability and efficiency for critical operations.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-120TP-DC8TR
    Motherboard
    Installed Motherboard
    • Super X12DPT-PT6
    Processor (per Node)
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 32C/64T; Up to 48MB Cache per CPU
    Note
    • Supports up to 185W TDP CPUs (Air Cooled)
    System Memory (per Node)
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices (per Node)
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GBASE-T with Intel® X710-AT2
    Input / Output (per Node)
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 3.0 port(s) (rear)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 5 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-809H-R1K05P3
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.25" (438 mm)
    Depth
    • 28.25" (718 mm)
    Package
    • 8" (H) x 29.6" (W) x 38.4" (D)
    Weight
    • Gross Weight: 48.1 lbs (21.9 kg)
    • Net Weight: 33.5 lbs (15.2 kg)
    Available Color
    • Black front & silver body
    Front Panel
    LED
    • Network activity LED
    • Power status LED
    • System information (overheat/UID) LED
    Buttons
    • Power On/Off button
    • UID button
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 4.0 x16 LP slot

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 4 bays:
    • 4 front hot-swap 2.5" SAS/SATA drive bays

    M.2
    System Cooling
    Fans
    • 6x 4cm heavy duty fans with optimal fan speed control
    Air Shroud
    • 2 Air Shrouds
    Power Supply
    1x 1000W Redundant Titanium Level (96%) power supply
    Dimension (WxHxL):
    • 38 x 40 x 360 mm

    AC Input:
    • 800W: 100-127Vac / 50-60Hz
    • 1000W: 200-240Vac / 50-60Hz
    • 1000W: 240-240Vdc / 50-60Hz

    +12V:
    • Max: 66.7A / Min: 0A (100Vac-127Vac)
    • Max: 83A / Min: 0A (200Vac-240Vac)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12DPT-PT62Super X12DPT-PT6 Motherboard
    CSE-809H-R1K05P311U Chassis
    Add-on Card / Module
    AOC-S3808L-L8IT-P28 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP,122HDDw/exp,R
    Backplane
    BPN-SAS3-809H311U 8-Port 2.5" Multi-Node Storage Backplane for SMCI X11
    Cable
    CBL-PWCD-09002PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
    CBL-SAST-1334-1002[NR] SlimSAS x8 (STR to STR),34CM,100 OHM,RoHS
    Air Shroud
    MCP-310-21732-0B2TwinPro 2U4N plastic air shroud for X12DPT-PT6(2pcs)
    Riser Card
    RSC-P-6G421U LHS TwinPro Riser card with one PCIe 4.0x16lotH,RoHS
    RSC-PR-6-X221U RHS TwinPro Riser card with one PCIe 4.0 x16 slot,HF,RoH
    Storage Controller Card
    SCC-P2N2M2-P222x NVMe M.2 carrier up to 2280 for X12 Twinpro
    SCC-P6SG4-P121U Passive Gen4 6x SAS/SATA connecting to AOC 3808/3908
    Software
    SFT-OOB-LIC2License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0077PM2X12 ICX/CPX 1U Passive CPU Heatsink (78x113x24.7mm), w/ Center Air channel
    SNK-P0077V2X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
    *Power Supply
    PWS-1K05A-1R21U 1000W Redundant Power Supply Titanium, 38X40X360mm length

    Optional Part List

    Part Number Quantity Description
    TPM security module (optional, not included)
    AOM-TPM-9670H-S1SPI capable TPM 2.0 with Infineon 9670 controller with Horizontal form factor
    AOM-TPM-9671H-S1SPI capable TPM 1.2 with Infineon 9670 controller with Horizontal form factor
    VROC Premium
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10
    VROC Standard
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10
