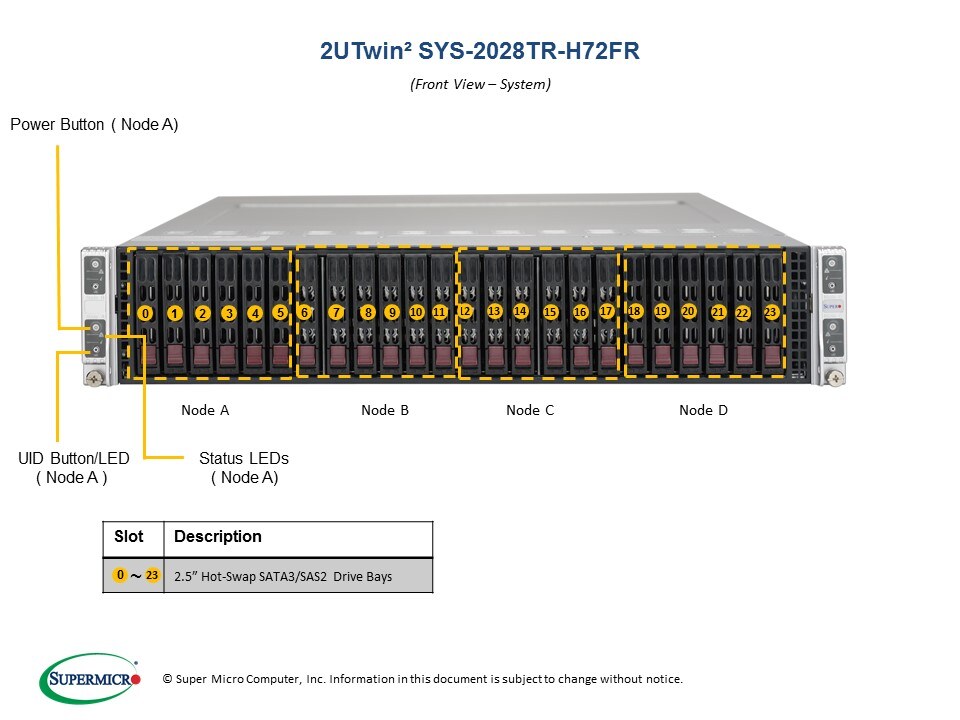

(EOL)X10DRT-HIBFF, CSE-217HQ-R1K68BP, BPN-ADP-S2208L-H6iR
SYS-2028TR-H72FR
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SYS-2028TR-H72FR is a powerful 2U rackmount server that features four hot-pluggable systems, each supporting dual Intel® Xeon® E5-2600 v4/v3 processors, up to 1TB ECC 3DS LRDIMM, and multiple I/O options, including Infiniband and GbE LAN.
Key Features
- Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † / v3 family; QPI up to 9.6GT/s
- Up to 1TB † ECC 3DS LRDIMM , up to DDR4- 2400 † MHz ; 8x DIMM slots
- 1x PCI-E 3.0 x16 (LP) slot
- Single port IB (FDR, 56Gbps), w/ QSFP connector
- Intel® i350 Dual port GbE LAN
- 6x 2.5" Hot-swap SAS2/SATA3 drive bays
- 1600W Redundant Power Supplies Titanium Level
- 2x SATA DOM
Key Applications
- Data center operations
- Virtualization
- High-performance computing
- Cloud storage solutions
- Enterprise applications
Description
Supermicro's SYS-2028TR-H72FR is engineered for high performance and reliability, making it ideal for demanding applications. This 2U server includes four hot-pluggable nodes, each equipped with dual Intel® Xeon® processors, up to 1TB of ECC memory, and robust storage capabilities with six 2.5" hot-swap SAS2/SATA3 drive bays per node. The server also features 1600W redundant power supplies, ensuring continuous operation even in the event of a power supply failure. With comprehensive support for the latest I/O technologies, including PCI-E 3.0, Infiniband, and multiple GbE LAN ports, the SYS-2028TR-H72FR offers unmatched flexibility and performance.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SYS-2028TR-H72FR |
|
| Processor/Cache | |
| CPU |
|
| Cores / Cache |
|
| System Bus |
|
| Note |
|
| Note |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
|
| On-Board Devices (per Node) | |
| Chipset |
|
| Infiniband |
|
| SAS |
|
| SATA |
|
| IPMI |
|
| Network Controllers |
|
| Video |
|
| Input / Output (per Node) | |
| Infiniband |
|
| Serial ATA |
|
| SAS |
|
| LAN |
|
| USB |
|
| Video |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Width |
|
| Height |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots (per Node) | |
| PCI-Express |
|
| Drive Bays (per Node) | |
| Hot-swap |
|
| System Cooling | |
| Fans |
|
| Power Supply (76mm Width) | |
| |
| Total Output Power |
|
| Dimension(W x H x L) |
|
| Input |
|
| +12V |
|
| +5Vsb |
|
| Output Type |
|
| Certification |
|
| System BIOS | |
| BIOS Type |
|
| BIOS Features |
|
| Operating Environment / Compliance | |
| RoHS |
|
| Environmental Spec. |
|
| General | |
| Motherboard (Four per System) |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X10DRT-HIBF | 4 | Super X10DRT-HIBF Motherboard |
| CSE-217HQ-R1K68B | 1 | 2U Chassis |
| Air Shroud | ||
| MCP-310-82715-0B | 4 | Plastic air shroud for SC827H/HQ,217HQ, X9 DP |
| Backplane | ||
| BPN-ADP-S2208L-H6IR | 4 | BPN-ADP-S2208L-H6IR-O-P |
| BPN-SAS-217HQ | 1 | 24-port 2U Twin^2 CSE-217HQ (6 drives per node) backplane, support up to 24x 2.5-inch SAS/SATA HDD |
| Cable 1 | ||
| CBL-PWCD-0900 | 2 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG |
| Label | ||
| LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
| Manual | ||
| MNL-1691-QRG | 1 | MNL-SYS-2028TR-H72R/H72FR,QRG |
| Riser Card | ||
| RSC-R1UTP-E16R | 4 | 1U RHS TwinPro Riser card with one PCI-E x16 slot |
| Heatsink / Retention | ||
| SNK-P0047PW | 4 | 1U Passive Custom Rear CPU Heat Sink for X9, X10 1U Twin, 2U Twin^2 8-DIMM per Node Series Servers |
| SNK-P0047PS | 4 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB |
| Power Supply | ||
| PWS-1K68A-1R | 2 | 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Global Services & Support | ||
| OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service |
| Software | ||
| SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| SuperDOM | ||
| - | - | Supermicro SATA DOM Solutions [ Details ] |
| Network Card(s) | ||
| AOC-S40G-i2Q | - | Standard LP 2-port 40GbE controller, based on Intel Fortville XL710 |
| AOC-SGP-i2 | - | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2 |
| AOC-SGP-i4 | - | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 |
| AOC-STG-b4S | - | Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S |
| AOC-STGN-i2S | - | Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES |
| AOC-STGN-i1S | - | Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN |
| AOC-STG-i2T | - | Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 |
| AOC-STG-i2 | - | Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB |
| BBU (Battery Backup Unit) | ||
| BTR-0022L-LSI00279 | - | LSI00279 IBBU09 BATTERY BKUP FOR SAS2208 |
| BKT-BBU-BRACKET-05 | - | Remote Mounting Bracket for LSI BBUs |
