X11DPT-B,CSV-217BHQ+-R2K22BP,BPN-ADP-6NVME3-1UB
| SKU: | SYS-2029BT-HNR |
| Brand: | Supermicro |
| Product Note: |
To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage. For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration. |
Summary Description

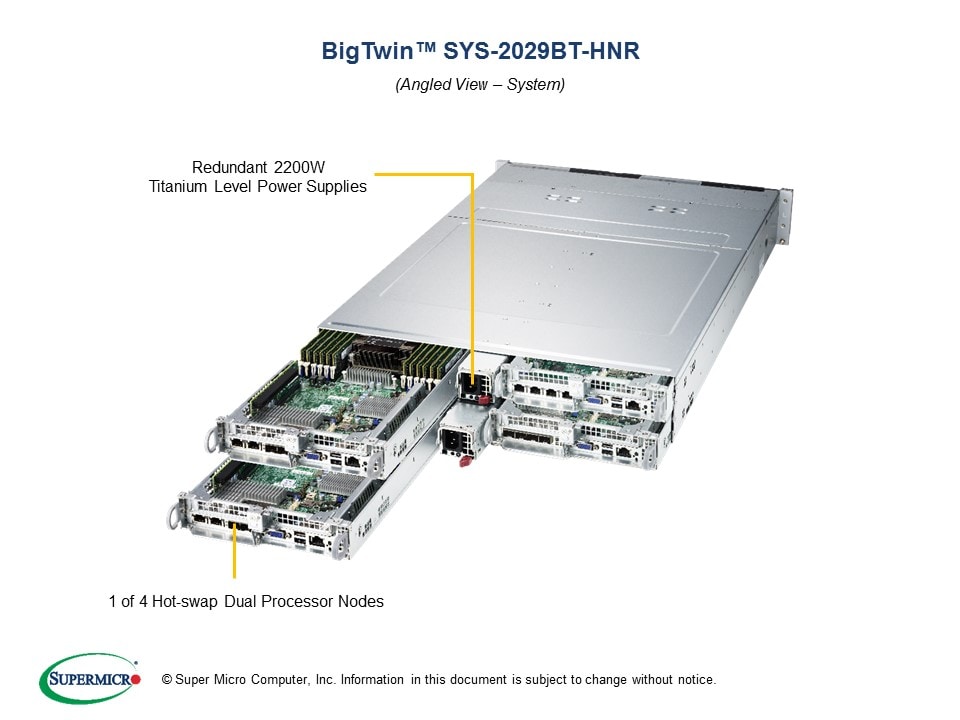

The Supermicro SYS-2029BT-HNR is a high-performance 2U server optimized for compute-intensive applications such as HPC, data centers, and enterprise servers. It features four nodes in a 2U chassis, each node supporting dual 2nd Gen Intel Xeon Scalable processors.
Key Features
- Compute Intensive Application - HPC, Data Center, Enterprise Server - Hyperscale / Hyperconverged
- Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
- 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
- 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking) Note: must bundle with Network card
- 6 Hot-swap 2.5" NVMe drive bays; 2 M.2 SATA3 or NVMe support
- 1 Carrier Card slot (M.2 support)
- IPMI 2.0 + KVM with dedicated LAN
- Video via Aspeed AST2500 BMC
- 4 Heavy duty 8cm PWM fans with air shroud
- 2200W Redundant Power Supplies Titanium Level (96%)
Key Applications
- High-Performance Computing
- Data Center Operations
- Enterprise Server Platforms
Description
The Supermicro SYS-2029BT-HNR is a part of the BigTwin family that delivers best-in-class performance and efficiency. With its four hot-pluggable nodes, each supporting dual-socket 2nd Gen Intel Xeon Scalable processors, this 2U server maximizes compute density and power efficiency. The server offers enhanced memory capacity with 24 DIMMs per node, supporting up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM and Intel Optane DCPMM. It also features flexible networking options with SIOM card support and robust storage capabilities including 6 NVMe drive bays per node. Additional features include advanced health monitoring, redundant power supplies, and sophisticated thermal controls for optimal reliability and performance in demanding environments.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SYS-2029BT-HNR |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor (per Node) | |
| CPU |
|
| Cores |
|
| Note |
|
| Note |
|
| System Memory (per Node) | |
| Memory Capacity |
|
| Memory Type |
|
| Note |
|
| On-Board Devices | |
| Chipset |
|
| Network |
|
| IPMI |
|
| Video |
|
| Input / Output (per Node) | |
| LAN |
|
| USB |
|
| Video |
|
| DOM |
|
| Others |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power Configurations |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Width |
|
| Height |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots (per Node) | |
| PCI-Express |
|
| Drive Bays / Storage (per Node) | |
| Hot-swap |
|
| M.2 |
|
| System Cooling | |
| Fans |
|
| Power Supply | |
| |
| Total Output Power |
|
| Dimension(W x H x L) |
|
| Input |
|
| +12V |
|
| 12Vsb |
|
| Output Type |
|
| Certification |
|
| Operating Environment | |
| RoHS |
|
| Environmental Spec. |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X11DPT-B | 4 | Super X11DPT-B Motherboard |
| CSE-217BHQ+-R2K22BP2 | 1 | 2U Chassis |
| Backplane | ||
| BPN-ADP-6NVME3-1UB | 4 | 6x NVMe ports and 50A power sourcing daughter card for Big Twin |
| BPN-NVME3-217BHQ | 1 | 2U 24-Port 4-Node NVMe Backplane Support 6x2.5 |
| Cable 1 | ||
| CBL-PWCD-0578 | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG |
| Drive Tray(s) | ||
| MCP-220-00127-0B-BULK | 24 | Black gen3 Hotswap 2.5 NVMe drive tray, Orange tab/Lock/Bulk |
| Parts | ||
| MCP-240-21721-0N | 1 | 217B BigTwin type I (Impact) BPN retention bkt assy |
| Air Shroud | ||
| MCP-310-21718-0B | 4 | Bigtwin air box for X11DPT-B(4pcs/set) |
| MCP-310-21724-0B | 4 | Bigtwin 2U4N plastic air shroud (2pcs) for Cascade lake MB |
| Manual | ||
| MNL-1948-QRG | 1 | 2029BT-H(N/T/NC0)R Quick Reference Guide |
| Riser Card | ||
| RSC-P-6 | 4 | RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS |
| RSC-R1UTP-E16R | 4 | 1U RHS TwinPro Riser card with one PCI-E x16 slot |
| Heatsink / Retention | ||
| SNK-P0067PS | 4 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
| SNK-P0067PSM | 4 | 1U Passive CPU Heat Sink with a 26-mm Wide Middle Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
| Power Supply | ||
| PWS-2K22A-1R | 2 | 1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48 |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| TPM security module | ||
| AOM-TPM-9670H-S | 1 | SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor |
| AOM-TPM-9671H-S | 1 | SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor |
| Intel VROC RAID Key | ||
| AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) |
| AOC-VROCSTNMOD | 1 | Intel VROC Standard, RAID 0, 1, 10 |
| AOC-VROCPREMOD | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 |
| Global Services & Support | ||
| OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service |
| Software | ||
| SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| SuperDOM | ||
| - | - | Supermicro SATA DOM Solutions [ Details ] |
| Network Card(s) | ||
| AOC-S40G-i2Q | - | Standard LP 2-port 40GbE controller, based on Intel Fortville XL710 |
| AOC-SGP-i2 | - | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2 |
| AOC-SGP-i4 | - | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 |
| AOC-STG-b4S | - | Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S |
| AOC-STGN-i2S | - | Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES |
| AOC-STGN-i1S | - | Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN |
| AOC-STG-i2T | - | Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 |
| AOC-STG-i2 | - | Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB |
| Carrier Card(s) | ||
| AOC-SMG3-2H8M2-B | - | 2x Hybrid NVMe/SATA M.2 carrier for BigTwin,HF,RoHS |
| AOC-SMG2-2TM2 | - | 2x SATA M.2 RAID 1 adapter for BigTwin,HF,RoHS |
