X11DPT-PS, CSV-217HQ+-R2K20BP3, BPN-ADP-S3108L-H6IRP, SIOM

SYS-2029TP-HC1R

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/1730/image_1920?unique=774dd05

kr 73,755.82 73755.82 NOK kr 73,755.82

kr 73,755.82

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-2029TP-HC1R offers optimal performance for compute-intensive applications including HPC, data centers, enterprise servers, financial analysis, and mission-critical applications. This 2U rackmount server houses four hot-pluggable nodes, each supporting dual 2nd Gen Intel Xeon Scalable processors, up to 4TB DDR4 memory, and flexible networking options.

    Key Features

    • Compute Intensive Application - HPC, Data Center - Enterprise Server - Financial Analysis - Mission-critical applications
    • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
    • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
    • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
    • 2 PCI-E 3.0 x16 (LP) slots
    • Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN
    • 6 Hot-swap 2.5" SAS/SATA drive bays
    • Broadcom 3108 SAS3 controller; RAID 0, 1, 5, 6, 10, 50, 60 with SuperCap option
    • Up to 2200W Redundant Power Supplies Titanium Level (96%)

    Key Applications

    • Compute Intensive Application - HPC
    • Data Center - Enterprise Server
    • Financial Analysis
    • Mission-critical applications

    Description

    The Supermicro SYS-2029TP-HC1R is engineered for high-performance computing with four hot-pluggable nodes in a compact 2U form factor. Each node supports dual 2nd Gen Intel Xeon Scalable processors, 16 DIMM slots for up to 4TB DDR4-2933MHz memory, and 6 hot-swap 2.5" SAS/SATA drive bays. The system features versatile networking through SIOM, dedicated IPMI 2.0 LAN, 2 PCI-E 3.0 x16 slots, and multiple management tools such as Intel Node Manager and SuperDoctor 5. The server is powered by redundant 2200W Titanium level PSUs and includes advanced PC health monitoring.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-2029TP-HC1R
    • SuperServer 2029TP-HC1R ( Black )
    Processor (per Node)
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,Dual UPI up to 10.4GT/s
    • Support CPU TDP 70-165W*
    Cores
    • Up to 28 Cores
    Note
    • * Please contact Safe Consulting Technical Support for supporting conditions of high power (TDP 150W and above) or high base frequency (3.0 GHz and above) processors.
    Note
    • *Processors ending No or S are optimized for networking and storage applications. Customer need POC their application and observe any thermal throttling before large deployment.
    Note
    • ‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
    System Memory (per Node)
    Memory Capacity
    • 16 DIMM slots
    • Up to 4TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note
    • †2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro††Cascade Lake only. Contact your Supermicro sales rep for more info.
    On-Board Devices (per Node)
    Chipset
    • Intel® C621 chipset
    SAS
    • Broadcom 3108 SAS3 (12Gbps) controller, 2GB cache; RAID 0, 1, 5, 6, 10, 50, 60 support
    • Optional SuperCap
    Network Controllers
    • Barebones and Complete System must have at least one SIOMornetwork cardinstalled per node
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC
    Input / Output (per Node)
    SAS
    • 6 SAS3 (12Gbps) ports
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    VGA
    • 1 VGA port
    Serial Port / Header
    • 1 Fast UART 16550 port / 1 Header (internal)
    Others
    • 2 SuperDOM support on the motherboard. SuperDOM is for OS boot.
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash ROM
    Management
    Software
    • Intel® Node Manager
    • IPMI 2.0
    • KVM with dedicated LAN
    • NMI
    • SSM , SPM , SUM
    • SuperDoctor® 5
    • Watchdog
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 5+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Omni-Path Fabric CPUs
    • Do not support
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-217HQ+-R2K20BP3
    Dimensions and Weight
    Width
    • 17.25" (438mm)
    Height
    • 3.47" (88mm)
    Depth
    • 28.5" (724mm)
    Weight
    • Gross Weight: 90 lbs (40.9kg)
    • Net Weight: 72 lbs (32.7 kg)
    Available Colors
    • Black

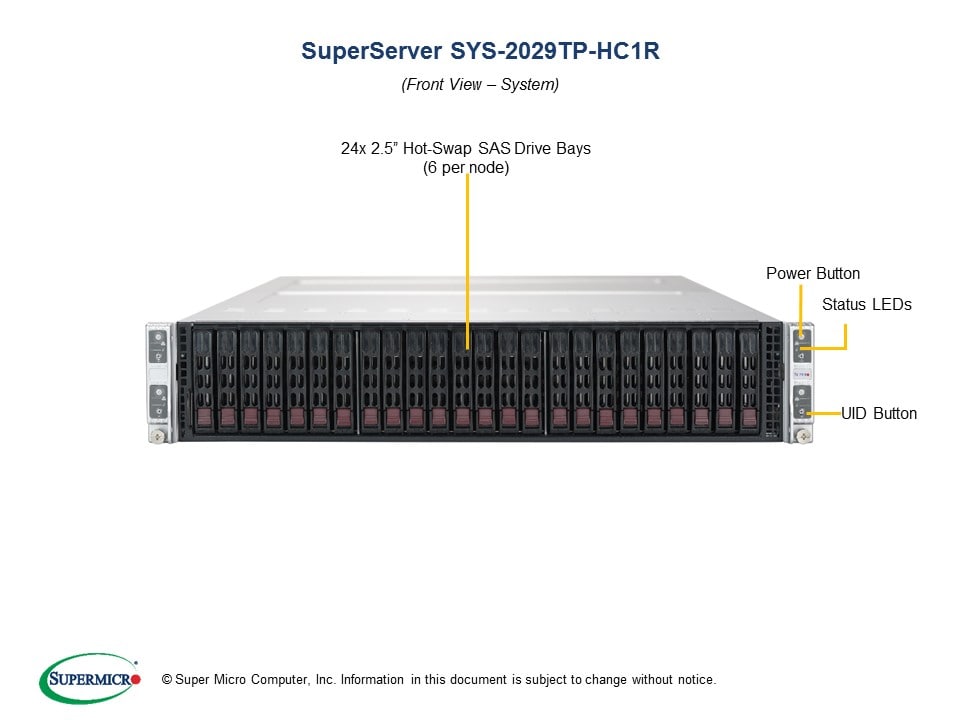

    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • Universal Information (UID) LED
    Expansion Slots (per Node)
    PCI-Express
    • 2 PCI-E 3.0 x16 Low-profile slots
    • 1 SIOM card supportNote: Barebones and Complete System must bundle with Network Card
    Drive Bays (per Node)
    Hot-swap
    • 6 Hot-swap 2.5" SAS/SATA HDD trays
    System Cooling
    Fans
    • 4 Heavy duty 8cm PWM fans with optimal fan speed control
    Power Supply
    • 2200W Redundant Power Supplies with PM Bus
    Total Output Power and Input
    • 1200W with Input 100-127Vac
    • 1800W with Input 200-220Vac
    • 1980W with Input 220-230Vac
    • 2090W with Input 230-240Vac
    • 2200W with Input 220-240Vac (for UL/cUL use only)
    • 2090W with Input 230-240Vdc (for CCC only)
    AC Input Frequency
    • 50-60Hz
    Dimension(W x H x L)
    • 76 x 40 x 336 mm
    +12V
    • Max: 100A / Min: 0A (100-127Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 174.17A / Min: 0A (230-240Vac)
    • Max: 183.3A / Min: 0A (220-240Vac)
    5VSB
    • Max: 1A / Min: 0A
    Output Type
    • Backplanes (gold finger)
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Motherboard (Four per System)
    • Super X11DPT-PS

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11DPT-PS4Super X11DPT-PS Motherboards
    CSE-217HQ+-R2K20BP312U Chassis
    Backplane
    BPN-ADP-S3108L-H6IRP4LSI 3108, SAS 12Gbps (x6 internal); Broadcom 3108 2GB cache
    BPN-SAS3-217HQ212U 24-Port 4-Node Backplane Supports 6x 2.5"
    Cable 1
    CBL-PWCD-05782PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
    Air Shroud
    MCP-310-21716-0B4Twinpro X11 air shroud
    Riser Card
    RSC-P-64RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS
    RSC-R1UTP-E16R41U RHS TwinPro Riser card with one PCI-E x16 slot
    Heatsink / Retention
    SNK-P0067PS41U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    SNK-P0067PSM41U Passive CPU Heat Sink with a 26-mm Wide Middle Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Power Supply
    PWS-2K20A-1R21U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm

    Optional Part List

    Part Number Quantity Description
    TPM security module (optional, not included)
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    SuperCap Kit
    BTR-CV3108-TP2-Broadcom 3108 CacheVault kit for TwinPro
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-OOB-LIC1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
