  2. Ultra 2U, 24x2.5" 3UPI NVMe 2x25GbE, X11DPU-ZE+, 219U2TS-R1K

Ultra 2U, 24x2.5" 3UPI NVMe 2x25GbE, X11DPU-ZE+, 219U2TS-R1K

SYS-2029UZ-TN20R25M

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10444/image_1920?unique=f7d9088

kr 44,679.57 44679.57 NOK kr 44,679.57

kr 44,679.57

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-2029UZ-TN20R25M server is designed for high-end enterprise applications, featuring dual socket support for 2nd Gen Intel® Xeon® Scalable processors. It offers advanced memory capabilities, high-speed networking, and extensive storage options, making it ideal for virtualization, cloud computing, and hyperconverged storage solutions.

    Key Features

    • • Virtualization • Hyperconverge Storage • Cloud Computing • High End Enterprise Server
    • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
    • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
    • 1 PCI-E 3.0 x8 slots (LP)
    • 2x 25G SFP28 Ethernet ports
    • 24 Hot-swap 2.5" drive bays; 20 NVMe + 4 SAS3/SATA; 1 M.2 NVMe port, Optional extra M.2 NVMe and SATA3 ports
    • 4 Heavy duty 8cm fans
    • 1600W Redundant Power Supplies Titanium Level (96%)

    Key Applications

    • Virtualization
    • Cloud computing
    • Hyperconverged storage
    • Enterprise server

    Description

    The Supermicro SYS-2029UZ-TN20R25M is a powerful 2U rackmount server optimized for high-performance enterprise applications. It supports up to two 2nd Gen Intel® Xeon® Scalable processors with a maximum TDP of 205W and up to 28 cores per CPU. The server features 24 DIMM slots, allowing up to 6TB of 3DS ECC DDR4 memory and support for Intel® Optane™ DCPMM. For exceptional networking performance, it includes two 25G SFP28 Ethernet ports via a Mellanox ConnectX-4 Lx EN card. The server offers 24 hot-swap drive bays, capable of housing 20 NVMe drives and 4 SAS3/SATA drives. Additional storage expansion is available through an M.2 NVMe port and optional extra M.2 slots. The chassis is equipped with four heavy-duty 8cm fans and 1600W redundant power supplies. Comprehensive management features include IPMI 2.0, Redfish API, and Intel® Node Manager.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-2029UZ-TN20R25M
    • SuperServer 2029UZ-TN20R25M ( Black )
    Motherboard
    Installed Motherboard
    • Super X11DPU-ZE+
    Processor
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,3 UPI up to 10.4GT/s
    • Support CPU TDP 70-205W
    Cores
    • Up to 28 Cores
    Note
    • ‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
    System Memory
    Memory Capacity
    • 24 DIMM slots
    • Up to 6TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note
    • †2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro††Cascade Lake only. Contact your Supermicro sales rep for more info.
    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (6Gbps); RAID 0, 1, 5, 10
    Network Connectivity
    • 2x 25GbE SFP28 ports via AOC-2UR68-m2TS (Mellanox ConnectX-4 Lx EN)
    • Download networking card drivers here
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC

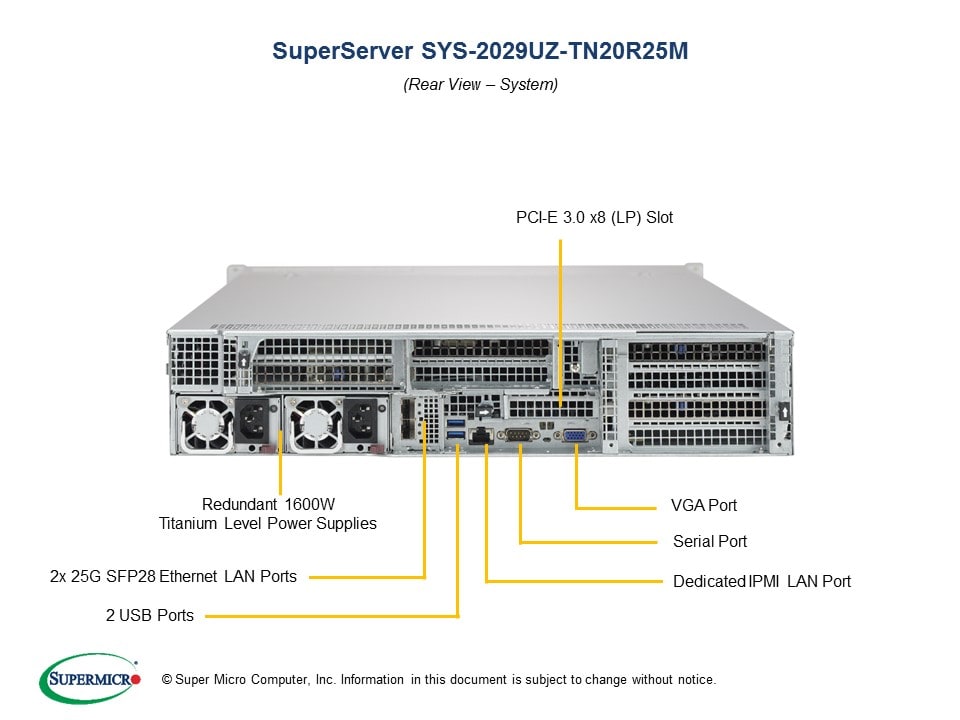

    Input / Output
    NVMe
    • 20 NVMe ports direct connect
    LAN
    • 2 25GbE SFP28 ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 3 USB 3.0 ports (2 rear, 1 Type A)
    Video
    • 2 VGA ports (1 rear, 1 onboard)
    Serial Port
    • 1 Serial header
    DOM
    • 2 Super DOM (Disk on Module) ports
    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM
    Management
    Software
    • Intel® Node Manager
    • Redfish API
    • IPMI 2.0
    • KVM with dedicated LAN
    • NMI
    • SSM , SPM , SUM
    • SuperDoctor® 5
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-219U2TS-R1K62P-TN20
    Dimensions and Weight
    Height
    • 3.5" (89mm)
    Width
    • 17.2" (437mm)
    Depth
    • 27.76" (705mm)
    Weight
    • Net Weight: 36 lbs (16.4 kg)
    • Gross Weight: 72 lbs (32.7 kg)
    Available Color
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System UID button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • UID LED
    Expansion Slots
    PCI-Express
    • 1 PCI-E 3.0 x8 slot (Low-profile)
    Drive Bays / Storage
    Hot-swap
    • 24 Hot-swap 2.5" drive bays20 NVMe + 4 SAS3/SATA
    M.2
    • 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
    • 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2
    System Cooling
    Fans
    • 4 Heavy duty 8cm fans
    Power Supply
    • 1600W Redundant Power Supplies with PM Bus
    Total Output Power
    • 1600W/1000W
    Dimension(W x H x L)
    • 73.5 x 40 x 203 mm
    Input
    • 100-127Vac / 13 - 9A / 50-60Hz
    • 200-240Vac / 10 - 8A / 50-60Hz
    +12V
    • Max: 83.3A / Min: 0A (100-127Vac)
    • Max: 133A / Min: 0A (200-240Vac)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11DPU-ZE+1Super X11DPU-ZE+ Motherboard
    CSE-219U2TS-R1K62P-TN201CSE-219U2TS-R1K62P-TN20
    Add-on Card / Module
    AOC-2UR68-M2TS-O1[NR]AOC-2UR68-M2TS-P
    AOC-SLG3-2E4R-P2NVMe AOC by 8,HF,RoHS/REACH
    AOC-SLG3-4E4R-P3NVMe AOC by 16,HF,RoHS/REACH
    Backplane
    BPN-NVME3-216N-S4124-port 2U (SC216/219) NVMe direct-attached backplane, support 24x 2.5-inch NVMe devices, 4 of them are hybrid ports also support SAS3/SATA3
    Cable 1
    CBL-0306L1CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,65CM,28AWG
    Cable 2
    CBL-PWEX-10181BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 42CM,18AWG, 11A/pin, -25~85C
    Cable 3
    CBL-PWEX-10192BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 67CM,18AWG, 11A/pin, -25~85C
    Cable 4
    CBL-PWEX-10481BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 82CM,18AWG, 11A/pin, -25~85C
    Cable 5
    CBL-SAST-06571MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG
    Cable 6
    CBL-SAST-08202OCuLink v. 1.0,INT,PCIe NVMe SSD, 85CM,34AWG,RoHS/REACH
    Cable 7
    CBL-SAST-084116MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 76CM,34AWG,RoHS
    Cable 8
    CBL-SAST-08472OcuLink v 1.0,INT,PCIe NVMe SSD, 76CM,34AWG
    Drive Tray(s)
    MCP-220-00047-0B4Black gen 3rd hot-swap 2.5inch HDD tray
    Air Shroud
    MCP-310-82921-0N1Plastic air shroud for SC829U, 219U (X11 24DIMM, left side)
    MCP-310-82922-0N1Plastic air shroud for SC829U, 219U (X11 24DIMM, right side)
    Riser Card
    RSC-UMR-811U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE
    RSC-W2-661RSC-W2-66
    Heatsink / Retention
    SNK-P0068PS22U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    *Power Supply
    PWS-1K62A-1R2AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
    *Cable 9
    CBL-0088L44 PIN MIDDLE FAN POWER CABLE (PWM). 27cm, 24AWG
    *Cable 10
    CBL-0174L2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH
    *Cable 11
    CBL-0318L1CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,24CM,28AWG
    *FAN 1
    FAN-0158L4480x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
    *Drive Tray(s)
    MCP-220-00121-0B20Black gen-3 2.5 NVMe drive tray, Orange tab with lock (improved EMI for hotswap NVMe drive)
    *Rail Set
    MCP-290-00053-0N-01136"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W
    MCP-290-00060-0N1Threaded rail adapter default for round hole rack
    MCP-290-00115-0N1Inner rail, quick-release type
    *Air Shroud
    MCP-310-81905-0B1Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH
    *Front Panel
    TB8261Front panel adaptor board (TB826) forSC826,213,216,219

    Optional Part List

    Part Number Quantity Description
    Optional Upgrade for 2U LHS WIO Riser
    RSC-R2UW-2E8E1612U LHS WIO Riser card with 1 PCI-E x16 double width + 2 PCI-E x8 slots
    Or RSC-W2-6612U LHS WIO Riser card with 2 PCI-E x16 double width slots
    Add-on card for internal M.2 NVMe
    AOC-SLG3-2M21Low Profile PCIe x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
    Cable for internal M.2 SATA
    CBL-SAST-0538129cm 30AWG SATA S-RA cable
    Compatible Networking Cables and Transceivers for System default Networking (AOC-2UR68-m2TS)
    -1~2Networking Cables and Transceivers Compatibility Matrix
    Network Card(s)
    AOC-SGP-i2/4-Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
    AOC-STGN-i1S/i2S-Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
    AOC-STGF-i2S-Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2
    AOC-STG-i4S-Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710
    AOC-STG-b4S-Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    AOC-STG-i2T-Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
    AOC-STGS-i1/2T-Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550
    AOC-STG-i4T-Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710
    AOC-STG-i2-Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
    AOC-S25G-m2S-Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
    AOC-S40G-i2Q-Standard LP 2-port 40GbE controller, Intel Fortville XL710
    More-AOC Compatibility Matrix
    CacheVault(s)
    BTR-CV3108-U1-CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra
    Intel VROC RAID Key
    AOC-VROCINTMOD1Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-OOB-LIC1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
