GrandTwin 2U4 X12SPT-GC; CSE-GT214BF-R2K21BP

SYS-210GT-HNC8F

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node). Minimum requirement is 1 CPU, 1 DIMM, 1 GrandTwin I/O Module and 1 storage device per node (HDD/SSD/NVMe/M.2)

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10458/image_1920?unique=7c1c8fe

kr 65,659.56 65659.56 NOK kr 65,659.56

kr 65,659.56

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-210GT-HNC8F delivers exceptional performance and efficiency, featuring the latest 3rd Gen Intel® Xeon® Scalable processors, expandable memory, advanced cooling, and redundant power supplies.

    Key Features

    • Single-Socket, 3rd Gen Intel® Xeon® Scalable processors up to 270W TDP
    • Intel® C621A
    • 16 DIMM Slots up to 4TB
    • Optional: AIOM PCIe 4.0 x16 LP (OCP 3.0 compliant)
    • Two optional storage modules. Each module supports 2x NVMe or SAS/SATA drive bays
    • 2x cooling fans per 2U enclosure, 16.5K RPM Heavy Duty; Shared Cooling Design
    • 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
    • Built-in SAS3 Support via Broadcom 3808; IT Mode

    Key Applications

    • HPC
    • Cloud Gaming
    • MEC (Multi-Access Edge Computing)
    • Multi-Purpose CDN
    • High-availability Cache Cluster
    • Telco Edge Cloud
    • EDA (Electric Design Automation)
    • Mission Critical Web Applications

    Description

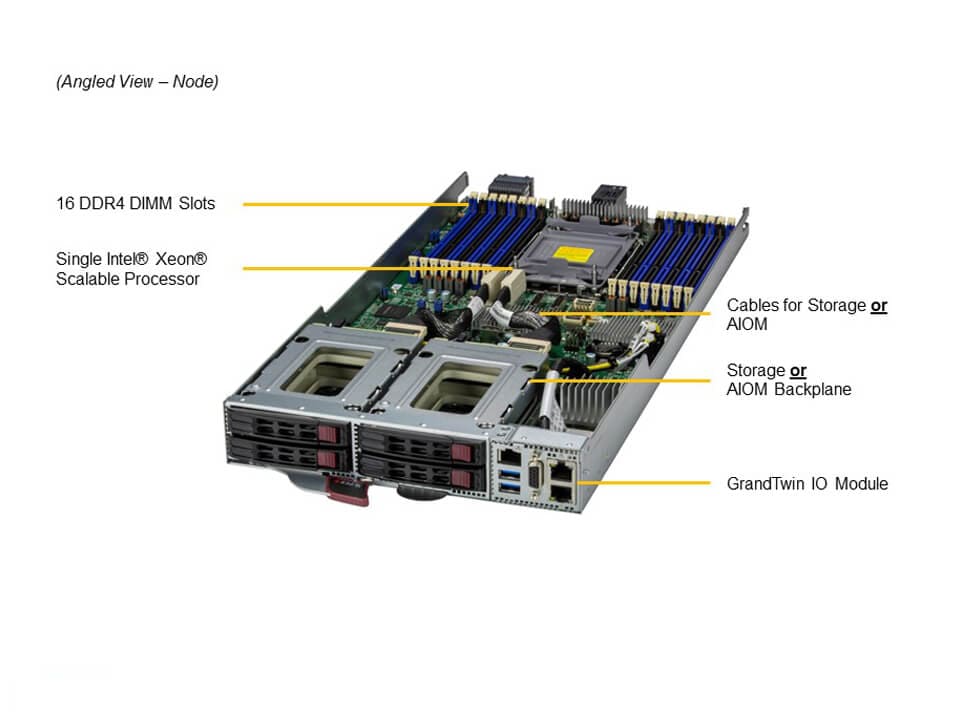

    The Supermicro SYS-210GT-HNC8F is a versatile 2U rackmount server designed for high performance and reliability in demanding applications. It supports a single 3rd Gen Intel® Xeon® Scalable processor with up to 40 cores and up to 4TB of DDR4 memory. With its extensive expansion capabilities, including PCIe 4.0 slots, multiple storage options, and advanced cooling solutions, it ensures maximum efficiency and uptime. The system also includes robust security features, complete system management tools, and redundant power supplies, making it ideal for HPC, cloud gaming, MEC, and other mission-critical workloads.

    Product Specifications

    Product SKUs
    SuperServerSYS-210GT-HNC8F
    Motherboard
    Super X12SPT-GC
    Processor (per Node)
    CPUSingle Socket P+ (LGA-4189)
    3rd Gen Intel® Xeon® Scalable processors
    Core CountUp to 40C/80T; Up to 60MB Cache
    NoteSupports up to 270W TDP CPUs (Air Cooled)
    System Memory (per Node)
    MemorySlot Count: 16 DIMM slots
    Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
    View Memory Options
    On-Board Devices (per Node)
    SASSAS (12Gbps) via Broadcom® 3808; (IT mode)
    ChipsetIntel® C621A
    Network ConnectivityVia IO Module
    View AIOM Options
    View AOC Options
    Input / Output (per Node)
    LAN1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB2 USB 3.0 port(s)
    Video1 VGA port(s)
    System BIOS
    BIOS TypeAMI 32MB Flash ROM
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    System Lockdown
    PC Health Monitoring
    FANFans with tachometer monitoring
    Status monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    CPUMonitors for CPU Cores, Chipset Voltages, Memory.
    7+1 Phase-switching voltage regulator
    Chassis
    Form Factor2U Rackmount
    ModelCSE-GT214BF-R2K21BP
    Dimensions and Weight
    Height3.46" (88 mm)
    Width17.67" (449 mm)
    Depth28" (711.2 mm)
    Package9.76" (H) x 24.65" (W) x 45.28" (D)
    WeightGross Weight: 88 lbs (39.9 kg)
    Net Weight: 68 lbs (30.8 kg)
    Available ColorSilver
    Front Panel
    LEDHDD activity LED
    Network activity LEDs
    Power status LED
    Universal Information (UID) LED
    ButtonsPower On/Off button
    UID button
    Expansion Slots (per Node)
    PCI-Express (PCIe) ConfigurationDefault1 PCIe 4.0 x16 LP slot(s)
    View AOC Options
    Drive Bays / Storage (per Node)
    Drive Bays ConfigurationDefault: Total 4 bay(s)4 front hot-swap 2.5" NVMe/SAS/SATA drive bay(s)
    View Drive Options
    M.22 M.2 NVMe/SATA slot(s) (M-key)
    View M.2 Options
    System Cooling
    Fans2x 16.5K RPM Heavy Duty 8cm Fan(s)
    Power Supply
    1x 2200W1x 2200W Redundant Titanium Level (96%) power supplyDimension (WxHxL)106.5 x 84 x 245.3 mmAC Input1200W: 100-127Vac / 50-60Hz2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)1800W: 200-220Vac / 50-60Hz1980W: 220-230Vac / 50-60Hz2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2090W: 230-240Vac / 50-60Hz (for TUV/CB)+12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)12V SBMax: 2A / Min: 0AOutput TypeBackplanes (gold finger)
    1x 2200W1x 2200W Redundant Titanium Level (96%) power supplyDimension (WxHxL)106.5 x 84 x 245.3 mmAC Input1200W: 100-127Vac / 50-60Hz2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)1800W: 200-220Vac / 50-60Hz1980W: 220-230Vac / 50-60Hz2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2090W: 230-240Vac / 50-60Hz (for TUV/CB)+12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)12V SBMax: 2A / Min: 0AOutput TypeBackplanes (gold finger)
    Operating Environment
    ROHSRoHS Compliant
    Environmental Spec.Operating Temperature: 5°C ~ 40°C (41°F ~ 104°F)
    Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    Operating Relative Humidity: 8% to 80% (non-condensing)
    Non-operating Relative Humidity: 8% to 90% (non-condensing)

    Optional Part List

    AIOM Dummy Tray
    Part NumberQuantityDescription
    MCP-120-21406-0N1GT214 FIO AIOM dummy bracket
    AIOM Enablement Kit
    Part NumberQuantityDescription
    MCP-450-21403-ASM0 - 1GT214 Gen4 AIOM kit,RoHS
    GrandTwin I/O Module 2x10GbE
    Part NumberQuantityDescription
    AOC-GTG-I2T-O1Grand Twin I/O card 2-Port 10GbE RJ45, Intel Carlsville X710-AT2, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS
    AOC-GTG-B2T-O1Grand Twin I/O card 2-Port 10GbE RJ45, Broadcom BCM57416, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS
    GrandTwin I/O Module 2x25GbE
    Part NumberQuantityDescription
    AOC-G25G-M2S-O1Grand Twin I/O card 2-Port 25GbE SFP28, Mellanox CX-4 Lx EN, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS
    HDD Dummy Tray
    Part NumberQuantityDescription
    MCP-120-21401-0N0 - 2GT214 FIO HDD dummy bracket(1slot)
    NVMe Enablement Kit
    Part NumberQuantityDescription
    MCP-450-21402-ASM0 - 2GT214 2 port Gen4 NVMe U.2 Enablement Kit, RoHS
    SAS/SATA Enablement Kit
    Part NumberQuantityDescription
    MCP-450-21404-ASM0 - 1GT214 4 Port SATA/SAS U.2 Enablement kit, RoHS
    MCP-450-21405-ASM0 - 1GT214 2 Port SATA/SAS U.2 Enablement kit, RoHS
    SPI Capable TPM 1.2
    Part NumberQuantityDescription
    AOM-TPM-9671V-S-P-SPI Capable TPM 1.2 Provisioned for Server, Vertical Form Factor
    SPI Capable TPM 2.0
    Part NumberQuantityDescription
    AOM-TPM-9670V-S-P-SPI Capable TPM 2.0 Provisioned for Server, Vertical Form Factor
    VROC Premium
    Part NumberQuantityDescription
    AOC-VROCPREMOD-Intel VROC Premium, RAID 0, 1, 5, 10
    VROC Standard
    Part NumberQuantityDescription
    AOC-VROCSTNMOD-Intel VROC Standard, RAID 0, 1, 10
