MBD-X12SPM-LN6TF, CSE-211M-R000NDP, PWS-601S-1R
SYS-210P-FRDN6T
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SYS-210P-FRDN6T is an advanced edge server with a single socket P+ 3rd Generation Intel Xeon Scalable processor and up to 2TB of DDR4 memory. Its ultra-short depth and front I/O design make it ideal for 5G core, edge, and machine learning applications.
Key Features
- Design with compliance to NEBS-Level 3
- Single Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
- 8 DIMM slots; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
- Up to 2 PCIe 4.0 FHHL & 2 HHHL expansion slots for Accelerator Add-On-Cards
- Onboard 2x 10GbE ports & 4x 1GbE ports
- 2x 2.5" drive bays for SATA drives
- Redundant 600W DC -48V Power Supplies
- Ultra short depth, 2U Front I/O Edge Server
Key Applications
- 5G Core and Edge
- AI Inference and Machine Learning
- Network Function Virtualization
- Cloud Computing
Description
The Supermicro SYS-210P-FRDN6T is a 2U rackmount server featuring a single socket P+ (LGA-4189) supporting the latest 3rd Generation Intel Xeon Scalable processors. It offers 8 DIMM slots with up to 2TB of 3DS ECC DDR4-3200 memory, making it suitable for demanding tasks in AI, machine learning, network function virtualization, and cloud computing. The server includes 2 PCIe 4.0 FHHL and 2 HHHL expansion slots for additional add-on cards. Equipped with onboard 2x 10GbE ports and 4x 1GbE ports, redundant 600W DC -48V power supplies, it ensures high availability and reliability in various deployment scenarios. The ultra-short depth and front I/O design make it perfect for edge applications with space constraints.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor | |
| CPU |
|
| Core Count |
|
| Note |
|
| GPU | |
| Max GPU Count |
|
| System Memory | |
| Memory |
|
| Memory Voltage |
|
| On-Board Devices | |
| SATA |
|
| Chipset |
|
| Network Connectivity |
|
| Input / Output | |
| LAN |
|
| USB |
|
| Video |
|
| Management | |
| Software |
|
| Power configurations |
|
| Security | |
| Hardware |
|
| Features |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Height |
|
| Width |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Color |
|
| Front Panel | |
| LED |
|
| Buttons |
|
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default:
|
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 2 bays:
|
| M.2 |
|
| System Cooling | |
| Fans |
|
| Power Supply | |
| 1x 600W Redundant Typical 90%+ Level (92%) power supply | Dimension (WxHxL):
5V SB:
Output Type:
|
| Operating Environment | |
| Environmental Spec. |
|
| General | |
| Standard Parts (Parts Included) | |
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X12SPM-LN6TF | 1 | Super X12SPM-LN6TF Motherboard |
| CSE-211M | 1 | 2U Chassis |
| Backplane | ||
| BPN-SAS3-826TQ-B2B | 1 | 2-Port 12Gbps Backplane for 2x2.5" SAS/SATA HDD/SSD |
| Cable | ||
| CBL-0010L | 1 | 9 PIN SERIAL PORT DTK CABLE, LF |
| CBL-0206L | 2 | 7pin SATA (STR to STR), 48cm, PBF |
| CBL-CDAT-0662 | 1 | 8 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1 |
| CBL-PWCD-0974 | 2 | 48VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS |
| CBL-PWEX-1132-20 | 1 | MicroHi 2x2F to 2x2M MicroFit, PH3.0, 20cm,7A/p,18#,RoHS |
| CBL-SAST-1206LP-85 | 1 | SlimSASLP x8 (RA) to SlimSAS x8 (STR),26CM,85 OHM,RoH |
| CBL-SAST-1207LP-85 | 1 | SlimSASLP x8 (STR,RSC) to SlimSAS x8 (STR),26CM,85 OHM |
| CBL-SAST-1270A-85 | 1 | 2x PCIe x16 on riser PCBA to 2x x16 edge cards,90CM,RoH |
| CBL-CDAT-1058 | 1 | [NR] NCSI 2x8 to 2x8, Ph2.54, 60cm shielded,28AWG, RoHS,RoHS |
| Power Supply | ||
| PWS-601S-1R | 2 | 1U 600W Redundant DC48V input w/PMBus power supply, W54.5xH4 |
| Riser Card | ||
| RSC-H2-68G4 | 1 | 2U LHS Hyper riser card with one PCIe 4.0 x16 and one PCIe |
| Software | ||
| SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
| Heatsink / Retention | ||
| SNK-P0078P | 1 | 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms |
| Power Distributor | ||
| PDB-PT211M-8824OR | 1 | (EOL)2U support redundancy powers up to 800W for SC211.,RoHS |
| PDB-PT211M-3424 | - | 2U support redundancy powers up to 800W for SC211M with 2 Mi |

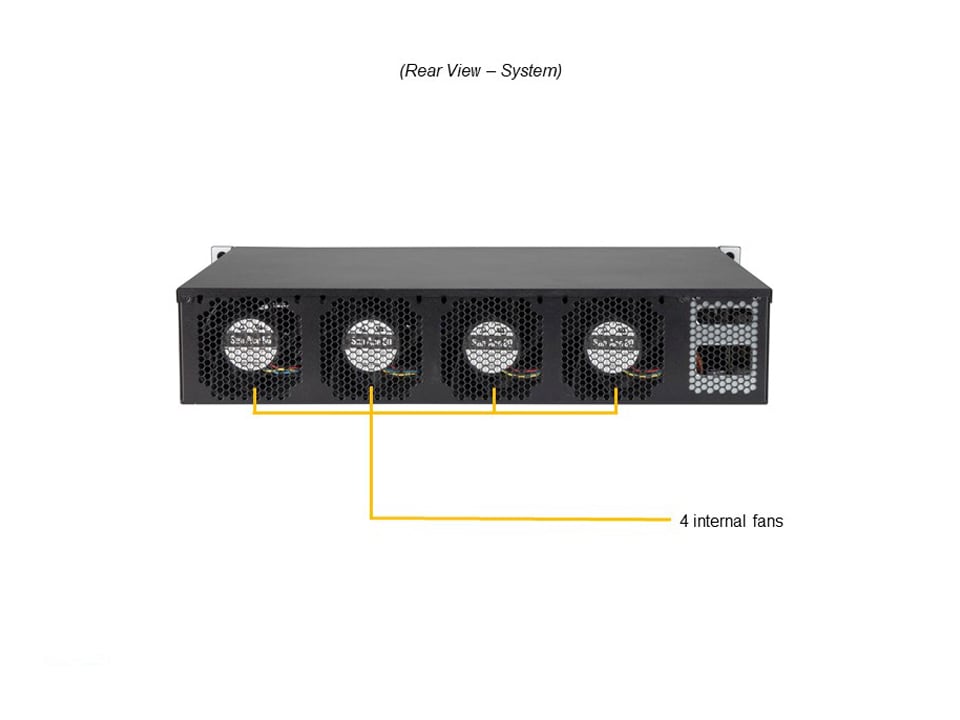

| *Fan | ||
| FAN-0220L4 | 4 | 80x80x38 mm, 14.9K RPM Exhaust Fan for SYS-120P-FRDN6T Serve |
| *Front Panel | ||
| FPB-TB826 | 1 | 16 pin Cable Adaptor Board for SC826 |
| *Drive Tray(s) | ||
| MCP-220-00147-0B | 2 | Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design) |
| *Rail Set | ||
| MCP-290-21106-0N | 1 | 1U height sliding rail for SC211M chassis |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| 1U heat sink | ||
| SNK-P0077V | - | Optional 1U heatsink if CPU < 165W |
| 2U riser card | ||
| RSC-S2R-68G4 | - | Optional 2U Riser card for PCIe slot 3 (PCIe x8 FHHL) if CPU < 165W |
| TPM security module | ||
| AOM-TPM-9671V | - | SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor |
| AOM-TPM-9670V | - | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
