  2. 2U4N X12SPT-PT, CSV-217HQ+ BPN-ADP-6SATA3P,RoHS

2U4N X12SPT-PT, CSV-217HQ+ BPN-ADP-6SATA3P,RoHS

SYS-210TP-HPTR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10449/image_1920?unique=f7d9088

kr 61,034.12 61034.12 NOK kr 61,034.12

kr 61,034.12

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

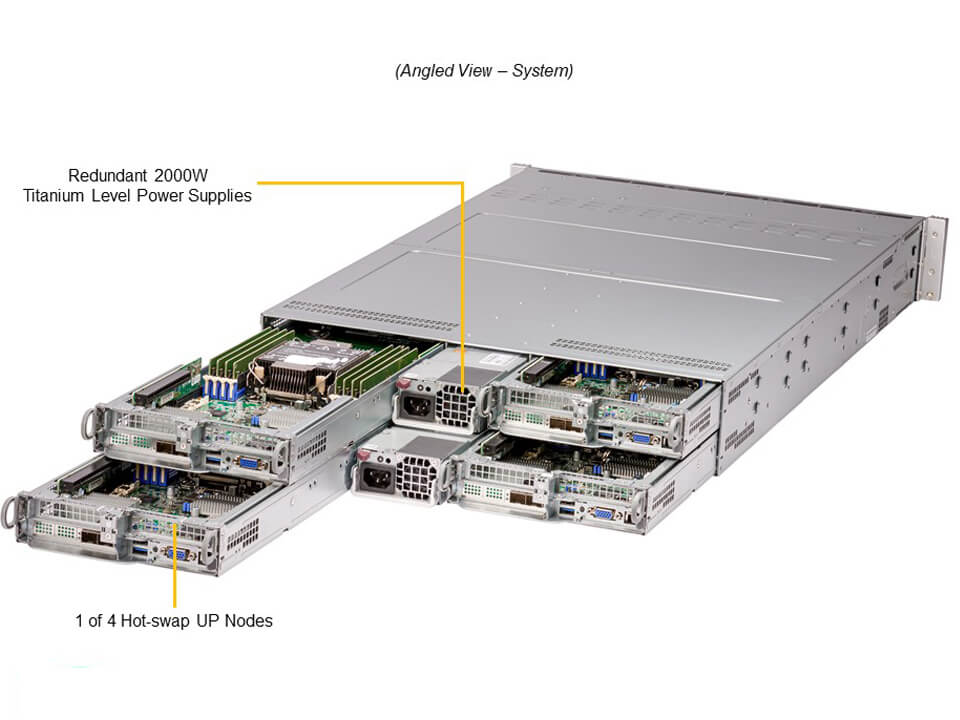

    The Supermicro SYS-210TP-HPTR is engineered for modern edge and enterprise applications, featuring a single socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processor, Intel® C621A Chipset, and robust network connectivity options within a 2U rackmount form factor.

    Key Features

    • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processor (per node)
    • Intel® C621A Chipset
    • 8 DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM (per node)
    • 2 PCIe Gen4 x16 HHHL slot (per node)
    • 2 NVMe M.2 2280/22110 (per node)Front hot-swappable 2.5” HDD/SSD tray (6 tray per node)
    • 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)
    • 1+1 Redundant 2000W Titanium Level AC Power Supplies (per system)
    • Intel® X710 Dual port 10G SFP+ onboard

    Key Applications

    • Multi-Access Edge Computing
    • Flex-RAN, Open-RAN vBBU
    • Telecom DRAN, CRAN, and Edge Core Application
    • Enterprise Edge Computing

    Description

    The Supermicro SYS-210TP-HPTR is designed to match the stringent requirements of edge and enterprise computing. It supports a 3rd Gen Intel® Xeon® Scalable Processor, Intel® C621A chipset, and high-speed network interfaces, making it an ideal solution for Multi-access Edge Computing (MEC), Flex-RAN, Open-RAN vBBU, Telecom DRAN, CRAN, Edge Core, and Enterprise Edge Computing. This system offers versatility with up to 2TB DDR4-3200 memory, multiple PCIe 4.0 slots, and an advanced cooling setup with 4 heavy-duty fans. The dual 2000W redundant power supplies ensure reliability, while comprehensive security features like TPM 2.0 and Secure Boot safeguard the system.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-210TP-HPTR
    Motherboard
    Installed Motherboard
    • Super X12SPT-PT
    Processor (per Node)
    CPU
    • Single Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 32C/64T; Up to 48MB Cache
    Note
    • Supports 85W - 270W TDP CPUs (Air Cooled)
    System Memory (per Node)
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices (per Node)
    SATA
    • SATA (6Gbps) via Intel® C621A; RAID 0/1/5/10 support(Intel® VROC RAID key required)
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 SFP+ 10GbE with Intel® X710-BM2
    Input / Output (per Node)
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 SFP+ 10 GbE LAN port(s) (IPMI shared on LAN port 1)
    USB
    • 2 USB 3.2 Gen1 Type-A port(s) (rear)
    Video
    • 1 VGA port(s) (Rear)
    System BIOS
    BIOS Type
    • AMI 32MB UEFI
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI Power Management
    • Power-on mode for power recovery
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support, PEPI
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-217HQ+-000NBP4
    Dimensions and Weight
    Height
    • 3.5" (88 mm)
    Width
    • 17.25" (438 mm)
    Depth
    • 28.75" (730 mm)
    Package
    • 9.8" (H) x 20.7" (W) x 38" (D)
    Weight
    • Gross Weight: 90 lbs (40.8 kg)
    • Net Weight: 70 lbs (31.8 kg)
    Available Color
    • Black front & silver body
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 4.0 x16 HHHL slots

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 6 bays:
    • 6 front hot-swap 2.5" SATA drive bays

    M.2
    • 2 M.2 NVMe slots (M-key 2280/22110)
    System Cooling
    Fans
    • 4x 8cm heavy duty fans with optimal fan speed control 80x80x38mm Fan(s)
    Air Shroud
    • 4 Air Shroud(s)
    Power Supply
    2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
    • 1980W: 220-230Vac / 50-60Hz
    • 2000W: 230-240Vac / 50-60Hz

    +12V:
    • Max: 83.3A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 166.7A / Min: 0A (230Vac-240Vac)

    5V SB:
    • Max: 1A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Certification:
    • Titanium Level

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F)
    • Non-operating Temperature: 0°C to 70°C (32°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12SPT-PT4Super X12SPT-PT Motherboard
    CSE-217HQ+-000NBP412U Chassis
    Backplane
    BPN-ADP-6SATA3P4Backplan adapter card; 6SATA ports,RoHS/REACH,PBF
    BPN-SAS3-217HQ312U 24-Slot 4-Node TwinPro Backplane Supports up to 6x 2.5 SA
    Cable
    CBL-PWCD-09002PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
    Air Shroud
    MCP-310-21735-0B4SC217HQ+ Twin Pro mylar air shroud for X12SPT-PT
    Manual
    MNL-2514-QRG1210TP-HPTR(D) Quick Reference Guide
    Riser Card
    RSC-P-6G441U LHS TwinPro Riser card with one PCIe 4.0x16lotH,RoHS
    RSC-PR-6-X241U RHS TwinPro Riser card with one PCIe 4.0 x16 slot,HF,RoH
    Software
    SFT-OOB-LIC4License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0077P41U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    *Power Supply
    PWS-2K04A-1R2AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
    *Power Distributor
    PDB-PT217-H241212U support redundancy input powers up to 2.6KW for Twin seri
    *Fan
    FAN-0183L4480x80x38 mm, 16.5K RPM, Non-hot-swappable Middle Cooling Fan for X11 Twin Pro, X10 and X11 Big Twin Series Servers
    *Drive Tray(s)
    MCP-220-00047-0B24Black gen 3rd hot-swap 2.5inch HDD tray
    *Rail Set
    MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"W
    *Fan Holder
    MCP-320-21701-0N2Twin Pro fan holder (hold 2 80x38 fans),RoHS/REACH

    Optional Part List

    Part Number Quantity Description
    TPM security module
    AOM-TPM-9670H-S-O1SPI Capable Horizontal TPM 2.0 Provisioned for Server
