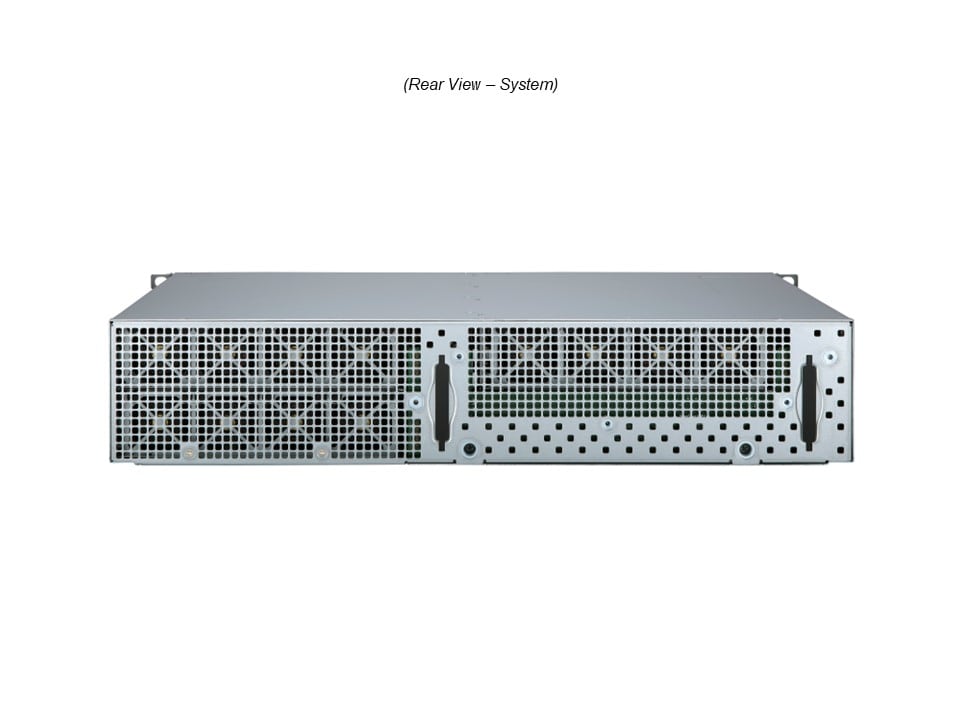

SuperEdge, 2U3N, DC PSU, X13 UP, MBD-X13SEED-SF + CSE-SE

SYS-211SE-31DS

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10286/image_1920?unique=3365fe2

kr 61,018.52 61018.520000000004 NOK kr 61,018.52

kr 61,018.52

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-211SE-31DS is a 2U rackmount server designed for Multi-Access Edge Computing, Flex-RAN, Open-RAN vBBU, Telecom DRAN, CRAN, and Enterprise Edge Computing applications.

    Key Features

    • Single Socket E (LGA-4677) 5th Gen Intel® Xeon®/4th Gen Intel® Xeon Scalable processors (per node)
    • 8 DIMMs; Up to 2TB 3DS ECC DDR5-5600MT/s RDIMM/LRDIMM (per node)
    • 2 PCIe Gen5 x16 FHHL slot and 1 PCIe Gen5 x16 HHHL slot (per node)
    • 2 NVMe M.2 2280/22110 (per node)
    • 4 counter-rotated fan speed control (per node); 1 Air Shroud (per node)
    • Front-access 1+1 Redundant 2000W DC Power Supplies (per system)
    • Operating Temperature 0°C to 35°C ( 32°F to 95°F ) CPU TDP max 300WOperating Temperature 0°C to 55°C ( 32°F to 131°F ) CPU TDP max 205WOperating Temperature -5°C to 55°C ( 23°F to 131°F ) CPU TDP max 205W (Short Term)

    Key Applications

    • Multi-Access Edge Computing
    • Flex-RAN, Open-RAN vBBU
    • Telecom DRAN, CRAN, and Edge Core Application
    • Enterprise Edge Computing

    Description

    The Supermicro SYS-211SE-31DS is engineered to meet the demands of edge computing and telecom deployments. Featuring Single Socket E (LGA-4677) 5th Gen Intel Xeon/4th Gen Intel Xeon Scalable processors, it supports up to 8 DIMMs for up to 2TB of ECC DDR5 memory per node. Equipped with high-speed networking options, NVMe storage, and advanced cooling solutions, this server ensures optimal performance and reliability for critical workloads.

    Product Specifications

    Product SKUs
    SuperServerSYS-211SE-31DS
    Motherboard
    Super X13SEED-SF
    Processor (per Node)
    CPUSingle Socket E (LGA-4677)
    5th Gen Intel® Xeon®/4th Gen Intel® Xeon® Scalable processors
    Core CountUp to 52C/104T; Up to 97.5MB Cache
    NoteSupports 85W - 300W TDP CPUs (Air Cooled)*
    *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
    System Memory (per Node)
    MemorySlot Count: 8 DIMM slots/1 Channels
    Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
    View Memory Options
    Memory Voltage1.1V
    On-Board Devices (per Node)
    ChipsetIntel® C741
    Network Connectivity1 SFP 1GbE with Intel® I210-IS
    View AOC Options
    Input / Output (per Node)
    LAN1 SFP 1 GbE LAN port(s) (Intel® I210-IS) (IPMI shared on LAN port 1)
    TPM1 TPM header
    Others1 KVM dongle (output 1x VGA/1x COM/2x USB 2.0 via KVM cable) port(s)
    System BIOS
    BIOS TypeAMI 256MB SPI Flash
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsACPI Power Management
    Power-on mode for DC power recovery
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    Supply Chain Security: Remote Attestation
    Runtime BMC Protections
    System Lockdown
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory
    FANFans with tachometer monitoring
    Status monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    CPU thermal trip support, PEPI
    Chassis
    Form Factor2U Rackmount
    ModelCSE-SE201-R2K06P
    Dimensions and Weight
    Height3.5" (88 mm)
    Width17.7" (449 mm)
    Depth16.9" (430 mm)
    Package9.5" (H) x 29.5" (W) x 23.2" (D)
    WeightGross Weight: 70.6 lbs (32 kg)
    Net Weight: 55.1 lbs (25 kg)
    Available ColorSilver
    Front Panel
    LEDLAN1 activity
    Power status
    System information
    ButtonsPower On/Off
    UID button
    Expansion Slots (per Node)
    PCI-Express (PCIe) ConfigurationDefault1 PCIe 5.0 x16 HHHL slot(s)2 PCIe 5.0 x16 FHHL slot(s)
    View AOC Options
    Drive Bays / Storage (per Node)
    M.22 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 2280/22110; VROC required for RAID)
    View M.2 Options
    System Cooling
    Air Shroud3 Air Shroud(s)
    Fans12x 4cm heavy duty fans with optimal fan speed control 40x40x56mm Fan(s)
    Power Supply
    2x 2000W2x 2000W Redundant (1 + 1) power suppliesDimension (WxHxL)73.5 x 40 x 265 mmTotal Output Power+12VMax: 166.6A12V SBMax: 4A
    2x 2000W2x 2000W Redundant (1 + 1) power suppliesDimension (WxHxL)73.5 x 40 x 265 mmTotal Output Power+12VMax: 166.6A12V SBMax: 4A
    Operating Environment
    ROHSRoHS Compliant
    Environmental Spec.Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F)
    Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X13SEED-SF3Super X13SEED-SF Motherboard
    CSE-SE201-R2K06P12U Chassis
    Add-on Card / Module
    Part NumberQuantityDescription
    AOM-BPN-SE3N-P1Backplane for SuperEdge 2U3N,RoHS
    Cable
    Part NumberQuantityDescription
    CBL-0218L311.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
    CBL-PWEX-1058248VDC input power cable for PWS-2K03D-1R, 4M, 8AWG,RoHS
    Riser Card
    Part NumberQuantityDescription
    RSC-W-66G531U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R
    RSC-WR-6G531U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,Ro
    Software
    Part NumberQuantityDescription
    SFT-OOB-LIC3License key for enabling OOB BIOS management
    Heatsink / Retention
    Part NumberQuantityDescription
    SNK-P1046V31U Prop. Passive HS for Intel B13 Blade Series
    *Power Supply
    Part NumberQuantityDescription
    PWS-2K06F-1R22000W 1U -48Vdc single output Redundancy power supply
    *Power Distributor
    Part NumberQuantityDescription
    PDB-PT201-DSG2Super Edge pass through board support Ultra powers up to 6KW

    Optional Part List

    Optional sliding rail kit
    Part NumberQuantityDescription
    MCP-290-00144-1N-2U fixed rail set, quick release, default for 2,3U 17.6"W, 26.5"-33.5" D
    TPM security module
    Part NumberQuantityDescription
    AOM-TPM-9670V-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
