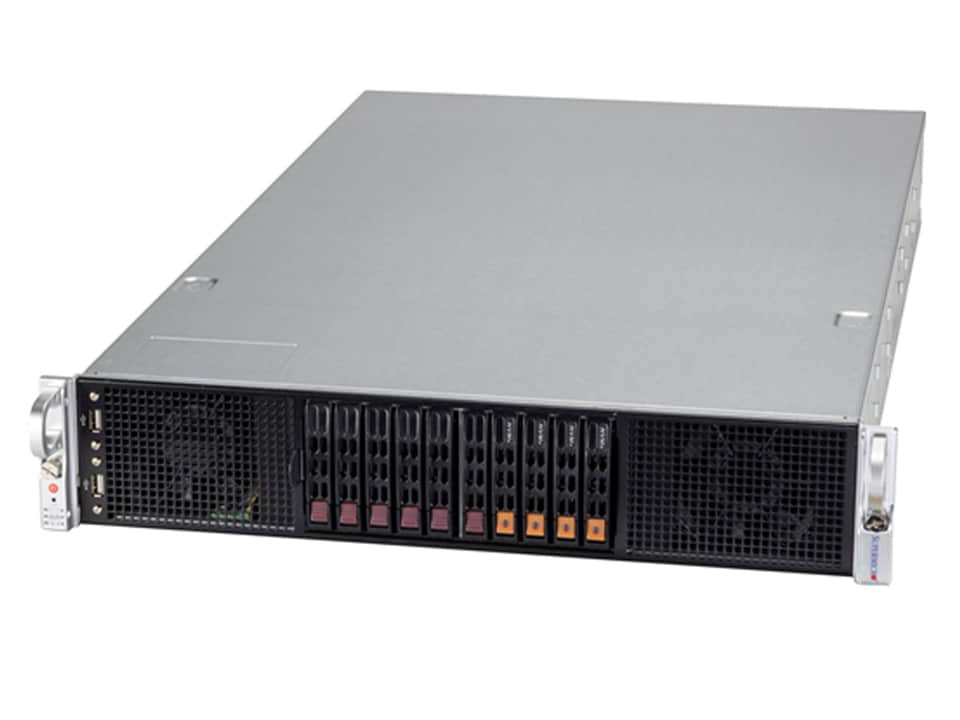

  2. 2U 6GPU, X12DPG-AR-P, CSE-218GH2TS-R0NDBP

2U 6GPU, X12DPG-AR-P, CSE-218GH2TS-R0NDBP

SYS-220GP-TNR

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs, 2 GPUs , 1 Storage device, and 1 NIC)

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/8833/image_1920?unique=73d2afe

kr 43,790.05 43790.05 NOK kr 43,790.05

kr 43,790.05

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Supermicro SYS-220GP-TNR. Motherboard chipset: Intel C621A, Processor socket: LGA 4189, Compatible processor series: Intel® Xeon®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 4 TB, Supported RDIMM clock speeds: 2666,2933,3200 MHz. Storage drive sizes supported: 2.5", Supported storage drive interfaces: Serial ATA III, Serial Attached SCSI (SAS)-3, RAID levels: 0, 1, 5, 10. PC health monitoring: CPU, Fan, Temperature. BIOS type: AMI, BIOS memory size: 32 Mbit

    Key Features

    • 16 DIMM Slots; Up to 4TB DRAM; Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM) ; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
    • 6 PCIe Gen 4.0 x16 FH, 10.5" LUp to 2 PCIe Gen 4.0 x8 FH
    • 5 counter rotating fans w/ Optimal Fan Speed Control
    • Total 10x 2.5" Hot-swap drive bays, configurable combination of SATA + NVMe with optional cable, up to 6x NVMeConfiguration 3: 4x SATA + 6x NVMe2x M.2 NVMe for boot drive only (with optional expansion card AOC-SLG3-2M2)Configuration 1: 8x SATA + 2x NVMe (PCIe slot 7 + slot 8 enabled)Configuration 2: 6x SATA + 4x NVMe (PCIe slot 7 enabled)
    • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
    • 2x 2600W redundant Titanium level power supplies
    • Intel® C621A Chipset
    • Flexible networking options

    Key Applications

    • Scientific Virtualization
    • High Performance Computing
    • VDI
    • AI/Deep Learning Training

    Description

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-220GP-TNR
    Motherboard
    Installed Motherboard
    • Super X12DPG-AR
    Processor
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 40C/80T; Up to 60MB Cache per CPU
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 6 double-width or 8 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: A40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, A40, A30, A16, A2, A100, A10
    CPU-GPU Interconnect
    • PCIe 4.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • PCIe
    System Memory
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support
    Chipset
    • Intel® C621A
    Network Connectivity
    • Via AIOM
    Input / Output
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7 +1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-218GH2TS-R2K63BP
    Dimensions and Weight
    Height
    • 3.46" (88 mm)
    Width
    • 17.35" (440.7 mm)
    Depth
    • 30.18" (766.8 mm)
    Package
    • 11" (H) x 26.5" (W) x 44.5" (D)
    Weight
    • Gross Weight: 54 lbs (24.5 kg)
    • Net Weight: 39.5 lbs (17.9 kg)
    Available Color
    • Black Front & Silver Body
    Front Panel
    LED
    • Hard drive activity LED
    • Information LED
    • Network activity LEDs
    • Power status LED
    • UID LED
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 6 PCIe 4.0 x16 FH/10.5"L slots
    • 2 PCIe 4.0 x8 FHFL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 10 bays:
    • 6 front hot-swap 2.5" SAS*/SATA drive bays
    • 4 front hot-swap 2.5" NVMe drive bays

    • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    System Cooling
    Fans
    • 5 heavy duty fans with optimal fan speed control
    Power Supply
    1x 2600W Redundant Titanium Level (96%) power supply
    Dimension (WxHxL):
    • 73.5 x 40 x 265 mm

    AC Input:
    • 2600W: 200-240Vac / 50-60Hz
    • 2600W: 200-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 216A / Min: 0A (200Vac-240Vac)

    12V SB:
    • Max: 3.5A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Optional Part List

    Part Number Quantity Description
    2.5" NVMe Drive Trays
    MCP-220-00121-0B2Black Gen-3 2.5" NVMe drive tray. Orange tab with lock.
    2.5" SATA Drive Trays
    MCP-220-00047-0B2Black gen 3rd hot-swap 2.5inch HDD tray
    GPU Brackets
    MCP-240-21829-0N1NVidia A10 GPU Bracket Set
    MCP-120-21807-0N1NVidia Tesla T4 GPU Bracket Set
    MCP-240-21832-0N1NVidia A2 Bracket Set
    GPU Cables
    CBL-PWEX-10401PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
    CBL-PWEX-10171PWYCB,GPU,2x4F/CPU to two (2x3F+2x1F)/PCIe,P4.2, 20CM,16/20A
    CBL-PWEX-06651PCIe 8 Pin Female(Black) to CPU 8 Pin Female(White)
    Intel VROC RAID Key
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10
    Network Cards
    AOC-STG-i4T1Std LP 4-port 10G RJ45, Intel XL710+ X557
    AOC-MCX556A-ECAT1MCX556A-ECAT, CX-5 VPI,EDR IB,100GbE,2p,QSFP28,PCIe3x16
    AOC-MCX516A-CCAT1Mellanox MCX516A-CCAT PCIe 2-port 100GbE QSFP28 Gen3.0 x16 CX-5. HF, RoHS
    AOC-S25G-i2S1Standard Low Profile 25G dual port SFP28, based on Intel XXV710+ Marvell Unionville,RoHS
    AOC-653105A-HDAT1Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card single port, QSFP56, PCIe 3.0/4.0 x16, RoHS.
    AOC-653106A-ECAT1ConnectX-6 VPI Card. 100Gb/s InfiniBand & Ethernet Adapter Card, dual ports, QSFP56, PCIe 3.0/4.0 x16. HF, RoHS.
    AOC-STGS-I2T1Intel X550-AT2 2 RJ45 (10Gb/port) Gen3 x4 Standard Low Profile
    AOC-STG-b2T1Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS
    Network Cards (AIOM)
    AOC-ATG-i2T2SM1AIOM Quad-Port 10GbE (2x RJ45 & 2x SFP+) based on Intel X710-TM4,RoHS
    AOC-A25G-m2SM1AIOM 2-port 25GbE SFP28, Mellanox CX-6 LX w/ 0.5U height bracket,RoHS
    AOC-A25G-b2SM1AIOM 2-port 25GbE SFP28, Broadcom BCM57414 with 0.5U bracket,RoHS
    AOC-ATG-i2SM1AIOM Dual-Port 10GbE SFP+, based on X710-BM2,RoHS
    AOC-ATGC-i2TM1AIOM 2-port 10GBase-T RJ45, based on Intel Carlsville X710-AT2, w/ 1U BKT,RoHS
    AOC-ATG-i2TM1AIOM 2-port 10GBase-T, Intel X550,RoHS
    AOC-ATG-I4SM1AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1,RoHS
    NVMe/AOC Cables
    CBL-SAST-1262LP-851SlimlineLP x8 (STR) to SlimlineLP x8 (STR),60CM,85 OHM. For 2x NVMe and 6x NVMe configurations.
    Rear Fan Kit
    MCP-320-21809-0N1External rear fan mounted over slots 5 and 6 to increase operating ambient temperature with 6x A100, A40, A6000, etc.
    Storage Controller Cards and Cables
    AOC-SLG3-2M21LP, PCIe3 x8, Dual port NVMe M.2 carrier
    CBL-SAST-1264F-100(for S3808L and S3908L)1Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM,10
    AOC-S3808L-L8IT18 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS
    AOC-S3908L-H8IR-16DD18 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
    CBL-SAST-1285-100 (for S3108L)2Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R
    AOC-S3108L-H8iR-16DD18 int 12Gb/s ports, 8xGen3, ROC - LP,16 HDD w/ exp
    TPM Security Module
    AOM-TPM-9670V1SPI capable vertical TPM 2.0 provisioned for client,RoHS
