MBD-X12DPG-QR,228GTS-R2K21P, 3kW PWS,HF, RoHS/REACH,RoHS

SYS-220GQ-TNAR+

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs of at least 20 cores each CPU, Min of 512GB Memory for 80G HGX-4 A100 OR Min of 256GB Memory for 40G HGX-4 A100, 1 Storage device, and 1 NIC included in IO board). Service: OSNBD3 is highly recommended.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10437/image_1920?unique=f7d9088

kr 72,407.34 72407.34 NOK kr 72,407.34

kr 72,407.34

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

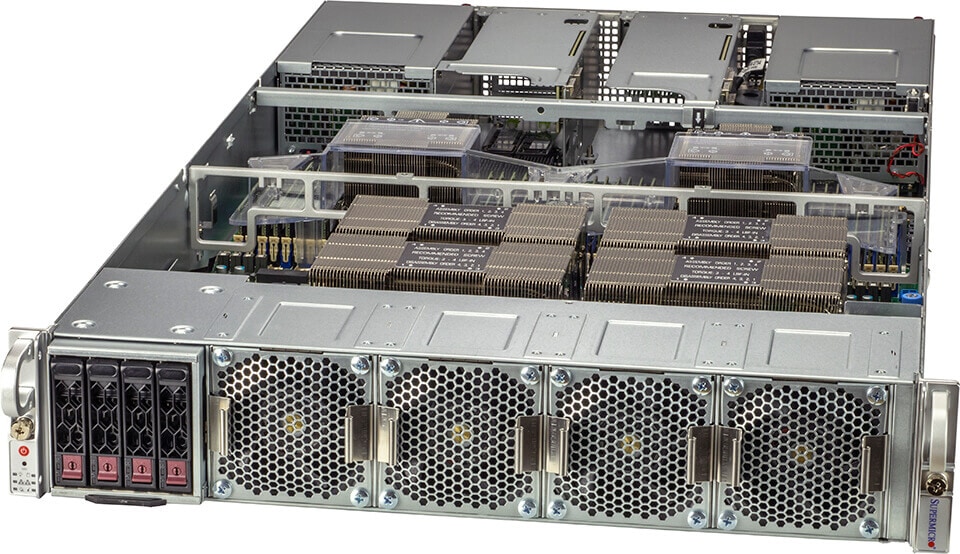

    Supermicro SYS-220GQ-TNAR+ is a high-performance, scalable 2U rackmount system designed for AI and Deep Learning applications. It supports dual-socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors, NVIDIA® HGX™ A100 4-GPU with NVLink® interconnect, and a range of flexible networking options.

    Key Features

    • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
    • Intel® C621A Chipset
    • Up to 4x PCIe Gen 4.0 X16 LP Slots
    • High density 2U system with NVIDIA® HGX™ A100 4-GPUHighest GPU communication using NVIDIA® NVLINK™Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e)Direct connect PCIe Gen4 Platform with NVIDIA® NVLink™ v3.0 up to 600GB/s interconnect
    • Flexible networking options
    • 4x 2.5" Hot-swap (SATA/SAS/NVMe) drive bays2 M.2  NVMe/SATA via Intel® C621A PCH chipset (for boot drive only)
    • 4 heavy duty fans with optimal fan speed control
    • 2x 3000W redundant Titanium level power supplies

    Key Applications

    • High Performance Computing
    • AI/Deep Learning Training

    Description

    The Supermicro SYS-220GQ-TNAR+ is a powerful, high-density 2U system engineered for AI/Deep Learning. It features dual-socket P+ (LGA-4189) with up to 3rd Gen Intel® Xeon® Scalable Processors, NVIDIA® HGX™ A100 4-GPU with NVLink® for high communication bandwidth, and flexible expansion slots including PCIe Gen 4.0 x16 LP slots. The system supports up to 8TB of ECC DDR4 memory, 4x 2.5" hot-swap drive bays, and redundant 3000W Titanium level power supplies for reliability and performance in demanding workloads.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-220GQ-TNAR+
    Motherboard
    Installed Motherboard
    • Super X12DPG-QR
    Processor
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 40C/80T; Up to 60MB Cache per CPU
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 4 onboard GPUs
    Supported GPU
    • NVIDIA SXM: HGX A100 4-GPU (80GB)
    CPU-GPU Interconnect
    • PCIe 4.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • NVIDIA® NVLink®
    System Memory
    Memory
    • Slot Count: 32 DIMM slots
    • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GbE with Intel® X540-AT2
    Input / Output
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-228GTS-R3K02P
    Dimensions and Weight
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 32.7" (830.3 mm)
    Package
    • 11" (H) x 22.5" (W) x 45.5" (D)
    Weight
    • Gross Weight: 86.5 lbs (39.2 kg)
    • Net Weight: 67.5 lbs (30.6 kg)
    Available Color
    • Silver Body
    Front Panel
    LED
    • Hard drive activity LED
    • Network activity LEDs
    • Power status LED
    • System Overheat & Power Fail LED
    Buttons
    • Power On/Off button
    • System Reset button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 3 PCIe 4.0 x16 LP slots

    Option A*:
    • 4 PCIe 4.0 x16 LP slots

    • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 4 bays:
    • 4 front hot-swap 2.5" NVMe/SAS/SATA drive bays

    M.2
    • 2 M.2 NVMe/SATA slots (M-key)
    System Cooling
    Fans
    • 4 heavy duty fans with optimal fan speed control
    Power Supply
    1x 3000W Redundant Titanium Level (96%) power supply
    Dimension (WxHxL):
    • 106.5 x 82.4 x 203.5 mm

    AC Input:
    • 2880W: 200-207Vac / 50-60Hz
    • 3000W: 207.1-240Vac / 50-60Hz
    • 3000W: 240Vdc / 50-60Hz

    +12V:
    • Max: 91.66A / Min: 0A (200Vac-240Vac)
    • Max: 91.66A / Min: 0A (Vdc-240Vdc)

    12V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Optional Part List

    Part Number Quantity Description
    2.5" SATA/SAS Drive Tray
    MCP-220-00187-0B1 per drive2.5 thin profile drive tray, standard color tab, for SAS / SATA drives
    GPU Baseboard *
    GPU-NVTHGX-A100-SXM4-481NVIDIA Redstone GPU Baseboard, 4 A100 80GB SXM4
    GPU-NVTHGX-A100-SXM4-41NVIDIA Redstone GPU Baseboard, 4 A100 40GB SXM4
    GPU Baseboard Note
    * Required as part of Complete System--
    Network Cards (Ethernet)
    AOC-MCX512A-ACAT-2-port SFP28 Mellanox ConnectX-5 EN 25GbE Ethernet Adapter Card, PCIe 3.0 x8
    AOC-100HFA0LSN-CA027-Cornelis Omni-Path Adapter PCIe 1 Port 100G QSFP28 Gen3 x16
    AOC-623106AN-CDAT-2-port QSFP56 Mellanox ConnectX-6 DX 100GbE Ethernet Adapter Card, PCIe 4.0 x16
    AOC-623102AN-ADAT-2-port SFP28 Mellanox ConnectX-6 DX No Crypto 25GbE Ethernet Adapter Card, PCIe 3.0/4.0 x16
    AOC-MCX516A-CCAT-2-port SFP28 Mellanox ConnectX-5 EN 100GbE Ethernet Adapter Card, PCIe 3.0 x16
    AOC-MCX512F-ACAT-2-port SFP28 Mellanox ConnectX-5 EN 25GbE Ethernet Adapter Card, PCIe 3.0 x16
    AOC-S100GC-i2C-2-port QSFP28 Intel Columbiaville 810-CAM2 100GbE Ethernet Adapter Card, PCIe 3.0/4.0 x16
    AOC-S25G-I2S-2-port SFP28 Intel XXV710 25GbE Ethernet Adapter Card, PCIe 3.0 x8
    AOC-STG-I4T-4-port RJ45 Intel XL720-BM1 & X557-AT4 10Gb Ethernet Adapter Card, PCIe 3.0 x8
    AOC-STG-I2T-2-port RJ45 Intel X540 10GbE Ethernet Adapter Card, PCIe 2.1 x8
    AOC-STGN-I2S-2-port SFP+ Intel 82599ES 10GbE Ethernet Adapter Card, PCIe 2.0 x8
    AOC-STGS-i2T-2-port RJ45 Intel  X550-AT2 10GbE Ethernet Adapter Card, PCIe 3.0 x8
    AOC-STG-B2T-O-2-port RJ45 Broadcom 57416 10GbE Ethernet Adapter Card, PCIe 3.0 x8
    AOC-S25G-M2S-O-2-port SFP28 Mellanox ConnectX-4 LX EN 25GbE Ethernet Adapter Card, PCIe 3.0 x8
    AOC-STG-I4S-4-port SFP+ Intel XL710-BM1 10GbE Ethernet Adapter Card, PCIe 3.0x8
    AOC-STGF-i2S-O-2-port SFP+ Intel X710-BM2 10GbE Ethernet Adapter Card with NC-SI function support by connector, PCIe 3.0 x8
    Network Cards (Ethernet/ InfiniBand)
    AOC-653106A-ECAT-2-port QSFPS6 Mellanox ConnectX-6 VPI 100Gb/s EDR InfiniBand & 100GbE Ethernet Adapter Card, PCIe 3.0/4.0 x16
    AOC-MCX556A-ECAT-2-port QSFP28 Mellanox ConnectX-5 VPI 100Gb/s EDR InfiniBand & 100GbE Ethernet Adapter Card, PCIe 3.0 x16
    AOC-653106A-HDAT-2-port QSFP56 Mellanox ConnectX-6 VPI 200Gb/s HDR InfiniBand & 200GbE Ethernet Adapter Card, PCIe 4.0 x16
    AOC-653105A-HDAT-1-port QSFP56 Mellanox ConnectX-6 VPI 200Gb/s HDR InfiniBand & 200GbE Ethernet Adapter Card, PCIe 4.0 x16
    AOC-653105A-ECAT-1-port QSFP56 Mellanox ConnectX-6 VPI 100Gb/s EDR InfiniBand & 100GbE Ethernet Adapter Card, PCIe 3.0/4.0 x16
    Network Cards (InfiniBand)
    AOC-683105AN-HDAT-1-port QSFP56 Mellanox ConnectX-6 DE 200Gb/s HDR InfiniBand, PCIe 3.0/4.0 x16
    AOC-CX7660030-ST0-1-port OSFP Nvidia 900-9X766-003N-ST0 200Gb/s NDR200 Infiniband, PCIe 4.0/5.0 x16,RoHS
    Storage Controller Cards
    AOC-S3808L-L8iT-8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/exp
    AOC-S3108L-H8iR-16DD-8 int 12Gb/s ports, 8xGen3, ROC - LP,16 HDD w/ exp
    AOC-S3908L-H8IR-32DD-8 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS
    Storage Controller Cards - Cables
    CBL-SAST-1281-100-Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM, (for AOC-S3908L-H8IR-32DD and AOC-S3808L-L8iT)
    CBL-SAST-1285-100-Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R (for AOC-S3108L-H8iR-16DD)
    Storage Controller Cards - Cachevault
    BTR-CVPM05-Supercap/TFM Unit for cached data protection (optional for AOC-S3908L-H8IR-32DD)
    MCP-240-00203-0N-Remote Mounting Board for BTR-CVPM05, Occupies single PCIe Slot
    TPM Security Module
    AOM-TPM-9670V-S-FIPS-P-AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS,RoHS
