X12DPT-PT6, CSV-217HQ+-R2K20BP4, AOC-S3908L-H8IR

SYS-220TP-HC9TR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10452/image_1920?unique=1caa98b

kr 108,547.26 108547.26000000001 NOK kr 108,547.26

kr 108,547.26

Not Available For Sale

    This combination does not exist.

    Summary Description

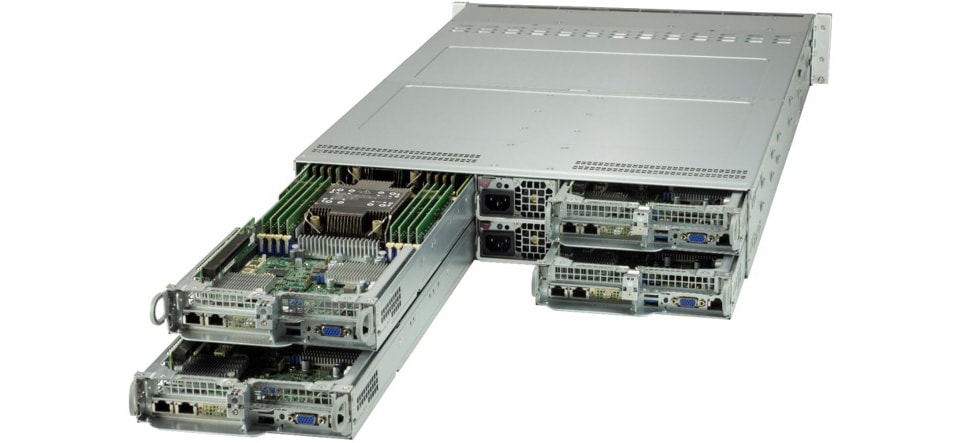

    The Supermicro SYS-220TP-HC9TR is a high-performance 2U rackmount server ideal for demanding applications such as high-performance computing and hyper-converged infrastructure. It features dual socket P+ (LGA-4189) 3rd Generation Intel Xeon Scalable processors, Intel C621A chipset, and up to 4TB DDR4 memory.

    Key Features

    • Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
    • Intel® C621A Chipset
    • 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
    • 1 PCIe 4.0 x16 (LP), 1 PCIe 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)
    • Intel® X710 Dual port 10GBase-T LAN onboard
    • 6x 2.5" hot-swap SATA/SAS drive bays
    • 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)
    • Two 2200W redundant power supplies with PMBus
    • Broadcom® 3908 SAS (12Gbps); 6 slots per node; RAID 0, 1, 5, 6, 10, 50 support.ASPEED AST2600 BMC, 2 USB, VGA. RoT

    Key Applications

    • High Performance Computing
    • Hyper-Converged Infrastructure
    • Big Data / Big Science

    Description

    The Supermicro SYS-220TP-HC9TR offers unparalleled performance with dual socket P+ (LGA-4189) 3rd Generation Intel Xeon Scalable processors, and supports up to 4TB DDR4-3200 memory. It is ideal for high-performance computing, hyper-converged infrastructure, and big data applications. The system includes an Intel C621A chipset, PCIe 4.0 support, six 2.5" hot-swap SATA/SAS drive bays, Intel X710 dual port 10GBase-T LAN, and advanced security features such as TPM 2.0 and Silicon Root of Trust. It also provides robust management tools like SuperCloud Composer and Supermicro Server Manager.

    Product Specifications

    Product SKUs
    SuperServerSYS-220TP-HC9TR
    Motherboard
    Super X12DPT-PT6
    Processor (per Node)
    CPUDual Socket P+ (LGA-4189)
    3rd Gen Intel® Xeon® Scalable processors
    Core CountUp to 32C/64T; Up to 48MB Cache per CPU
    NoteSupports up to 185W TDP CPUs (Air Cooled)
    System Memory (per Node)
    MemorySlot Count: 16 DIMM slots
    Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
    View Memory Options
    Memory Voltage1.2V
    On-Board Devices (per Node)
    ChipsetIntel® C621A
    Network Connectivity2 RJ45 10GBASE-T with Intel® X710-AT2
    View AOC Options
    Input / Output (per Node)
    LAN1 RJ45 1 GbE Dedicated IPMI LAN port(s)
    USB2 USB 3.0 port(s) (rear)
    Video1 VGA port(s)
    System BIOS
    BIOS TypeAMI 32MB SPI Flash EEPROM
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsPower-on mode for AC power recovery
    ACPI Power Management
    ACPI/APM Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    System Lockdown
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory
    5 Phase-switching voltage regulator
    FANFans with tachometer monitoring
    Status monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    Chassis
    Form Factor2U Rackmount
    ModelCSV-217HQ+-R2K20BP4
    Dimensions and Weight
    Height3.47" (88 mm)
    Width17.25" (438 mm)
    Depth28.75" (730 mm)
    Package10" (H) x 24.5" (W) x 45" (D)
    WeightGross Weight: 90 lbs (40.9 kg)
    Net Weight: 72 lbs (32.7 kg)
    Available ColorBlack front & silver body
    Front Panel
    LEDNetwork activity LED
    Power status LED
    System information (overheat/UID) LED
    ButtonsPower On/Off button
    UID button
    Expansion Slots (per Node)
    PCI-Express (PCIe) ConfigurationDefault1 PCIe 4.0 x16 LP slot(s)
    View AOC Options
    Drive Bays / Storage (per Node)
    Drive Bays ConfigurationDefault: Total 6 bay(s)6 front hot-swap 2.5" SATA drive bay(s)
    View Drive Options
    M.2View M.2 Options
    System Cooling
    Fans4x 8cm heavy duty fans with optimal fan speed control
    Air Shroud4 Air Shroud(s)
    Power Supply
    1x 2200W1x 2200W Redundant Titanium Level (96%) power supplyDimension (WxHxL)76 x 40 x 336 mmAC Input1200W: 100-127Vac / 50-60Hz1800W: 200-220Vac / 50-60Hz2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)1980W: 220-230Vac / 50-60Hz2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)2090W: 230-240Vac / 50-60Hz2090W: 230-240Vdc / 50-60Hz (for CCC only)+12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)5V SBMax: 1A / Min: 0AOutput TypeBackplanes (gold finger)
    1x 2200W1x 2200W Redundant Titanium Level (96%) power supplyDimension (WxHxL)76 x 40 x 336 mmAC Input1200W: 100-127Vac / 50-60Hz1800W: 200-220Vac / 50-60Hz2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)1980W: 220-230Vac / 50-60Hz2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)2090W: 230-240Vac / 50-60Hz2090W: 230-240Vdc / 50-60Hz (for CCC only)+12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)5V SBMax: 1A / Min: 0AOutput TypeBackplanes (gold finger)
    Operating Environment
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X12DPT-PT64Super X12DPT-PT6 Motherboard
    CSV-217HQ+-R2K20BP412U Chassis
    Add-on Card / Module
    Part NumberQuantityDescription
    AOC-S3908L-H8IR-16DD-P48 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDDw/ exp,RoHS
    Backplane
    Part NumberQuantityDescription
    BPN-SAS3-217HQ312U 4-Node TwinPro Backplane for 6x2.5� SAS3/SATA3 HDD/SDD
    Cable
    Part NumberQuantityDescription
    CBL-PWCD-09002PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
    CBL-SAST-1334-1004[NR] SlimSAS x8 (STR to STR),34CM,100 OHM,RoHS
    Air Shroud
    Part NumberQuantityDescription
    MCP-310-21732-0B4TwinPro 2U4N plastic air shroud for X12DPT-PT6(2pcs)
    Riser Card
    Part NumberQuantityDescription
    RSC-P-6G441U LHS TwinPro Riser card with one PCIe 4.0x16lotH,RoHS
    RSC-PR-6-X241U RHS TwinPro Riser card with one PCIe 4.0 x16 slot,HF,RoH
    Storage Controller Card
    Part NumberQuantityDescription
    SCC-P2N2M2-P242x NVMe M.2 carrier up to 2280 for X12 Twinpro
    SCC-P6SG4-P141U Passive Gen4 6x SAS/SATA connecting to AOC 3808/3908
    Software
    Part NumberQuantityDescription
    SFT-OOB-LIC4License key for enabling OOB BIOS management
    Heatsink / Retention
    Part NumberQuantityDescription
    SNK-P0077PM4X12 ICX/CPX 1U Passive CPU Heatsink (78x113x24.7mm), w/ Center Air channel
    SNK-P0077V4X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
    *Power Supply
    Part NumberQuantityDescription
    PWS-2K20A-1R21U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
    *Power Distributor
    Part NumberQuantityDescription
    PDB-PT217-H241212U support redundancy input powers up to 2.6KW for Twin seri
    *Fan
    Part NumberQuantityDescription
    FAN-0183L4480x80x38 mm, 16.5K RPM, Non-hot-swappable Middle Cooling Fan for X11 Twin Pro, X10 and X11 Big Twin Series Servers
    *Drive Tray(s)
    Part NumberQuantityDescription
    MCP-220-00047-0B24Black gen 3rd hot-swap 2.5inch HDD tray
    *Rail Set
    Part NumberQuantityDescription
    MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"W
    *Fan Holder
    Part NumberQuantityDescription
    MCP-320-21701-0N2Twin Pro fan holder (hold 2 80x38 fans),RoHS/REACH

    Optional Part List

    CacheVault for RAID Controller
    Part NumberQuantityDescription
    BTR-CVPM051Broadcom CacheVault
    MCP-240-00203-0N1Mounting Bracket
    TPM security module (optional, not included)
    Part NumberQuantityDescription
    AOM-TPM-9670H-O•1SPI capable TPM 2.0 with Infineon 9670 controller with Horizontal form factor
    AOM-TPM-9671H-O1SPI capable TPM 1.2 with Infineon 9670 controller with Horizontal form factor
    VROC Premium
    Part NumberQuantityDescription
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10
    VROC Standard
    Part NumberQuantityDescription
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10
