SYS-220TP-HTTR
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SYS-220TP-HTTR is engineered for high performance in demanding environments. It supports dual 3rd Gen Intel® Xeon® Scalable processors, up to 4TB DDR4 memory, and is equipped with advanced management software for optimal efficiency.
Key Features
- Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
- Intel® C621A Chipset
- 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
- 2 PCIe 4.0 x16 (LP), 1 PCIe 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)
- Intel® X710 Dual port 10GBase-T LAN onboard
- 6x 2.5" hot-swap SATA drive bays
- 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)
- Two 2200W redundant power supplies with PMBus
- SATA (6Gbps); 6 slots per node; RAID 0, 1, 5, 10 support.ASPEED AST2600 BMC, 2 USB, VGA. RoT
Key Applications
- High Performance Computing
- Hyper-Converged Infrastructure
- Big Data / Big Science
Description

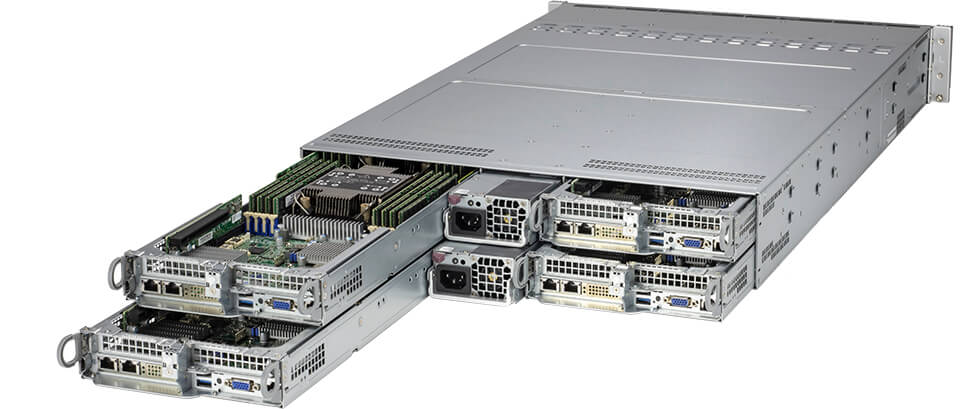

The SYS-220TP-HTTR by Supermicro is a 2U rackmount server that combines high performance with robust features. It supports dual 3rd Gen Intel® Xeon® Scalable processors, up to 4TB of DDR4 memory, and boasts advanced management capabilities. Ideal for High Performance Computing, Hyper-Converged Infrastructure, and Big Data applications. The server features 2 PCIe 4.0 slots, Intel® 10GBase-T LAN, 6 hot-swap SATA drive bays, redundant 2200W power supplies, and comprehensive security and power management tools.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor (per Node) | |
| CPU |
|
| Core Count |
|
| Note |
|
| System Memory (per Node) | |
| Memory |
|
| Memory Voltage |
|
| On-Board Devices (per Node) | |
| SATA |
|
| Chipset |
|
| Network Connectivity |
|
| Input / Output (per Node) | |
| LAN |
|
| USB |
|
| Video |
|
| DOM |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power configurations |
|
| Security | |
| Hardware |
|
| Features |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Height |
|
| Width |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Color |
|
| Front Panel | |
| LED |
|
| Buttons |
|
| Expansion Slots (per Node) | |
| PCI-Express (PCIe) Configuration | Default:
|
| Drive Bays / Storage (per Node) | |
| Drive Bays Configuration | Default: Total 6 bays:
|
| M.2 | |
| System Cooling | |
| Fans |
|
| Air Shroud |
|
| Power Supply | |
| 1x 2200W Redundant Titanium Level (96%) power supply | Dimension (WxHxL):
AC Input:
+12V:
5V SB:
Output Type:
|
| Operating Environment | |
| Environmental Spec. |
|
| General | |
| Standard Parts (Parts Included) | |
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X12DPT-PT6 | 4 | Super X12DPT-PT6 Motherboard |
| CSV-217HQ+-R2K20BP4 | 1 | 2U Chassis |
| Backplane | ||
| BPN-ADP-6SATA3P | 4 | Backplan adapter card; 6SATA ports,RoHS/REACH,PBF |
| BPN-SAS3-217HQ3 | 1 | 2U 24-Slot 4-Node TwinPro Backplane Supports up to 6x 2.5 SA |
| Cable | ||
| CBL-PWCD-0900 | 2 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17 |
| Air Shroud | ||
| MCP-310-21732-0B | 4 | TwinPro 2U4N plastic air shroud for X12DPT-PT6(2pcs) |
| Riser Card | ||
| RSC-P-6G4 | 4 | 1U LHS TwinPro Riser card with one PCIe 4.0x16lotH,RoHS |
| RSC-PR-6-X2 | 4 | 1U RHS TwinPro Riser card with one PCIe 4.0 x16 slot,HF,RoH |
| Storage Controller Card | ||
| SCC-P2N2M2-P2 | 4 | 2x NVMe M.2 carrier up to 2280 for X12 Twinpro |
| Software | ||
| SFT-OOB-LIC | 4 | License key for enabling OOB BIOS management |
| Heatsink / Retention | ||
| SNK-P0077PM | 4 | X12 ICX/CPX 1U Passive CPU Heatsink (78x113x24.7mm), w/ Center Air channel |
| SNK-P0077V | 4 | X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin |
| *Power Supply | ||
| PWS-2K20A-1R | 2 | 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm |
| *Power Distributor | ||
| PDB-PT217-H2412 | 1 | 2U support redundancy input powers up to 2.6KW for Twin seri |
| *Fan | ||
| FAN-0183L4 | 4 | 80x80x38 mm, 16.5K RPM, Non-hot-swappable Middle Cooling Fan for X11 Twin Pro, X10 and X11 Big Twin Series Servers |
| *Drive Tray(s) | ||
| MCP-220-00047-0B | 24 | Black gen 3rd hot-swap 2.5inch HDD tray |
| *Rail Set | ||
| MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W |
| *Fan Holder | ||
| MCP-320-21701-0N | 2 | Twin Pro fan holder (hold 2 80x38 fans),RoHS/REACH |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| TPM security module (optional, not included) | ||
| AOM-TPM-9670H-O | 1 | SPI capable TPM 2.0 with Infineon 9670 controller with Horizontal form factor |
| AOM-TPM-9671H-O | 1 | SPI capable TPM 1.2 with Infineon 9670 controller with Horizontal form factor |
| VROC Premium | ||
| AOC-VROCPREMOD | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 |
| VROC Standard | ||
| AOC-VROCSTNMOD | 1 | Intel VROC Standard, RAID 0, 1, 10 |
