Ultra 2U, 6x2.5" NVMe, X12DPU-6, 219ULTS-R1K62P

SYS-220U-MTNR

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs, 1 Storage Device HDD/HDS/M.2, and 1 NIC adapter*). *NIC adapter requirement includes either 1 Ultra Riser card with integrated NIC or 1 AOC-2UR668G4 Ultra Riser card with 1 standard PCI-E NIC adapter.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10438/image_1920?unique=7c1c8fe

kr 35,297.08 35297.08 NOK kr 35,297.08

kr 35,297.08

Not Available For Sale

    This combination does not exist.

    Summary Description

    Supermicro's SYS-220U-MTNR offers unparalleled performance, flexibility, and scalability, making it an ideal choice for mission-critical Enterprise workloads. This 2U Ultra server supports 3rd Gen Intel Xeon Scalable processors and leading-edge memory and storage options.

    Key Features

    • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
    • Intel® C621A Chipset
    • 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
    • 1 PCIe 4.0 x16 (LP)1 PCIe 4.0 x16 (FH, 10.5"L)5 PCIe 4.0 x8 (FH, 10.5"L)1 internal PCIe 4.0 x8 (in x16 slot, LP)
    • Flexible networking options
    • 6x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
    • 6 heavy duty fans with optimal fan speed control
    • 1600W redundant Titanium level power supplies

    Key Applications

    • Virtualization
    • HPC
    • Cloud Computing
    • High End Enterprise Server
    • Software Defined Storage
    • Application Tier Service Provider
    • 5G/Telco

    Description

    The Supermicro SYS-220U-MTNR is engineered to meet the highest standards of performance and reliability. Featuring dual Socket P+ (LGA-4189), this server supports the latest 3rd Gen Intel Xeon Scalable processors, providing up to 40 cores and 80 threads per CPU with up to 60MB cache. The system is equipped with 32 DIMM slots, allowing for up to 8TB of DDR4 memory and Intel Optane persistent memory support. With six hot-swap drive bays that can accommodate NVMe, SATA, or SAS drives, the SYS-220U-MTNR ensures that data access and storage are optimized. Advanced networking capabilities include optional dual 10GBASE-T and 10GbE ports.

    Product Specifications

    Product SKUs
    SuperServerSYS-220U-MTNR
    Motherboard
    Super X12DPU-6
    Processor
    CPUDual Socket P+ (LGA-4189)
    3rd Gen Intel® Xeon® Scalable processors
    Core CountUp to 40C/80T; Up to 60MB Cache per CPU
    NoteSupports up to 270W TDP CPUs (Air Cooled)
    GPU
    Max GPU CountUp to 4 double-width or 6 single-width GPU(s)
    Supported GPUNVIDIA PCIe: T4, RTX A6000, RTX A5000, A40, A30, A16, A2, A100, A10
    View GPU Options
    System Memory
    MemorySlot Count: 32 DIMM slots
    Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Supports Intel® Optane™ persistent memory 200 series
    View Memory Options
    Memory Voltage1.2V
    On-Board Devices
    SATASATA (6Gbps) ; RAID 0/1/5/10 support
    NVMeNVMe; RAID 0/1/5/10 support
    View NVMe Options
    ChipsetIntel® C621A
    Network Connectivity2 RJ45 10GBASE-T with Intel® X710-AT2 (optional)
    2 RJ45 10GBASE-T with Intel® X710-TM4 (optional)
    2 SFP+ 10GbE with Intel® X710-TM4 (optional)
    No NIC option supported
    View Network Card (AOC) Options
    View AOC Options
    Input / Output
    LAN1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB2 USB 3.0 port(s) (rear)
    Video1 VGA port(s)
    DOM2 SuperDOM(Disk on Module) port(s)
    System BIOS
    BIOS TypeAMI 32MB SPI Flash EEPROM
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsPower-on mode for AC power recovery
    ACPI Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    System Lockdown
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory
    7 +1 Phase-switching voltage regulator
    FANFans with tachometer monitoring
    Status monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    Chassis
    Form Factor2U Rackmount
    ModelCSE-219ULTS-R1K62P
    Dimensions and Weight
    Height3.5" (89 mm)
    Width17.2" (437 mm)
    Depth22.6" (574 mm)
    Package9.96" (H) x 24.6" (W) x 45.43" (D)
    WeightGross Weight: 66 lbs (30 kg)
    Net Weight: 40 lbs (18.2 kg)
    Available ColorBlack Front & Silver Body
    Front Panel
    LEDHDD activity
    LAN1 activity
    LAN2 acticity
    Power Fail
    Power status
    System information (overheat/UID)
    ButtonsPower On/Off
    UID button

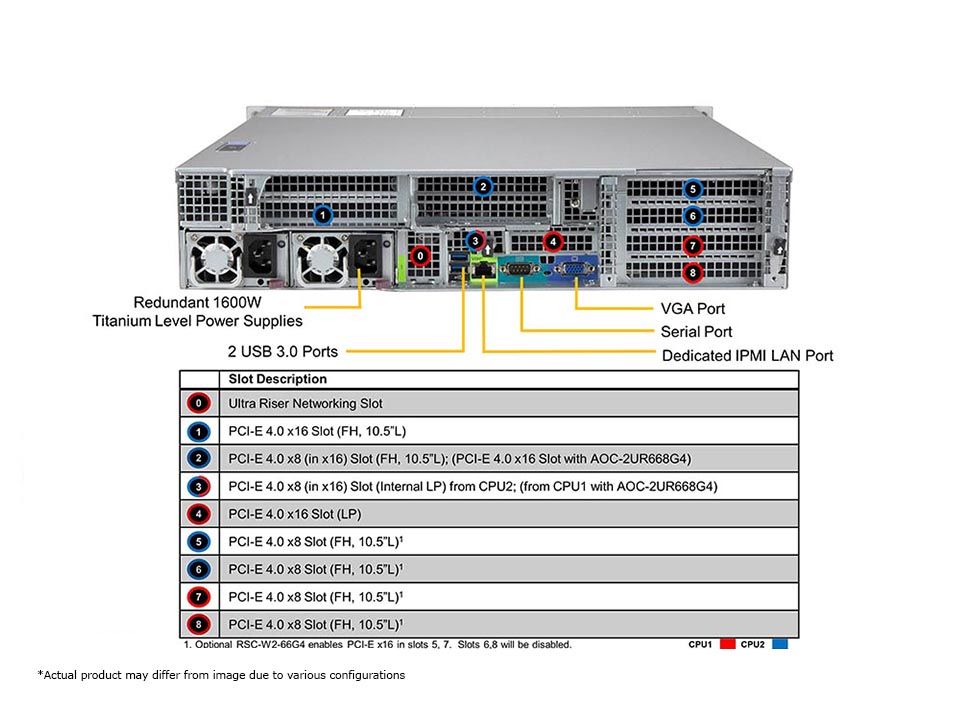

    Expansion Slots
    PCI-Express (PCIe) ConfigurationDefault1 PCIe 4.0 x16 FH/10.5"L slot(s)5 PCIe 4.0 x8 FH/10.5"L slot(s)1 PCIe 4.0 x8 LP slot(s)1 PCIe 4.0 x16 LP slot(s)
    View AOC Options
    Drive Bays / Storage
    Drive Bays ConfigurationDefault: Total 6 bay(s)6 front hot-swap 2.5" NVMe/SAS*/SATA drive bay(s)
    (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    View NVMe Options
    View Drive Options
    M.2View M.2 Options
    System Cooling
    Fans6x 6cm heavy duty fans with optimal fan speed control
    Air Shroud2 Air Shroud(s)
    Power Supply
    1x 1600W1x 1600W Redundant Titanium Level (96%) Hot-plug power supplyDimension (WxHxL)73.5 x 40 x 203 mmAC Input1000W: 100-127Vac / 50-60Hz1600W: 200-240Vac / 50-60Hz+12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac)12V SBMax: 2.1A / Min: 0AOutput TypeBackplanes (gold finger)CertificationTitanium Level[Test Report]
    1x 1600W1x 1600W Redundant Titanium Level (96%) Hot-plug power supplyDimension (WxHxL)73.5 x 40 x 203 mmAC Input1000W: 100-127Vac / 50-60Hz1600W: 200-240Vac / 50-60Hz+12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac)12V SBMax: 2.1A / Min: 0AOutput TypeBackplanes (gold finger)CertificationTitanium Level[Test Report]
    Operating Environment
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Optional Part List

    2 Rear 2.5" Hot-swap SATA Drive Bays (Complete System Only)
    Part NumberQuantityDescription
    MCP-240-82922-0N-OEM•1Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U, tool-less
    Add-on card for M.2 support
    Part NumberQuantityDescription
    AOC-SLG3-2H8M2-O-2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS
    CacheVaults
    Part NumberQuantityDescription
    BTR-CV3108-U1-CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra
    BTR-CVPM05 + BKT-BBU-BRACKET-05-CacheVault for Broadcom 3908/3916 with Supercap
    Drive Tray
    Part NumberQuantityDescription
    MCP-220-00178-0B•1 ~ 62.5 thin profile drive tray, Orange tab (for hotswap NVMe drive)
    Global Services & Support
    Part NumberQuantityDescription
    OSNBD3/2/1-3/2/1-year onsite NBD service
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    Intel® VROC RAID Key Options
    Part NumberQuantityDescription
    AOC-VROCINTMOD1Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10
    Network Card(s)
    Part NumberQuantityDescription
    AOC Compatibility Matrix-Standard Networking AOC Matrix
    NVMe Support Kit
    Part NumberQuantityDescription
    CBL-KIT-220U-MTNR1Cables Kit for X12 Ultra SYS-220U-MTNR
    Optional Storage Controller Card + Cable(s)
    Part NumberQuantityDescription
    AOC-S3808L-L8IT-O•+ 1x CBL-SAST-1253LP-100-Standard LP, 8 internal ports (12Gb/s) Gen-4; HBA
    AOC-S3108L-H8iR-16DD+ 2x CBL-SAST-1250LP-100-Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0, 1, 5, 6, 10, 50, 60
    AOC-S3908L-H8IR-16DD-O•+ 1x CBL-SAST-1253LP-100-Standard LP, 8 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60
    AOC-S3008L-L8i + 2x CBL-SAST-1250LP-100-Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0,1,1E
    AOC-S3008L-L8E+-O + 2x CBL-SAST-1250LP-100-Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA + I2C
    AOC-S3008L-L8E+ 2x CBL-SAST-1250LP-100-Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA
    Power Supply
    Part NumberQuantityDescription
    PWS-2K08A-1R•21U 2000W, Titanium Level, Redundancy, AC Input: 90-264VAC/47-63Hz, and wide DC input 180Vdc~300Vdc
    PWS-1K30D-1R•21U 1300W, Redundancy, DC Input: -48Vdc
    Riser Card
    Part NumberQuantityDescription
    RSC-W2-688G412U LHS WIO Riser card with one PCIe 4.0 x16 and two PCIe 4.0 x8
    RSC-W2-66G412U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
    Software
    Part NumberQuantityDescription
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    Trusted Platform Module Options
    Part NumberQuantityDescription
    AOM-TPM-9671V-O1SPI Capable Vertical TPM 1.2 Module
    AOM-TPM-9670V-O•1SPI TPM 2.0 using SLB9670
    AOM-TPM-9670V-S-FIPS-P1AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS,RoHS
    Ultra Riser Card Options + Rear Window
    Part NumberQuantityDescription
    AOC-2UR68G4-M2TS + MCP-240-82914-0N12U Ultra Riser 2-port 25GbE SFP28, Mellanox CX-6 LX, 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS
    AOC-2UR68G4-I2XT-O + MCP-240-82909-0N12U Ultra Riser with 2-port 10G RJ45, Intel Carlsville X710-AT2, 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS
    AOC-2UR668G4-O + MCP-240-82925-0N12U Ultra Riser with 2x PCIe 4.0 x16 and 1x PCIe 4.0 x8 (internal, in x16),RoHS
    AOC-2UR68G4-I4XTS-O + MCP-240-82930-0N12U Ultra Riser with 2-port 10G RJ45 & 2-port 10G SFP+, Intel Carlsville X710-TM4, with 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS
