MBD-X13DEH-P 2U X13 4GPU GEN5 PCIE CSE-GP201TS-R000NP

SKU: SYS-221GE-NR
Brand: Supermicro
Product Note:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, Min of 512GB Memory, 2 GPUs, 1 Storage device, and 1 NIC or either CX7 or Bluefield 3 ). Service: OSNBD3 is highly recommended.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/12118/image_1920?unique=769e75b

kr 71,794.45 71794.45 NOK kr 71,794.45 VAT Excluded

kr 71,794.45 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The SYS-221GE-NR is a robust, high-density 2U GPU system designed to support up to 4 NVIDIA® PCIe GPUs, Intel® Xeon® processors, and advanced memory configurations for optimizing HPC, AI, and data processing tasks.

    Key Features

    • High density 2U GPU system with up to 4 NVIDIA® PCIe GPUsHighest GPU communication using NVIDIA® NVLINK™ usingPCIe-based H100 NVL with NVLink Support
    • 5th/4th Gen Intel® Xeon® Scalable processor support
    • 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
    • 7 PCIe 5.0 x16 FHFL Slots
    • NVIDIA BlueField-3 Data Processing Unit Support for the most demanding accelerated computing workloads.
    • 8 E1.S NVMe Storage Support

    Key Applications

    • High Performance Computing
    • AI/Deep Learning Training
    • Large Language Model (LLM) Natural Language Processing

    Description

    The SYS-221GE-NR by Supermicro is built to cater to demanding high-performance computing (HPC) and artificial intelligence (AI) workloads. It features a 2U rackmount chassis with support for dual 5th/4th Gen Intel® Xeon® Scalable processors, up to 8TB of ECC DDR5 memory across 32 DIMM slots, and up to 4 double-width NVIDIA® PCIe GPUs. The system includes advanced cooling solutions, multiple I/O options, and enhanced security features like TPM 2.0 and Secure Boot. This makes the SYS-221GE-NR a versatile and powerful choice for computationally intensive applications and data processing tasks.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-221GE-NR
    Motherboard
    Installed Motherboard
    • Super X13DEH
    Processor
    CPU
    • Dual Socket E (LGA-4677)
    • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 64C/128T; Up to 320MB Cache per CPU
    Note
    • Supports up to 350W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 4 double-width GPU(s)
    Supported GPU
    • NVIDIA PCIe: H100 NVL, H100, L40S
    CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • NVIDIA® NVLink® Bridge (optional)
    System Memory
    Memory
    • Slot Count: 32 DIMM slots
    • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5
    • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • Intel® C741
    Network Connectivity
    • 1 RJ45 1GbE
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 port(s) (rear)
    Video
    • 1 mini-DP port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • Redfish API
    • Supermicro Server Manager (SSM)
    • Supermicro Power Manager (SPM)
    • Supermicro SuperDoctor® 5 (SD5)
    • KVM with dedicated LAN
    • IPMI 2.0
    • OOB Management Package (SFT-OOB-LIC )
    • SMCIPMITool
    • IPMIView
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 8+4 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-GP201TS-R000NP
    Dimensions and Weight
    Height
    • 3.46" (88 mm)
    Width
    • 17.25" (438.4 mm)
    Depth
    • 35.43" (900 mm)
    Package
    • 11" (H) x 22.5" (W) x 45.5" (D)
    Weight
    • Gross Weight: 86.5 lbs (39.2 kg)
    • Net Weight: 67.5 lbs (30.6 kg)
    Available Color
    • Black front & silver body
    Front Panel
    LED
    • Hard drive activity LED
    • Network activity LEDs
    • Power status LED
    • System Overheat & Power Fail LED
    Buttons
    • Power On/Off button
    • System Reset button

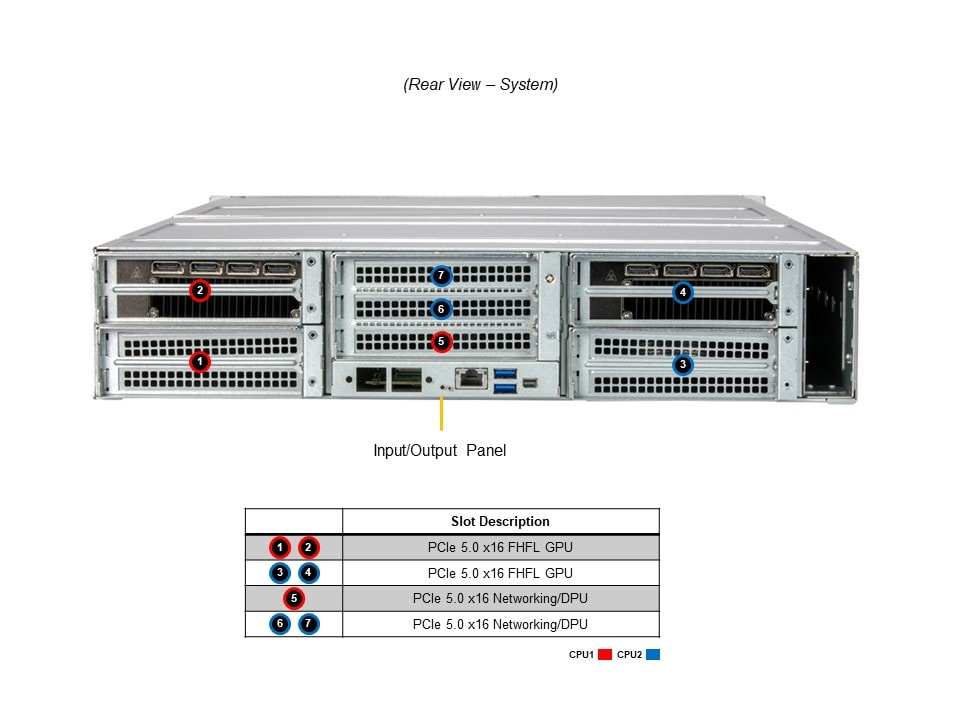

    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 4 PCIe 5.0 x16 FHFL double-width slot(s)
    • 3 PCIe 5.0 x16 FHFL slot(s)

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 8 bay(s):
    • 8 front hot-swap E1.S NVMe drive bay(s)

    M.2
    • 2 M.2 NVMe/SATA slot(s) (M-key)
    System Cooling
    Fans
    • 6x 6cm heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud(s)
    Power Supply
    3x 2000W Redundant Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 185 mm

    AC Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 1980W: 220-230Vac / 50-60Hz
    • 2000W: 220-240Vac / 50-60Hz (for UL only)
    • 2000W: 230-240Vac / 50-60Hz
    • 2000W: 230-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 83A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 166A / Min: 0A (230Vac-240Vac)

    12V SB:
    • Max: 3.5A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 40°C (50°F ~ 104°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Optional Part List

    Part Number Quantity Description
    4-Slot GPU Bay for 2x GPU with NVLink
    MCP-220-20103-0N2MGX 2RU Height 4-Slot GPU Bay for 2x GPU with NVLink
    Cables
    CBL-IPEX-13251IPEX Cabline CA-2Plus (60 pos to 60 pos),25cm, RoHS
    CBL-PWEX-1173-201MicroHi 2x4F/P3.0 to PCIe 2x(3+1)F/P4.2,20cm,8.5A/p,RoHS
    CBL-CDAT-1120-50W1Picoclasp SB,NCSI,2x10 to 2x10,WH,50cm,28AWG,1A/p,RoHS
    NVIDIA NVLINK Bridge, Ampere, 2-Way 2-Slot x16
    GPU-NVTNVLINK-A1006NVIDIA NVLINK Bridge, Ampere, 2-Way 2-Slot x16
    Trusted Platform Module Options
    AOM-TPM-9672V-O1TPM 2.0 with 10 pins SPI,RoHS
