SYS-222BT-HNC9R

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 8 DIMMs are recommended per CPU). Minimum requirement is 1 CPU, 1 DIMM, 1 NIC, and 1 storage device per node

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10482/image_1920?unique=a1dbe1e

kr 123,593.15 123593.15000000001 NOK kr 123,593.15

kr 123,593.15

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

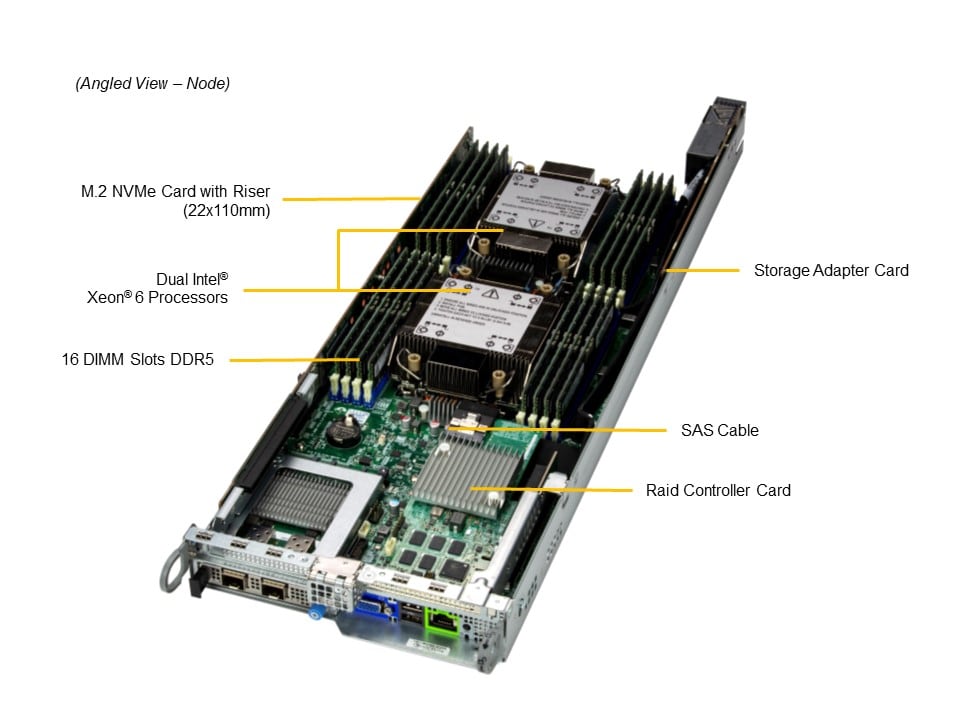

    The Supermicro SYS-222BT-HNC9R is engineered to meet the demands of modern data centers. With dual socket E2 Intel® Xeon® 6 6700 series processors, robust DDR5 memory support, and extensive cooling options, this system is pivotal for mission-critical HPC, virtualized big data analytics, and high-density storage.

    Key Features

    • Dual Socket E2 Intel® Xeon® 6 6700 series processors with E-cores up to 205W with air cooling or 330W with liquid cooling
    • Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC
    • Flexible networking with OCP 3.0 AIOM slot
    • 1 PCIe 5.0 x16 LP slotsInternal PCIe 5.0 for 2x NVMe M.2 support onboardOptional 4x NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1
    • Up to 6 front hot-swap 2.5" NVMe/SAS drive baysBuilt-in SAS3 Support and RAID Options via Broadcom 3908; IR Mode

    Key Applications

    • Mission Critical HPC
    • Virtualized Big Data Analytics
    • High-Density Storage RAID Array

    Description

    The Supermicro SYS-222BT-HNC9R is a highly versatile and powerful server designed to support dual socket E2 Intel® Xeon® 6 6700 series processors with up to 330W TDP, making it ideal for demanding applications in HPC and big data analytics. Equipped with up to 16 DIMMs for a maximum of 4TB DDR5-6400 memory, flexible networking options, advanced security features, and extensive expandability, the SYS-222BT-HNC9R offers unparalleled performance in a 2U rackmount form factor. Featuring up to 6 front hot-swap NVMe/SAS drive bays, this server also provides robust storage capabilities, making it a key asset for high-density storage solutions.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-222BT-HNC9R
    Motherboard
    Installed Motherboard
    • Super X14DBT-B
    Processor (per Node)
    CPU
    • Dual Socket E2 (LGA-4710)
    • Intel® Xeon® 6 6700 series processors with E-cores
    Core Count
    • Up to 144C/144T; Up to 108MB Cache per CPU
    Note
    • Supports up to 205W TDP CPUs (Air Cooled)*
    • Supports up to 330W TDP CPUs (Liquid Cooled)​
    • *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
    System Memory (per Node)
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
    On-Board Devices (per Node)
    SAS
    • SAS (12Gbps) via Broadcom® 3908; RAID 0/1/5/10 support(IR mode)
    Chipset
    • System on Chip
    Network Connectivity
    • Via AIOM
    Input / Output (per Node)
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 3.0 Gen2 Type-A port(s) (Rear)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB Flash ROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 8+4 Phase-switching voltage regulator
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-217BQ2-R3K60P
    Dimensions and Weight
    Height
    • 3.47" (88 mm)
    Width
    • 17.68" (449 mm)
    Depth
    • 28.75" (730 mm)
    Package
    • 9.76" (H) x 24.65" (W) x 45.28" (D)
    Weight
    • Gross Weight: 96.6 lbs (43.8 kg)
    • Net Weight: 66.1 lbs (30 kg)
    Available Color
    • Black front & silver body
    Front Panel
    LED
    • HDD activity LED
    • Network activity LEDs
    • Power status LED
    • Universal Information (UID) LED
    Buttons
    • Power On/Off button
    • UID button
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 5.0 x16 LP slot
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 6 bays:
    • 2 front hot-swap 2.5" PCIe 5.0 NVMe/SAS drive bays
    • 4 front hot-swap 2.5" PCIe 4.0 NVMe/SAS drive bays

    M.2
    • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID)
    System Cooling
    Fans
    • 4x 16K RPM Counter Rotating 80x80x56mm Fan(s)
    Liquid Cooling
    • Direct to Chip (D2C) Cold Plate (optional)
    Power Supply
    2x 3600W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 45 x 40 x 480 mm

    AC Input:
    • 3600W: 0240Vdc / 50-60Hz (for CQC only)
    • 1400W: 100-127Vac / 50-60Hz
    • 3000W: 200-207.9Vac / 50-60Hz
    • 3100W: 208-219.9Vac / 50-60Hz
    • 3250W: 220-229.9Vac / 50-60Hz
    • 3450W: 230-237.9Vac / 50-60Hz
    • 3600W: 238-240Vac / 50-60Hz

    +12V:
    • Max: 112A / Min: 0A (100Vac-127Vac)
    • Max: 240A / Min: 0A (200Vac-207.9Vac)
    • Max: 248A / Min: 0A (208Vac-219.9Vac)
    • Max: 260A / Min: 0A (220Vac-229.9Vac)
    • Max: 276A / Min: 0A (230Vac-237.9Vac)
    • Max: 288A / Min: 0A (238Vac-240Vac)

    12V SB:
    • Max: 4.5A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)

    Optional Part List

    Part Number Quantity Description
    2.5" Tool-less NVMe Tray
    MCP-220-00167-0B-Black gen 8 hot-swap 2.5" Tool-less NVMe tray, orange tab (Qty as Needed)
    2.5" Tool-less SAS/SATA Tray
    MCP-220-00147-0B-Black gen 3 hot-swap 2.5" Tool-less HDD tray, red tab (Qty as Needed)
    Cold Plate Module
    SNK-P3050-ABT12x Supermicro Cold Plates for Attachment to CPUs (Qty per Node)
    SNK-P304212x CoolIT Cold Plates for Attachment to CPUs (Qty per Node)
    Coolant Distribution Manifolds
    SRK-00AS-CLIT-MF84SV-021CoolIT 48U, 82S Dual Rack Coolant Manifolds (Qty per Rack)
    SRK-00AS-CLIT-MF42SV-021CoolIT 48U, 42S Single Rack Coolant Manifolds (Qty per Rack)
    LCS-SCDM-076V42001-ABT1Supermicro Coolant Manifolds (Qty per Rack)
    Coolant Distribution Unit
    SRK-00AS-CLIT-CH80V2-011CoolIT 4U DLC CHx80V2 Coolant Distribution Unit (Qty per Rack)
    LCS-SCDU-080L4001-ABT1Supermicro Rack Mounted Coolant Distribution Unit (Qty per Rack)
    HDD Dummy Tray
    MCP-220-00185-0N-2.5" HDD tray dummy cover for 2 slot (Qty as Needed)
    M.2 NVMe RAID Controller
    SCC-A2NM2241GH-B112x Gen3 Marvell2241 NVMe M.2 RAID and 2x Gen5 Direct-from-CPU NVMe M.2 with 1x PCIEx16 Gen5. Supports 4x 22x110mm M.2 (Qty per Node)
    SCC-A2NM2241G3-B1E12x Gen3 Marvell2241 NVMe M.2 RAID with 1x PCIEx16 Gen5. Supports only 2x 22x110mm M.2 (Qty per Node)
    SPI Capable TPM Options
    AOM-TPM-9670H-FIPS1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)
    AOM-TPM-9671H-S1SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    AOM-TPM-9670H-S1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    SuperCloud Composer License
    SFT-SDDC-SINGLE-SDDC Monitor License - Single License per Monitored host
    System Management Suite
    SFT-DCMS-Single-Supermicro System Management Software Suite node
    VROC Options
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
