  2. X12QCH+, CSE-218HTS-R2K08P

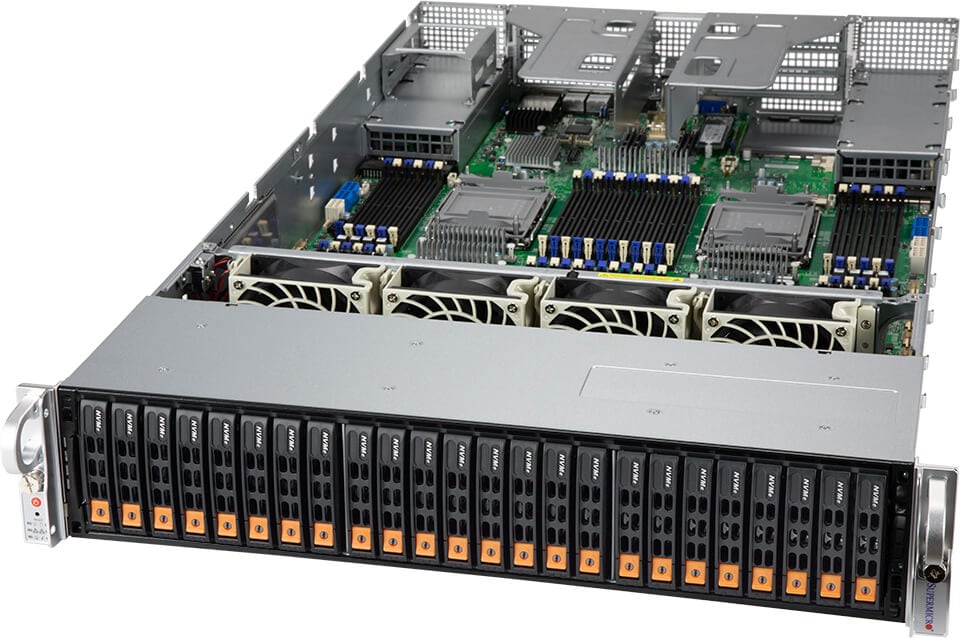

X12QCH+, CSE-218HTS-R2K08P

SYS-240P-TNRT

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 4 CPUs, 4 DIMMs, and 1 Storage Device HDD/HDS/M.2).

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10519/image_1920?unique=f7d9088

kr 54,782.03 54782.03 NOK kr 54,782.03

kr 54,782.03

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-240P-TNRT leverages 3rd Generation Intel® Xeon® Scalable processors, packaged in a 2U rackmount chassis, ideal for AI, ERP, CRM, and HCI applications.

    Key Features

    • Quad Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable processors
    • 48 DIMMs; Up to 18TB 3DS ECC DDR4-3200:LRDIMM/RDIMM/Intel® Intel® DCPMM
    • Intel® Ethernet Controller X710-TM4 2x 10G RJ45 + 2x 10G SFP+ port; (optional) AIOM up to 100G QSFP28
    • Up to 24 Hot-swap 2.5" NVMe/SAS3/SATA3 drive bays (Default with 8 SAS3/SATA3 drive bays); Onboard 2x M.2 SATA.
    • 4 heavy duty fans w/ optimal fan speed control; 1 Air Shroud

    Key Applications

    • Artificial Intelligence (AI)
    • Business Intelligence
    • ERP, CRM
    • Scientific Virtualization
    • In-Memory Database
    • HCI
    • SAP HANA

    Description

    Supermicro's SYS-240P-TNRT is built to handle demanding workloads with its Quad Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable processors. With 48 DIMM slots supporting up to 18TB of memory and various I/O options including Intel® Ethernet Controller and hot-swap drive bays, this system defines performance and versatility. It also supports multiple GPUs, making it suitable for AI, BI, and scientific virtualization.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-240P-TNRT
    Motherboard
    Installed Motherboard
    • Super X12QCH+
    Processor
    CPU
    • Quad Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 28C/56T; Up to 38.5MB Cache per CPU
    Note
    • Supports 120W - 250W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 2 double-width or 2 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: RTX A6000, RTX 4000, A16
    System Memory
    Memory
    • Slot Count: 48 DIMM slots
    • Max Memory (2DPC): Up to 12TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    On-Board Devices
    Chipset
    • Intel® C621
    Network Connectivity
    • 2 RJ45 10GBASE-T with Intel® X710-TM4
    • 2 SFP+ 10GbE with Intel® X710-TM4
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 10 GbE LAN port(s)
    • 2 SFP+ 10 GbE LAN port(s)
    USB
    • 2 USB 3.0 port(s) (rear)
    Serial
    • 1 COM port(s) (Rear)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    • IPMICFG
    • SMCIPMITool
    • IPMIView
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-218HTS-R2K08P
    Dimensions and Weight
    Height
    • 3.5" (89 mm)
    Width
    • 17.3" (439.5 mm)
    Depth
    • 31.6" (803 mm)
    Package
    • 9.75" (H) x 26.5" (W) x 43.5" (D)
    Weight
    • Gross Weight: 71.5 lbs (32.43 kg)
    • Net Weight: 45.5 lbs (20.64 kg)
    Available Color
    • Black
    Front Panel
    LED
    • HDD activity
    • Network activity
    • Power status
    • System information (overheat/UID)
    Buttons
    • Power On/Off
    • UID/ BMC Reset (Default)
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 3.0 x16 FHHL slots
    • 4 PCIe 3.0 x8 (in x16) FHFL slots
    • 1 PCIe 3.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 8 bays:
    • 8 front hot-swap 2.5" SATA drive bays

    Option A: Total 24 bays:
    • 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

    • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 2 M.2 NVMe/SATA slots (M-key 2280/22110)
    System Cooling
    Fans
    • 4x 8cm heavy duty fans with optimal fan speed control
    Air Shroud
    • 8 Air Shrouds
    Power Supply
    2x 2000W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 203 mm

    AC Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 1980W: 220-230Vac / 50-60Hz
    • 2000W: 220-240Vac / 50-60Hz (for UL only)
    • 2000W: 230-240Vac / 50-60Hz
    • 2000W: 230-240Vdc / 50-60Hz (for China only)

    +12V:
    • Max: 83A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 166A / Min: 0A (230Vac-240Vac)

    12V SB:
    • Max: 3.5A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

    Optional Part List

    Part Number Quantity Description
    2.5" SATA/SAS Drive Trays
    MCP-220-00147-0B8 or 16Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design)
    CacheVault(s)
    BTR-CVPM051 ~ 2CacheVault for Broadcom RAID Controller (Ex. S3908/S3916)
    MCP-240-00203-0N1BTR-CVPM05 Supercap mounting bracket for PCIe location (Support up to 2 BTR)
    MCP-240-00127-0N1BTR-CVPM05 Supercap mounting bracket for above power supply (support 1 BTR)
    BTR-CV3108-U11 ~ 3CacheVault for SMC 3108; Supercap mounted on chassis wall
    Double Width GPU Kit
    MCP-240-21828-0N1GPU Brackets (Set L+R)
    SNK-P0077PW41U Heatsink for CPUs ≤ 165W
    GPU power cable
    CBL-PWEX-10401/GPUGPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AWG, 10.5A/pin(16AWG), 8A/pin(20AWG), -25~85C,RoHS
    CBL-PWEX-10421/GPUGPU, 2x4F/CPU to 2x4F/CPU, P4.2, 50CM, 16AWG, 10A/pin, -40~105C
    Intel NVMe RAID Controller
    AOC-VROCSTNMOD-Intel VROC HW key (RSTe) standard upgrade module
    AOC-VROCPREMOD-Intel VROC Premium, RAID 0, 1, 5, 10
    Low Profile Riser Kit(Per side)
    RSC-H2-68G41Hyper riser card with one PCIe 4.0 x16 and one PCIe
    MCP-240-21825-0N1Low profile riser bracket for SC218H
    CBL-SAST-1307LPR-852SlimSAS x8 (STR) to SlimSASLP x8 (RA) ,37CM,85Ohm,RoHS
    CBL-SAST-1207LP-851SlimlineLP x8 (STR,RSC) to Slimline x8 (STR),26CM,85 OH
    CBL-PWEX-1172-26541LP Riser power cable McHi,P3.0(2x4 to 2x2)+ to MnFt,2x4,PH4.2,26/54CM,9A/p,16
    NVMe Support Kit
    MCP-220-00167-0B1 ~ 24Tool-less black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design)
    CBL-SAST-10461 ~ 12SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 39CM,32AWG,85 Ohm (1 cable supports 2 NVMe U.2 Drives)
    Power Supply
    PWS-2K08A-1R1 ~ 21U 2000W 100-240VAC Titanium Ultra power supply 73.5x40x203mm
    RAID Controller 01-08pcs SATA3/SAS
    CBL-SAST-1281-1001Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM
    AOC-S3908L-H8IR-16DD18 int 12Gb/s ports, x8 Gen4, ROC - LP
    RAID Controller 09-16pcs SATA3/SAS
    CBL-SAST-1281-1001Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM
    CBL-SAST-1296F-1001Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,96/96CM,10
    AOC-S3916L-H16IR-32DD116 int 12Gb/s ports, x8 Gen4, ROC - LP
    RAID Controller 17-24pcs SATA3/SAS
    CBL-SAST-1296F-1001Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,96/96CM,10
    CBL-SAST-1281-1002Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM
    AOC-S3916L-H16IR-32DD116 int 12Gb/s ports, x8 Gen4, ROC - LP
    AOC-S3908L-H8IR-16DD18 int 12Gb/s ports, x8 Gen4, ROC - LP
    TPM security module
    AOM-TPM-9671V1TPM module (Vertical) TPM 1.2
    AOM-TPM-9670V1TPM module (Vertical) TPM 2.0
