  2. MBD-X12DPG-U6, 8 Habana Gaudi OAM Mezz cards, 4U

MBD-X12DPG-U6, 8 Habana Gaudi OAM Mezz cards, 4U

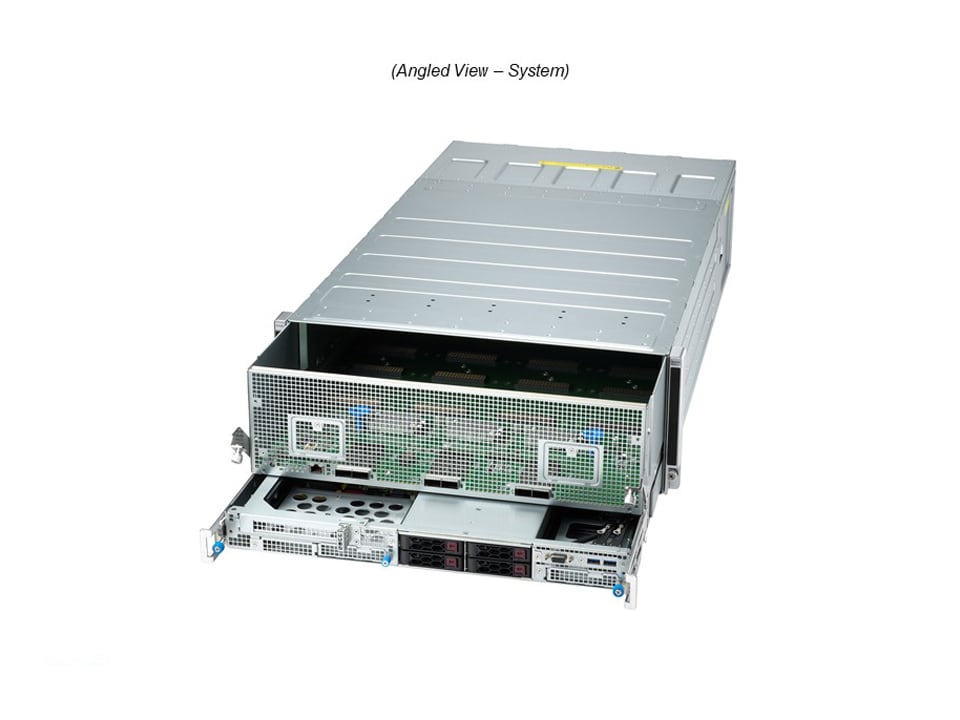

SYS-420GH-TNGR

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 16 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC).

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10474/image_1920?unique=a1dbe1e

kr 136,974.14 136974.14 NOK kr 136,974.14

kr 136,974.14

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-420GH-TNGR is designed for high-performance applications including AI, deep learning, and data analytics. With dual Intel Xeon Scalable Processors, 32 DIMM slots supporting up to 8TB RAM, and advanced networking, this server meets the demanding needs of modern computing tasks.

    Key Features

    • Dual Intel® Xeon® Scalable Processors (Ice Lake) TDP up to 270W
    • Intel® C621A Chipset
    • 32x DIMM slots, up to 8TB Registered ECC DDR4 3200MHz SDRAM
    • 1x PCIe 4.0 x16 FHHL slot plus 2x PCIe 4.0 AIOM (OCP 3.0 superset) slots
    • 24x on-board 100GbE (via 6x QSFP-DDs) for scale-out and 1x 10GbE BaseT (dedicated IPMI port)
    • 4x 2.5” SAS/SATA/NVMe Hybrid Hot-Swap Bays
    • 5x Removable Heavy-Duty Fan(s)
    • 4x 3000W(54V+12V)/2000W(12V) redundant, Titanium Level power supplies

    Key Applications

    • Computer Vision
    • Natural Language Processing
    • Recommendation
    • Purpose Built for AI/Deep Learning Training

    Description

    Supermicro SYS-420GH-TNGR offers unparalleled performance for AI and deep learning applications. It supports dual Intel Xeon Scalable Processors with up to 40 cores, 8 double-width GPUs, and 32 DIMM slots for up to 8TB of ECC DDR4 memory. The server provides extensive connectivity options with 24 on-board 100GbE ports and a dedicated 10GbE IPMI port. Additional features include hybrid hot-swap drive bays, heavy-duty cooling fans, and redundant power supplies, making it a robust and reliable choice for critical workloads.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-420GH-TNGR
    Motherboard
    Installed Motherboard
    • Super X12DPG-U6
    Processor
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 40C/80T
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 8 double-width GPUs
    System Memory
    Memory
    • Slot Count: 32 DIMM slots
    • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® C621A
    Network Connectivity
    • 6 QSFP-DD 400GbE
    • 1 RJ45 10GbE
    Input / Output
    LAN
    • 1 RJ45 1 GbE LAN port(s)
    USB
    • 2 USB 3.0 port(s)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-428G2
    Dimensions and Weight
    Height
    • 7" (178 mm)
    Width
    • 17.6" (447 mm)
    Depth
    • 32" (813 mm)
    Package
    • 15" (H) x 27.3" (W) x 49.4" (D)
    Weight
    • Gross Weight: 137 lbs (62 kg)
    Available Color
    • Silver
    Front Panel
    LED
    • Carrier Board Node LED
    • CPU Node LED
    • Information LED
    • PSU Failed LED
    • UID LED
    Buttons
    • Power On/Off button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 4.0 x16 FHFL slot
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 4 bays:
    • 4 front hot-swap 2.5" NVMe/SAS/SATA drive bays

    M.2
    • 2 M.2 NVMe slots (M-key)
    System Cooling
    Fans
    • 5 Removable Heavy-Duty 84x203.5x82.4mm Fan(s)
    Power Supply
    1x 3000W Redundant Titanium Level (96%) power supply
    Dimension (WxHxL):
    • 106.5 x 82.4 x 203.5 mm

    AC Input:
    • 2880W: 200-207Vac / 50-60Hz
    • 3000W: 207.1-240Vac / 50-60Hz
    • 3000W: 240Vdc / 50-60Hz

    +12V:
    • Max: 91.66A / Min: 0A (200Vac-240Vac)
    • Max: 91.66A / Min: 0A (Vdc-240Vdc)

    12V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
