X13 4U 8GPU SAPPHIRE RAPIDS GEN5 PCIE SYSTEM

X13 4U 8GPU SAPPHIRE RAPIDS GEN5 PCIE SYSTEM

Name: X13 4U 8GPU SAPPHIRE RAPIDS GEN5 PCIE SYSTEM
Brand: supermicro
SKU: SYS-421GE-TNRT
Price: 88685.64 NOK
Availability: OutOfStock

SKU:

SYS-421GE-TNRT

Product Note:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs, 2 GPUs, and 1 Storage device )

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

kr 88,685.64 88685.64 NOK kr 88,685.64

kr 88,685.64

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The Supermicro SYS-421GE-TNRT is a high-performance 4U Rackmount server designed for diverse applications such as HPC, AI/Deep Learning, and media streaming. It supports 5th and 4th Gen Intel Xeon Scalable processors, up to 10 GPUs, and 8TB of DDR5 memory.

Key Features

5th/4th Gen Intel® Xeon® Scalable processor support
32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
AIOM/OCP 3.0 Support13 PCIe Gen 5.0 X16 FHFL Slots
8x HOT SWAP 2.5” SATA/SAS (AOC required)8x 2.5" Hot-swap SATA drive bays8x2.5" Hot-swap NVMe drive bays
8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
4x 2700W (2+2) Redundant Power Supplies, Titanium Level

Key Applications

High Performance Computing
VDI
AI/Deep Learning Training
Media/Video Streaming
Cloud Gaming
Animation and Modeling
Design & Visualization
3D Rendering
Diagnostic Imaging

Description

The Supermicro SYS-421GE-TNRT is a robust 4U Rackmount server ideal for high-performance computing, AI, media, and design applications. It supports dual 5th and 4th Gen Intel Xeon Scalable processors with up to 64 cores each and 320MB cache per CPU. The system offers extensive memory support, including 32 DIMM slots with up to 8TB DDR5 memory. It has versatile GPU configurations, featuring up to 10 double- or single-width GPUs, and supports NVIDIA and Intel PCIe GPUs. Additional features include 13 PCIe Gen 5.0 slots, 16 hot-swap storage bays, advanced cooling options, 4x 2700W Redundant Power Supplies, and comprehensive management and security tools.

Product Specifications

Specification	Details
Product SKUs
SKUs	SuperServer SYS-421GE-TNRT
Motherboard
Installed Motherboard	Super X13DEG-OA
Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled) Supports up to 385W TDP CPUs (Liquid Cooled)
GPU
Max GPU Count	Up to 10 double-width or 10 single-width GPUs
Supported GPU	NVIDIA PCIe: H100, L40, RTX A4000, RTX 6000 Ada Generation, L40S, A100, A10 Intel PCIe: Data Center GPU Max 1100
CPU-GPU Interconnect	PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect	NVIDIA® NVLink® Bridge (optional), Intel® Xe Link Bridges
System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
Chipset	Intel® C741
Network Connectivity	2 RJ45 10GbE with Intel® X710-AT2
Input / Output
Video	1 VGA port(s)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	4U Rackmount
Model	CSE-418G2TS-R5K40P
Dimensions and Weight
Height	7" (178 mm)
Width	17.2" (437 mm)
Depth	29" (737 mm)
Package	26.57" (H) x 27" (W) x 41" (D)
Weight	Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg)
Available Color	Black Front & Silver Body
Front Panel
LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
Buttons	Power On/Off button System Reset button
Expansion Slots

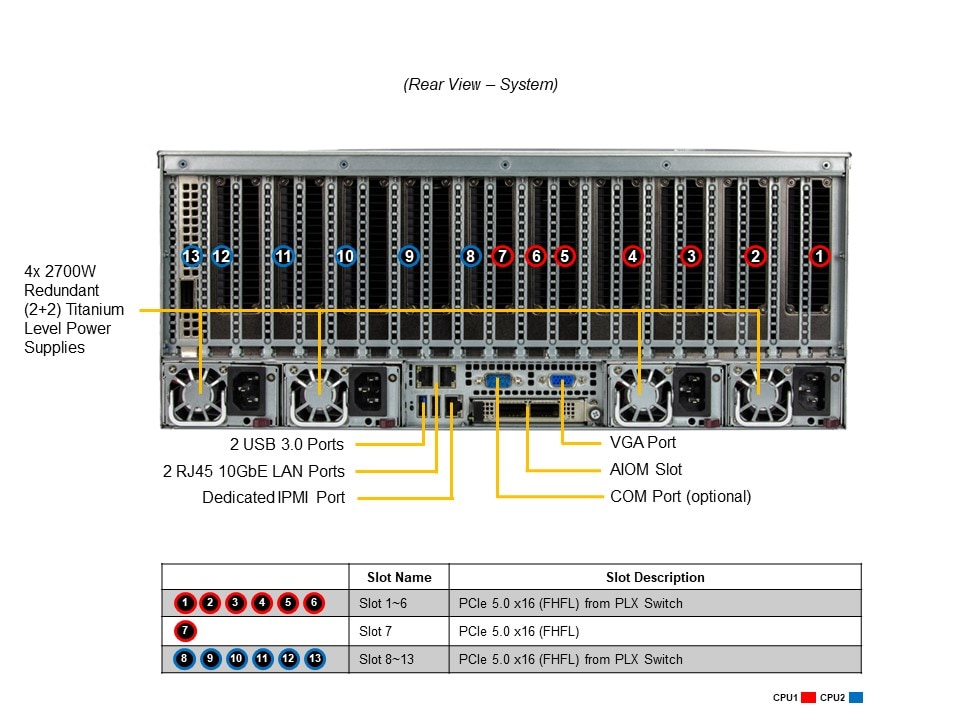

PCI-Express (PCIe) Configuration	Default: 13 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage
Drive Bays Configuration	Default: Total 16 bays: 8 front hot-swap 2.5" NVMe drive bays 8 front hot-swap 2.5" SATA drive bays Option A: Total 24 bays: 8 front hot-swap 2.5" NVMe drive bays 8 front hot-swap 2.5" NVMe* drive bays 8 front hot-swap 2.5" SATA drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 NVMe slots (M-key)
System Cooling
Fans	8 heavy duty fans with optimal fan speed control
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)
Power Supply
4x 2700W Redundant Titanium Level (96%) power supplies	Dimension (WxHxL): 73.5 x 40 x 203 mm AC Input: 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12V: Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SB: Max: 4A / Min: 0A Output Type: Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
