  2. X12QCH+, CSE-418HTS-R3K3AWP, 4U 24x 2.5" Hyper 4-way,RoH

X12QCH+, CSE-418HTS-R3K3AWP, 4U 24x 2.5" Hyper 4-way,RoH

SYS-440P-TNRT

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 4 CPUs, 4 DIMMs, and 1 Storage Device HDD/HDS/M.2).

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10522/image_1920?unique=f7d9088

kr 81,963.38 81963.38 NOK kr 81,963.38

kr 81,963.38

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

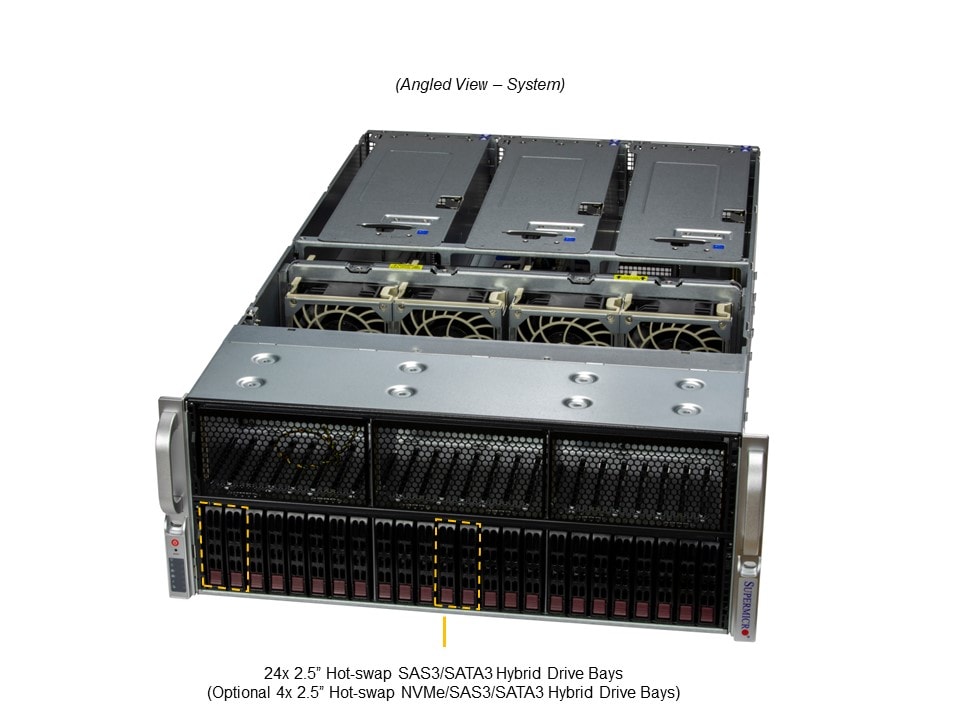

    The Supermicro SYS-440P-TNRT is a versatile, powerful 4U rackmount server designed for high-demand applications in AI, ERP, CRM, and scientific virtualization. Featuring Quad Socket P+ (LGA-4189) and 3rd Generation Intel® Xeon® Scalable processors, this system offers up to 12TB of memory, robust network connectivity options, and extensive PCIe configurations.

    Key Features

    • Quad Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable processors
    • Intel® Ethernet Controller X710-TM4 2x 10G RJ45 + 2x 10G SFP+ port; ; (optional) AIOM up to 100G QSFP28
    • 8 heavy duty fans w/ optimal fan speed control

    Key Applications

    • Artificial Intelligence (AI)
    • Business Intelligence
    • ERP, CRM
    • Scientific Virtualization
    • In-Memory Database
    • HCI
    • SAP HANA

    Description

    The Supermicro SYS-440P-TNRT delivers unparalleled performance and versatility with its Quad Socket P+ (LGA-4189) supporting 3rd Generation Intel® Xeon® Scalable processors and up to 12TB of memory. Ideal for applications such as AI, business intelligence, ERP, CRM, in-memory databases, and scientific virtualization, it features advanced network connectivity including Intel® Ethernet Controller X710-TM4 with 2x 10G RJ45 and 2x 10G SFP+ ports, as well as optional AIOM up to 100G QSFP28. With extensive PCIe slots and powerful cooling systems, this server ensures reliable and efficient operation even under high workloads. Comprehensive management software, enhanced security features, and robust power supply options make it a top choice for enterprise-level solutions.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-440P-TNRT
    Motherboard
    Installed Motherboard
    • Super X12QCH+
    Processor
    CPU
    • Quad Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 28C/56T; Up to 38.5MB Cache per CPU
    Note
    • Supports 120W - 250W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 6 double-width GPUs
    System Memory
    Memory
    • Slot Count: 48 DIMM slots
    • Max Memory (2DPC): Up to 12TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    On-Board Devices
    Chipset
    • Intel® C621
    Network Connectivity
    • 2 RJ45 10GBASE-T with Intel® X710-TM4
    • 2 SFP+ 10GbE with Intel® X710-TM4
    • 1 QSFP28 100GbE with AIOM (optional)
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 10 GbE LAN port(s)
    • 2 SFP+ 10 GbE LAN port(s)
    USB
    • 2 USB 3.0 port(s) (rear)
    Video
    • 1 VGA port(s)
    Serial
    • 1 COM port(s) (Rear)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-418HTS-R3K3AWP
    Dimensions and Weight
    Height
    • 6.96" (177 mm)
    Width
    • 17.3" (440.9 mm)
    Depth
    • 29.74" (755.5 mm)
    Package
    • 17.12" (H) x 28.34" (W) x 42.5" (D)
    Weight
    • Gross Weight: 132.27 lbs (60 kg)
    • Net Weight: 77.16 lbs (35 kg)
    Available Color
    • Black
    Front Panel
    LED
    • HDD activity
    • Network activity
    • Power status
    • System information (overheat/UID)
    Buttons
    • Power On/Off
    • UID/ BMC Reset (Default)
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 3.0 x16 FHHL slots
    • 6 PCIe 3.0 x16 FHFL slots
    • 4 PCIe 3.0 x8 (in x16) FHHL slots
    • 6 PCIe 3.0 x8 FHFL slots
    • 1 PCIe 3.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 24 bays:
    • 24 front hot-swap 2.5" SAS/SATA drive bays

    Option A: Total 24 bays:
    • 20 front hot-swap 2.5" SAS/SATA drive bays
    • 4 front hot-swap 2.5" NVMe/SAS/SATA drive bays

    M.2
    • 2 M.2 NVMe/SATA slots (M-key 2280/22110)
    System Cooling
    Fans
    • 8x 9cm heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud
    Power Supply
    1x 1600W Redundant Platinum Level (94%) power supply
    Dimension (WxHxL):
    • 73.5 x 40 x 185 mm

    AC Input:
    • 1000W: 100-127Vac / 47-63Hz
    • 1600W: 200-240Vac / 47-63Hz
    • 1600W: 240-240Vdc / 47-63Hz (Only for China)

    +12V:
    • Max: 83A / Min: 0A (100Vac-127Vac)
    • Max: 132A / Min: 0A (200Vac-240Vac)
    • Max: 132A / Min: 0A (240Vdc-240Vdc) (For China Only)

    12V SB:
    • Max: 2.1A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

    Optional Part List

    Part Number Quantity Description
    GPU power cable
    CBL-PWEX-10421/GPUGPU, 2x4F/CPU to 2x4F/CPU, P4.2, 50CM, 16AWG, 10A/pin, -40~105C
    CBL-PWEX-10401/GPUGPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AWG, 10.5A/pin(16AWG), 8A/pin(20AWG), -25~85C,RoHS
    Power Supply
    PWS-1K62A-1R1 ~ 4AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
