  2. Embedded 1U, Denverton, A2SDV-16C-TLN5F + CSE-505-203B

Embedded 1U, Denverton, A2SDV-16C-TLN5F + CSE-505-203B

SYS-5019A-FN5T

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

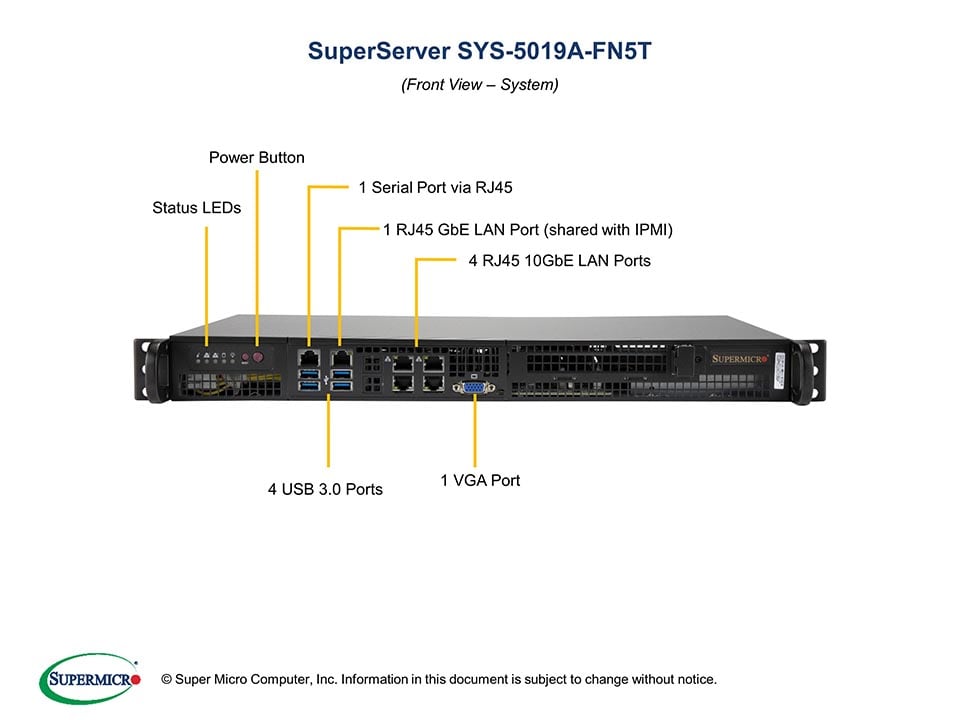

https://safeconsulting.no/web/image/product.template/10584/image_1920?unique=f7d9088

kr 15,185.46 15185.460000000001 NOK kr 15,185.46

kr 15,185.46

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-5019A-FN5T is a powerful 1U rackmount server designed for optimal performance in network security, edge computing, and virtualization applications. It features the Intel® Atom® processor C3958, providing high efficiency and up to 256GB of DDR4 memory support.

    Key Features

    • Intel® Atom® processor C3958, Single socket FCBGA 1310; 16-Core, TDP 31W
    • 1x 3.5" or 2x 2.5" internal drive bays
    • 1 PCI-E 3.0 x8, 1 M-Key 2242/2280, PCI-E 3.0 x2/SATA, 1 B-Key 3042/2280, PCI-E 3.0 x2/SATA/USB
    • Up to 256GB ECC RDIMM DDR4 2400MHz or 64GB ECC/non-ECC UDIMM in 4 DIMM slots
    • 4x 10GbE LAN, 1x 1GbE LAN (IPMI shared LAN)
    • USB 3.0 (4 front Type-A), 1 VGA, 1 SuperDOM, TPM
    • 3x 40x28mm 4-pin PWM fans
    • 200W Low-noise AC-DC power supply
    • Intel® Quick Assist Technology

    Key Applications

    • • Network Security Appliance • Edge Computing • Network Function Virtualization • Retailer Application

    Description

    The Supermicro SYS-5019A-FN5T server is built to deliver exceptional performance for network security, edge computing, and network function virtualization. Powered by the Intel® Atom® processor C3958 with a single socket FCBGA 1310 and 16 cores, this server supports up to 256GB of ECC RDIMM DDR4 2400MHz or 64GB ECC/non-ECC UDIMM in 4 DIMM slots. Key features include advanced network capabilities with 4x 10GbE LAN and 1x 1GbE LAN (IPMI shared LAN), extensive I/O options such as USB 3.0, VGA, and SuperDOM, and robust system cooling with three 40x28mm 4-pin PWM fans. The 200W low-noise AC-DC power supply ensures reliable power delivery while maintaining low noise levels. This server is RoHS compliant and designed for operating environments with temperatures ranging from 0°C to 40°C.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-5019A-FN5T
    • SuperServer 5019A-FN5T ( Black )
    Motherboard
    Installed Motherboard
    • Super A2SDV-16C-TLN5F
    Processor
    CPU
    • Intel® Atom® processor C3958
    • FCBGA 1310 supported
    • CPU TDP support 31W
    System Memory
    Memory Capacity
    • 4x DDR4 DIMM sockets
    • Supports up to 256GB DDR4 ECC RDIMM
    • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
    Memory Type
    • 2400/2133/1866/1600MHz ECC DDR4 SDRAM
    DIMM Sizes
    • 64GB, 32GB, 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors(using ECC memory)
    On-Board Devices
    SATA
    • SoC controller for 2 SATA3 (6Gbps) ports
    Network Controllers
    • Quad 10GBase-T LAN with Intel® X557
    • Single Gigabit Ethernet LAN with Intel® i210
    IPMI
    • Aspeed AST2400 BMC
    Graphics
    • Aspeed AST2400 integrated VGA
    Input / Output
    SATA
    • 2 SATA3 (6Gbps) ports
    LAN
    • 4x 10GbE LAN ports
    • 1x 1GbE LAN (IPMI shared LAN)
    USB
    • 5 USB 3.0 (4 rear, Type-A)
    • 2 USB 2.0 (2 via headers)
    Serial Port
    • 1 COM via RJ45
    DOM
    • 1 SATA DOM (Disk on Module) power connector
    VGA
    • 1 VGA Port
    Others
    • TPM header
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-505-203B
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 9.8" (249mm)
    Weight
    • Net Weight: 8 lbs (3.62 kg)
    • Gross Weight: 12 lbs (5.44 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    • Information LED (temp., status)
    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x8
    • 1 M-Key 2242/2280 , PCI-E 3.0 x2/SATA
    • 1 B-Key 3042/2280 PCI-E 3.0 x2/SATA/USB
    Drive Bays
    HDD
    • 1x 3.5" or 2x 2.5" internal hard drive bays
    System Cooling
    Fans
    • 3x 40x28mm 4-PIN PWM Fan (FAN-0065L4, 13K RPM)
    Power Supply
    • 200W Low Noise AC-DC power supply with PFC
    AC Voltage
    • 100 - 240V, 50-60Hz, 2.6 Amp Max
    +5V
    • 8.0 Amp (max.)
    +5V standby
    • 2.0 Amp (max.)
    +12V
    • 16 Amp (max.)
    -12V
    • 0.5 Amp (max.)
    +3.3V
    • 8.0 Amp (max.)
    Certification
    • Gold Certified
    System BIOS
    BIOS Type
    • AMI UEFI BIOS
    BIOS Features
    • UEFI 2.4
    • SMBIOS 2.7.1
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C to 40°C (32°F to 104°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-A2SDV-16C-TLN5F1Super A2SDV-16C-TLN5F Motherboard
    CSE-505-203B11U Chassis
    FAN 1
    FAN-0065L434028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    Rear Window
    MCP-240-00091-0N21U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
    Parts
    MCP-260-00135-0B11U 504/505/510 I/O Shield for A2SDV-LN10PF with EMI Gasket
    Fan Holder
    MCP-320-81302-0B3Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)
    Riser Card
    RSC-RR1U-E81RSC-RR1U-E8
    Power Supply
    PWS-203-1H11U 200W Multi-output 80Plus Gold PWS

    Optional Part List

    Part Number Quantity Description
    HDD Bracket
    MCP-220-00051-0N-Single 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U
    SuperDOM
    --Supermicro SATA DOM Solutions [ Details ]
