8C Denverton SOC, A2SDV-8C-LN10PF,CSE-505-203B

SYS-5019A-FTN10P

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10376/image_1920?unique=5e77b27

kr 10,273.19 10273.19 NOK kr 10,273.19

kr 10,273.19

Not Available For Sale

    This combination does not exist.

    Summary Description

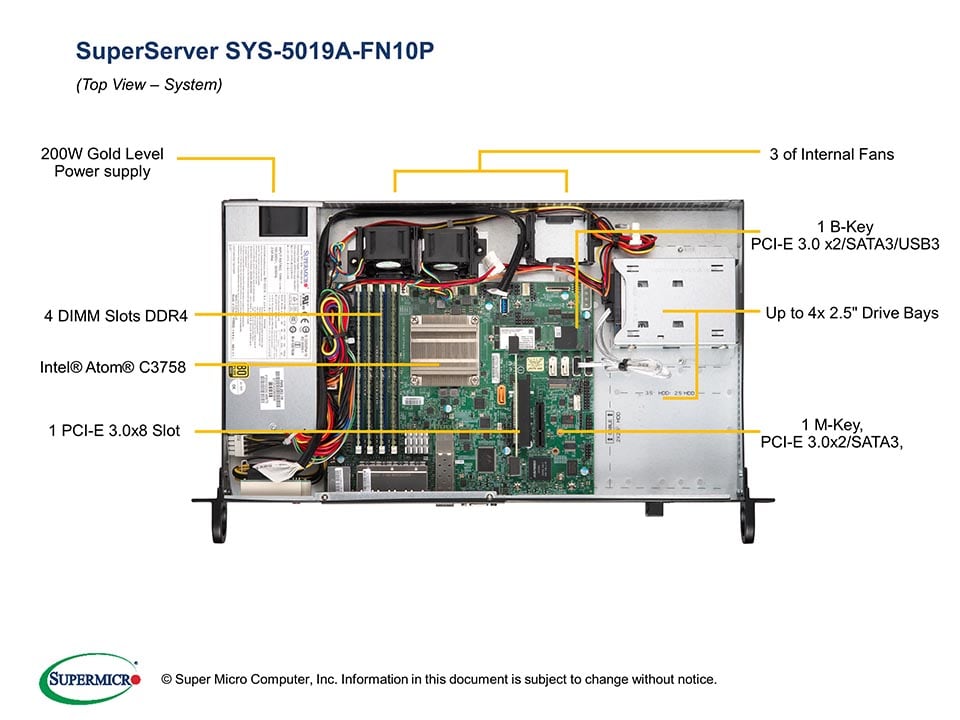

    Supermicro SYS-5019A-FTN10P is a highly reliable 1U rackmount server equipped with Intel® Atom® processor C3758, offering advanced networking and storage features. It supports up to 256GB DDR4 ECC RDIMM or 64GB ECC/non-ECC UDIMM and provides robust expansion and connectivity options, making it suitable for diverse business needs.

    Key Features

    • Intel® Atom® processor C3758, Single socket FCBGA 1310; 8-Core, TDP 25W
    • 1x 3.5" or 4x 2.5" internal drive bays
    • 1 PCI-E 3.0 x4, 1 M.2 (M-Key 2242/ 2280, SATA3/PCI-E 3.0 x2), 1 M.2 (B-Key 3042/2280, SATA3/PCI-E 3.0 x2/USB 3.0)
    • Up to 256GB ECC RDIMM DDR4 2400MHz or 64GB ECC/non-ECC UDIMM in 4 DIMM slots
    • 8 RJ45 GbE LAN, 2 SFP GbE LAN, 1 dedicated IPMI RJ45 GbE LAN
    • 2 USB 3.0, 1 VGA, 1 SuperDOM, TPM
    • 3x 40x28mm 4-pin PWM fans
    • 200W Low-noise AC-DC power supply

    Key Applications

    • • Network Security Appliance • Edge Computing Server • Virtualization Server

    Description

    The Supermicro SYS-5019A-FTN10P features a single-socket Intel® Atom® processor C3758 with 8 cores, ensuring powerful performance for network security, edge computing, and virtualization tasks. The server supports extensive memory options, multiple drive bays, and high-speed networking interfaces. With a compact 1U design, it is ideal for space-constrained environments while providing comprehensive features like TPM, IPMI, and multiple expansion slots.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-5019A-FTN10P
    • SuperServer 5019A-FTN10P ( Black )
    Motherboard
    Installed Motherboard
    • Super A2SDV-8C-LN10PF
    Processor
    CPU
    • Intel® Atom® processor C3758
    • FCBGA 1310 supported
    • CPU TDP support 25W
    System Memory
    Memory Capacity
    • 4x DDR4 DIMM sockets
    • Supports up to 256GB DDR4 ECC RDIMM
    • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
    Memory Type
    • 2400/2133/1866/1600MHz ECC DDR4 SDRAM
    DIMM Sizes
    • 64GB, 32GB, 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors(using ECC memory)
    On-Board Devices
    SATA
    • SoC controller for 5 SATA3 (6Gbps) ports
    Network Controllers
    • Quad GbE LAN with Intel® C3000 SoC
    • Quad GbE LAN with Intel® Ethernet Controller I350-AM4
    • Dual SFP GbE LAN with Intel® Ethernet Controller I210-IS
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • BMC integrated ASPEED AST2400
    Input / Output
    SATA
    • 5 SATA3 (6Gbps) ports
    LAN
    • 8 RJ45 Gigabit Ethernet LAN ports
    • 2 SFP Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    Serial Port
    • 1 COM port (optional)
    DOM
    • 1 SATA DOM (Disk on Module) power connector
    VGA
    • 1 VGA Port
    Others
    • TPM header
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-505-203B
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 9.8" (249mm)
    Weight
    • Net Weight: 8 lbs (3.62 kg)
    • Gross Weight: 12 lbs (5.44 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    • Information LED (temp., status)
    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x4 slot
    • 2 M.2 (1 M-Key 2242/2280 SATA3/PCI-E 3.0 x2 ,1 B-Key 3042/2280 SATA3/PCI-E 3.0 x2/USB 3.0)
    Drive Bays
    HDD
    • 1x 3.5" or 4x 2.5" internal hard drive bays (optional) *
    System Cooling
    Fans
    • 3x 40x28mm 4-PIN PWM fans
    Power Supply
    • 200W Low Noise AC-DC power supply with PFC
    AC Voltage
    • 100 - 240V, 50-60Hz, 2.6 Amp Max
    +5V
    • 8.0 Amp (max.)
    +5V standby
    • 2.0 Amp (max.)
    +12V
    • 16 Amp (max.)
    -12V
    • 0.5 Amp (max.)
    +3.3V
    • 8.0 Amp (max.)
    Certification
    • Gold Certified
    System BIOS
    BIOS Type
    • AMI UEFI BIOS
    BIOS Features
    • UEFI 2.4
    • SMBIOS 2.7.1
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C to 40°C (32°F to 104°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-A2SDV-8C-LN10PF1Super A2SDV-8C-LN10PF Motherboard
    CSE-505-203B11U Chassis
    FAN 1
    FAN-0065L434028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    Rear Window
    MCP-240-00091-0N21U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
    Parts
    MCP-260-00135-0B11U 504/505/510 I/O Shield for A2SDV-LN10PF with EMI Gasket
    Fan Holder
    MCP-320-81302-0B3Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)
    Riser Card
    RSC-RR1U-E81RSC-RR1U-E8
    Power Supply
    PWS-203-1H11U 200W Multi-output 80Plus Gold PWS

    Optional Part List

    Part Number Quantity Description
    HDD Bracket
    MCP-220-00044-0N-Dual 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U
    Rack Mount Kit
    MCP-290-50404-0N-Rack Mount Kit for CSE-504-203B
    SuperDOM
    --Supermicro SATA DOM Solutions [ Details ]
