X11SCL-IF, CSE-504-203B, HF,RoHS/REACH
SYS-5019C-L
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description

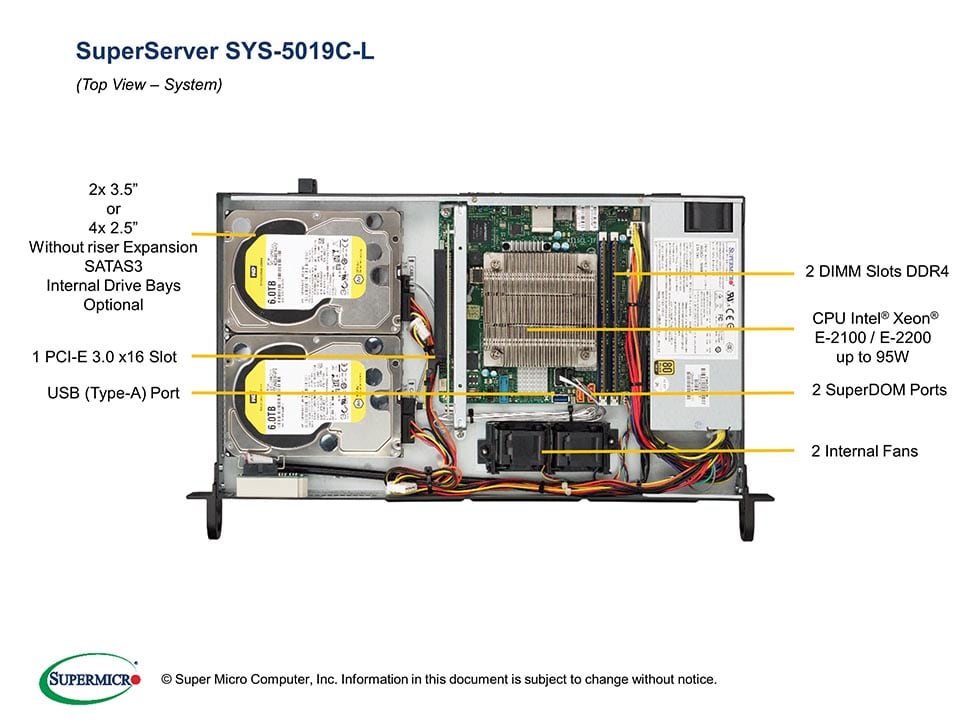

The Supermicro SYS-5019C-L is a versatile 1U server, designed to meet the needs of front-end, web hosting, and edge computing environments. Equipped with a single Socket H4 supporting Intel® Xeon® E-2100/E-2200 series processors, it offers robust performance and flexibility with up to 64GB ECC UDIMM, multiple drive configurations, and various expansion options.
Key Features
- Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
- Intel® C242 chipset
- Up to 64GB ECC UDIMM, up to DDR4-2666MHz; 2 DIMM slots
- 1 PCI-E 3.0 x16 slot
- 1 Fixed 3.5" drive support (default); up to 2 Fixed 3.5" drives or 4 Fixed 2.5" drives (opt.)
- M.2 Interface: 1 SATA/PCI-E 3.0 x4 M.2 Form Factor: 2280 M.2 Key: M-Key
- 2 GbE LAN ports, 1 dedicated IPMI LAN
- 2 USB 3.1 (rear), 2 USB 2.0 (rear)
- 1 VGA, 1 COM, 1 TPM
- 200W Multi-output power supply, Gold Level Certified
Key Applications
- Appliance Server Front-end, Web Hosting Edge Computing
Description
The Supermicro SYS-5019C-L is engineered for a range of applications, from appliance servers to edge computing solutions. This 1U rackmount server features a single Socket H4, compatible with Intel® Xeon® E-2100/E-2200 series processors, 8th/9th Gen. Intel® Core™ i3 processors, Intel® Celeron®, and Intel® Pentium® processors. With the Intel® C242 chipset and support for up to 64GB ECC UDIMM at speeds up to DDR4-2666MHz, this system offers powerful performance and reliability. Key features include 1 PCI-E 3.0 x16 slot, multiple drive bay configurations, M.2 SATA/PCI-E 3.0 x4 support, dual GbE LAN ports, and comprehensive management and monitoring capabilities.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SYS-5019C-L |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor | |
| CPU |
|
| Cores |
|
| Note |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| DIMM Sizes |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| IPMI |
|
| Network Controllers |
|
| Video |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| Video |
|
| Serial Port / Header |
|
| TPM |
|
| System BIOS | |
| BIOS Type |
|
| BIOS Features |
|
| Management | |
| Software |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Height |
|
| Width |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| M.2 |
|
| Drive Bays | |
| Internal |
|
| System Cooling | |
| Fans |
|
| Power Supply | |
| |
| AC Voltage |
|
| +5V |
|
| +5V standby |
|
| +12V |
|
| -12V |
|
| +3.3V |
|
| Certification |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Operating Environment / Compliance | |
| RoHS |
|
| Environmental Spec. |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X11SCL-iF | 1 | Super X11SCL-iF Motherboard |
| CSE-504-203B | 1 | 1U Chassis |
| Cable 1 | ||
| CBL-0484L | 1 | SATA,INT,ROUND,ST-ST,55CM,30AWG |
| FAN 1 | ||
| FAN-0154L4 | 2 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH |
| Fan Holder | ||
| MCP-320-81302-0B | 1 | Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only) |
| Manual | ||
| MNL-2152-QRG | 1 | 5019C-L/FL Quick Reference Guide |
| Riser Card | ||
| RSC-RR1U-E16 | 1 | RSC-RR1U-E16 with PIC-E x16 output |
| Heatsink / Retention | ||
| SNK-P0049P | 1 | 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Internal 2.5" HDD Tray | ||
| MCP-220-00044-0N | - | Dual 2.5" fixed HDD bracket |
| MCP-220-00051-0N | - | Single 2.5" fixed HDD bracket |
| Cable for internal HDD | ||
| CBL-0484L | - | 55cm 30AWG SATA straight to straigh cable |
| CBL-0211L | - | Big 4 pin to 3x SATA power cable |
| CBl-0082L | - | Y split, big 4 pin to two RA SATA power extension 15cm |
| Fan for AOC | ||
| FAN-0154L4 | 1 | 40x40x28mm 22.5K RPM, SC813MF Middle Cooling Fan |
| MCP-320-81302-0B | 1 | Fan tray for one 40x28mm fan |
| Network Card(s) | ||
| AOC-SGP-i2 | - | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 |
| AOC-SGP-i4 | - | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 |
| AOC-STGN-i2S | - | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES |
| AOC-STGF-i2S | - | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 |
| AOC-STG-B4S | - | Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S |
| AOC-STGS-i2T | - | Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 |
| TPM security module | ||
| AOM-TPM-9670V | 1 | TPM 2.0, vertical form factor |
| AOM-TPM-9671V | 1 | TPM 1.2, vertical form factor |
| Global Services & Support | ||
| OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service |
| Software | ||
| SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
