  2. Skylake D, X11SDV-TP8F, 505-203B

Skylake D, X11SDV-TP8F, 505-203B

SKU: SYS-5019D-FN8TP
Brand: Supermicro
Product Note:

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/15924/image_1920?unique=8de60dd

kr 19,517.62 19517.62 NOK kr 19,517.62 VAT Excluded

kr 19,517.62 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SuperServer 5019D-FN8TP offers optimized server solutions for modern enterprises with Xeon D processors, multiple networking options, and compact form factor.

    Key Features

    • Intel Xeon D-2146NT, 8 Cores
    • 1x M.2 slot M key for SSD
    • 512GB ECC LRDIMM support
    • 4x 1GbE, 2x 10GBase-T LAN
    • 2 USB 3.0, 1 VGA port
    • 200W Low-noise AC-DC power supply

    Key Applications

    • Network Security Appliance
    • Universal Customer Premise Equipment
    • Software Defined WAN
    • NFV Edge Computing Server
    • Virtualization Server
    • IoT Edge Computing

    Description

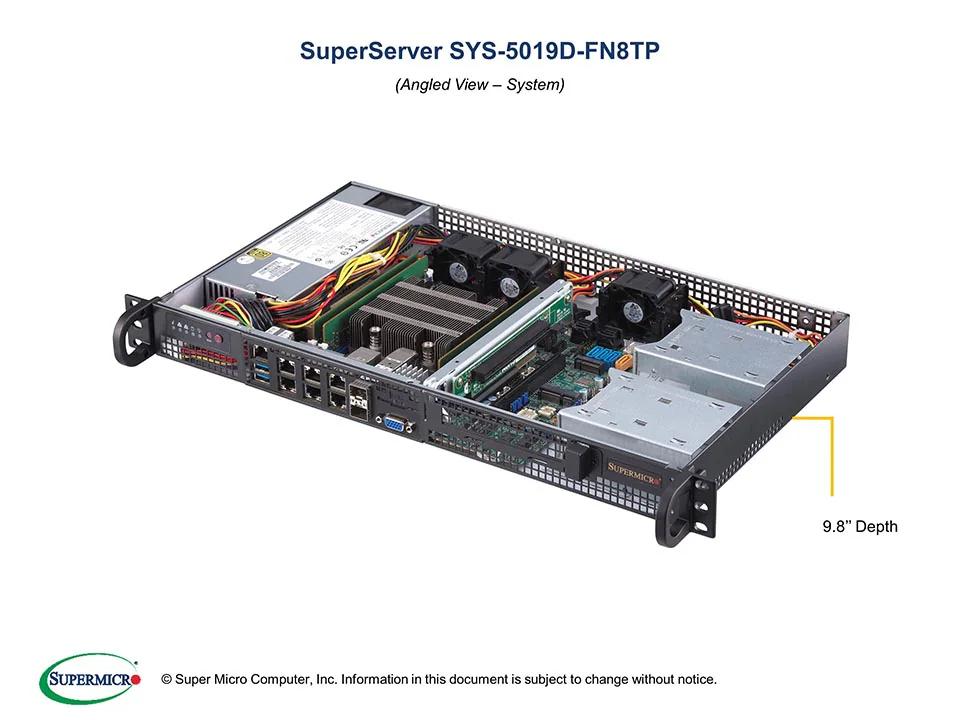

    Designed for maximum efficiency, the SuperServer 5019D-FN8TP features the Intel® Xeon® processor D-2146NT with 8 cores, dual 10G SFP+ and Quad 1GbE, and supports up to 512GB ECC memory. It includes M.2 slots and advanced expansion capabilities, making it ideal for network security, NFV, and virtualization servers.

    Product Specifications

    Specification Details
    Product SKUs
    Black Model
    • SuperServer 5019D-FN8TP
    Motherboard
    Model
    • Super X11SDV-8C-TP8F
    Processor
    CPU
    • Intel Xeon processor D-2146NT, CPU TDP support 80W
    Cores/Threads
    • 8 Cores, 16 Threads
    System Memory
    Capacity
    • Up to 512GB DDR4 ECC LRDIMM, 256GB ECC RDIMM
    Type
    • 2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC RDIMM
    Slots
    • 4 DIMM slots
    Network Controllers
    LAN Ports
    • Dual 10G SFP+, Quad 1GbE with Intel I350-AM4, Dual 10GBase-T with Intel X557
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-505-203B
    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x8 slot, 1 Mini-PCI-E with mSATA Support
    Power Supply
    Type
    • 200W Low Noise AC-DC power supply with PFC
    Certification
    • Gold Certified

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SDV-8C-TP8F1Super X11SDV-8C-TP8F Motherboard
    CSE-505-203B11U Chassis
    Cable 1
    CBL-0082L1Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
    Cable 2
    CBL-SAST-05382SATA,INT,ROUND,ST-RA,29CM,30AWG
    FAN 1
    FAN-0065L434028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    Drive Tray(s)
    MCP-220-00051-0N2Single 2.5
    Rear Window
    MCP-240-00091-0N21U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
    Parts
    MCP-260-00100-0B11U I/O Shield
    Fan Holder
    MCP-320-81302-0B3Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)
    Riser Card
    RSC-RR1U-E81RSC-RR1U-E8
    Power Supply
    PWS-203-1H11U 200W Multi-output 80Plus Gold PWS
    Air Shroud
    MCP-310-50503-0B1Mylar air shroud for SC504/505 with X11SDV-16C-TP,RoHS/REACH

    Optional Part List

    Part Number Quantity Description
    HDD Bracket
    MCP-220-00044-0N-Retention Bracket for up to 2x 2.5" HDD
    SuperDOM
    --Supermicro SATA DOM Solutions [ Details ]
