X11SPi-TF, 813MFTQC-R407CB

SYS-5019P-MTR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/1592/image_1920?unique=5e77b27

kr 15,159.83 15159.83 NOK kr 15,159.83

kr 15,159.83

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-5019P-MTR is designed with a single Socket P (LGA 3647) supporting 2nd Gen Intel® Xeon® Scalable processors. It features 8 DIMM slots with up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, integrated IPMI 2.0 and KVM with dedicated LAN, and 400W redundant platinum power supplies, ensuring reliability and performance for critical enterprise tasks.

    Key Features

    • Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake) ‡
    • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM
    • 1 PCI-E 3.0 x16 slot
    • 4 Hot-swap 3.5" SATA3 bays w/ RAID
    • 2x 10GBase-T ports with Intel X722 + X557
    • Integrated IPMI 2.0 and KVM with Dedicated LAN
    • 1 VGA, 2 COM, 4 USB 3.0, 2 USB 2.0
    • 400W Redundant Platinum Power Supplies w/ BBP® option

    Key Applications

    • • Web Hosting, VM • Application and Data Serving • Database Applications

    Description

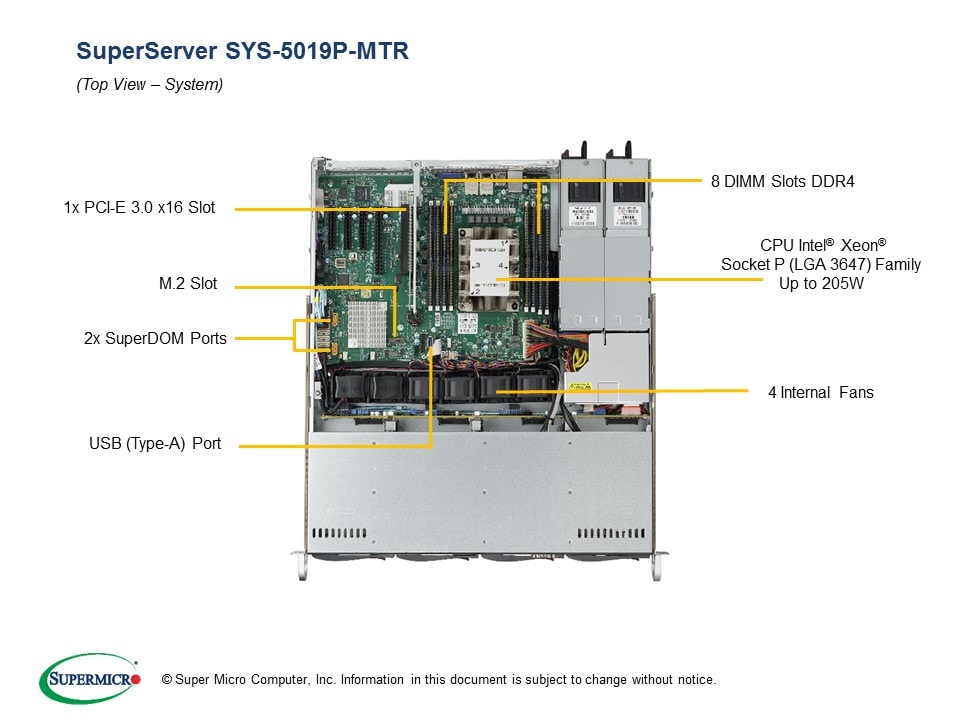

    The Supermicro SYS-5019P-MTR is a 1U rackmount server featuring a single Socket P (LGA 3647) that supports 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake). It includes 8 DIMM slots supporting up to 2TB of ECC DDR4-2933MHz memory, a robust set of I/O ports including dual 10GBase-T LAN ports, integrated IPMI with KVM, and 1 PCI-E 3.0 x16 slot. With 4 hot-swap 3.5" SATA3 drive bays, the SYS-5019P-MTR is ideal for web hosting, VM applications, and high-performance computing tasks.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-5019P-MTR
    • SuperServer 5019P-MTR ( Black )
    Motherboard
    Installed Motherboard
    • Super X11SPi-TF
    Processor
    CPU
    • Single Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡
    • Support CPU TDP 70-205W*
    Cores
    • Up to 28 Cores
    Note
    • *Certain high frequency optimized CPU are not supported, such as Intel Gold 6242R, 6244, 6246R, 6248R, 6250, 6254, 6256 and 6258R*Certain CPUs with high TDP may be supported only under specific conditions. Please contact Safe Consulting Technical Support for additional information.
    Note
    • ‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
    System Memory
    Memory Capacity
    • 8 DIMM slots
    • Up to 2TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note
    • †2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro††Cascade Lake only. Contact your Supermicro sales rep for more info.
    On-Board Devices
    Chipset
    • Intel® C622 chipset
    SATA
    • SATA3 (6Gbps) via C622 controller
    • RAID 0, 1, 5, 10 support
    Network Controllers
    • Dual 10GBase-T LAN with Intel® X722 + X557
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC
    Input / Output
    SATA
    • 10 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 10GBase-T LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
    • 6 USB 2.0 ports (2 rear + 4 headers)
    Video
    • 1 VGA port
    Serial Port / Header
    • 2 COM ports (1 rear, 1 front)
    SuperDOM
    • 2 SuperDOM (Disk on Module) ports with built-in power
    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM
    Management
    Software
    • Intel® Node Manager
    • IPMI 2.0
    • KVM with dedicated LAN
    • NMI
    • SPM , SUM
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-813MFTQC-R407CB
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 19.85" (503mm)
    Package
    • 8.5" (H) x 24" (W) x 29.5" (D)
    Weight
    • Gross Weight: 30.4 lbs (13.8 kg)
    • Net Weight: 17.6 lbs (8 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    Expansion Slots
    PCI-Express
    • 1 PCI-E 3.0 x16 slot
    M.2
    • 1x M.2 Interface: PCI-E 3.0 x4 and SATA
    • Form Factor: 2280, 22110
    • Key: M-Key
    • Double Height Connector
    Drive Bays
    Hot-swap
    • 4 Hot-swap 3.5" SATA3 drive bays
    Peripheral Drives
    Optional
    • Optional slim optical device bay, optional FDD/USB bay
    System Cooling
    Fans
    • 4x 40mm PWM fans
    • Optional 2 PWM fans for AOC
    AC/DC240V Input Redundant Power Supplies
    • 400W 1U Redundant Power Supplies with PM Bus
    Total Output Power
    • 400W
    Dimension(W x H x L)
    • 54.5 x 40 x 220 mm
    Input
    • 100 - 240Vac / 6.0 - 3.0A / 50-60Hz
    • 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
    +12V
    • Max: 33A / Min: 0.5A
    +5V sb
    • Max: 3A / Min: 0A
    Output Type
    • Gold Finger Connector Mating with Molex 45984-4343
    Certification
    • Platinum Level Certified
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SPi-TF1Super X11SPi-TF Motherboard
    CSE-813MFTQC-R407CB11U Chassis
    Backplane
    BPN-SAS3-815TQ11U 4-Port 12Gbps Backplane Support 4x3.5
    Cable 1
    CBL-0186L1SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG
    Cable 2
    CBL-CDAT-06611CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
    Parts
    MCP-120-00031-0N1Riser card bracket for SC812,813,813M,815,111,113,113M
    Drive Tray(s)
    MCP-220-00129-0B1Black 2x USB3.0/COM port tray in slim FDD bay
    Air Shroud
    MCP-310-19007-0N1SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
    Manual
    MNL-1920-QRG15019P-MT/MTR, QRG,HF,RoHS/REACH
    Riser Card
    RSC-RR1U-E161RSC-RR1U-E16 with PIC-E x16 output
    Heatsink / Retention
    SNK-P0067PS11U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Power Supply
    PWS-407P-1R2AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
    FAN 1
    FAN-0154L4440x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH

    Optional Part List

    Part Number Quantity Description
    3.5" to 2.5" Converter Tray
    MCP-220-00043-0N-Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
    DVD-ROM / DVD-RW
    DVM-TEAC-DVD-SBT51TEAC slim DVD-ROM SATA drive
    DVM-PLDS-DVDRW-SBT51PHILPS slim DVD-RW SATA drive
    DVD-ROM Accessory
    MCP-220-81502-0N1Slim SATA DVD mounting kit
    Internal 2.5" HDD Tray (FDD slot)
    MCP-220-83601-0B1Black FDD dummy tray support 1x 2.5" slim HDD
    Internal 2.5" HDD Tray (DVD slot)
    MCP-290-00036-0B1Black DVD dummy tray support 1x 2.5" slim HDD
    Cable for internal HDD
    CBL-0484L255cm 30AWG SATA straight to straigh cable
    CBl-0289L1Y split, big 4 pin to two RA SATA power estenstion 30cm
    Hot-swap 2.5" kit (FDD slot)
    MCP-220-81504-0N1Single slim 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
    Hot-swap 2.5" kit (DVD slot)
    MCP-220-81506-0N1Single slim 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
    Cooling Fan
    FAN-0154L4-40x40x28mm 22.5K RPM, SC813MF Middle Cooling Fan
    Network Card(s)
    AOC-SGP-i2-Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
    AOC-SGP-i4-Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    AOC-STGN-i2S-Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    AOC-STGF-i2S-Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
    AOC-STG-B4S-Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    AOC-STGS-i2T-Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
    AOC-S25G-b2S-Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
    AOC-S25G-m2S-Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
    Front Bezels
    CSE-PTFB-813LB-Black front bezels
    CSE-PTFB-813-02B-Black Front Bezel w/ Round Venting Holes
    TPM security module
    AOM-TPM-9670V1TPM 2.0, vertical form factor
    AOM-TPM-9671V1TPM 1.2, vertical form factor
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-OOB-LIC1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
