X11SSH-F, 813MFTQC-350CB(Taiwan)(Europe)

SYS-5019S-M

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10581/image_1920?unique=dec9d2d

kr 8,820.78 8820.78 NOK kr 8,820.78

kr 8,820.78

Not Available For Sale

    This combination does not exist.

    Summary Description

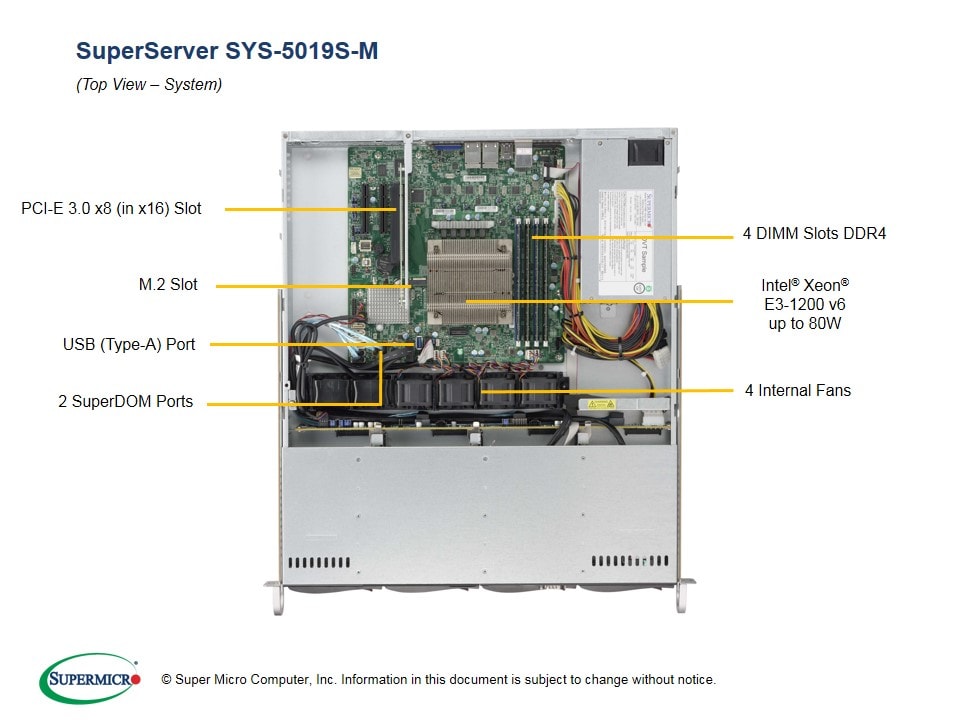

    The Supermicro SYS-5019S-M is a high-performance 1U rackmount server designed for cloud computing, web hosting, and file/print services. It features a Single Socket H4 (LGA 1151) with support for Intel Xeon processor E3-1200 v6/v5, up to 64GB ECC DDR4 memory, and multiple I/O options.

    Key Features

    • Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series
    • Intel® C236 chipset
    • 4 Hot-swap 3.5" SATA3 bays w/ RAID
    • Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • 1 PCI-E 3.0 x8 (in x16) AOC slot
    • 2 GbE ports with Intel® i210-AT
    • Integrated IPMI 2.0 and KVM with Dedicated LAN
    • 1 VGA, 2 COM, 4 USB 3.0, 2 USB 2.0
    • 350W Platinum Level Power Supply

    Key Applications

    • • Cloud, Web hosting, File/Print • High flexibility, Communication • Mainstream, Light load VM

    Description

    Supermicro SYS-5019S-M is a 1U rackmount server designed to provide high performance and flexibility for a variety of applications. It supports a Single Socket H4 (LGA 1151) for Intel Xeon processor E3-1200 v6/v5, Intel 7th/6th Gen Core i3 processors, and has an Intel C236 chipset. The server features 4 Hot-swap 3.5" SATA3 bays with RAID, up to 64GB of ECC DDR4 memory, and multiple I/O options including 2 GbE ports with Intel i210-AT, 1 PCI-E 3.0 x8 (in x16) slot, Integrated IPMI 2.0 and KVM with Dedicated LAN, and various USB and COM ports.

    Product Specifications

    Product SKUs
    SYS-5019S-MSuperServer 5019S-M (Black)
    Motherboard
    Super X11SSH-FSuper X11SSH-F
    Super X11SSH-F
    Processor
    CPUSingle Socket H4 (LGA 1151) supports:
    Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3
    CPU TDP up to 80W
    NoteBIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors
    System Memory
    Memory Capacity4x 288-pin DDR4 DIMM slots
    Up to 64GB DDR4 ECC UDIMM
    Memory Type2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
    DIMM Sizes16GB, 8GB, 4GB
    Memory Voltage1.2 V
    Error DetectionCorrects single-bit errors
    Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetIntel® C236 chipset
    SATASATA3 (6Gbps) via C236 controller
    RAID 0, 1, 5, 10 support
    IPMISupport for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    ASPEED AST2400 BMC
    Network ControllersDual Intel® I210-AT Gigabit Ethernet LAN ports
    Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    VideoASPEED AST2400 BMC
    Input / Output
    SATA8 SATA3 (6Gbps) ports
    LAN2 RJ45 Gigabit Ethernet LAN ports
    1 RJ45 Dedicated IPMI LAN port
    USB5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
    6 USB 2.0 ports (2 rear + 4 headers)
    Video1 VGA port
    Serial Port / Header2 COM ports (1 rear, 1 front)
    SuperDOM2SuperDOM(Disk on Module) ports with built-in power
    PC Health Monitoring
    VoltageMonitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
    FANTotal of 5 fan headers supporting up to 5 fans
    4 fans with tachometer status monitoring
    Status monitor for speed control
    Status monitor for on/off control
    Low noise fan speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    CPU thermal trip support
    I2C temperature sensing logic
    Thermal Monitor 2 (TM2) support
    PECI
    LEDSystem Information LED
    Suspend static indicator LED
    UID/Remote UID
    Other FeaturesChassis intrusion detection
    Chassis intrusion header
    RoHS, Halogen Free
    Chassis
    Form Factor1U Rackmount
    ModelCSE-813MFTQC-350CB
    Dimensions and Weight
    Height1.7" (43mm)
    Width17.2" (437mm)
    Depth19.85" (503mm)
    Package8.5" (H) x 24" (W) x 29.5" (D)
    WeightGross Weight: 30.4 lbs (13.8 kg)
    Net Weight: 17.6 lbs (8 kg)
    Available ColorsBlack
    Front Panel
    ButtonsPower On/Off button
    System Reset button
    LEDsPower LED
    Hard drive activity LED
    2 Network activity LEDs
    System Information LED
    Expansion Slots
    PCI-Express1 PCI-E 3.0 x8 (in x16) AOC slot
    M.21x M.2 Interface: PCI-E 3.0 x2
    Form Factor: 2280
    Key: M-Key
    Double Height Connector
    Drive Bays
    Hot-swap4 Hot-swap 3.5" SATA3 drive bays
    Peripheral Drives
    Optional2 Fixed 2.5" internal drives
    Backplane
    SAS/SATA HDD Backplane(SAS support requires optional SAS controller)SAS/SATA HDD Backplane(SAS support requires optional SAS controller)
    System Cooling
    Fans4x 40x28mm 4-pin PWM Cooling Fans
    Optional 1x 40x28mm PWM fan
    Power Supply
    350W AC power supply w/ PFC350W AC power supply w/ PFC
    AC Voltage100-240 V, 50-60 Hz, 5.0-2.5 Amp
    +5VMax.: 15 Amp
    Min.: 0.2 Amp
    +5V standbyMax.: 3 Amp
    Min.: 0 Amp
    +12VMax.: 29 Amp
    Min.: 0.5 Amp
    -12VMax.: 0.2 Amp
    Min.: 0 Amp
    +3.3VMax.: 12 Amp
    Min.: 0.2 Amp
    Certification
    Platinum Level Certified
    [Test Report]
    Test Report
    System BIOS
    BIOS Type8MB SPI Flash EEPROM with AMI BIOS
    Operating Environment / Compliance
    RoHSRoHS Compliant
    Environmental Spec.Operating Temperature:10°C to 35°C (50°F to 95°F)
    Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity:8% to 90% (non-condensing)
    Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X11SSH-F1Super X11SSH-F Motherboard
    CSE-813MFTQC-350CB11U Chassis
    Backplane
    Part NumberQuantityDescription
    BPN-SAS3-815TQ11U 4-Port 12Gbps Backplane Support 4x3.5
    Cable 1
    Part NumberQuantityDescription
    CBL-0186L1SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG
    Cable 2
    Part NumberQuantityDescription
    CBL-CDAT-06611CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
    Parts
    Part NumberQuantityDescription
    MCP-120-00031-0N1Riser card bracket for SC812,813,813M,815,111,113,113M
    Drive Tray(s)
    Part NumberQuantityDescription
    MCP-220-00129-0B1Black 2x USB3.0/COM port tray in slim FDD bay
    Air Shroud
    Part NumberQuantityDescription
    MCP-310-19007-0N1SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
    Manual
    Part NumberQuantityDescription
    MNL-1779-QRG15019S-M/MR,QRG,HF,RoHS/REACH
    Riser Card
    Part NumberQuantityDescription
    RSC-RR1U-E161RSC-RR1U-E16 with PIC-E x16 output
    Heatsink / Retention
    Part NumberQuantityDescription
    SNK-P0046P11U PASSIVE CPU HS FOR INTEL LGA1156
    Power Supply
    Part NumberQuantityDescription
    PWS-350-1H11U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
    FAN 1
    Part NumberQuantityDescription
    FAN-0147L4440x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF

    Optional Part List

    3.5" to 2.5" Converter Tray
    Part NumberQuantityDescription
    MCP-220-00043-0N-Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
    DVD-ROM / DVD-RW
    Part NumberQuantityDescription
    DVM-TEAC-DVD-SBT51TEAC slim DVD-ROM SATA drive
    DVM-PLDS-DVDRW-SBT51PHILPS slim DVD-RW SATA drive
    DVD-ROM Accessory
    Part NumberQuantityDescription
    MCP-220-81502-0N1Slim SATA DVD mounting kit
    Internal 2.5" HDD Tray (FDD slot)
    Part NumberQuantityDescription
    MCP-220-83601-0B1Black FDD dummy tray support 1x 2.5" slim HDD
    Internal 2.5" HDD Tray (DVD slot)
    Part NumberQuantityDescription
    MCP-290-00036-0B1Black DVD dummy tray support 1x 2.5" slim HDD
    Cable for internal HDD
    Part NumberQuantityDescription
    CBL-0484L255cm 30AWG SATA straight to straigh cable
    CBl-0289L1Y split, big 4 pin to two RA SATA power estenstion 30cm
    Hot-swap 2.5" kit (FDD slot)
    Part NumberQuantityDescription
    MCP-220-81504-0N1Single slim 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
    Hot-swap 2.5" kit (DVD slot)
    Part NumberQuantityDescription
    MCP-220-81506-0N1Single slim 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
    Cooling Fan
    Part NumberQuantityDescription
    FAN0147L4-40x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF
    Network Card(s)
    Part NumberQuantityDescription
    AOC-SGP-i2-Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
    AOC-SGP-i4-Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    AOC-STGN-i2S-Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    AOC-STGF-i2S-Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
    AOC-STG-B4S-Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    AOC-STGS-i2T-Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
    AOC-S25G-b2S-Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
    AOC-S25G-m2S-Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
    Front Bezels
    Part NumberQuantityDescription
    CSE-PTFB-813LB-Black front bezels
    CSE-PTFB-813-02B-Black Front Bezel w/ Round Venting Holes
    TPM security module
    Part NumberQuantityDescription
    AOM-TPM-9665V1TPM 2.0, vertical form factor
    AOM-TPM-9655V1TPM 1.2, vertical form factor
    Global Services & Support
    Part NumberQuantityDescription
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    Part NumberQuantityDescription
    SFT-OOB-LIC•1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
