  2. (EOL)X11SSH-GF-1585L, 813MFTQC-R407CB

(EOL)X11SSH-GF-1585L, 813MFTQC-R407CB

SYS-5019S-MR-G1585L

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10583/image_1920?unique=f7d9088

kr 18,552.95 18552.95 NOK kr 18,552.95

kr 18,552.95

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

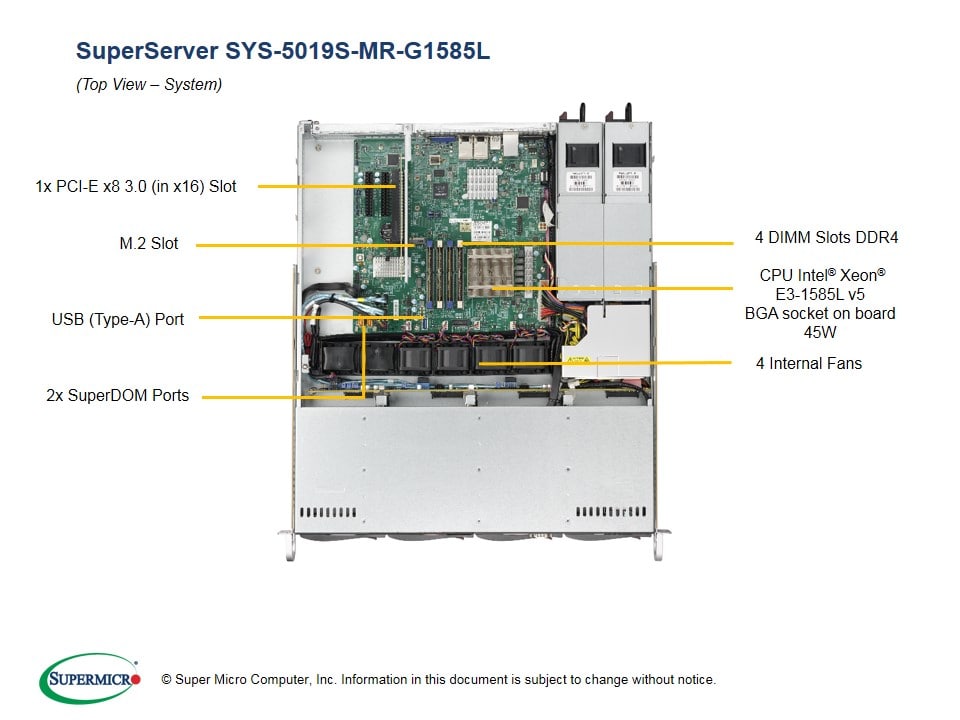

    The Supermicro SYS-5019S-MR-G1585L is a 1U rackmount server offering high performance with Intel® Xeon® E3-1585L v5 processor, supporting up to 64GB of ECC DDR4 memory, 4x hot-swap 3.5" SATA3 drive bays, and dual Intel® i350 GbE ports.

    Key Features

    • • Support VHD & Quick Sync Video • Iris Pro Optimizations GT4e Build-in
    • Single Socket FCBGA 1440 supports Intel® Xeon® processor E3-1585L v5, 4-Core, 8 Threads, 45W
    • Intel® C236 chipset
    • 4x 3.5" Hot-swap SATA3 bays w/ RAID
    • Up to 64GB Unbuffered ECC SO-DIMM DDR4-2133MHz; 4 DIMM slots
    • 1 PCI-E 3.0 x8 (in x16) AOC slot
    • 2x 1GbE ports with Intel® i350
    • Integrated IPMI 2.0 and KVM with Dedicated LAN
    • I/O ports: 1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0
    • 400W Redundant Platinum Power Supplies w/ BBP® option

    Key Applications

    • High-performance computing
    • Data Center
    • Cloud Computing
    • Enterprise Applications
    • Virtualization
    • Database Management
    • Web Hosting
    • Media Streaming
    • Video transcoding

    Description

    The Supermicro SYS-5019S-MR-G1585L is engineered for use in high-demand environments with a single Intel® Xeon® processor E3-1585L v5. It incorporates Intel® C236 chipset and supports up to 64GB Unbuffered ECC DDR4 memory across 4 DIMM slots. This server is designed to provide reliability and scalability with 4x 3.5" hot-swap SATA3 drive bays w/ RAID support, multiple I/O ports including USB 3.0, USB 2.0, and VGA, and integrated IPMI 2.0 with KVM. The device comes equipped with redundant 400W Platinum Power Supplies.

    Product Specifications

    Specification Details
    Product SKUs- Discontinued SKU (EOL). Please contact sales-rep for alternative options.
    SYS-5019S-MR-G1585L
    • SuperServer 5019S-MR-G1585L ( Black )
    Motherboard
    Installed Motherboard
    • Super X11SSH-GF-1585L
    Processor
    CPU
    • Single socket FCBGA1440
    • Intel® Xeon® processor E3-1585L v5
    • 4-Core, 8 Threads, CPU TDP support 45W
    System Memory
    Memory Capacity
    • 4x 288-pin DDR4 DIMM slots
    • Up to 64GB Unbuffered ECC SO-DIMM
    Memory Type
    • 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
    DIMM Sizes
    • 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C236 chipset
    SATA
    • SATA3 (6Gbps) via C236 controller
    • RAID 0, 1, 5, 10 support
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2400 BMC
    Network Controllers
    • Dual Intel® i350 Gigabit Ethernet LAN ports
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Video
    • ASPEED AST2400 BMC
    Input / Output
    SATA
    • 6 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
    • 8 USB 2.0 ports (2 rear + 6 headers)
    Video
    • 1 VGA port
    Serial Port / Header
    • 2 COM ports (1 rear, 1 front)
    SuperDOM
    • 2 SuperDOM (Disk on Module) ports with built-in power
    PC Health Monitoring
    Voltage
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
    FAN
    • Total of 5 fan headers supporting up to 5 fans
    • 4 fans with tachometer status monitoring
    • Status monitor for speed control
    • Status monitor for on/off control
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • I2C temperature sensing logic
    • Thermal Monitor 2 (TM2) support
    • PECI
    LED
    • System Information LED
    • Suspend static indicator LED
    • UID/Remote UID
    Other Features
    • Chassis intrusion detection
    • Chassis intrusion header
    • RoHS, Halogen Free
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-813MFTQC-R407CB
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 19.85" (503mm)
    Package
    • 8.5" (H) x 24" (W) x 29.5" (D)
    Weight
    • Gross Weight: 33 lbs (15.0 kg)
    • Net Weight: 20 lbs (9.1 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • 2 Network activity LEDs
    • System Information LED
    Expansion Slots
    PCI-Express
    • 1 PCI-E 3.0 x8 (in x16) AOC slot
    M.2
    • 1x M.2 Interface: PCI-E 3.0 x4 and SATA
    • Form Factor: 2242, 2280, 22110
    • Key: M-Key
    • Double Height Connector
    Drive Bays
    Hot-swap
    • 4x 3.5" Hot-swap SATA3 drive bays
    Peripheral Drives
    Optional
    • Optional 2.5" drive adapter
    • Optional slim DVD drive
    System Cooling
    Fans
    • 4x 40x28mm 4-pin PWM Cooling Fans
    • Optional 1x 40x28mm PWM Fan
    AC/DC240V Input Redundant Power Supplies
    • 400W 1U Redundant Power Supplies with PM Bus
    Total Output Power
    • 400W
    Dimension(W x H x L)
    • 54.5 x 40 x 220 mm
    Input
    • 100 - 240Vac / 6.0 - 3.0A / 50-60Hz
    • 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
    +12V
    • Max: 33A / Min: 0.5A
    +5V sb
    • Max: 3A / Min: 0A
    Output Type
    • Gold Finger Connector Mating with Molex 45984-4343
    Certification
    • Platinum Level Certified
    System BIOS
    BIOS Type
    • 8MB SPI Flash EEPROM with AMI BIOS
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SSH-GF-1585L1Super X11SSH-GF-1585L Motherboard
    CSE-813MFTQC-R407CB11U Chassis
    Backplane
    BPN-SAS3-815TQ11U 4-Port 12Gbps Backplane Support 4x3.5
    Cable 1
    CBL-0186L1SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG
    Cable 2
    CBL-CDAT-06611CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
    Parts
    MCP-120-00031-0N1Riser card bracket for SC812,813,813M,815,111,113,113M
    Drive Tray(s)
    MCP-220-00129-0B1Black 2x USB3.0/COM port tray in slim FDD bay
    Air Shroud
    MCP-310-00079-0B1Mylar Air Shroud for SYS-5019S-MR-G1585L
    Manual
    MNL-1919-QRG15019S-M/MR-G1585L, QRG,HF,RoHS/REACH
    Riser Card
    RSC-RR1U-E161RSC-RR1U-E16 with PIC-E x16 output
    Power Supply
    PWS-407P-1R2AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
    FAN 1
    FAN-0154L4440x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH

    Optional Part List

    Part Number Quantity Description
    3.5" to 2.5" Converter Tray
    MCP-220-00043-0N-Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
    DVD-ROM / DVD-RW
    DVM-TEAC-DVD-SBT51TEAC slim DVD-ROM SATA drive
    DVM-PLDS-DVDRW-SBT51PHILPS slim DVD-RW SATA drive
    DVD-ROM Accessory
    MCP-220-81502-0N1Slim SATA DVD mounting kit
    Internal 2.5" HDD Tray (FDD slot)
    MCP-220-83601-0B1Black FDD dummy tray support 1x 2.5" slim HDD
    Internal 2.5" HDD Tray (DVD slot)
    MCP-290-00036-0B1Black DVD dummy tray support 1x 2.5" slim HDD
    Cable for internal HDD
    CBL-0484L255cm 30AWG SATA straight to straigh cable
    CBl-0289L1Y split, big 4 pin to two RA SATA power estenstion 30cm
    Hot-swap 2.5" kit (FDD slot)
    MCP-220-81504-0N1Single slim 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
    Hot-swap 2.5" kit (DVD slot)
    MCP-220-81506-0N1Single slim 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
    Cooling Fan
    FAN-0154L4-40x40x28mm 22.5K RPM, SC813MF Middle Cooling Fan
    Network Card(s)
    AOC-SGP-i2-Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
    AOC-SGP-i4-Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    AOC-STGN-i2S-Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    AOC-STGF-i2S-Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
    AOC-STG-B4S-Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    AOC-STGS-i2T-Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
    AOC-S25G-b2S-Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
    AOC-S25G-m2S-Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
    Front Bezels
    CSE-PTFB-813LB-Black front bezels
    CSE-PTFB-813-02B-Black Front Bezel w/ Round Venting Holes
    TPM security module
    AOM-TPM-9665V1TPM 2.0, vertical form factor
    AOM-TPM-9655V1TPM 1.2, vertical form factor
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-OOB-LIC1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
