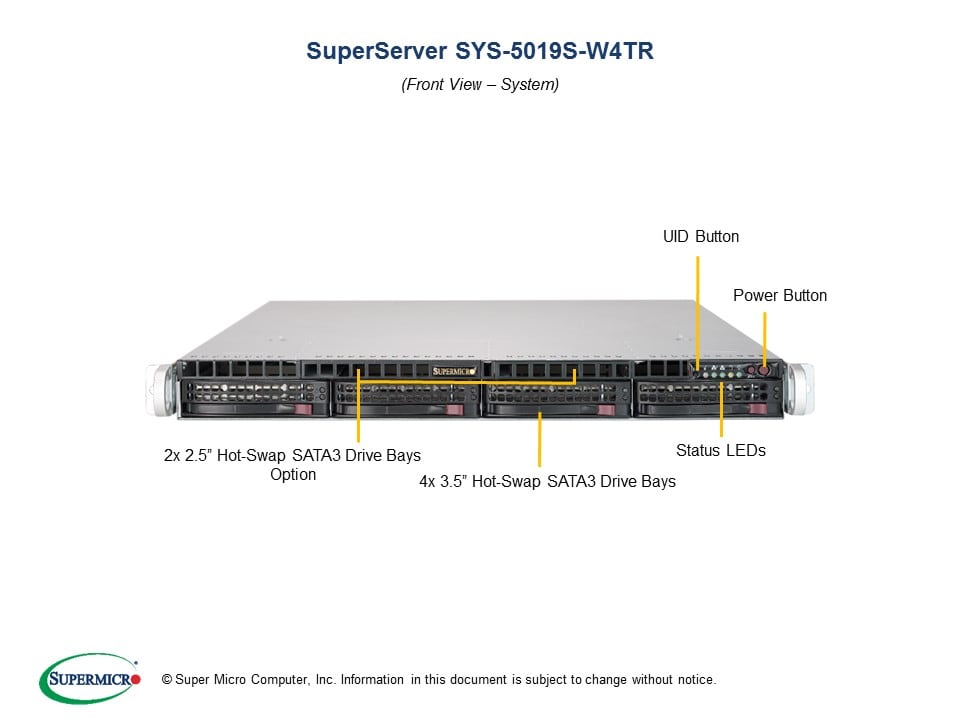

(EOL)1U WIO X11SSW-4TF, 815TQC-R504WB2,HF,RoHS
SYS-5019S-W4TR
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SYS-5019S-W4TR is engineered to deliver exceptional performance and flexibility for a variety of mainstream environments. Featuring an Intel® Xeon® E3-1200 v6/v5 processor, up to 64GB of DDR4 ECC UDIMM memory, and robust I/O capabilities, it is the perfect choice for a broad range of computing needs.
Key Features
- Quad 10GBase-T LAN ports
- Up to 64GB of DDR4 ECC UDIMM memory
- IPMI 2.0 support
- Support for Intel® Xeon® E3-1200 v6/v5 processors
- 1U Rackmount form factor
- Comprehensive I/O options
Key Applications
- Mainstream, WIO
Description
The Supermicro SYS-5019S-W4TR server is built to meet the demanding requirements of today's data centers and enterprise environments. This 1U rackmount server is powered by a single socket H4 (LGA 1151) Intel® Xeon® E3-1200 v6/v5 processor with support for up to 64GB of DDR4 ECC UDIMM memory. It includes comprehensive I/O features such as quad 10GBase-T LAN ports, multiple SATA3 ports, USB 3.0 and 2.0 ports, as well as support for IPMI 2.0 for advanced remote management.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SYS-5019S-W4TR |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor | |
| CPU |
|
| Note |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| IPMI |
|
| Network Controllers |
|
| Video |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| Video |
|
| Serial Port / Header |
|
| SuperDOM |
|
| PC Health Monitoring | |
| Voltage |
|
| FAN |
|
| Temperature |
|
| LED |
|
| Other Features |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Height |
|
| Width |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| M.2 |
|
| Drive Bays | |
| Hot-swap |
|
| Peripheral Drives | |
| DVD-ROM |
|
| System Cooling | |
| Fans |
|
| Power Supply with Power Distributor | |
| |
| With Power Distributor |
|
| Certification |
|
| System BIOS | |
| BIOS Type |
|
| Operating Environment / Compliance | |
| RoHS |
|
| Environmental Spec. |
|
| General | |
| Backplane |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X11SSW-4TF | 1 | Super X11SSW-4TF Motherboard |
| CSE-815TQC-R504WB3 | 1 | 1U Chassis |
| Backplane | ||
| BPN-SAS3-815TQ-N4 | 1 | 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices |
| Cable 1 | ||
| CBL-0180L-01 | 1 | SATA,INT,ROUND,SET OF 4,ST-RA 70/59/48/38CM,26AWG |
| Cable 2 | ||
| CBL-CDAT-0660 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,27CM,28AWG |
| FAN 1 | ||
| FAN-0156L4 | 4 | 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH |
| Air Shroud | ||
| MCP-310-19002-0N | 1 | SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB |
| Manual | ||
| MNL-1990-QRG | 1 | 5019S-W4TR Quick Reference Guide |
| Riser Card | ||
| RSC-W-68 | 1 | 1U LHS WIO w/ 2 PCI-E x8 slots or PCI-E x16 slot |
| Heatsink / Retention | ||
| SNK-P0046P | 1 | 1U PASSIVE CPU HS FOR INTEL LGA1156 |
| Power Supply | ||
| PWS-504P-1R | 2 | 500W 1U Redundant PWS W/ 54.5MM Wide |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| 3.5" to 2.5" Converter Tray | ||
| MCP-220-00043-0N | - | Black Hot-swap Gen-4 2.5" to 3.5" HDD tray |
| DVD-ROM / DVD-RW | ||
| DVM-TEAC-DVD-SBT4 | 1 | TEAC slim DVD-ROM SATA drive |
| DVM-TEAC-DVD-SBT4 | 1 | PHILPS slim DVD-RW SATA drive |
| DVD-ROM Accessory | ||
| MCP-220-81502-0N | 1 | Slim SATA DVD mounting kit |
| Internal 2.5" HDD Tray (FDD slot) | ||
| MCP-220-83601-0B | 1 | Black FDD dummy tray support 1x 2.5" slim HDD |
| Internal 2.5" HDD Tray (DVD slot) | ||
| MCP-290-00036-0B | 1 | Black DVD dummy tray support 1x 2.5" slim HDD |
| Cable for internal HDD | ||
| CBL-0484L | 2 | 55cm 30AWG SATA straight to straigh cable |
| CBl-0289L | 1 | Y split, big 4 pin to two RA SATA power estenstion 30cm |
| Hot-swap 2.5" kit (FDD slot) | ||
| MCP-220-81504-0N | 1 | Single slim 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor |
| Hot-swap 2.5" kit (DVD slot) | ||
| MCP-220-81506-0N | 1 | Single slim 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor |
| Cooling Fan | ||
| FAN-0156L4 | - | 40x40x56mm 13K-11K RPM Counter-rotating Fan |
| Network Card(s) | ||
| AOC-SGP-i2 | - | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 |
| AOC-SGP-i4 | - | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 |
| AOC-STGN-i2S | - | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES |
| AOC-STGF-i2S | - | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 |
| AOC-STG-B4S | - | Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S |
| AOC-STGS-i2T | - | Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 |
| AOC-S25G-b2S | - | Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 |
| AOC-S25G-m2S | - | Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX |
| Front Bezels | ||
| CSE-PTFB-813LB | - | Black front bezels |
| CSE-PTFB-813-02B | - | Black Front Bezel w/ Round Venting Holes |
| TPM security module | ||
| AOM-TPM-9665V | 1 | TPM 2.0, vertical form factor |
| AOM-TPM-9655V | 1 | TPM 1.2, vertical form factor |
| Global Services & Support | ||
| OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service |
| Software | ||
| SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
