Coffee Lake, X11SCV-Q, CSE-721TQ-250B

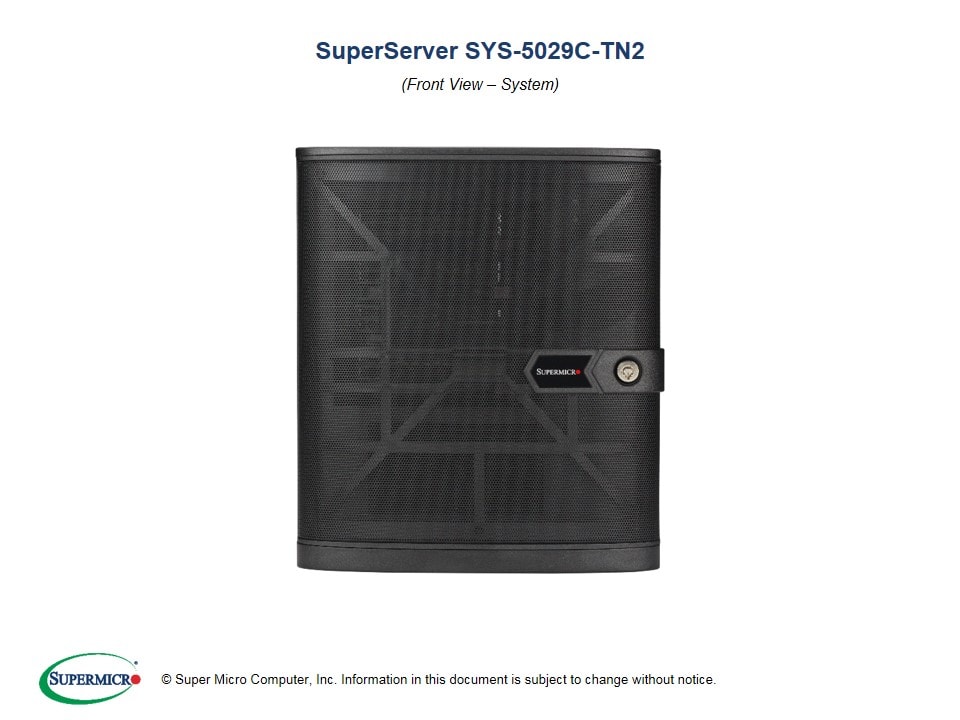

SYS-5029C-TN2

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10612/image_1920?unique=8c618a3

kr 6,624.55 6624.55 NOK kr 6,624.55

kr 6,624.55

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-5029C-TN2 is a versatile mini tower server designed for surveillance, video processing, and small-medium business needs. With its support for 9th and 8th Gen Intel® processors, robust storage options, and advanced management features, it delivers reliable performance and scalability for a variety of applications.

    Key Features

    • • Surveillance Security Server • Compact Storage Appliance • Video processing & streaming • Small Medium Business Edge Server
    • Single Socket H4 (LGA 1151) supports: 9th/8th Gen Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® processor
    • Intel® Q370 chipset
    • Up to 64GB unbuf. non-ECC SO-DIMM, DDR4-2666Mz; in 2 DIMM slots
    • 1 PCI-E 3.0 x16 LP AOC slot, M.2 M key: PCI-E 3.0 x4, support 2242/2280; M.2 E KEY: PCI-E 3.0 x1, support 2230
    • 4 Hot-swap 3.5" drive bays, 2 internal 2.5" drive bays, 1 slim DVD-ROM bay
    • 2x 1GbE LAN ports
    • 4 USB 3.1 (2 type A and 2 type C)
    • Intel® HD Graphics, ALC 888S HD Audio
    • 350W Flex ATX Multi-output Gold Power Supply

    Key Applications

    • Surveillance Security Server
    • Video processing & streaming
    • Small Medium Business Edge Server

    Description

    The Supermicro SYS-5029C-TN2 mini tower server stands out with its Single Socket H4 (LGA 1151) supporting 9th and 8th Gen Intel® Core™, Pentium®, and Celeron® processors. It features the Intel® Q370 chipset, up to 64GB DDR4-2666MHz memory, and multiple expansion slots including PCI-E and M.2. The server offers extensive storage capabilities with 4 hot-swap 3.5" drive bays, 2 internal 2.5" drive bays, and a slim DVD-ROM bay. Equipped with dual 1GbE LAN ports, four USB 3.1 ports, Intel® HD Graphics, HD audio, and a 350W Flex ATX power supply, the SYS-5029C-TN2 is an ideal solution for high-demand computing environments.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-5029C-TN2
    • SuperServer 5029C-TN2 ( Black )
    Motherboard
    Installed Motherboard
    • Super X11SCV-Q
    Processor/Cache
    CPU
    • Single Socket H4 (LGA 1151) supports:
    • 9th/8th Gen Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® processor
    • CPU TDP support Up to 65W TDP
    System Memory
    Memory Capacity
    • Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz
    • 2 DIMM slots
    Memory Type
    • DDR4-2666MHz Unbuffered non-ECC SO-DIMM
    DIMM Sizes
    • 32GB, 16GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors(using ECC memory)
    On-Board Devices
    Chipset
    • Intel® Q370 chipset
    SATA
    • Q370 controller for 5 SATA3 ports; RAID 0, 1, 5, 10
    Network Controllers
    • Single LAN with Intel® Ethernet Controller I210-AT
    • Single LAN with Intel® PHY I219LM LAN controller
    Audio
    • ALC 888S HD Audio
    Graphics
    • 3 Independent Displays
    Input / Output
    SATA
    • 5 SATA3 (6Gbps) ports via PCH
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 3.1 (2 type A and 2 type C in rear)
    Display
    • 1 DVI - D port
    • 1 HDMI port
    • 1 DP (Display Port)
    • 1 eDP (Embedded Display Port)
    • 3 Independent Displays
    • 2 COM ports support RS-232/422/485
    Audio
    • HD Audio (Mic In / Line Out)
    TPM
    • 1 TPM Header & Chip
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    • Non-maskable Interrupt (NMI)
    • Chassis intrusion detection
    Chassis
    Form Factor
    • Mini Tower
    Model
    • CSE-721TQ-350B
    Dimensions and Weight
    Height
    • 9.45" (240mm)
    Width
    • 8.27" (210mm)
    Depth
    • 11" (279mm)
    Weight
    • Gross Weight: 15 lbs (6.8 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    Ports
    • 2 USB 3.1 Gen1 ports
    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x16 (Low-profile)
    M.2
    • M.2 M key: PCI-E 3.0 x4, NVMe support 2242/2280 length
    • M.2 E Key: PCI-E 3.0 x1, support 2230 length
    Drive Bays
    HDD
    • 4 Hot-swap 3.5" drive bays
    • 2 internal 2.5" drive bays
    Peripheral
    • 1 slim DVD-ROM bay
    Power Supply
    • 350W Flex ATX Multi-output Power Supply
    AC Voltage
    • 100 - 240V, 50 - 60Hz
    +5V
    • Max:15 Amp; Min:0.2 Amp
    +12V
    • Max:28 Amp; Min:0.1 Amp @100V-240V
    -12V
    • Max: 0.3 Amp Min: 0.05 Amp
    +3.3V
    • Max: 10 Amp Min: 0.1 Amp
    5VSB
    • Max: 2 Amp Min: 0.05 Amp
    Certification
    • Gold Certified
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    • 3+0 CPU switch phase voltage regulator
    • CPU thermal trip support
    FAN
    • Low noise fan speedcontrol
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for 4x 4-pin fan connectors
    • Platform Environmental Control Interface (PECI)
    System BIOS
    BIOS Type
    • UEFI 256Mb
    BIOS Features
    • ACPI 6.0
    • SMBIOS 2.7
    • Plug and Play (PnP)
    • RTC (Real Time Clock) Wakeup
    • PCI F/W 3.0
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:20% to 95% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SCV-Q1Super X11SCV-Q Motherboard
    CSE-721TQ-350B1Mini Tower Chassis
    Cable 1
    CBL-0473L4SATA,INT,ROUND,ST-ST,21CM,30AWG
    Backplane
    CSE-SAS-733TQ14x3.5\" SAS2/SATA3 backplane w/SES-II
    Parts
    MCP-260-00136-0N1Standard I/O Shield for X11SCV with EMI Gasket
    *Power Supply
    PWS-353-1H11U Flex ATX 350W Multi-output Gold Power Supply
    *FAN 1
    FAN-0124L4112 CM x12 CM fan
    *Drive Tray(s)
    MCP-220-00075-0B4Black gen 5.5 hot-swap 3.5"; HDD tray

    Optional Part List

    Part Number Quantity Description
    DVD-RW
    DVM-TEAC-DVDRW-SBT5-BLACK TEAC SLIM DVD-RW SATA DRIVE,HF,RoHS/REACH,PBF
    DVD Kit
    MCP-220-81502-0N-Slim SATA DVD kit
    CPU Heatsink Fan
    SNK-P0046A4-2U ACTIVE CPU HS FOR INTEL LGA1156
    Power Cable
    CBL-PWEX-0645-Big 4 pin male to big 4 pin female, power extension 15cm, 20AWG,RoHS/REACH
