X11SPW-TF, 825TQC-R609WB,HF,
SYS-5029P-WTR
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
Supermicro SYS-5029P-WTR is a versatile and powerful rackmount server designed with support for 2nd Gen Intel Xeon Scalable processors. It offers excellent connectivity, storage options, and advanced management features.
Key Features

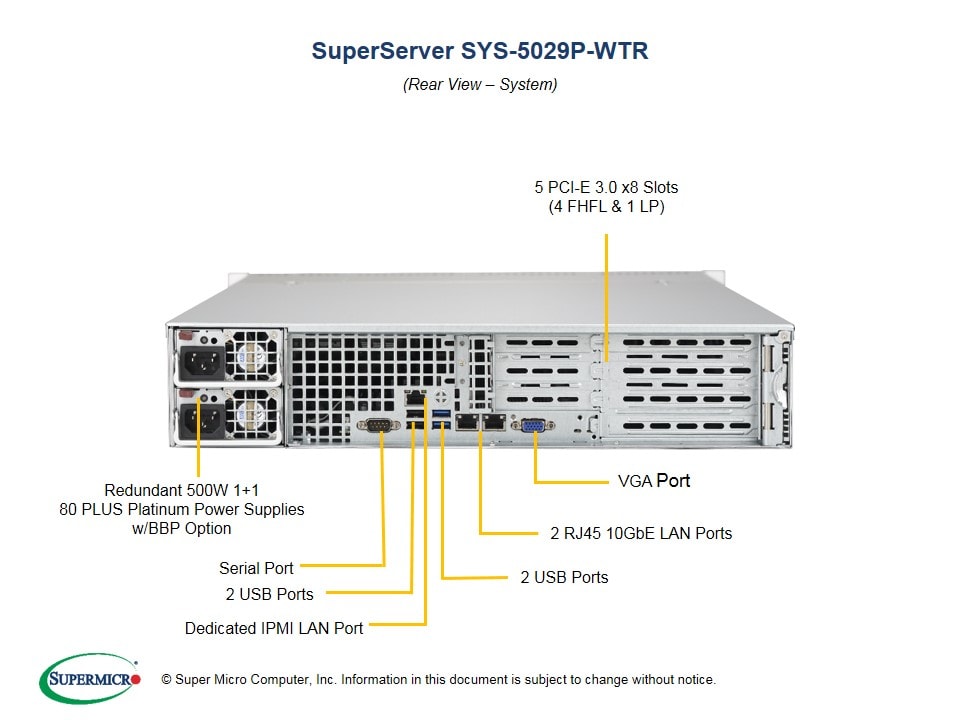

- Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake) ‡
- 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM
- 4 PCI-E 3.0 x8 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
- 8 Hot-swap 3.5" SATA3 drive bays
- 2x 10GBase-T ports with Intel X722 + X557
- 1 VGA, 2 COM, 4 USB 3.0, 2 USB 2.0
- 2 SuperDOM (Disk on Module) ports
- 600W/650W Redundant Platinum Level power supplies (Updated for 2022 Version)
Key Applications
- DB Processing & Storage
- Connectivity/Storage Computer Nodes
- Data Warehouse
Description
The Supermicro SYS-5029P-WTR is a 2U rackmount server ideal for database processing, connectivity/storage computer nodes, and data warehouse applications. It supports a single Socket P (LGA 3647) for 2nd Gen Intel Xeon Scalable processors, offering up to 28 cores and 1.5TB 3DS ECC DDR4-2933MHz memory. Key features include 4 PCI-E 3.0 x8 slots, 8 hot-swap 3.5" SATA3 drive bays, dual 10GBase-T ports, and redundant 600W/650W Platinum Level power supplies. Advanced management and security are supported through IPMI 2.0, Intel Node Manager, and TPM modules.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SYS-5029P-WTR |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor | |
| CPU |
|
| Cores |
|
| Note |
|
| Note |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| Note |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| Network Controllers |
|
| IPMI |
|
| Video |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| Video |
|
| Serial Port / Header |
|
| SuperDOM |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power Configurations |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Height |
|
| Width |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| M.2 |
|
| Drive Bays | |
| Hot-swap |
|
| Peripheral Drives | |
| DVD-ROM |
|
| System Cooling | |
| Fans |
|
| Power Supply | |
| |
| AC Input |
|
| DC Output |
|
| +12V |
|
| 12V Standby |
|
| Certification |
|
| Operating Environment | |
| RoHS |
|
| Environmental Spec. |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X11SPW-TF | 1 | Super X11SPW-TF Motherboard |
| CSE-825TQC-R500WB | 1 | 1U Chassis |
| Backplane | ||
| BPN-SAS3-825TQ | 1 | 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD |
| Cable 1 | ||
| CBL-0228L | 3 | SATA,INT,ROUND,ST-RA,55CM,26AWG |
| Cable 2 | ||
| CBL-0230L | 1 | SATA,INT,ROUND,ST-RA,65CM,26AWG |
| Cable 3 | ||
| CBL-0388L-01 | 1 | MINI SAS-4 SATA (RA),INT,75/75/90/90CM,75CM SB,30AWG |
| Cable 4 | ||
| CBL-CDAT-0660 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,27CM,28AWG |
| Drive Tray(s) | ||
| MCP-220-00114-0N | 1 | Black 2x USB3.0/COM port tray in slim DVD bay,RoHS/REACH |
| Manual | ||
| MNL-1922-QRG | 1 | QRG,HF,RoHS/REACH |
| Riser Card | ||
| RSC-R2UW-4E8 | 1 | 2U LHS WIO Riser card with four PCI-E x8 slots |
| RSC-R2UW-E8R-UP | 1 | 2U RHS WIO Riser Card with a PCI-E x8 for UP MBs |
| Heatsink / Retention | ||
| SNK-P0068PS | 1 | 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
| Power Supply | ||
| PWS-609P-1R2 | 2 | 1U, platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac. |
| FAN 1 | ||
| FAN-0126L4 | 3 | 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| 3.5" to 2.5" Converter Tray | ||
| MCP-220-00043-0N | - | Black Hot-swap Gen-4 2.5" to 3.5" HDD tray |
| DVD-ROM / DVD-RW | ||
| DVM-TEAC-DVD-SBT5 | 1 | BLACK TEAC SLIM DVD SATA DRIVE |
| DVM-PLDS-DVDRW-SBT5 | 1 | PHILIPS SLIM BLACK DVD-RW SATA DRIVE |
| DVD-ROM Accessory | ||
| MCP-220-81502-0N | 1 | Slim SATA DVD mounting kit |
| Cable for internal HDD | ||
| CBL-0484L | 2 | 55cm 30AWG SATA straight to straigh cable |
| CBl-0289L | 1 | Y split, big 4 pin to two RA SATA power estenstion 30cm |
| Network Card(s) | ||
| AOC-SGP-i2 | - | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 |
| AOC-SGP-i4 | - | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 |
| AOC-STGN-i2S | - | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES |
| AOC-STGF-i2S | - | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 |
| AOC-STG-B4S | - | Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S |
| AOC-STGS-i2T | - | Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 |
| AOC-S25G-b2S | - | Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 |
| AOC-S25G-m2S | - | Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX |
| Front Bezels | ||
| MCP-210-82503-0B | 1 | Black front bezels |
| TPM security module | ||
| AOM-TPM-9670V | 1 | TPM 2.0, vertical form factor |
| AOM-TPM-9671V | 1 | TPM 1.2, vertical form factor |
| Global Services & Support | ||
| OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service |
| Software | ||
| SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
