  2. (EOL)3U MicroCloud System, X10SLE-DF-O-P, CSE-939HD-R2K02B

(EOL)3U MicroCloud System, X10SLE-DF-O-P, CSE-939HD-R2K02B

SKU: SYS-5038ML-H24TRF
Brand: Supermicro
Product Note:

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10615/image_1920?unique=04e8906

kr 108,309.37 108309.37 NOK kr 108,309.37 VAT Excluded

kr 108,309.37 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

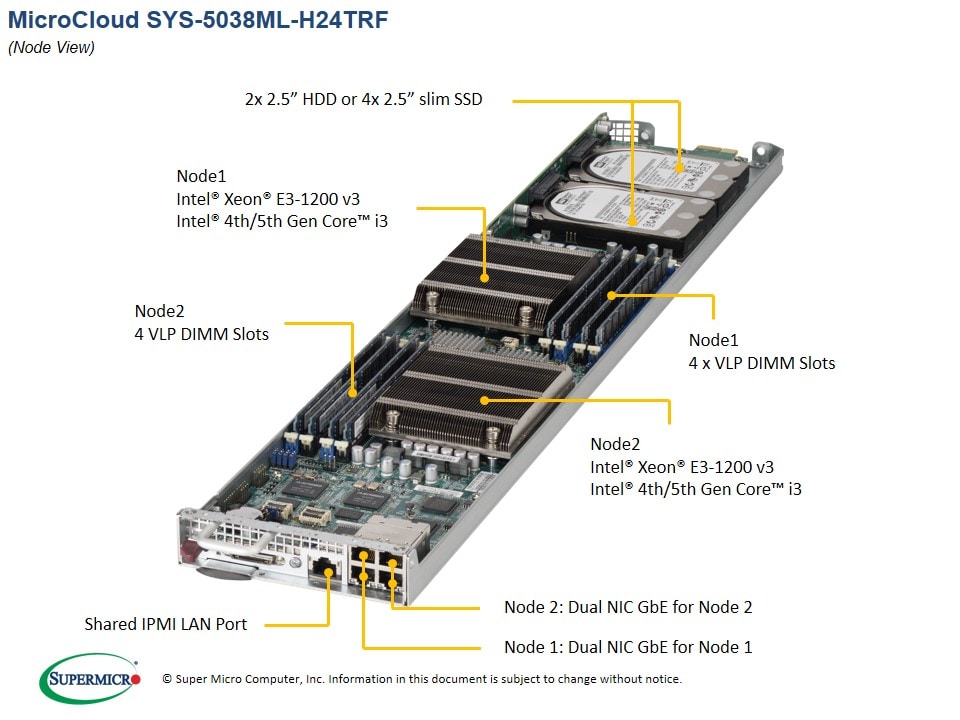

    The Supermicro SYS-5038ML-H24TRF is a high-density, 3U server designed for optimal performance and flexibility. Equipped with Intel® Xeon® processor E3-1200 v3 family and up to 32GB of DDR3 VLP ECC memory, this server supports various enterprise applications. Features include 4x GbE LAN, 2000W redundant power supplies, and customizable storage options.

    Key Features

    • Intel® Xeon® processor E3-1200 v3 family, Intel® 4th/5th Gen Core™ processor family; Socket H3 (LGA 1150) up to 80W
    • 1x 2.5" SATA3 (6Gb/s) HDDs or 2x 2.5" Slim SSD with Optional kit
    • Up to 32GB DDR3 VLP ECC UDIMM 1600MHz support in 4 sockets
    • 4x GbE LAN (Intel i350), 1x Shared LAN for IPMI Remote Management
    • Shard 1x VGA, 1x COM ports, 2x USB 2.0 (with KVM dongle)
    • 4x 9cm heavy duty hot-swap fans with optimal cooling zone (per system)
    • 2000W Redundant power supplies Platinum Level Certified (per system)

    Key Applications

    • Data centers
    • Enterprise applications
    • Cloud computing
    • Virtualization environments
    • High-performance computing

    Description

    The Supermicro SYS-5038ML-H24TRF is engineered for data-intensive applications, offering a robust feature set that includes Intel® Xeon® E3-1200 v3 processors, up to 32GB of DDR3 ECC memory in 4 DIMM slots, and extensive I/O capabilities. This 3U server supports up to 24x 2.5" HDDs or 48x 2.5" SSDs for versatile storage configurations. Enhanced with 4x GbE LAN, IPMI 2.0 for remote management, and 2000W redundant power supplies, it ensures high availability and reliability for critical operations. Its efficient cooling system with 4x 9cm heavy-duty fans maintains optimal thermal performance.

    Product Specifications

    Specification Details
    Product SKUs- Discontinued SKU (EOL). Please contact sales-rep for alternative options.
    SuperServer
    • SYS-5038ML-H24TRF ( Black )
    Motherboard
    Installed Motherboard
    • Super X10SLE-DF
    Processor/Cache
    CPU
    • Intel® Xeon® processor E3-1200 v3 family, Intel® 4th/5th Gen Core™ processor family
    • Up to 80W
    • Socket H3 (LGA 1150)
    System Memory (per node)
    Memory Capacity
    • 4x 240-pin DDR3 DIMM slots
    • Supports up to 32 GB DDR3 VLP ECC
    Memory Type
    • 1333/1600MHz*** ECC DDR3 (VLP) SDRAM 72-bit, 240-pin gold-plated UDIMMs
    DIMM Sizes
    • 8GB, 4GB, 2GB, 1GB
    Memory Voltage
    • 1.5 V, 1.35 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices (per node)
    Chipset
    • Intel® C224 PCH chipset
    SATA
    • 4x SATA3 (6Gbps); 2x per node w/ RAID 0, 1
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM over LAN support
    • ASPEED AST2400 BMC
    Graphics
    • ASPEED AST2400 Graphics (BMC with Graphic controller)
    Network Devices (per node)
    Onboard NIC
    • Intel® i350 GbE controller
    • Quad RJ-45 connectors (Dual RJ-45 per node)
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    • Intel® I/O Acceleration Technology (I/O AT)
    Input / Output (per node)
    Serial ATA
    • 4x SATA3 (6Gbps) ports
    LAN
    • 4x RJ45 Gigabit Ethernet LAN ports
    • 1x RJ45 Shared IPMI LAN port
    KVM
    • 1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle)
    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI BIOS
    BIOS Features
    • DMI 2.3
    • ACPI 1.0 / 2.0
    • USB Keyboard support
    • SMBIOS 2.3
    Front Window (per node)
    Switch
    • Power Button
    • Node Switch
    Chassis
    Form Factor
    • 3U
    Model
    • CSE-939HD-R2K02B
    Dimensions and Weight
    Height
    • 5.21" (132.5 mm)
    Width
    • 17.5" (444.5 mm)
    Depth
    • 31.15" (791.2 mm)
    Packing
    • 720mm (W) x 409mm (H) x 1076mm (L)
    Package
    • 16.1" (H) x 28.35" (W) x 42.36" (D)
    Weight
    • Net Weight: 95.0 lbs (43.09 kg)
    • Net Weight w/ 2.5" HDDs: 115 lbs (52.16 kg)
    • Gross Weight: 125 lbs (56.70 kg)
    Color
    • Black
    Drive Bays (per node)
    Internal
    • 1x 2.5" SATA3 HDDs per node; up to 24x 2.5" HDDs total OR 2x 2.5" Slim SSDs per node; up to 48x 2.5" SSDs total
    • Enterprise SATA HDD and SSD only recommended
    System Cooling
    Fans
    • 4x 9cm Heavy duty fans with optimal cooling zone
    Power Supply
    • 2000W redundant digital power supplies w/ PM Bus
    AC Input
    • 100-120Vac: +12V/91.7A; +5Vsb/4A
    • 120-140Vac: +12V/116.7A; +5Vsb/4A
    • 200-220Vac: +12V/150A; +5Vsb/4A
    • 220-230Vac: +12V/165A; +5Vsb/4A
    • 230-240Vac: +12V/166.7A; +5Vsb/4A
    Total Output Power
    • 1100W/1400W/1800W/1980W/2000W
    Certification
    • Platinum Level
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
    FAN
    • Cooling zone
    Temperature
    • Monitoring for CPU and chassis environment
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X10SLE-DF12Super X10SLE-DF Motherboard
    CSE-939HD-R2K02B13U Chassis
    Add-on Card / Module
    AOM-PDB-MC2412AOM-PDB-MC24
    AOM-BPN-MC2412AOM-BPN-MC24
    Backplane
    BPN-SAS-939H112-port 3U (CSE-939) 12-node MicroCloud hot swappable midplane
    Cable 1
    CBL-PWCD-05782PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
    Cable 2
    CBL-0218L1USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
    Label
    LBL-01081CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
    Manual
    MNL-1540-QRG15038ML-H24TRF Quick Reference Guide,PBF
    Heatsink / Retention
    SNK-P0047PSR24LP CPU Heat Sink for 12-node Micro Cloud Series Servers
    Power Supply
    PWS-2K02F-1R22000W redundant platinum power,HF,RoHS/REACH,PBF
    Mounting Rail
    MCP-290-41803-0N1Fat twin F418 / F424 Rail set support 28-33.5 inch depth rail,RoHS/REACH,PBF

    Optional Part List

    Part Number Quantity Description
    HDD Kit
    MCP-220-93906-0N-HDD conversion plate to support 4x 2.5" HDD per node
    Power Supply
    PWS-2K02F-1R-2000W platinum power supply (in case of power supply fail)
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-OOB-LIC1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
