  2. SuperWorkstation (X11SAE, CSE-732D4-668B),HF,RoHS

SuperWorkstation (X11SAE, CSE-732D4-668B),HF,RoHS

SYS-5039A-IL

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/2122/image_1920?unique=73d2afe

kr 8,127.36 8127.360000000001 NOK kr 8,127.36

kr 8,127.36

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-5039A-IL represents the pinnacle of workstation performance, delivering robust computing power with support for Intel Xeon processors and 7th/6th Gen Core i7/i5/i3 series. Its state-of-the-art design includes an Intel C236 chipset and up to 64GB DDR4 memory to tackle the most demanding tasks.

    Key Features

    • 4 internal 3.5" HDD bays 90° rotatable HDD cage design 4 internal 2.5" SATA HDD (optional)
    • Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • High Performance, Versatile Features & I/O Access
    • Intel® C236 chipset
    • Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i7/i5/i3 series
    • 1 DVI-D, 1 HDMI, 1 display port, triple display capable, ALC1150 HD Audio, 2 COM, 2 GbE LAN, 2 USB 3.0 + 2 USB 2.0 (front)
    • 668W Platinum Level Power Supply (Updated for 2021 Version)
    • 2 PCI-E 3.0 x16 (x16/NA or x8/x8), 3 PCI-E 3.0 x1, 2 PCI 32-bit slots

    Key Applications

    • Professional Workstations
    • Graphic Design
    • Video Editing
    • 3D Rendering
    • Software Development
    • Server Management

    Description

    Designed for power users and professionals, the Supermicro SYS-5039A-IL is equipped with high-performance capabilities to handle intensive applications. Featuring a single Socket H4 (LGA 1151) that supports various Intel processors, including Xeon E3-1200 v6/v5 and the 7th/6th Gen Core i7/i5/i3 series, this workstation is built for speed and reliability. The Intel C236 chipset ensures efficient operation, while the ample memory options, up to 64GB of DDR4 in 4 DIMM slots, provide smooth multitasking. Users can benefit from the multiple I/O options and the 668W Platinum Level Power Supply, making it an energy-efficient choice. With its triple display support and quiet operation, this system is ideal for various professional applications.

    Product Specifications

    Specification Details
    Product SKUs
    SuperWorkstation
    • SYS-5039A-iL (2021 version)
    Motherboard
    Super X11SAE
    • Super X11SAE
    • Super X11SAE
    Processor/Cache
    CPU
    • Single Socket H4 (LGA 1151) supports:
    • Intel® Xeon® processor E3-1200 v6/v5,Intel® 7th/6th Gen Core™ i7/i5/i3,Intel® Pentium®,Intel® Celeron® processors
    • CPU TDP up to 95W
    Note
    • BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors
    System Memory
    Memory Capacity
    • 4x 288-pin DDR4 DIMM slots
    • Up to 64GB DDR4 ECC/Non-ECC UDIMM
    Memory Type
    • 2400/2133/1866/1600MHz ECC/non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
    DIMM Sizes
    • 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C236 chipset
    SATA
    • SATA3 (6Gbps) via C236 controller
    • RAID 0, 1, 5, 10 support
    Network Controllers
    • Intel I210-AT + Intel PHY i219LM Ethernet Controllers
    • Virtual Machine Device Queues reduce I/O overhead
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Graphics
    • 1 HDMI, 1 DVI-D, 1 Display port (Triple Display)
    Audio
    • ALC 888S HD Audio
    Input / Output
    SATA
    • 8 SATA3 (6Gbps) ports from Intel® C236; RAID 0, 1, 5, 10
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 6 USB 3.0 ports (2 rear + 4 via headers)
    • 8 USB 2.0 ports (2 rear + 6 via headers)
    • 2 USB 3.1 (rear)
    Audio
    • 7.1 HD Jacks
    Display
    • 1 HDMI, 1 DVI-D, 1 Display port (Triple Display); an Intel HD Graphics Integrated CPU is required for motherboard onboard video function
    Serial Port / Header
    • 2 COM ports (headers)
    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 slots -Function as: x16/NA or x8/x8
    • 3 PCI-E 3.0 x1 slots
    PCI
    • 2 PCI 32-bit slots
    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI® BIOS
    BIOS Features
    • Plug and Play (PnP)
    • APM 1.2
    • DMI 2.3
    • ACPI 1.0 / 2.0
    • USB Keyboard support
    • SMBIOS 2.3
    • UEFI
    Chassis
    Form Factor
    • Mid-Tower
    Model
    • CSE-732D4-668B

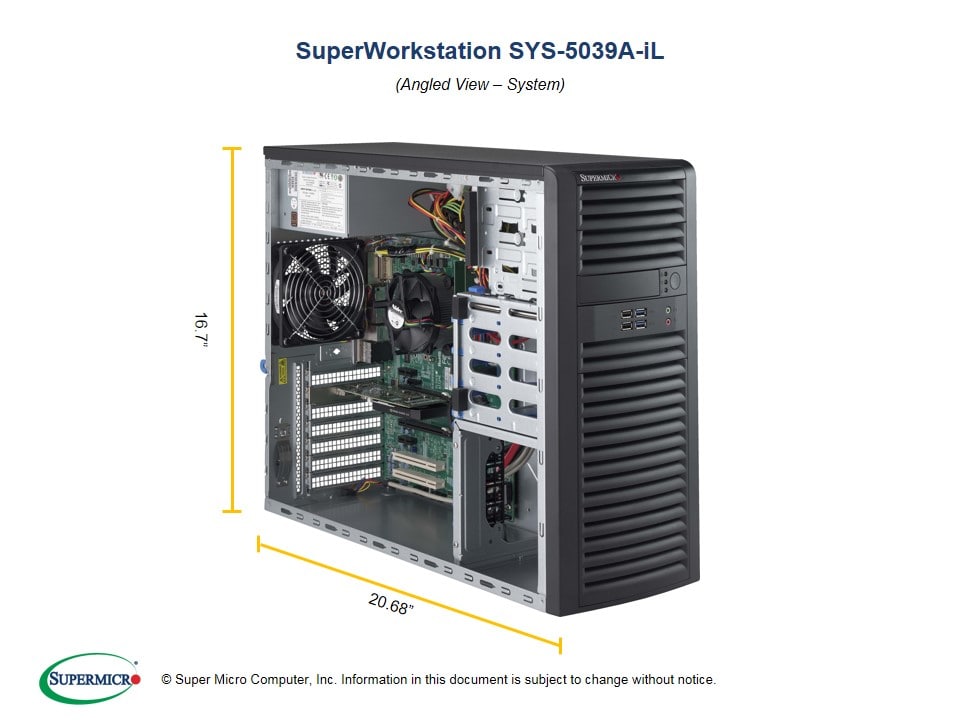

    Dimensions and Weight
    Height
    • 16.7" (424mm)
    Width
    • 7.6" (193mm)
    Depth
    • 20.68" (525.3mm)
    Gross Weight
    • 40 lbs (18.1 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LED
    • System Information LED
    Ports
    • 2 front USB 3.0 Ports
    • 2 front USB 2.0 Ports
    • 2 front HD/AC97 Audio Ports
    Drive Bays
    Internal
    • 4 Internal 3.5" fixed drive bays
    Peripheral
    • 2x 5.25" peripheral device bays
    System Cooling
    Fans
    • 1x 12cm rear exhaust fan with Optimal Fan Speed Control
    • Optimized cooling technology for Whisper-Quiet Operation (21dB)
    Power Supply
    668W AC power supply
    • 668W AC power supply
    AC Voltage
    • 100 - 240V, 50-60Hz
    +5V
    • 20 Amp
    +5V standby
    • 2 Amp
    +12V
    • Max: 54A & Min: 0.2A (100Vac-240Vac)
    -12V
    • 0.1 Amp
    +3.3V
    • 15 Amp
    Certification
    • Platinum Certified
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    • 6-Phase-switching voltage regulator
    FAN
    • Low noise fan speed control
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for 8x fan connectors
    • PECI
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SAE1Super X11SAE Motherboard
    CSE-732D4-668B13U Mid-Tower Chassis
    Cable 1
    CBL-0044L4SATA,INT,FLAT,57.7CM,26AWG
    Manual
    MNL-1837-QRG1SYS-5039A-IL (X11SAE, CSE-732D4-500B), QRG
    Parts
    MCP-260-00063-1N1STD size I/O shield for X10SLQ-L with EMI Gasket,RoHS/REACH,PBF
    Power Supply
    PWS-668-PQ1PS2 668W Multi-Output 80Plus Platinum Power Supply with 24pi

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-0179L-SATA CABLE 70CM FLAT S-S PBF
    HDD Cage
    MCP-220-73201-0N-SC732 2.5" HDD Cage (4x Internal 2.5" HDD) - Single Pack
    DVD-ROM
    DVM-LITE-DVDRW24-HBT1-BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
    Heat Sink
    SNK-P0046A4-ACTIVE CPU Heat Sink
    Heat Sink for CPU over 90W TDP
    SNK-P0051AP4-High Performance CPU Heat Sink.
    Fan
    FAN-0124L4-High performance 12cm (1850rpm) cooling fan
