SuperWorkstation (X11SCL-F, CSE-731i-404B)

SYS-5039C-I

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10628/image_1920?unique=f7d9088

kr 5,858.16 5858.16 NOK kr 5,858.16

kr 5,858.16

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-5039C-I is an entry-level server, perfect for SOHO and SMB environments. Equipped with a single Socket H4 (LGA 1151) supporting Intel® Xeon® E-2100/E-2200 series processors, this server offers robust performance with up to 128GB of ECC UDIMM and supports USB 3.2 and PCI-E 3.0 interfaces for high-speed connectivity.

    Key Features

    • • Entry-Level Server for SOHO, SMB • Remote access for mobile users • Data sharing/storage and • Centralized backup
    • Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series, 9th/8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
    • Intel® C242 chipset
    • Up to 128GB ECC UDIMM, up to DDR4-2666MHz; 4 DIMM slots
    • 1 PCI-E 3.0 x8 (in x16) slot, 2 PCI-E 3.0 x4 (in x8) slots
    • 4 internal 3.5" drive bays, 2 external 5.25" peripheral bays
    • M.2 Interface: 1 PCI-E 3.0 x4 M.2 Form Factor: 22110/2280 M.2 Key: M-Key
    • 2 USB 3.2 Gen1 (front), 2 USB 3.2 Gen1 (rear), 2 USB 2.0 (rear)
    • 1 COM port, 1 VGA port Power Supply
    • 400W Gold Certified High Efficient Power Supply

    Key Applications

    • SOHO server
    • SMB data sharing
    • Remote access
    • Centralized backup
    • Data storage

    Description

    The Supermicro SYS-5039C-I is designed to meet the demands of small office/home office (SOHO) and small to mid-sized business (SMB) environments. Featuring a single Socket H4 (LGA 1151) that supports Intel® Xeon® processor E-2100/E-2200 series and 9th/8th Gen Intel® Core™ i3, Intel® Celeron®, and Intel® Pentium® processors, this server delivers high-performance computing with up to 128GB of ECC UDIMM, running at speeds of up to 2666MHz. With comprehensive I/O options, including 2 USB 3.2 Gen1 ports at the front, 2 USB 3.2 Gen1 ports at the rear, and multiple PCI-E 3.0 expansion slots, the SYS-5039C-I ensures seamless data sharing, storage, and centralized backup solutions. This versatile server also features robust power and cooling solutions with a 400W Gold Certified High Efficient Power Supply and tool-less design cooling fans.

    Product Specifications

    Specification Details
    Product SKUs
    SuperWorkstation
    • SYS-5039C-I ( Black )
    Motherboard
    Installed Motherboard
    • Super X11SCL-F
    Processor
    CPU
    • Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
    • 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor.
    Cores/Cache
    • 6 cores, 12 threads
    Note
    • BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processors
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB ECC UDIMM
    • Up to DDR4-2666MHz
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 SDRAM
    DIMM Sizes
    • 32GB, 16GB, 8GB
    On-Board Devices
    Chipset
    • Intel® C242 chipset
    SATA
    • SATA3 (6Gbps) via Intel C242 controller
    • RAID 0, 1, 5, 10 support
    Network Controllers
    • Dual GbE LAN with Intel® I210-AT
    IPMI
    • ASPEED AST2500
    Input / Output
    SATA
    • 6 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.2 Gen1 (front)
    • 2 USB 3.2 Gen1 (rear)
    • 2 USB 2.0 (rear)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM port
    TPM
    • 1 TPM 2.0 Header
    Expansion Slots
    PCI-Express
    • 1 PCI-E 3.0 x8 (in x16) slot
    • 2 PCI-E 3.0 x4 (in x8) slots
    M.2
    • M.2 Interface: 1 PCI-E 3.0 x4
    • M.2 Form Factor: 22110/2280
    • M.2 Key: M-Key
    System BIOS
    BIOS Type
    • UEFI 256Mb
    BIOS Features
    • ACPI 6.0
    • SMBIOS 2.7
    • Plug and Play (PnP)
    • RTC (Real Time Clock) Wakeup
    • PCI F/W 3.0
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    • Non-maskable Interrupt (NMI)
    Chassis
    Form Factor
    • Mid-Tower
    Model
    • CSE-731i-403B

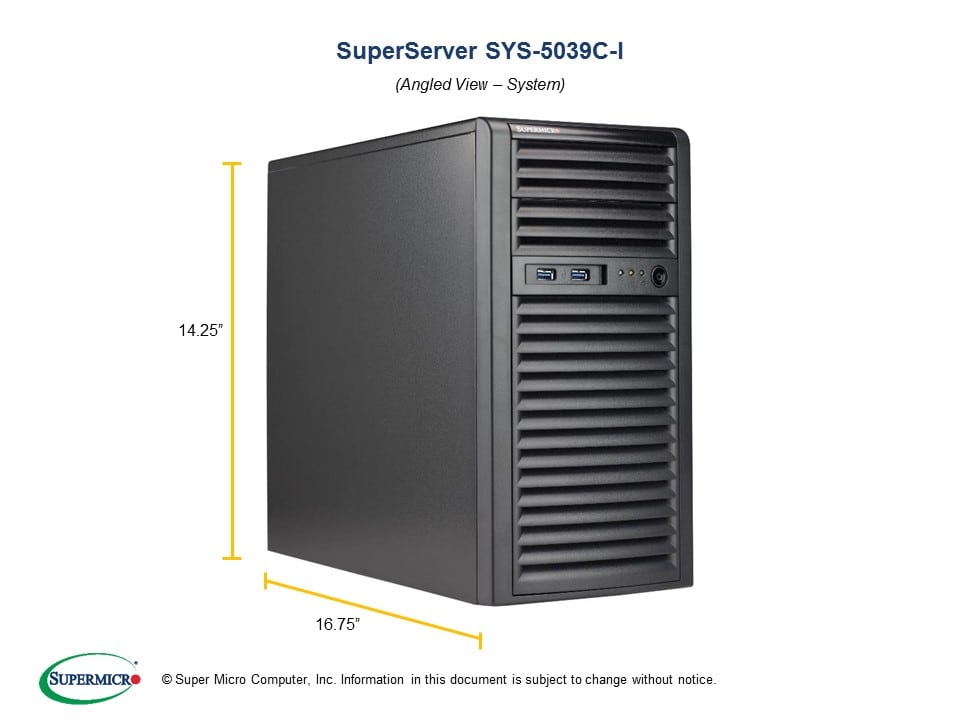

    Dimensions and Weight
    Height
    • 14.25" (362mm)
    Width
    • 7.25" (184mm)
    Depth
    • 16.75" (425mm)
    Gross Weight
    • 35.5 lbs (16.1 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LED
    • System Information LED
    Ports
    • 2 USB 3.1 Gen 1 ports
    Drive Bays
    Internal
    • 4 Fixed 3.5" drive bays
    Peripheral
    • 2 External 5.25" Peripheral bays
    System Cooling
    Fans
    • 1x 9cm (rear) PWM fan w/ tool-less design
    • Optional 1x 8cm (front) cooling fan
    Power Supply
    • Super quiet operation with 12cm cooling fan and 80 Plus Certification gold certification
    Total Output Power and Input
    • 400W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 140 x 150 x 86 mm
    -12V
    • Max: 0.3A
    +12V
    • 18A
    +5V
    • Max: 22A
    +3.3V
    • Max: 24A
    +5V standby
    • Max: 3A
    Certification
    • Gold Certified
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
    • 4 CPU switch phase voltage regulator
    FAN
    • Low noise fan speed control
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for five 4-pin fan connectors
    • Platform Environmental Control Interface (PECI)
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:20% to 95% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SCL-F1Super X11SCL-F Motherboard
    CSE-731i-403B13U Mid-Tower Chassis
    Cable 1
    CBL-0044L4SATA,INT,FLAT,57.7CM,26AWG
    Parts
    MCP-260-00042-0N1STD I/O shield for X9 socket R server MB with Gasket.
    Manual
    MNL-2169-QRG1SYS-5039C-I Quick Reference Guide
    *Power Supply
    PWS-403-PQ1PS2/ATX 400W Multi-output power supply 80Plus gold,RoHS
    *Cable 2
    CBL-0084L1CBL,FRONT CNTL,SPLIT,16 PIN,W/CONVERTER HEAD,15CM,26AWG
    *Cable 3
    CBL-0260L1US power cord 18AWG 6ft, PBF (default for low watt)
    *Cable 4
    CBL-CUSB-09981USB 3.0(F) Type A 2x to USB3.0 20pin,48CM,26/30AWG
    *FAN 1
    FAN-0108L4192X25MM 4-PIN PWM REAR EXT FAN FOR SC731
    *Parts
    MCP-110-00033-0N2Binding Head Screw (with teeth) #632*4.5L
    *Drive Tray(s)
    MCP-220-73101-0B4SC731 Tool-less Internal 3.5inch HDD Tray

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-0082L-Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
    CBL-SAST-0624-SATA, INT, ROUND, ST-ST, 70CM, 30AWG
    Heat Sink
    SNK-P0051AP4-4U Active CPU Heat Sink for Gaming and Socket H UP Systems,RoHS/REACH,PBF
    DVD-ROM
    DVM-LITE-DVDRW24-HBT1-BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
    Software
    SFT-OOB-LIC1OOB Management Package (per node license)
