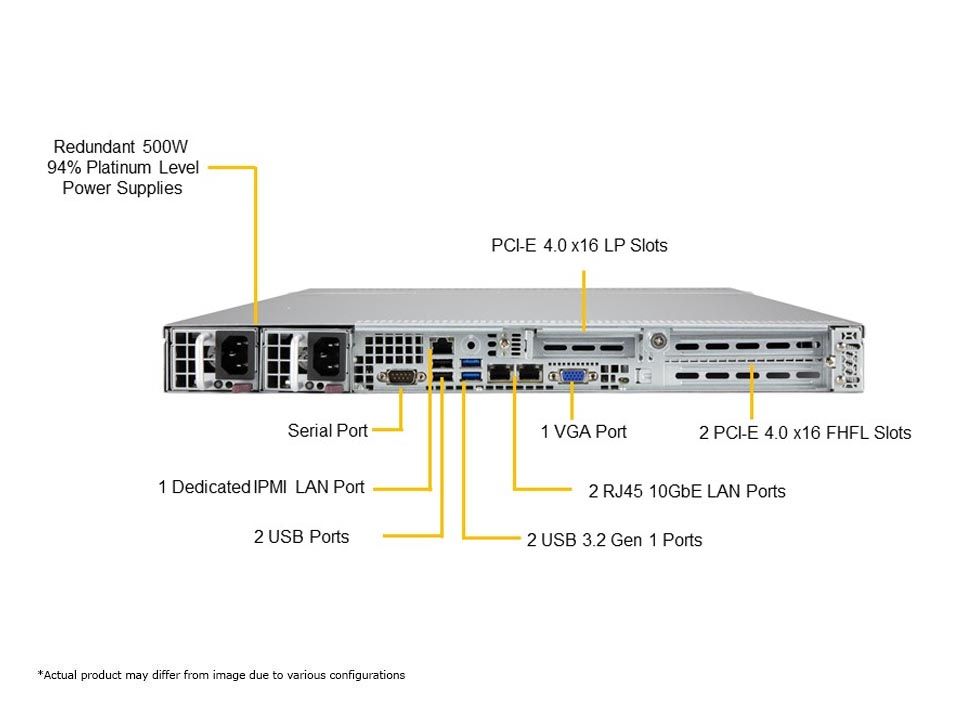

UP 1U WIO X12SPW-TF, CSV-815TS-R000WNBP7-1, PWS-601A-1R

SYS-510P-WTR-EU

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10369/image_1920?unique=5e77b27

kr 18,721.70 18721.7 NOK kr 18,721.70

kr 18,721.70

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-510P-WTR-EU is a versatile 1U rackmount server optimized for virtualization, cloud computing, and enterprise environments. Featuring support for a single Intel® Xeon® Scalable Processor, up to 3TB of ECC DDR4 memory, and flexible I/O options, this server is designed for maximum performance and efficiency.

    Key Features

    • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
    • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
    • 2 PCIe 4.0 x16 (FHFL) slots, 1 PCIe 4.0 x16 (LP) slot
    • Intel® Ethernet Controller X550 2x 10GbE RJ45
    • 4x hot-swap 3.5'' Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 1x NVMe/SATA M.2
    • Redundant Platinum 500W Power Supply

    Key Applications

    • Virtualization
    • Cloud Computing
    • Enterprise Server
    • Data Center Optimized

    Description

    Supermicro's SYS-510P-WTR-EU offers a robust platform ideal for virtualization, cloud computing, and other demanding applications. This server supports single Intel® Xeon® Scalable Processor with up to 40 cores, 3TB ECC DDR4 memory, and a variety of storage options including hybrid NVMe/SATA drive bays. The 1U design includes redundancy and high-efficiency power supplies, making it a reliable choice for data centers and enterprise environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-510P-WTR Standard version with PWS-504P-1R (Platinum Level)
    • SuperServer SYS-510P-WTR-EU European version with PWS-601A-1R (Titanium Level)
    Motherboard
    Installed Motherboard
    • Super X12SPW-TF
    Processor
    CPU
    • Single Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 40C/80T; Up to 60MB Cache
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 single-width GPU
    Supported GPU
    • NVIDIA PCIe: T1000, A2
    CPU-GPU Interconnect
    • PCIe 4.0 x16 CPU-to-GPU Interconnect
    System Memory
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support
    NVMe
    • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GbE with Intel® X550
    Input / Output
    LAN
    • 2 RJ45 1 GBASE-T LAN port(s)
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1)
    USB
    • 2 USB 3.2 Gen1 Type-A port(s) (rear)
    • 2 USB 2.0 Type-A port(s) (rear)
    • 2 USB 3.2 Gen1 port(s) (Header)
    • 1 USB 3.2 Gen1 Type-A port(s)
    • 1 USB 2.0 port(s) (Header)
    Video
    • 1 VGA 2 port(s)
    Serial
    • 1 COM port(s) (Rear)
    • 1 COM port(s) (Header)
    DOM
    • 2 Super DOM (Disk on Module) port(s) with built-in power
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-815TS-R504WBP6
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.6" (650 mm)
    Package
    • 8.5" (H) x 23.5" (W) x 33.7" (D)
    Weight
    • Gross Weight: 48 lbs (21.77 kg)
    • Net Weight: 24 lbs (10.89 kg)
    Available Color
    • Black
    Front Panel
    LED
    • Device Activity
    • LAN 1 Activity
    • LAN 2 Activity
    • Power status
    • System information
    Buttons
    • Power On/Off
    • System Reset
    • UID button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 4.0 x16 FHFL slots
    • 1 PCIe 4.0 x16 LP slot

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 4 bays:
    • 4 front hot-swap 3.5" PCIe 4.0 NVMe*/SAS*/SATA drive bays

    • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110)
    Peripheral Bays
    • 2 slim bays (optional)
    System Cooling
    Fans
    • 5 counter-rotation PWM 40x40x56mm Fan(s)
    • 1 AOC cooling Fan(s) (optional)
    Power Supply
    2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies
    Dimension (WxHxL):
    • 54.5 x 40.25 x 320 mm

    AC Input:
    • 500W: 100-240Vac / 50-60Hz

    +12V:
    • Max: 42A / Min: 0.5A (100Vac-240Vac)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Certification:
    • Platinum Level

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12SPW-TF1Super X12SPW-TF Motherboard
    CSE-815TS-R504WBP611U Chassis
    Backplane
    BPN-SAS3-815TQ-N411U 4-Port Hybrid Backplane Support 4x3.5"SAS3/SATA3
    Cable
    CBL-SAST-06991MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
    CBL-0335L1FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Fan
    FAN-0141L4540x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
    Manual
    MNL-2266-QRG1510P-WT/WTR Quick Reference Guide
    Riser Card
    RSC-W-66G411U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
    RSC-WR-611U RHS WIO Riser card with one PCIe 4.0 x16 slot,HF,RoHS
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0077P11U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    *Power Supply
    PWS-504P-1R221U Redundant 500W/600W, Platinum efficiency, AC inlet: C14,RoHS
    MCP-250-81502-0N1SC815 Redundant Power Distributor Cover
    *Power Distributor
    PDB-PT112-S24241WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424
    *Fan Holder
    CSE-PT01351FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
    MCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    *Peripheral Drive
    CSE-PT93L-B1Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
    *Front Panel
    FPB-FP815U1815 UIO front control board (U)
    *Parts
    MCP-120-00030-0N1Blank LP L-bracket (1 raw of capsule hole)
    MCP-120-00053-0N2Blank FH L bracket w/o SCSI cutout for SC825,836,846,743
    *Drive Tray(s)
    MCP-220-00075-0B4Black gen 5.5 hot-swap 3.5" HDD tray
    *Rear Window
    MCP-240-00098-0N1WIO rear window for SC113,SC116, SC815 Redundant PWS
    *Rail Set
    MCP-290-00016-0N11U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
    MCP-290-00054-0N1setRail set, quick/quick, optional for 1U 17.2
    *Air Shroud
    MCP-310-19002-0N1SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB

    Optional Part List

    Part Number Quantity Description
    3.5" to 2.5" Converter Tray(s)
    MCP-220-00043-0N-Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
    3.5'' to 2.5" NVMe Drive Tray(s)
    MCP-220-00138-0B-Tool-less Hot-swap Gen-5.5 NVMe 3.5'' to 2.5'' drive tray, Orange tab, Black
    Add-on Card for additional M.2
    AOC-SLG3-2H8M2-Standard LP, PCIe 3.0 x8, supports 2x NVMe/SATA M-Key M.2 Modules; RAID 0,1
    CacheVault
    BTR-CV3916-1U1 (For S3908)1CacheVault for Broadcom 3908 with SuperCap mounting in 1U 40x56 fan tray
    BTR-CVPM05 + MCP-240-00203-0N (For S3908)1CacheVault for Broadcom 3908 with SuperCap mounting bracket for PCIe location
    BTR-TFM8G-LSICVM02 + MCP-240-00203-0N (For S3108)1CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCIe location
    BTR-CV3108-1U1 (For S3108)1CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray
    Cooling Fan
    FAN-0141L4140x40x56 mm, 20.5K RPM / 17.6K RPM, Counter-rotating Fan
    DVD-ROM / DVD-RW
    DVM-TEAC-DVDRW-SBT51PHILPS slim DVD-RW SATA drive
    DVM-TEAC-DVD-SBT51TEAC slim DVD-ROM SATA drive
    DVD-ROM Accessory
    MCP-220-81502-0N+ 1pc CBL-0099(max 1pc)1Slim SATA DVD mounting kit
    Front Bezel
    CSE-PTFB-813-02B1Black Front Bezel w/ Round Venting Holes
    CSE-PTFB-813LB1Black Front Bezel
    Hot-swap 2.5" kit (DVD slot)
    MCP-220-81506-0N+ 1pc CBL-0099(max 1pc)1Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
    Hot-swap 2.5" kit (FDD slot)
    MCP-220-81504-0N1Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
    Inlet Thermal Sensor
    MCP-280-00034-0N1Universal Thermal sensor kit with 40cm I2C cable
    Intel VROC RAID Key for NVMe
    AOC-VROCINTMOD1Intel SSD Only Upgrade module; RAID 0/1/10/5
    AOC-VROCPREMOD1Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
    AOC-VROCSTNMOD1Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
    NVMe Cable (Drive Bay 0-1)
    CBL-SAST-1149-851SLIMLINE x8 (RE) to 2x Oculink x4,INT, 49CM, 85 OHM
    NVMe Cable (Drive Bay 2-3)
    CBL-SAST-1154-851SLIMLINE x8 (RE) to 2x Oculink x4,INT, 54CM, 85 OHM,RoH
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    Storage Control Card and Cable(s)
    AOC-S3008L-L8I1Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 63HDD; RAID 0, 1, 10
    AOC-S3108L-H8iR-16DD1Standard LP, 8 Internal ports (12Gb/s) PCIe 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
    AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1275A-1001Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
    Storage Control Card and Cable(s) (HBA)
    AOC-S3808L-L8IT+ 1x CBL-SAST-1275A-1001Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
    AOC-S3008L-L8E1Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 122HDD; HBA
    TPM
    AOM-TPM-9670V-S-O1TPM 2.0, vertical form factor, provisioned for server
    AOM-TPM-9671V-S-O1TPM 1.2, vertical form factor, provisioned for server
