UP 1U WIO X13SEW-F, CSE-815BTS-R860WP

SYS-511E-WR

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 1 CPU, 1 DIMM, 1 Storage Device HDD/HDS/M.2)

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/8975/image_1920?unique=7c1c8fe

kr 22,057.00 22057.0 NOK kr 22,057.00

kr 22,057.00

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-511E-WR WIO SuperServer features single socket E (LGA-4677) for 4th/5th Gen Intel Xeon Scalable processors, up to 300W TDP. It supports 2TB ECC DDR5 memory, up to 52C/104T core count, and various I/O options optimized for different applications.

    Key Features

    • Single Socket E (LGA-4677) 4th/5th Gen Intel®  Xeon® Scalable processors. Up to 300W TDP
    • Intel® C741 Chipset
    • 8 DIMMs; Supports 3DS DDR5 RDIMM. Up to 5600 MHz
    • Onboard 1G LAN ports (Intel® i210), 1 dedicated IPMI LAN
    • 4x front hot-swap 3.5" SATA3 drive bays, SAS3 with additional SAS controller card
    • Redundant Now Titanium 860W Power Supplies

    Key Applications

    • Virtualization
    • Cloud Computing
    • Data Center Optimized
    • Entry GPU server
    • Value IaaS

    Description

    SYS-511E-WR Back View

    Supermicro WIO SuperServer systems allow users to select from a wide range of I/O options to optimize the storage and networking solutions to best fit their applications. They support customizable configurations for a wide range of application requirements, provide attractive cost advantages, and investment protection.

    The Supermicro SYS-511E-WR WIO SuperServer supports 4th Gen Intel Xeon Scalable Processors with up to 52 cores and 2TB ECC DDR5-4800MT/s RDIMM memory in 8 DIMM slots. It features 4 hot-swappable 3.5” SATA drive bays for easy hard drive changes without opening the server. Additionally, it supports up to 2 SuperDOM with built-in power and an M.2 slot designed for use as a boot drive or backup recovery device.

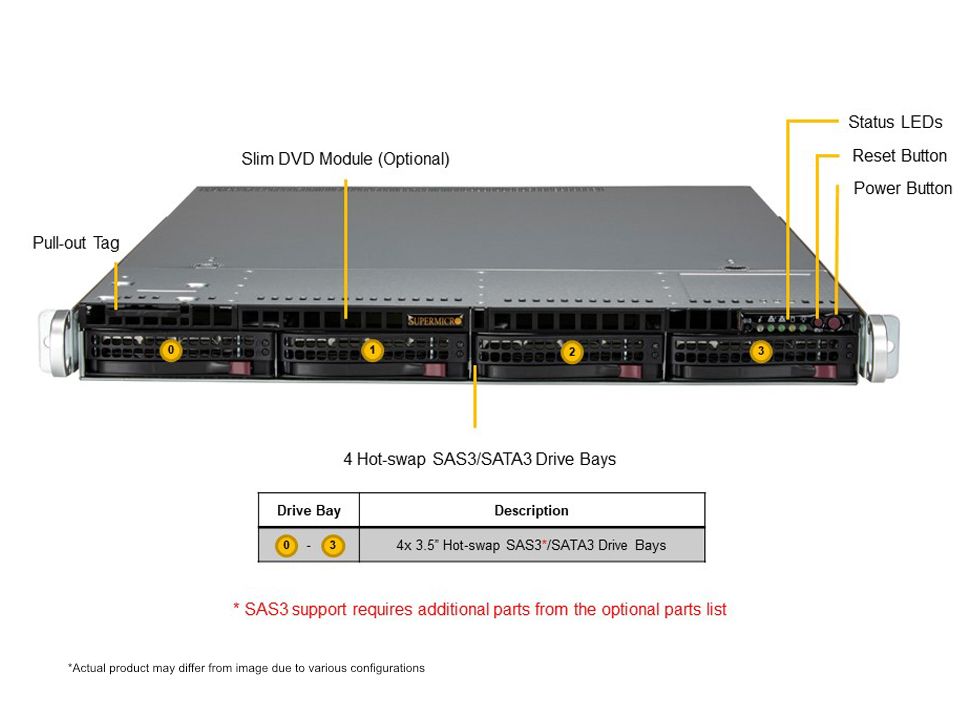

    SYS-511E-WR Front View

    Unlock new potential with a top-loading expansion slot featuring a tool-less design for easy serviceability. This design allows a double-width GPU to be installed and supports up to 3 PCIe 5.0 add-on cards via the included riser card. Equipped with dual 1G Base-T LAN ports and powered by redundant 860W Platinum Level power supplies with a 94% efficiency rating.

    The SYS-511E-WR server is optimized for data center, entry GPU, cloud computing, value IaaS, and virtualization applications.

    Product Specifications

    Product SKUs
    SuperServerSYS-511E-WR
    Motherboard
    Super X13SEW-F
    Processor
    CPUSingle Socket E (LGA-4677)
    5th Gen Intel® Xeon®/4th Gen Intel® Xeon® Scalable processors
    Core CountUp to 52C/104T; Up to 300MB Cache
    NoteSupports up to 300W TDP CPUs (Air Cooled)
    GPU
    Max GPU CountUp to 1 double-width or 2 single-width GPU(s)
    Supported GPUNVIDIA PCIe: RTX A4000, L4, A2, A10
    View GPU Options
    CPU-GPU InterconnectPCIe 5.0 x16 CPU-to-GPU Interconnect
    System Memory
    MemorySlot Count: 8 DIMM slots/8 Channels
    Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
    View Memory Options
    Memory Voltage1.1V
    On-Board Devices
    SATASATA (6Gbps) ; RAID 0/1/5/10 support
    ChipsetIntel® C741
    Network Connectivity2 RJ45 1GbE with Intel® I210
    View AOC Options
    Input / Output
    LAN2 RJ45 1 GbE LAN port(s)
    1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1)
    USB2 USB 3.2 Gen1 Type-A port(s) (rear)
    2 USB 2.0 Type-A port(s) (rear)
    1 USB 2.0 Type-A port(s) (Header)
    2 USB 3.2 Gen1 port(s) (Header)
    Video1 VGA port(s)
    Serial1 COM port(s) (Rear)
    1 COM port(s) (Header)
    TPM1 TPM header
    System BIOS
    BIOS TypeAMI 32MB SPI Flash EEPROM
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsACPI/APM Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    Supply Chain Security: Remote Attestation
    Runtime BMC Protections
    System Lockdown
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory
    8 Phase-switching voltage regulator
    FANFans with tachometer monitoring
    Status monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    Chassis
    Form Factor1U
    ModelCSE-815BTS-R000WNP
    Dimensions and Weight
    Height1.7" (43 mm)
    Width17.2" (437 mm)
    Depth25.6" (650 mm)
    Package8.5" (H) x 23.5" (W) x 33.7" (D)
    WeightGross Weight: 34.5 lbs (15.46 kg)
    Net Weight: 21.5 lbs (9.75 kg)
    Available ColorBlack
    Front Panel
    LEDFan Fail/System Over Heat LED
    HDD activity LED
    Network Activity LEDs
    Power status LED
    Unit Identification (UID) LED
    ButtonsPower On/Off button
    System Reset button
    Unit Identification (UID) button
    Expansion Slots
    PCI-Express (PCIe) ConfigurationDefault2 PCIe 5.0 x16 FHFL slot(s)1 PCIe 5.0 x8 (in x16) LP slot(s)
    View AOC Options
    Drive Bays / Storage
    Drive Bays ConfigurationDefault: Total 4 bay(s)4 front hot-swap 3.5" SAS*/SATA drive bay(s)
    (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    View Drive Options
    M.21 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280/22110)
    View M.2 Options
    Peripheral Bays2 2.5" peripheral bay(s) (optional)
    System Cooling
    Fans5 middle cooling PWM 40x40x56mm Fan(s)
    1 AOC cooling Fan(s) (optional)
    Power Supply
    2x 860W2x 860W Redundant (1 + 1) Titanium Level (96%) power suppliesDimension (WxHxL)54.5 x 40.25 x 322 mmAC Input800W: 100-127Vac / 50-60Hz860W: 200-240Vac / 50-60Hz860W: 240Vdc / 50-60Hz+12VMax: 66.67A / Min: 0A (100Vac-127Vac)Max: 71.67A / Min: 0A (200Vac-240Vac)Max: 71.67A / Min: 0A (Vdc-240Vdc)5V SBMax: 4A / Min: 0AOutput TypeBackplanes (gold finger)
    2x 860W2x 860W Redundant (1 + 1) Titanium Level (96%) power suppliesDimension (WxHxL)54.5 x 40.25 x 322 mmAC Input800W: 100-127Vac / 50-60Hz860W: 200-240Vac / 50-60Hz860W: 240Vdc / 50-60Hz+12VMax: 66.67A / Min: 0A (100Vac-127Vac)Max: 71.67A / Min: 0A (200Vac-240Vac)Max: 71.67A / Min: 0A (Vdc-240Vdc)5V SBMax: 4A / Min: 0AOutput TypeBackplanes (gold finger)
    Operating Environment
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    Operating Relative Humidity: 8% to 80% (non-condensing)
    Non-operating Relative Humidity: 8% to 90% (non-condensing)
    Environmental / Recycling
    RecycleReturn Server-End of Life Product

    Optional Part List

    3.5" to 2.5" Converter Tray(s)
    Part NumberQuantityDescription
    MCP-220-00043-0N•-Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
    CacheVault
    Part NumberQuantityDescription
    BTR-CV3916-1U1 (For S3908)1SuperCap kit mounting in 1U 40x56 fan tray
    BTR-CVPM05 + MCP-240-00203-0N (For S3908)1SuperCap mounting bracket for PCIe location
    Cooling Fan
    Part NumberQuantityDescription
    FAN-0163L4•140x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
    DVD-ROM / DVD-RW
    Part NumberQuantityDescription
    DVM-TEAC-DVD-SBT51TEAC slim DVD-ROM SATA drive
    DVM-TEAC-DVDRW-SBT51PHILPS slim DVD-RW SATA drive
    DVD-ROM Accessory
    Part NumberQuantityDescription
    MCP-220-81502-0N•1Slim SATA DVD mounting kit
    Front Bezel
    Part NumberQuantityDescription
    CSE-PTFB-813LB1Black Front Bezel
    CSE-PTFB-813-02B1Black Front Bezel w/ Round Venting Holes
    Hot-swap 2.5" kit (DVD slot)
    Part NumberQuantityDescription
    MCP-220-81506-0N•1Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
    Hot-swap 2.5" kit (FDD slot)
    Part NumberQuantityDescription
    MCP-220-81504-0N•1Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
    Inlet Thermal Sensor
    Part NumberQuantityDescription
    MCP-280-00033-0N1Inlet Thermal sensor kit with 80cm I2C cable
    Intel VROC RAID Key for NVMe
    Part NumberQuantityDescription
    AOC-VROCPREMOD1Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
    AOC-VROCSTNMOD1Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
    Software
    Part NumberQuantityDescription
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    Storage Control Card and Cable(s)
    Part NumberQuantityDescription
    AOC-S3908L-H8iR-16DD1Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
    Storage Control Card and Cable(s) (HBA)
    Part NumberQuantityDescription
    AOC-S3808L-L8IT1Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
    TPM
    Part NumberQuantityDescription
    AOM-TPM-9670V-S-O1TPM 2.0, vertical form factor, provisioned for server
