3U MicroCloud System, X12STD-F, 938NH-R2K04BP2

SYS-530MT-H8TNR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10521/image_1920?unique=4175d88

kr 74,297.74 74297.74 NOK kr 74,297.74

kr 74,297.74

Not Available For Sale

    This combination does not exist.

    Summary Description

    Supermicro SYS-530MT-H8TNR is a reliable 3U microcloud server solution suitable for a variety of high-demand applications such as cloud computing, web hosting, and IT infrastructure. It offers advanced features and robust specifications to meet diverse enterprise needs.

    Key Features

    • 8 set of Intel® Xeon® E-2300 series and Pentium processor
    • Intel® C256
    • 8 set of Up to 128GB ECC/non ECC UDIMM; DDR4 3200MHz, in 4 DIMM sockets
    • 8 set of PCIe 4.0 x8 (in x16 slot) low profile slot and 8 set of Micro-LP slots (MicroLP upgradable)
    • 8 set of Dual 1GbE LAN Ports
    • 8 set of 2x Front Hot-swappable 3.5" SATA3 HDD or Hybrid 2x 2.5" SAS/SATA3/NVMe U.2 drives w/ option kits
    • 2000W Redundant Titanium Level high-efficiency power supplies

    Key Applications

    • Cloud Computing
    • Web Hosting, VM
    • Online Game Server Hosting
    • IT Infrastructure
    • Web Cache
    • Social Networking

    Description

    The Supermicro SYS-530MT-H8TNR is a versatile 3U microcloud server designed for optimal performance in a wide range of applications including cloud computing, web hosting, and IT infrastructure. Featuring 8 Intel® Xeon® E-2300/Pentium processors, up to 128GB ECC/non-ECC DDR4 memory, and dual 1GbE LAN ports, this server ensures robust performance and seamless connectivity. Additionally, it supports advanced storage options with hot-swappable SATA3 drives and redundant 2000W power supplies for reliability. Ideal for enterprises seeking a scalable and high-efficiency server solution.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-530MT-H8TNR
    Motherboard
    Installed Motherboard
    • Super X12STD-F
    Processor (per Node)
    CPU
    • Single Socket H5 (LGA-1200)
    • Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
    Core Count
    • Up to 8C/16T; Up to 16MB Cache
    Note
    • Supports 80W - 95W TDP CPUs (Air Cooled)
    GPU (per Node)
    Max GPU Count
    • Up to 1 single-width GPU
    Supported GPU
    • NVIDIA PCIe: T4, L4, A2
    System Memory (per Node)
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
    On-Board Devices (per Node)
    SATA
    • SATA (6Gbps) via Intel® C256; RAID 0/1/5/10 support
    Chipset
    • Intel® C256
    Network Connectivity
    • No NIC option supported
    Input / Output (per Node)
    LAN
    • 2 RJ45 1 GbE LAN port(s)
    USB
    • 2 USB 2.0 port(s)
    • 1 Type-C port(s) (front)
    Video
    • 1 port(s)
    System BIOS
    BIOS Type
    • AMI 128MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI 6.0 Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    Temperature
    • Monitoring for CPU and chassis environment
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
    FAN
    • Fan speed control, Dual Cooling Zone
    Chassis
    Form Factor
    • 3U Rackmount
    Model
    • CSE-938NH-R2K04BP2
    Dimensions and Weight
    Height
    • 5.21" (132 mm)
    Width
    • 17.26" (438 mm)
    Depth
    • 23.2" (589 mm)
    Package
    • 11.65" (H) x 26.26" (W) x 34" (D)
    Weight
    • Gross Weight: 88 lbs (39.92 kg)
    • Net Weight: 62.2 lbs (28.21 kg)
    Available Color
    • Black

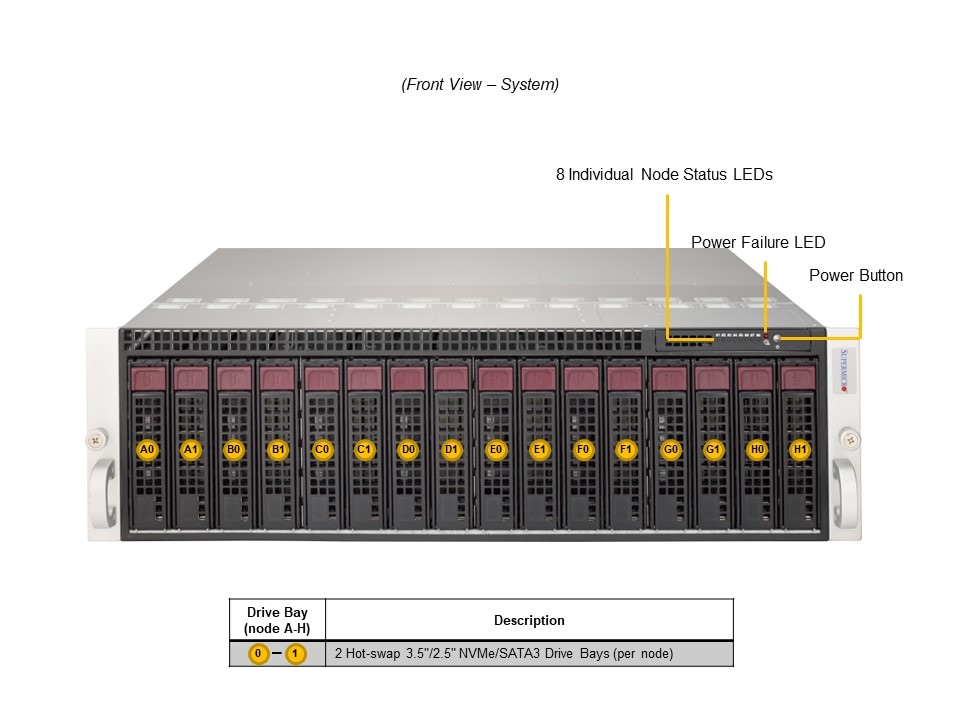

    Front Panel
    LED
    • 8 Individual Node Status Indicators
    • Power Failure
    Buttons
    • Power On/Off
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 4.0 x8 MicroLP slot
    • 1 PCIe 4.0 x8 (in x16) LP slot

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 2 bays:
    • 2 front hot-swap 3.5" NVMe/SAS/SATA drive bays

    M.2
    • 2 M.2 NVMe/SATA slots (M-key 2280/22110)
    System Cooling
    Fans
    • 4 Heavy Duty 8cm Fan(s)
    Power Supply
    2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
    • 1980W: 220-230Vac / 50-60Hz
    • 2000W: 230-240Vac / 50-60Hz

    +12V:
    • Max: 83.3A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 166.7A / Min: 0A (230Vac-240Vac)

    5V SB:
    • Max: 1A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Certification:
    • Titanium Level

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12STD-F8Super X12STD-F Motherboard
    CSE-938NH-R2K04BP213U Chassis
    Add-on Card / Module
    AOC-CGP-I2-P8MicroLP 2-port GbE RJ45, Intel i350
    AOM-BPN-938NH-P1AOM-BPN-938NH, Backplane module for 8-node Microcloud system
    AOM-LAN-MC8-P1AOM-LAN-MC8, LAN front panel module for 8-node Microcloud sy
    AOM-PDB-PT938-LSG-P1AOM-PDB-PT938-LSG, PDB module for 8-node Microcloud system,H
    AOM-PDB-PT938-RSG-P1AOM-PDB-PT938-RSG, PDB module for 8-node Microcloud system,H
    Cable
    CBL-0218L111.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
    CBL-PWCD-0578-1OR2PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
    CBL-PWCD-0578-IS-PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS
    CBL-0355L2RJ45 C5E 2ft Green With Cover
    CBL-0458L120 cm 30 pin to 30 pin Front control cable with tube. 28AWG
    CBL-CDAT-066218 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1
    Riser Card
    RSC-S-6G481U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro
    Software
    SFT-OOB-LIC8License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P1041V81U Prop. Passive CPU HS for 6U 10-blade SuperBlade Series
    Fan
    FAN-0213L4OR480x80x38 mm, 14.4K RPM Cooling Fan for 3U8N Microcloud Serie
    FAN-0194L4-80x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie
    *Power Supply
    PWS-2K04A-1R2AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
    *Drive Tray(s)
    MCP-220-00094-0B16Black gen 6.5 hot-swap 3.5 inch HDD Tray
    *Control Board
    MCP-280-93801-0B1Control panel module
    *Rail Set
    MCP-290-00057-0N1Rail set, quick/quick, default for 4U 17.2" W
    *Air Shroud
    MCP-310-93805-0B16Mylar air shroud for 2-DIMMs (quick install on DIMM latch)

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-0616-For AOC-S3008L-L8i/AOC-SAS3-9361-4I
    CBL-SAST-1230T4S1-100-For AOC-S3908L-H8iR-16DD
    Drive Tray(s)
    MCP-220-00158-0B-Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray
    MCP-220-93801-0B-Black gen 6 hot-swap 3.5-to-2.5 HDD tray
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Network Card(s)
    AOC-CTG-B2T-MicroLP 2-port 10G RJ45, based on Broadcom BCM57416. RoHS
    AOC-STGN-i2S-Standard LP, 2x 10GbE SFP+, PCIe x8, Intel 82599ES
    AOC-STGN-i1S-Standard LP, 1x 10GbE SFP+, PCIe x8, Intel 82599EN
    AOC-STG-i2T-Standard LP, 2x 10GbE RJ45, PCIe x8, Intel X540
    AOC-STG-i2-Standard LP, 2x 10GbE CX4, PCIe x8, Intel 82598EB
    AOC-SGP-i4-Standard LP, 4x GbE RJ45, PCIe x4, Intel i350
    AOC-SGP-i2-Standard LP, 2x GbE RJ45, PCIe x4, Intel i350AM2
    AOC-S40G-i2Q-Standard LP 2-port 40GbE controller, Intel Fortville XL710
    AOC-CTG-i2S-MicroLP, 2 x 10GbE SFP+, PCIe 2.0 x8, Intel® 82599EN
    AOC-CTG-i1S-MicroLP, 1 x 10GbE SFP+, PCIe 2.0 x8, Intel® 82599EN
    AOC-CTGS-i2T-MicroLP, 2x 10GbE Base-T, PCIe 3.0 x4, Intel® X550
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    Storage Controller Card(s)
    AOC-SAS3-9361-4I-Std LP, 4 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60
    AOC-S3008L-L8i-Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10
    AOC-S3908L-H8IR-16DD-8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
