  2. SuperWorkstation (C9Z790-CG, CSE-GS5A-754k), RoHS

SuperWorkstation (C9Z790-CG, CSE-GS5A-754k), RoHS

SYS-531AD-I

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10625/image_1920?unique=f7d9088

kr 9,835.61 9835.61 NOK kr 9,835.61

kr 9,835.61

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-531AD-I combines cutting-edge performance with robust expansion capabilities, making it ideal for high-performance gaming and content creation. Supports 14th to 12th Gen Intel® Core™ processors, and up to 128GB of DDR5 memory.

    Key Features

    • Supports 14th/13th/12th Gen Intel® Core™ i9, i7, i5, and i3 Processors
    • 2 PCIe 5.0 x16 slots (16/NA or 8/8)
    • 3x 12cm PWM Fans

    Key Applications

    • High-performance Gaming
    • Content Creation

    Description

    Elevate your content creation and gaming performance with the Supermicro SYS-531AD-I. Featuring support for the latest Intel® Core™ i9/i7/i5/i3 processors, and expandable options including 6 SATA drive bays and 4 DIMM slots for up to 128GB DDR5 memory, this workstation offers peak performance and versatility. Ideal for professionals seeking top-tier processing power and graphics capabilities, with dual PCIe 5.0 x16 slots and support for NVIDIA RTX GPUs.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperWorkstation SYS-531AD-I
    Motherboard
    Installed Motherboard
    • Super C9Z790-CG
    Processor
    CPU
    • Single Socket V (LGA-1700)
    • 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® Processors
    Core Count
    • Up to 24C/48T; Up to 16MB Cache
    Note
    • Supports up to 125W TDP CPUs (Air Cooled)
    • Supports up to 235W TDP CPUs (Liquid Cooled)​
    GPU
    Max GPU Count
    • Up to 1 double-width GPU
    Supported GPU
    • NVIDIA PCIe: RTX A5500, RTX A6000, RTX A4000
    System Memory
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 128GB 4400MT/s non-ECC DDR5 UDIMM
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • Intel® Z790
    Network Connectivity
    • 1 RJ45 1GbE with Intel® PHY I219-V
    • 1 RJ45 10GbE with Marvell® AQC113
    Input / Output
    USB
    • 4 USB 2.0 port(s) (rear)
    • 2 USB 2.0 port(s) (header)
    • 2 port(s) (front)
    • 2 port(s) (rear)
    Video
    • 1 HDMI 2.1 port(s)
    • 1 DisplayPort 1.4b port(s)
    Audio
    • 7.1 HD Audio
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI 6.0 Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
    Other Features
    • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL
    Chassis
    Form Factor
    • Mid-Tower
    Model
    • CSE-GS5A-754K
    Dimensions and Weight
    Height
    • 18.1" (460 mm)
    Width
    • 7.9" (200 mm)
    Depth
    • 19.4" (493 mm)
    Package
    • 24.9" (H) x 14.2" (W) x 24" (D)
    Weight
    • Gross Weight: 26 lbs (11.8 kg)
    • Net Weight: 20 lbs (9 kg)
    Available Color
    • Black / Gray

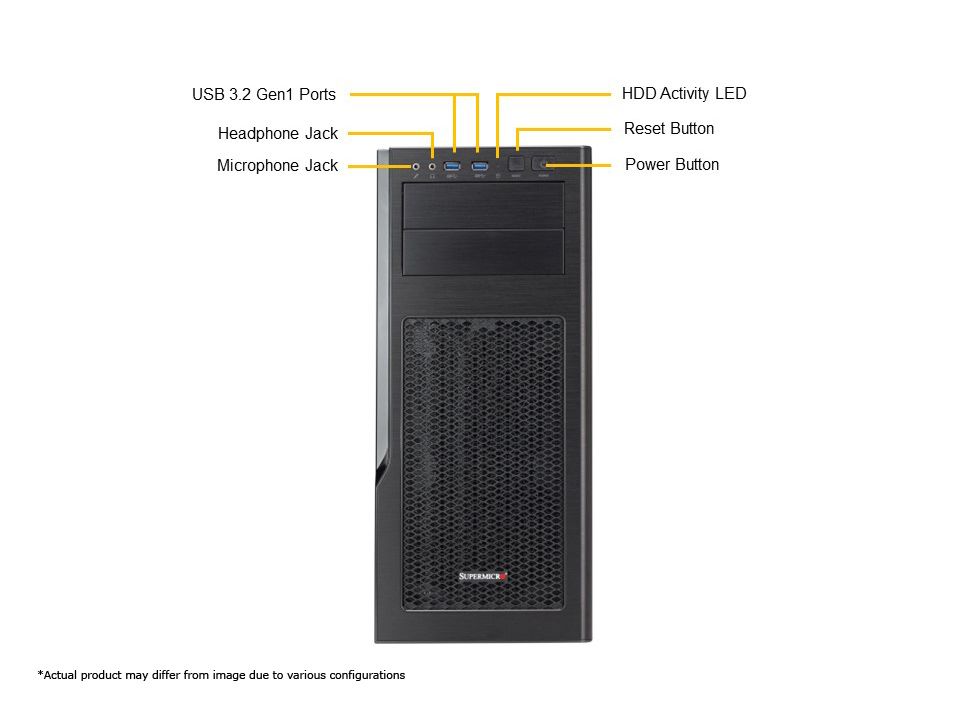

    Front Panel
    LED
    • HDD activity LED
    • Power status LED
    Buttons
    • Power On/Off button
    • System Reset button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 5.0 x8 FHFL slots
    • 2 PCIe 3.0 x1 FHFL slots

    Option A:
    • 1 PCIe 5.0 x16 FHFL slot
    • 2 PCIe 3.0 x1 FHFL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 6 bays:
    • 6 internal fixed 3.5" SATA drive bays

    M.2
    • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
    • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110)
    Peripheral Bays
    • 2 5.25" bays
    System Cooling
    Fans
    • 2x 120mm Fan(s)
    • 1x 120mm Fan(s)
    Liquid Cooling
    • Direct to Chip (D2C) Cold Plate (optional)
    Power Supply
    1x 750W Gold Level power supply
    Dimension (WxHxL):
    • 150 x 86 x 140 mm

    AC Input:
    • 750W: 100-240Vac / 50-60Hz

    +12V:
    • Max: 62A (100Vac-240Vac)

    5V SB:
    • Max: 3A

    Output Type:
    • 24pin ATX

    Certification:
    • Gold Level

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Optional Part List

    Part Number Quantity Description
    DVD Kit
    CBL-SAST-0624170cm SATA Cable S-S 30AWG
    CBL-0082L1Y SPLIT SATA POWER ADAPTER
    DVM-TEAC-DVDRW-SBT515.25" HH 24X DVD-RW SATA DRIVE
    Liquid Cooling
    SNK-P3017A1Closed-loop Liquid Cooling kit (280mm)
    Mobile Rack
    CSE-M14TQC1SAS3/SATA mobile rack for 4x 2.5" drives
