3U MicroCloud System, X13SCD-F, 938NH-R2K20BP2

SYS-531MC-H8TNR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10495/image_1920?unique=a415753

kr 68,267.38 68267.38 NOK kr 68,267.38

kr 68,267.38

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-531MC-H8TNR is a high-density, 3U modular server designed for cloud computing, web hosting, and IT infrastructure. Each node features Intel Xeon E-2400 processors, up to 128GB ECC DDR5 memory, and flexible storage options.

    Key Features

    • Intel® Xeon® E-2400/Pentium®* Processor Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP *Pentium® G7400 and G7400T
    • Intel® C266
    • 8 set of Up to 128GB ECC UDIMM; DDR5 4400MHz, in 4 DIMM sockets
    • 8 set of PCIe 5.0 x8 (in x16 slot) low profile slot and 8 set of PCIe 4.0 x8 Micro-LP slots (MicroLP upgradable)

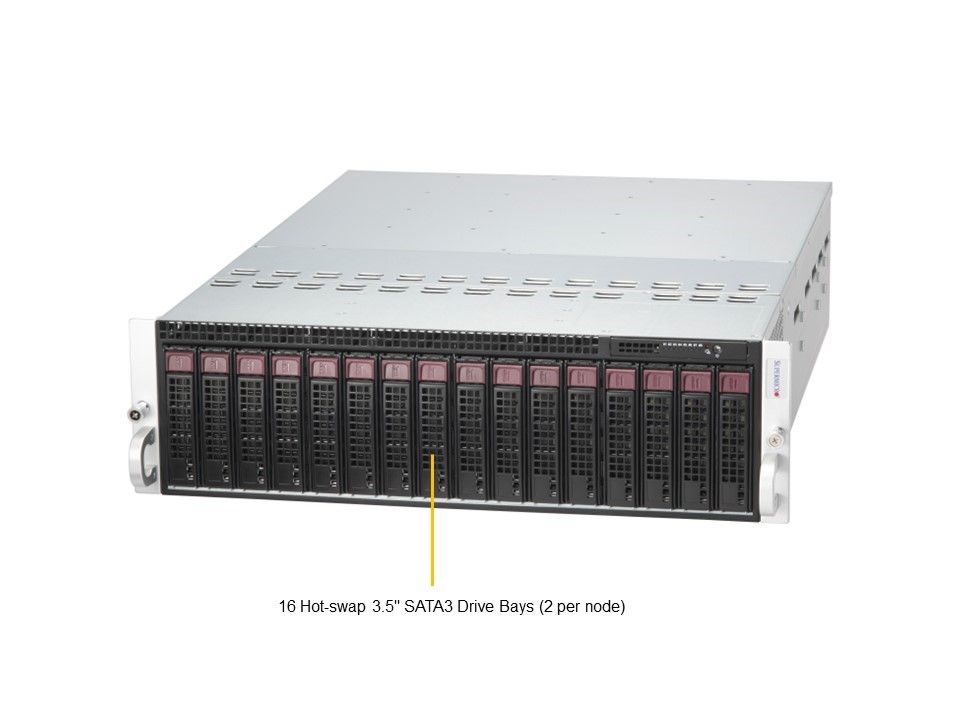

    • 8 set of 2x Front Hot-swappable 3.5" SATA3 HDD or Hybrid 2x 2.5" SAS/SATA3/NVMe U.2 drives w/ option kits
    • 2200W Redundant Titanium Level high-efficiency power supplies

    Key Applications

    • Cloud Computing
    • Web Hosting, VM
    • Online Game Server Hosting
    • IT Infrastructure
    • Web Cache
    • Social Networking

    Description

    The MicroCloud modular architecture provides high density, serviceability, and cost-effectiveness required for today's demanding hyperscale deployments. Integrated into a compact 3U chassis that's less than 30 inches deep. Supports Single LGA-1700 Intel Xeon E-2400/Pentium processors, up to 128GB 4400MT/s ECC DDR5 UDIMM in 4 DIMM slots, 2x front hot-swap drive bays per node, and 2 M.2 NVMe slots. Offers advanced cooling with 4 heavy-duty fans and is managed by Supermicro server management suite.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-531MC-H8TNR
    Motherboard
    Installed Motherboard
    • Super X13SCD-F
    Processor (per Node)
    CPU
    • Single LGA-1700
    • Intel® Xeon® E-2400/Pentium® G7400 and G6400T Processors
    Note
    • Supports up to 95W TDP CPUs (Air Cooled)
    GPU (per Node)
    Max GPU Count
    • Up to 1 single-width GPU
    System Memory (per Node)
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM
    On-Board Devices (per Node)
    SATA
    • SATA (6Gbps) ; RAID 0/1 support
    Chipset
    • Intel® C266
    Network Connectivity
    • No NIC option supported
    Input / Output (per Node)
    USB
    • 1 Type-C port(s) (front)
    • 2 USB 2.0 Type-A port(s)
    Video
    • 1 port(s)
    TPM
    • 1 TPM Onboard/port 80
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI 6.0 Power Management
    PC Health Monitoring
    Temperature
    • Monitoring for CPU and chassis environment
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
    FAN
    • Fan speed control, Dual Cooling Zone
    Chassis
    Form Factor
    • 3U Rackmount
    Model
    • CSE-938NH-R2K20BP2
    Dimensions and Weight
    Height
    • 5.21" (132 mm)
    Width
    • 17.26" (438 mm)
    Depth
    • 23.2" (589 mm)
    Package
    • 11.65" (H) x 26.26" (W) x 34" (D)
    Weight
    • Gross Weight: 88 lbs (39.92 kg)
    • Net Weight: 62.2 lbs (28.21 kg)
    Available Color
    • No/A
    Front Panel
    LED
    • 8 Individual Node Status Indicators
    • Power Failure
    Buttons
    • Power On/Off
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 5.0 x8 (in x16) LP slot
    • 1 PCIe 4.0 x8 (in x8) MicroLP slot

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 2 bays:
    • 2 front hot-swap 3.5" NVMe/SAS/SATA drive bays

    M.2
    • 2 M.2 NVMe/SATA slots (M-key 2280/22110)
    System Cooling
    Fans
    • 4 Heavy Duty 8cm Fan(s)
    Power Supply
    2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 1200W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
    • 1980W: 220-230Vac / 50-60Hz
    • 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
    • 2090W: 230-240Vac / 50-60Hz
    • 2090W: 230-240Vdc / 50-60Hz (for CCC only)

    +12V:
    • Max: 100A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
    • Max: 174.17A / Min: 0A (230Vac-240Vac)
    • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
    • Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)

    5V SB:
    • Max: 1A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 8% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X13SCD-F8Super X13SCD-F Motherboard
    CSE-938NH-R2K20BP213U Chassis
    Add-on Card / Module
    AOM-BPN-938NH-P1AOM-BPN-938NH, Backplane module for 8-node Microcloud system
    AOM-LAN-MC8-P1AOM-LAN-MC8, LAN front panel module for 8-node Microcloud sy
    AOM-PDB-PT938-LSG-P1AOM-PDB-PT938-LSG, PDB module for 8-node Microcloud system,H
    AOM-PDB-PT938-RSG-P1AOM-PDB-PT938-RSG, PDB module for 8-node Microcloud system,H
    Cable
    CBL-0218L111.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
    CBL-PWCD-0578-1OR2PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
    CBL-PWCD-0578-IS-PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS
    CBL-0355L2RJ45 C5E 2ft Green With Cover
    CBL-0458L120 cm 30 pin to 30 pin Front control cable with tube. 28AWG
    CBL-CDAT-066218 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1
    Riser Card
    RSC-S-6G581U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
    Software
    SFT-OOB-LIC8License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P1041V81U Prop. Passive CPU HS for 6U 10-blade SuperBlade Series
    Fan
    FAN-0213L4OR480x80x38 mm, 14.4K RPM Cooling Fan for 3U8N Microcloud Serie
    FAN-0194L4-80x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie
    *Power Supply
    PWS-2K20A-1R21U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
    *Drive Tray(s)
    MCP-220-00094-0B16Black gen 6.5 hot-swap 3.5 inch HDD Tray
    *Control Board
    MCP-280-93801-0B1Control panel module
    *Rail Set
    MCP-290-00057-0N1Rail set, quick/quick, default for 4U 17.2" W
    *Air Shroud
    MCP-310-93805-0B16Mylar air shroud for 2-DIMMs (quick install on DIMM latch)

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-1230T4S1-1001For AOC-S3908L-H8iR-16DD
    Global Services & Support
    OSNBD3/2/1-3/2/1-year onsite NBD service
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    GPU
    GPU-IATS-M751Intel GPU Arctic Sound ATS-M75 PCIE Gen4 x16, RoHS
    GPU-NVA2-NC1NVIDIA Ampere A2 16GB GDDR6 PCIe 4.0 x8 -- w/o CEC
    GPU-NVL41NVIDIA Ada L4 24GB GDDR6 PCIe Gen 4th-- 70w
    GPU-NVQT10001NVIDIA PNY Quadro T1000 4GB GDDR6 PCIe 3.0-ActiveCooling
    GPU-NVTT41NVIDIA Tesla T4 16GB GDDR6 PCIe 3.0, Passive Cooling
    GPU Air Shroud
    MCP-310-93807-0B1Mylar air shroud for GPU on MicroCloud 938NH, RoHS
    Network Card(s) - Micro LP
    AOC-CGP-I212-ports GbE RJ45 Intel i350, Gen2 x4, MicroLP
    AOC-CTG-b2T-O12-ports MicroLP 10G RJ45, based on Broadcom BCM57416
    AOC-CTG-I2S12-ports 10GbE SFP+ and 2-ports USB 2.0 Intel 82599ES, Gen2 x8, MicroLP
    AOC-CTGS-i2T-O12-ports 10GbE RJ45 Intel X550, Gen3 x4, MicroLP
    Network Card(s) - PCIe
    AOC-S100GC-i2C-O12-ports 100GbE with QSFP28 based on Intel E810-CAM2, RoHS
    AOC-S25GC-i2S-O12-ports 25Gb SFP28 Intel E810-XXVAM2 Gen 4.0
    Software
    SFT-DCMS-Single-DataCenter Management Package (per node license)
    Storage Controller Card(s)
    AOC-S3908L-H8IR-16DD-O18 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
    AOC-SLG4-2H8M2-O12x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard LP, RoHS
