  2. CSE-731i-404B + X13SCL-F, RoHS

CSE-731i-404B + X13SCL-F, RoHS

SYS-531R-I

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10498/image_1920?unique=daeccc6

kr 7,527.90 7527.900000000001 NOK kr 7,527.90

kr 7,527.90

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-531R-I is an entry-level server designed for SOHO and SMB environments. It supports Intel Xeon E-2400 series processors, up to 128GB DDR5 memory, and offers reliable remote management via IPMI.

    Key Features

    • Supports Intel® Xeon® E-2400 Series Processors
    • PCIe 5.0 Support
    • Dual LAN ports, GbE and dedicated IPMI LAN port
    • 9cm PWM quiet exhaust fan and optioal front intake fan
    • 400W 80PLUS Gold Power Supply

    Key Applications

    • Storage, application and centralized data backup system Applications
    • IPMI for remote management
    • Entry-Level Server for SOHO and SMB

    Description

    The Supermicro SYS-531R-I entry-level system delivers exceptional performance and expandability at an attractive cost-effective price. Powered by the latest Intel Xeon E-2400 series processors, up to 128GB of DDR5-3200 memory, and remote management (IPMI), this single-processor system is ideal for small office/home office (SOHO) or small/medium-sized businesses (SMB) for storage and centralized data backup system applications. All workstation systems sold in North America are built and tested at Supermicro headquarters in San Jose, California, and include technical support services by in-house Supermicro engineers and product managers.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperWorkstation SYS-531R-I
    Motherboard
    Installed Motherboard
    • Super X13SCL-F
    Processor
    CPU
    • Single processor(s)
    • Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors
    Core Count
    • Up to 8C/16T
    Note
    • Supports up to 95W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 double-width or 1 single-width GPU
    System Memory
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • Intel® C262
    Network Connectivity
    • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
    • 2 RJ45 1GbE with Intel® I210
    Input / Output
    USB
    • 2 USB 3.2 Gen1 Type-A port(s) (rear)
    • 2 USB 2.0 Type-A port(s) (rear)
    • 2 USB 3.2 Gen1 Type-A port(s) (front)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI 6.0 Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    PC Health Monitoring
    Voltage
    • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
    Chassis
    Form Factor
    • mini-tower
    Model
    • CSE-731I-404B
    Dimensions and Weight
    Height
    • 14.25" (362 mm)
    Width
    • 7.25" (184 mm)
    Depth
    • 16.75" (425 mm)
    Package
    • 20" (H) x 11" (W) x 21" (D)
    Weight
    • Gross Weight: 20 lbs (9.07 kg)
    • Net Weight: 16 lbs (7.26 kg)
    Available Color
    • Black

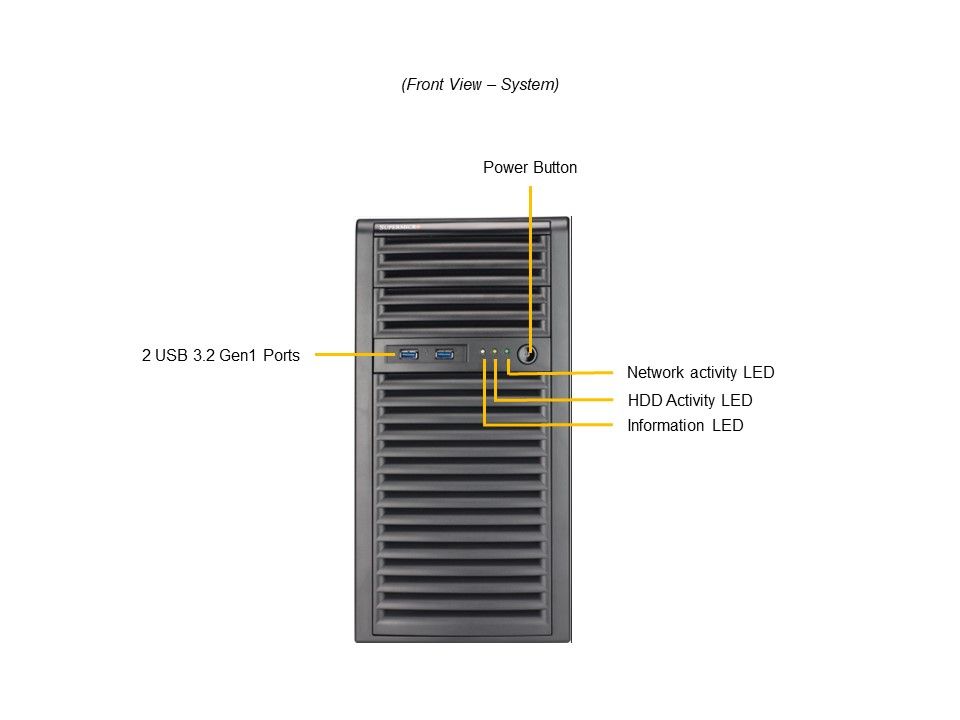

    Front Panel
    LED
    • HDD activity LED
    • Network activity LEDs
    • Power LED
    • System Overheat LED
    Buttons
    • Power On/Off button
    Port
    • USB 3.0 Port(s)
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 5.0 x8 FHFL slots
    • 1 PCIe 4.0 x4 FHFL slot
    • 1 PCIe 4.0 x4 FHHL slot

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 4 bays:
    • 4 internal fixed 3.5" SATA drive bays

    M.2
    • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110)
    Peripheral Bays
    • 2 5.25" bays
    System Cooling
    Fans
    • 1x 90mm Fan(s)
    Power Supply
    1x 400W Gold Level (90%) power supply
    Dimension (WxHxL):
    • 150 x 86 x 140 mm

    AC Input:
    • 400W: 100-240Vac / 50-60Hz

    +12V:
    • Max: 12.62A / Min: 0.05A (100Vac-240Vac)
    • Max: 12.62A / Min: 0A (100Vac-240Vac)

    5V SB:
    • Max: 2.23A / Min: 0A

    Output Type:
    • 24pin ATX

    Certification:
    • Gold Level

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X13SCL-F1Super X13SCL-F Motherboard
    CSE-731I-404B1mini-tower Chassis
    Cable
    CBL-0044L47pin SATA (STR to STR), 57.5cm, Flat, PBF
    CBL-PWCD-0260-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    CBL-0084L116PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE
    CBL-CUSB-1007120p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS
    Parts
    MCP-260-00042-0N1STD I/O shield for X9 socket R server MB with Gasket.
    MCP-110-00033-0N2Binding Head Screw (with teeth) #632*4.5L
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-C0156L1M.2 Passive Heat Sink for Both 2280 & 22110 M.2 Type
    *Power Supply
    PWS-404-PQ1PS2 400W Multi-output High Efficiency 80PLUS Gold Power
    *Fan
    FAN-0108L4192X25MM 4-PIN PWM REAR EXT FAN FOR SC731
    *Drive Tray(s)
    MCP-220-73101-0B4SC731 Tool-less Internal 3.5inch HDD Tray

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-0624170cm SATA Cable S-S 30AWG
    CBL-0082L1Y SPLIT SATA POWER ADAPTER, PB FREE
    DVD Kit
    DVM-TEAC-DVDRW24-HBT1BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE (Please also add CBL-SAST-0624 and CBL-0082L)
    Fan
    FAN-0113L4180X25MM 2.8K RPM 4-PIN PWM Fan, Optional Front Fan
    HDD Converter
    MCP-220-73102-0N12.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
    Heatsink
    SNK-P0086AP41High Performance CPU Heatsink for LGA1700
    Mobile Rack
    CSE-M14TQC1SAS3/SATA mobile rack for 4x 2.5" drives
