SuperWorkstation (X12SPA-TF, 747BTS-R2K20BP),RoHS

SYS-540A-TR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10527/image_1920?unique=f7d9088

kr 26,329.94 26329.940000000002 NOK kr 26,329.94

kr 26,329.94

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-540A-TR is a cutting-edge SuperWorkstation designed for demanding applications like deep learning, AI, and machine learning. It's equipped with 3rd Gen Intel® Xeon® Scalable processors, supports up to 4TB of memory, and features extensive GPU compatibility, making it ideal for complex computational workloads.

    Key Features

    • Supports 3rd Gen Intel® Xeon® Scalable or Xeon® W-3300 Processors with TDP up to 270W
    • 7 PCIe 4.0 Slots
    • 1x 10GBase-T, 1x 1GbE, and 1x dedicated IPMI LAN ports

    Key Applications

    • Deep Learning/AI/Machine Learning Development

    Description

    Supermicro’s X12 SuperWorkstations, like the SYS-540A-TR, are optimized for the most demanding applications requiring robust graphics capabilities. This workstation supports one Intel® Xeon® Scalable Processor with 16 DDR4 DIMM slots and offers vast storage options with 8 hot-swap 3.5" SATA drive bays. The seven PCI-E slots provide excellent expandability for GPUs and other professional cards. Connectivity is ensured through 10GbE and GbE LAN ports with IPMI support, and it is powered by 2200W redundant power supplies, providing reliability and efficiency.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperWorkstation SYS-540A-TR
    Motherboard
    Installed Motherboard
    • Super X12SPA-TF
    Processor
    CPU
    • Single Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 40C/80T; Up to 60MB Cache
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 4 double-width or 4 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4000
    System Memory
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • Intel® C621A
    Network Connectivity
    • 1 RJ45 1GbE with Intel® I210-AT
    • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
    • 1 RJ45 10GbE with Marvell® AQC113
    Input / Output
    USB
    • 2 USB 2.0 port(s) (header)
    • 2 USB 2.0 port(s) (rear)
    • 2 port(s) (header)
    • 4 port(s) (rear)
    Video
    • 1 VGA port(s)
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI 6.0 Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    Voltage
    • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
    Chassis
    Form Factor
    • Full-Tower
    Model
    • CSE-747BTS-R2K20BP
    Dimensions and Weight
    Height
    • 18.1" (460 mm)
    Width
    • 7" (178 mm)
    Depth
    • 26.5" (673 mm)
    Package
    • 12.7" (H) x 27" (W) x 37.5" (D)
    Weight
    • Gross Weight: 57 lbs (25.85 kg)
    • Net Weight: 52.9 lbs (24 kg)
    Available Color
    • black

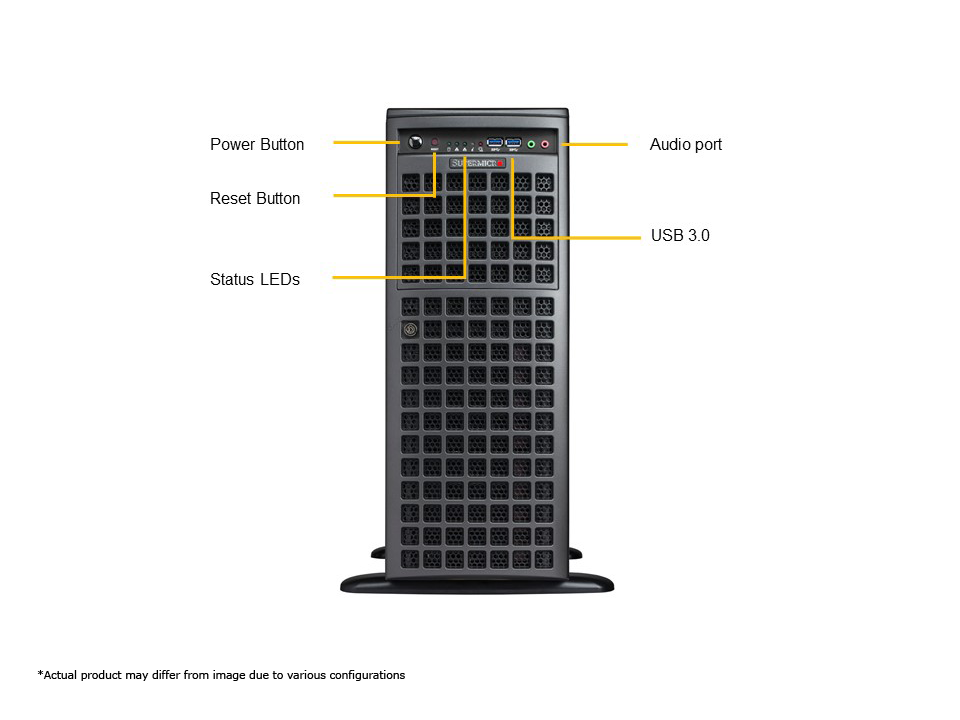

    Front Panel
    LED
    • HDD activity
    • Network activity
    • Power On
    • System Overheat / Fan Fail LED
    Buttons
    • Power On/Off
    • System Reset
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 7 PCIe 4.0 x16 FHFL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 8 bays:
    • 8 front hot-swap 3.5" SATA drive bays

    M.2
    • 4 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
    Peripheral Bays
    • 3 5.25" bays
    System Cooling
    Fans
    • 4x 92mm Fan(s)
    • 2x 80mm Fan(s)
    Power Supply
    1x 2200W Redundant Titanium Level (96%) power supply
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 1200W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
    • 1980W: 220-230Vac / 50-60Hz
    • 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
    • 2090W: 230-240Vac / 50-60Hz
    • 2090W: 230-240Vdc / 50-60Hz (for CCC only)

    +12V:
    • Max: 100A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
    • Max: 174.17A / Min: 0A (230Vac-240Vac)
    • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
    • Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)

    5V SB:
    • Max: 1A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12SPA-TF1Super X12SPA-TF Motherboard
    CSE-747BTS-R2K20BP1Full-Tower Chassis
    Backplane
    BPN-SAS3-747TQ-N418port 4U 3.5" SAS3/2/SATA3 12Gbps BPN 4ports NVMe RoHS
    Cable
    CBL-0484L87pin SATA (STR to STR), 55cm, PBF
    CBL-CDAT-066128 Pin to 8 Pin Round SGPIO Cable, 40cm, 28AWG, Pinout 1-1
    CBL-PWEX-10404PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-0216L44 TO 4 PIN FAN POWER CABLE, 210MM
    CBL-0286L24 TO 4 PIN REAR FAN PWR EXT W/ SQUARE HEADER, 30CM (PWM)
    Parts
    MCP-260-00148-0N1STD I/O Shield for X12SPA-TF with EMI Gasket
    MCP-290-74701-0B1Black plastic top cover for SC747
    MCP-290-74702-0N1GPU Card Holder (11 slots) for SC747TQ, SC842
    MCP-290-74703-0B1fixed 3.5" dummy cover for SC747
    MCP-290-74709-0B1Plastic feet (2 pcs/set) for 4U tower chassis, black color
    Manual
    MNL-2328-QRG1540A-TR Quick Reference Guide
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-C0121L-1422W x 129.65L x 4.35H mm, Al., Screws, Pad, Anodized, X11SPA 2280 M.2 HS with single package
    SNK-P0081AP414U Active CPU Heat Sink for X12 Generation UP Gaming and Workstations
    *Power Supply
    PWS-2K20A-1R21U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
    *Power Distributor
    PDB-PT747-68241Power Distributor Board is for 4U GPU solution using regular
    *Fan
    FAN-0082L4280x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
    Fan-0114L4292x38mm 4-PIN PWM FAN W/ HUS for SC747
    FAN-0138L4292x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU
    *Front Bezel
    MCP-210-74701-0B1SC747 plastic front bezel
    *Drive Tray(s)
    MCP-220-00073-0B3Black 5.25 drive tray w/o rail (SC747)
    *Front Panel
    MCP-280-74702-0N1SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio)

    Optional Part List

    Part Number Quantity Description
    DVD Kit
    CBL-SAST-0624170cm SATA Cable S-S 30AWG
    CBL-0082L1Y SPLIT SATA POWER ADAPTER
    DVM-TEAC-DVDRW24-HBT1BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE
    Fan Kits for Various GPU Population
    MCP-320-74703-0N-KIT1Fully-polulated with Full-height Double-width Passive GPU cards
    MCP-320-74704-0N-KIT1Fully-populated with Low-profile Single-width Passive GPU cards
    MCP-310-74706-0B1Fully-populated with Full-height Double-width Active GPU cards (30°C operating temp.)
    Front Bezel
    MCP-210-74703-0B1Front bezel cover (for 5.25" bay) for rackmount
    HDD Converter
    MCP-220-93801-0B1Black Hotswap Gen 6 3.5 to 2.5 HDD Tray
    Mobile Rack
    CSE-M14TQC1SAS3/SATA mobile rack for 4x 2.5" drives
    Mounting Rails
    MCP-290-00059-0B1Chassis Mounting Rails for Rackmount
