WIO System: SYS-6029P-WTR; X11DDW-L; CSE-825TS-R1K03WBP-2

SYS-6029P-WTR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10312/image_1920?unique=131e0ee

kr 21,178.25 21178.25 NOK kr 21,178.25

kr 21,178.25

Not Available For Sale

    This combination does not exist.

    Summary Description

    Supermicro SYS-6029P-WTR is designed for high-performance computing with flexible I/O configurations. It supports up to 3TB of DDR4-2933MHz memory and is powered by dual Intel® Xeon® Scalable processors. Ideal for diverse applications such as web servers, firewalls, and cloud computing.

    Key Features

    • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡ 2. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM †† 3. 4 PCI-E 3.0 x8 (FHHL) slots, 2 PCI-E 3.0 x8 (LP) slots, 1 PCI-E 3.0 x16 for Add-on-Module (Support SAS3 Storage controller), 1 PCI-E 3.0 x4 NVMe M.2 slot 4. 8 Hot-swap 3.5" SAS/SATA drive bays with SGPIO, 2 Fixed 3.5" drive bays 5. 1 Slim DVD-ROM drive bay (optional) 6. 2x 1GbE LAN ports via Intel C621 7. 1 VGA, 4 USB 3.0 (rear) 8. M.2 support 9. 1000W Redundant Power Supplies Titanium Level (96% Efficiency)
    • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
    • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
    • 4 PCI-E 3.0 x8 (FHHL) slots, 2 PCI-E 3.0 x8 (LP) slots, 1 PCI-E 3.0 x16 for Add-on-Module (Support SAS3 Storage controller), 1 PCI-E 3.0 x4 NVMe M.2 slot
    • 8 Hot-swap 3.5" SAS/SATA drive bays with SGPIO, 2 Fixed 3.5" drive bays
    • 1 Slim DVD-ROM drive bay (optional)
    • 2x 1GbE LAN ports via Intel C621
    • 1 VGA, 4 USB 3.0 (rear)
    • M.2 support
    • 1000W Redundant Power Supplies Titanium Level (96% Efficiency)

    Key Applications

    • • Web Server, Firewall Apps. • Corporate-Wins, DNS, Print, Login • Gateway, provisioning servers • Compact Network Appliance • Cloud Computing

    Description

    SYS-6029P-WTR Front View
    Supermicro WIO SuperServer® systems allow users to select from a wide range of I/O options to optimize the storage and networking solutions to best fit their applications. In addition to enabling customizable configurations and optimization for a wide range of application requirements, Supermicro WIO SuperServers also provide attractive cost advantages and investment protection. The Supermicro SYS-6029P-WTR WIO SuperServer® uses 2nd Gen Intel® Xeon® Scalable processors and support 12 DDR4-2933MHz DIMMs (up to 3TB). The SYS-6029P-WTR supports up to 8 3.5" drives without needing to open up the server. In addition, this WIO supports up to 2 SuperDOM with built-in power which is designed for use as a boot drive, backup recovery device, license drive, or OS installation device (replacing CD/DVD-ROMs).

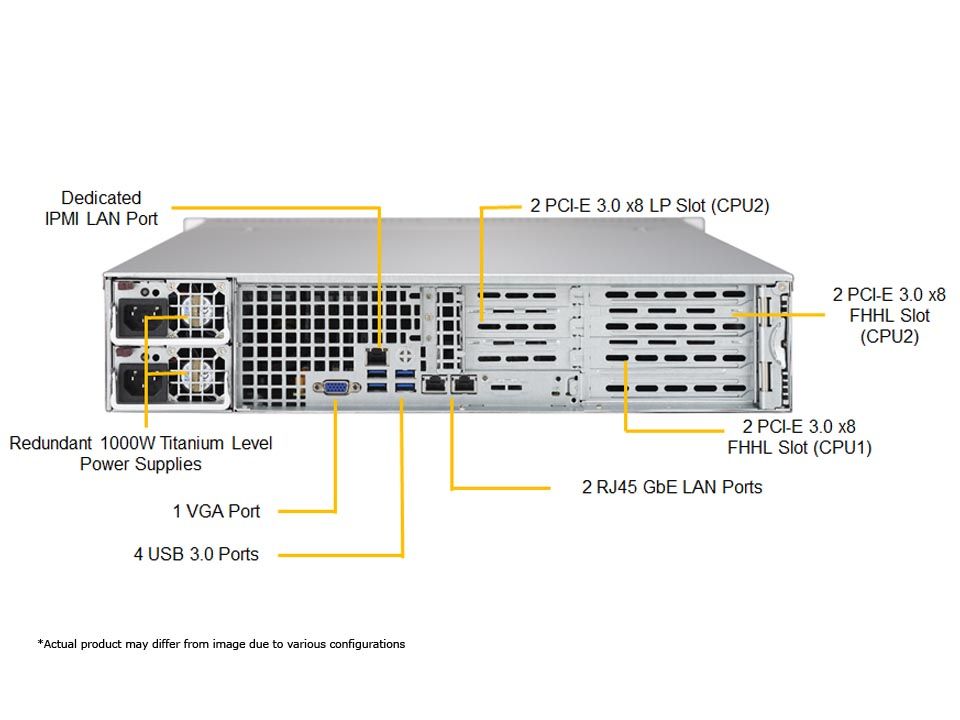

    SYS-6029P-WTR Back View
    It can also be utilized as an embedded system storage element (to be deployed into very harsh environments where mechanical hard disk drives would fail or in a thin client due to its small size and power requirements). The 2U DP WIO server supports up to 6 add-on cards (via included riser card) and LAN that supports up to dual 1GBase-T with Intel® C621 chipset. To power the entire system, there is a 1000W Titanium power supply with over a 96% efficiency rating.



    Supermicro WIO SuperServers are optimized for Corporate-Wins, DNS, Print, Login, Web Server and Firewall Applications

    Product Specifications

    Product SKUs
    SYS-6029P-WTRSuperServer 6029P-WTR (Black)
    Motherboard
    Super X11DDW-LSuper X11DDW-L
    Super X11DDW-L
    Processor
    CPUDual Socket P (LGA 3647)
    2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,Dual UPI up to 10.4GT/s
    Support CPU TDP 70-205W
    CoresUp to 28 Cores
    Note‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
    System Memory
    Memory Capacity12 DIMM slots
    Up to 3TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
    Supports Intel® Optane™ DCPMM††
    Memory Type2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note†2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro††Cascade Lake only. Contact your Supermicro sales rep for more info.
    On-Board Devices
    ChipsetIntel® C621 chipset
    SATASATA3 (6Gbps); RAID 0, 1, 5, 10
    Network ControllersDual 1GbE LAN ports from Intel C621
    IPMISupport for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    VideoASPEED AST2500 BMC
    Input / Output
    SATA12 SATA3 (6 Gbps) ports
    LAN2 RJ45 Gigabit Ethernet ports
    1 RJ45 Dedicated IPMI LAN port
    USB4 USB 3.0 ports (rear)
    Video1 VGA port
    DOM2 SuperDOM(Disk on Module) ports
    System BIOS
    BIOS TypeAMI 32Mb SPI Flash ROM
    Management
    SoftwareIntel® Node Manager
    IPMI 2.0
    KVM with dedicated LAN
    SSM,SPM,SUM
    SuperDoctor® 5
    Watch Dog
    Power ConfigurationsACPI / APM Power Management
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory.
    4+1 Phase-switching voltage regulator
    FANFans with tachometer monitoring
    Status monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    Chassis
    Form Factor2U Rackmount
    ModelCSE-825TQC-R1K03WB
    Dimensions and Weight
    Width17.2" (437mm)
    Height3.5" (89mm)
    Depth25.5" (648mm)
    Gross Weight62 lbs (28.1 kg)
    Available ColorsBlack
    Front Panel
    ButtonsPower On/Off button
    UID button
    LEDsPower status LED
    HDD activity LED
    Network activity LEDs
    Universal Information (UID) LED
    Expansion Slots
    PCI-Express4 PCI-E 3.0 x8 (FHHL) slots
    2 PCI-E 3.0 x8 (LP) slots
    1 PCI-E 3.0 x16 for Add-on-Module (AOM)
    1 PCI-E 3.0 x4 NVMe M.2 slot
    Drive Bays
    Hot-swap8 Hot-swap 3.5" SAS/SATA drive bays with SGPIO
    Internal2 Fixed 3.5" drive bays
    Peripheral Drives
    DVD-ROM1 Slim DVD-ROM drive (optional)
    Backplane
    SAS/SATA HDD BackplaneSAS/SATA HDD Backplane
    System Cooling
    Fans3 Heavy duty 8cm fans with PWM fan speed control
    Power Supply (76mm Width)
    1000W Redundant Power Supplies with PMBus1000W Redundant Power Supplies with PMBus
    Total Output Power800W/1000W
    Dimension(W x H x L)76 x 40 x 336 mm
    Input100-127Vac / 12-9A / 50-60Hz
    200-240Vac / 7.2-6A / 50-60Hz
    200-240Vdc / 7.2-6A (for CCC only)
    +12VMax: 66.7A / Min. 0A (100-127Vac)
    Max: 83A / Min. 0A (200-240Vac)
    Max: 83A / Min. 0A (200-240Vdc)
    5VsbMax: 4A / Min: 0A
    Output Type19 Pairs Gold Finger Connector
    Certification
    Titanium Level
    [Test Report]
    Test Report
    Operating Environment
    RoHSRoHS Compliant
    Environmental Spec.Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    Operating Relative Humidity:8% to 90% (non-condensing)
    Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X11DDW-L1Super X11DDW-L Motherboard
    CSE-825TQC-R1K03WB12U Chassis
    Backplane
    Part NumberQuantityDescription
    BPN-SAS3-825TQ18-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
    Storage Cable
    Part NumberQuantityDescription
    CBL-SAST-0388L-022MINI SAS-4 SATA,INT,75/75/90/90CM,90CM SB,30AWG
    Rubber Pads
    Part NumberQuantityDescription
    MCP-150-00017-0B2Rubber pad, 6.5mm H, 10x10mm
    Chassis Part
    Part NumberQuantityDescription
    MCP-240-00146-0N12U WIO Half Length riser card bkt for SC825, 826, 213, 216,RoHS/REACH
    Air Shroud
    Part NumberQuantityDescription
    MCP-310-82602-0B1air shroud X11DDW + CSE-826B
    Manual
    Part NumberQuantityDescription
    MNL-2031-QRG16029P-WTR Quick Reference Guide,HF,RoHS.
    Riser Card (right)
    Part NumberQuantityDescription
    RSC-R2UW-2E8R12U RHS WIO Riser card with two PCI-E x8 slots
    Riser Card (left)
    Part NumberQuantityDescription
    RSC-R2UW-4E812U LHS WIO Riser card with four PCI-E x8 slots
    Heatsink w/ Retention
    Part NumberQuantityDescription
    SNK-P0068PS22U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    *Power Supply
    Part NumberQuantityDescription
    PWS-1K03A-1R21U 1000W Redundant Power Supply Titanium W/PMbus 76x40x336mm,RoHS/REACH
    *Power Cord
    Part NumberQuantityDescription
    CBL-0160L2NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    *FAN
    Part NumberQuantityDescription
    FAN-0181L4380x80x38 mm, 9.4K RPM Cooling Fan
    *Rail Set
    Part NumberQuantityDescription
    MCP-290-00053-0N2Rail set, quick/quick, default for 2,3U 17.2"W

    Optional Part List

    Optional Upgrade for 2U LHS WIO Riser
    Part NumberQuantityDescription
    RSC-R2UW-2E8E16+Or RSC-W2-66112U LHS WIO Riser card with 1 PCI-E x16 double width + 2 PCI-E x8 slots2U LHS WIO Riser card with 2 PCI-E x16 double width slots
    3.5" to 2.5" Converter Tray
    Part NumberQuantityDescription
    MCP-220-00043-0N-Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
    Internal 2.5" HDD Tray (COM slot)
    Part NumberQuantityDescription
    MCP-220-00023-011Black USB dummy tray support 1x 2.5" slim HDD
    Internal 2.5" HDD Tray (DVD Slot)
    Part NumberQuantityDescription
    MCP-290-00036-0B1Black DVD dummy tray support 1x 2.5" slim HDD
    Cable for internal HDD
    Part NumberQuantityDescription
    CBL-SAST-06242SATA,INT,ROUND,ST-ST,70CM,30AWG
    CBL-0289L1Y split, big 4 pin to two RA SATA power extension 30cm, 20AWG
    Add-on card for internal M.2 NVMe
    Part NumberQuantityDescription
    AOC-SLG3-2M2-Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
    Front Bezel
    Part NumberQuantityDescription
    MCP-210-82503-0B1Black SC825 front bezel
    Cable Management Arm
    Part NumberQuantityDescription
    MCP-290-00073-0N & MCP-120-82503-0N1Supermicro Cable Management Arm for 2U, 3U and 4U chassisCable arm adapter for SC825,213,829H,847B (MCP-290-00073-0N required),HF,RoHS/REACH,PBF
    Inlet Thermal Sensor
    Part NumberQuantityDescription
    MCP-280-00033-0N-Universal Thermal sensor kit with 80cm I2C cable
    Software
    Part NumberQuantityDescription
    SFT-OOB-LIC•1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    Power Supply Dummy Cover
    Part NumberQuantityDescription
    CSE-PT0130L-Power Supply Dummy Cover
    Power Supply
    Part NumberQuantityDescription
    PWS-802A-1R-800W 100-240Vac/47-63Hz, and DC240 input
    Fan
    Part NumberQuantityDescription
    FAN-0126L4-80x80x38 mm 7K RPM Chassis Middle Fan
