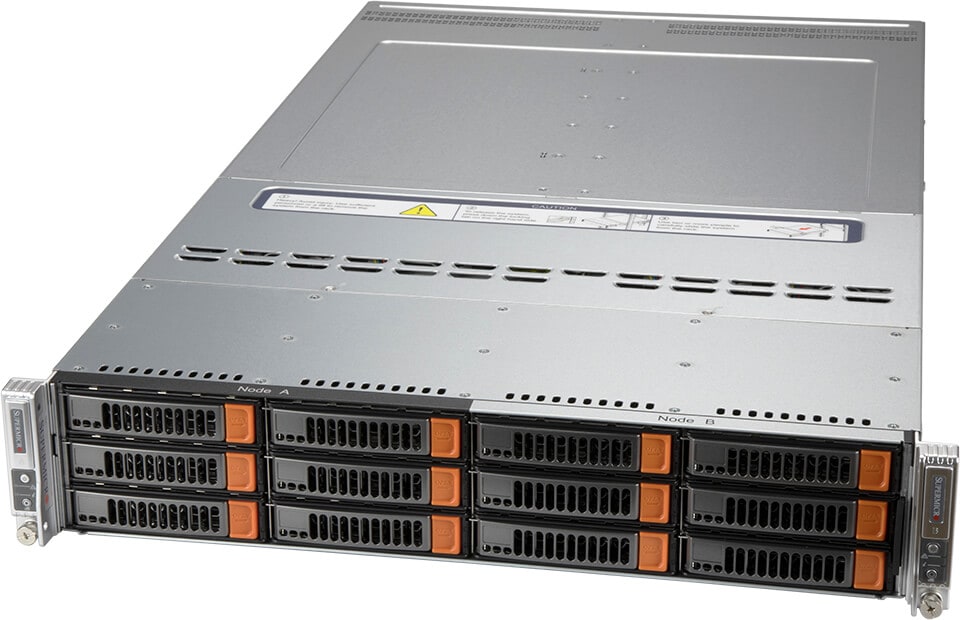

BigTwin 2U 2-Node, 6x3.5" SATA+NVMe,X12DPT-B6,827BD

SYS-620BT-DNTR

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node). Minimum requirement is 2 CPUs, 2 DIMMs, 1 NIC and 1 storage device per node (HDD/SSD/NVMe/M.2)

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10466/image_1920?unique=f7d9088

kr 53,701.90 53701.9 NOK kr 53,701.90

kr 53,701.90

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-620BT-DNTR is a powerful and versatile 2U rackmount server designed for demanding applications such as Hyperconverged Infrastructure, Scale-Out Object Storage, and Backup & Recovery. It supports dual 3rd Gen Intel® Xeon® Scalable processors with up to 36 cores and 72 threads per CPU. This server also includes 20 DIMM slots, network connectivity through AIOM, six hot-swappable drive bays, and redundant 2200W power supplies.

    Key Features

    • Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
    • Intel® C621A
    • 20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
    • Optional 2U Riser for Slot 1, CPU1 x16 PCIe 4.0 (RSC-P2R-6G4)1 PCIe 4.0 x16 (LP) slot;2 PCIe 4.0 x8 (LP) slot;Tool-less supportOptional HW RAID Boot Controller via AOC-SMG3-2M2-B (NVMe Only)Internal PCIe 3.0 for 2 x4 M.2 NVMe/SATA support onboard
    • Network connectivity via AIOM (OCP 3.0 compliant)
    • 6 Hot-swap 3.5" drive bays; 6 PCIe 4.0 NVMe/SATA 3.5" drives
    • 2 cooling fans per node, 14.9K RPM
    • 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design

    Key Applications

    • Hyperconverged Infrastructure
    • Scale-Out Object Storage
    • Back-up & Recovery

    Description

    The Supermicro SYS-620BT-DNTR is built for enterprise-level performance, featuring support for dual 3rd Gen Intel® Xeon® Scalable processors, and up to 4TB of 3200MT/s ECC DDR4 RDIMM. The server includes 20 DIMM slots (16 for DDR4 and 4 for Intel® Optane™ persistent memory), providing extensive memory capacity and flexibility. Network connectivity is achieved via AIOM (OCP 3.0 compliant), and the server offers ample expansion options with PCIe 4.0 slots. It features six hot-swappable 3.5" drive bays for various storage configurations. The cooling system includes two high-speed cooling fans per node, and power redundancy is ensured with two 2200W Titanium level power supplies. Security measures such as TPM 2.0, Silicon Root of Trust, and secure firmware updates enhance the overall reliability and integrity of the system.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-620BT-DNTR
    Motherboard
    Installed Motherboard
    • Super X12DPT-B6
    Processor (per Node)
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 36C/72T; Up to 54MB Cache per CPU
    Note
    • Supports up to 250W TDP CPUs (Air Cooled)
    GPU (per Node)
    Max GPU Count
    • Up to 1 double-width GPU
    System Memory (per Node)
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    On-Board Devices (per Node)
    Chipset
    • Intel® C621A
    Network Connectivity
    • Via AIOM
    Input / Output (per Node)
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 3.0 Type-A port(s) (Rear)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB Flash ROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 7+1 Phase-switching voltage regulator
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-827BD-000NP
    Dimensions and Weight
    Height
    • 3.47" (88 mm)
    Width
    • 17.68" (449 mm)
    Depth
    • 30.5" (774 mm)
    Package
    • 9.76" (H) x 24.65" (W) x 45.28" (D)
    Weight
    • Gross Weight: 80.7 lbs (36.6 kg)
    • Net Weight: 55.1 lbs (25 kg)
    Available Color
    • Black
    Front Panel
    LED
    • HDD activity LED
    • Network activity LEDs
    • Power status LED
    • Universal Information (UID) LED
    Buttons
    • Power On/Off button
    • UID button
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 4.0 x8 LP slots
    • 1 PCIe 4.0 x16 LP slot

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 6 bays:
    • 6 front hot-swap 3.5" PCIe 4.0 NVMe/SATA drive bays

    M.2
    • 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280(default); VROC required for RAID)
    System Cooling
    Fans
    • 4x 14.9K RPM Heavy Duty 8cm Fan(s)
    Power Supply
    2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 45 x 40 x 480 mm

    AC Input:
    • 1200W: 100-127Vac / 50-60Hz
    • 2090W: 180-220Vac / 50-60Hz (for UL/cUL safety rating only)
    • 1800W: 200-220Vac / 50-60Hz (for TUV/CB/others safety rating only)
    • 1980W: 220-230Vac / 50-60Hz (for TUV/CB/others safety rating only)
    • 2200W: 220-240Vac / 50-60Hz (for UL/cUL safety rating only)
    • 2090W: 230-240Vdc / 50-60Hz (for CQC safety rating only)
    • 2090W: 230-240Vac / 50-60Hz (for TUV/CB/others safety rating only)

    +12V:
    • Max: 100A / Min: 0A (100Vac-127Vac) (for TUV/CB/others safety rating only)
    • Max: 174.17A / Min: 0A (180Vac-220Vac) (for UL/cUL safety rating only)
    • Max: 150A / Min: 0A (200Vac-220Vac) (for TUV/CB/others safety rating only)
    • Max: 165A / Min: 0A (220Vac-230Vac) (for TUV/CB/others safety rating only)
    • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL safety rating only)
    • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CQC safety rating only)
    • Max: 174.17A / Min: 0A (230Vac-240Vac) (for TUV/CB/others safety rating only)

    12V SB:
    • Max: 2.1A / Min: 0A

    Output Type:
    • Backplanes (connector)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

    Optional Part List

    Part Number Quantity Description
    2U Riser for Slot 1, CPU1 x16 PCIe 4.0
    RSC-P2R-6G4-expansion slots
    3.5-to-2.5" HDD Conversion Tray
    MCP-220-00140-0B-Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab (Qty as Needed)
    M.2 NVMe RAID Controller
    AOC-SMG3-2M2-B-P-2x M.2 NVMe RAID Controller Card, x8 Gen3
    SPI Capable TPM Options
    AOM-TPM-9670H-S1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    AOM-TPM-9671H-S1SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    AOM-TPM-9670H-FIPS1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)
    SuperCloud Composer License
    SFT-SDDC-SINGLE-SDDC Monitor License - Single License per Monitored host
    System Management Suite
    SFT-DCMS-Single-Supermicro System Management Software Suite node
    VROC Options
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)
