[NR]X14DBT-B,CSE-827BQ2-R3K60P,SCC-P6N6SGH-B1,SCC-B8SB80-B1
SYS-622BT-HNC8R
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 8 DIMMs are recommended per CPU). Minimum requirement is 1 CPU, 1 DIMM, 1 NIC, and 1 storage device per node
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SYS-622BT-HNC8R features dual Socket E2 Intel® Xeon® 6 6700 processors and supports up to 4TB DDR5-6400 memory. It's designed for performance-intensive applications like Hyperconverged Infrastructure, Scale-Out File Storage, and Back-up & Recovery.
Key Features
- Dual Socket E2 Intel® Xeon® 6 6700 processors with E-cores up to 165W with air cooling or 330W with liquid coolingSingle CPU configurations supported while maintaining all expansion slot functionality
- Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC
- Flexible networking with OCP 3.0 AIOM slot
- Up to 2 PCIe 5.0 x16 LP slots; Tool-less supportInternal PCIe 5.0 for 2x NVMe M.2 support onboardOptional 4x NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1
- Up to 3 front hot-swap 3.5" NVMe/SAS drive baysBuilt-in SAS3 Support via Broadcom 3808; IT Mode
Key Applications
- Hyperconverged Infrastructure
- Scale-Out File Storage
- Back-up & Recovery
Description
The Supermicro SYS-622BT-HNC8R is a high-performance server designed to support intensive applications such as Hyperconverged Infrastructure, Scale-Out File Storage, and Back-up & Recovery. It features dual Socket E2 Intel® Xeon® 6 6700 processors, capable of up to 165W with air cooling or 330W with liquid cooling. The server supports up to 16 DIMMs for a maximum of 4TB DDR5-6400 memory in a 2U rackmount form factor. Flexible networking options are available via an OCP 3.0 AIOM slot, and expansion capabilities include two PCIe 5.0 x16 LP slots along with hot-swap NVMe/SAS drive bays, internal PCIe NVMe support, and optional built-in HW RAID.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor (per Node) | |
| CPU |
|
| Core Count |
|
| Note |
|
| System Memory (per Node) | |
| Memory |
|
| On-Board Devices (per Node) | |
| SAS |
|
| Chipset |
|
| Network Connectivity |
|
| Input / Output (per Node) | |
| LAN |
|
| USB |
|
| Video |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power configurations |
|
| Security | |
| Hardware |
|
| Features |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Height |
|
| Width |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Color |
|
| Front Panel | |
| LED |
|
| Buttons |
|
| Expansion Slots (per Node) | |
| PCI-Express (PCIe) Configuration | Default:
|
| Drive Bays / Storage (per Node) | |

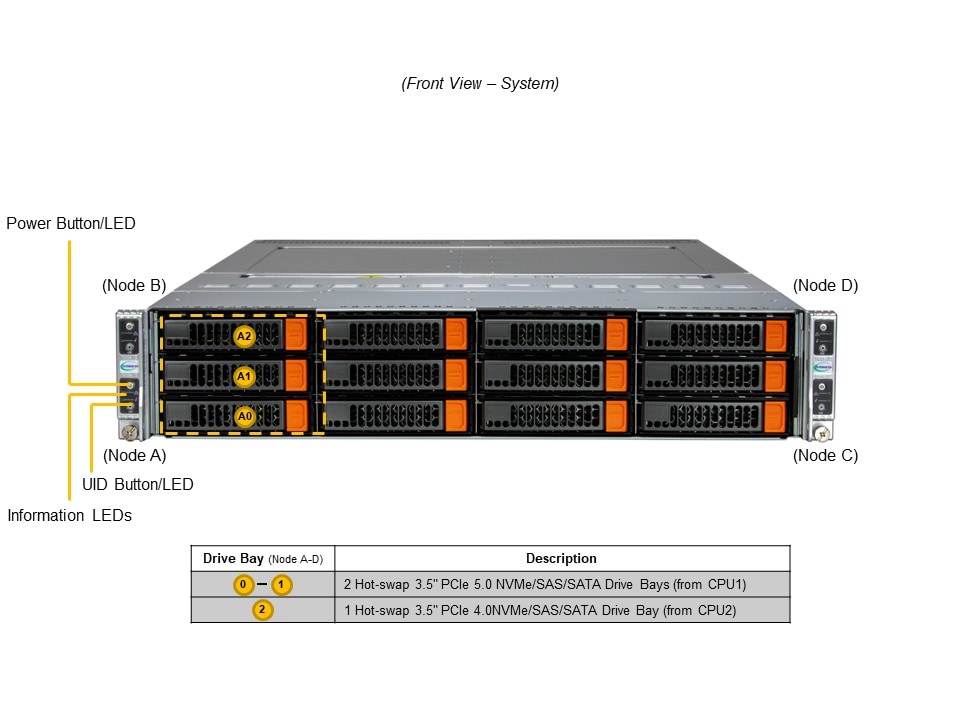

| Drive Bays Configuration | Default: Total 3 bays:
|
| M.2 |
|
| System Cooling | |
| Fans |
|
| Liquid Cooling |
|
| Power Supply | |
| 2x 3600W Redundant (1 + 1) Titanium Level (96%) power supplies | Dimension (WxHxL):
AC Input:
+12V:
12V SB:
Output Type:
|
| Operating Environment | |
| Environmental Spec. |
|
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Cold Plate Module | ||
| SNK-P3050-ABT | 1 | 2x Supermicro Cold Plates for Attachment to CPUs (Qty per Node) |
| SNK-P3042 | 1 | 2x CoolIT Cold Plates for Attachment to CPUs (Qty per Node) |
| Coolant Distribution Manifolds | ||
| LCS-SCDM-076V42001-ABT | 1 | Supermicro Coolant Manifolds (Qty per Rack) |
| SRK-00AS-CLIT-MF42SV-02 | 1 | CoolIT 48U, 42S Single Rack Coolant Manifolds (Qty per Rack) |
| SRK-00AS-CLIT-MF84SV-02 | 1 | CoolIT 48U, 82S Dual Rack Coolant Manifolds (Qty per Rack) |
| Coolant Distribution Unit | ||
| LCS-SCDU-080L4001-ABT | 1 | Supermicro Rack Mounted Coolant Distribution Unit (Qty per Rack) |
| SRK-00AS-CLIT-CH80V2-01 | 1 | CoolIT 4U DLC CHx80V2 Coolant Distribution Unit (Qty per Rack) |
| M.2 NVMe RAID Controller | ||
| SCC-A2NM2241G3-B1E | 1 | 2x Gen3 Marvell2241 NVMe M.2 RAID with 1x PCIEx16 Gen5. Supports only 2x 22x110mm M.2 (Qty per Node) |
| SCC-A2NM2241GH-B1 | 1 | 2x Gen3 Marvell2241 NVMe M.2 RAID and 2x Gen5 Direct-from-CPU NVMe M.2 with 1x PCIEx16 Gen5. Supports 4x 22x110mm M.2 (Qty per Node) |
| SPI Capable TPM Options | ||
| AOM-TPM-9670H-S | 1 | SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node) |
| AOM-TPM-9671H-S | 1 | SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node) |
| AOM-TPM-9670H-FIPS | 1 | SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node) |
| SuperCloud Composer License | ||
| SFT-SDDC-SINGLE | - | SDDC Monitor License - Single License per Monitored host |
| System Management Suite | ||
| SFT-DCMS-Single | - | Supermicro System Management Software Suite node |
| VROC Options | ||
| AOC-VROCSTNMOD | 1 | Intel VROC Standard, RAID 0, 1, 10 (Qty per Node) |
| AOC-VROCPREMOD | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node) |
