X12DAi-N6, CSE-745BTS-R1K23BP3, DP Workstation

SYS-740A-T

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10525/image_1920?unique=7c1c8fe

kr 26,713.95 26713.95 NOK kr 26,713.95

kr 26,713.95

Not Available For Sale

    This combination does not exist.

    Summary Description

    Supermicro SYS-740A-T workstation supports 3rd Gen Intel® Xeon® Scalable processors, up to 2 double-width GPUs, and up to 2TB of DDR4 memory. It features 8 hot-swap drive bays, dual 1GbE LAN, and seven PCIe slots, making it ideal for demanding applications like rendering, CAD, multimedia creation, and scientific research.

    Key Features

    • 3rd Gen Intel® Xeon® Scalable processor support
    • Intel® C621A Chipset
    • 5 PCIe 4.0 x16, 1 PCIe 4.0 x8, 2 NVMe M.2 slots
    • 3x 5.25" peripheral drive baysup to 4x NVMe SSD support with optional cables8x 3.5/2.5" hot-swap SATA (default) drive bays (SAS support requires optional add-on card )
    • Dual 1200W Titanium level power supplies for high powered configurations
    • Supports up to two double width active GPUs1 VGA, 6 USB 3.2 Gen1 (4 Rear, 2 Front),  1 USB 3.2 Gen2 (Rear), 7.1 HD Audio

    Key Applications

    • Rendering
    • CAD
    • Multimedia/Digital Content creation
    • Engineering/scientific research

    Description

    SYS-740A-T Side View
    Supermicro’s X12 SuperWorkstations are optimized for the most demanding applications and workflows requiring powerful graphics capabilities, which can tackle rendering, engineering, and visual computing workloads with ease. With rich multimedia features, these workstations are also the perfect choice for creative and technical professionals in animation and gaming.

    The Supermicro SuperWorkstation SYS-740A-T is the ultimate high-performance workstation with huge storage options. Supporting up to two Intel® Xeon® Scalable Processors with 16 DDR4 DIMM slots to take on the most complex of tasks. The six PCI-E slots allow great expandability for GPU and other professional cards while the dual Gigabit Ethernet ports with IPMI support will keep you connected no matter where you are. Bigger, faster storage options with 8 Hot-swap drive bays provides superior storage capabilities to execute heavy data processing with ease. This extremely feature-rich workstation also includes 7.1 HD audio, onboard M.2 slot, 2 NVMe internal ports and 8 USB ports for even more versatility and expandability all within your reach. This workstation is powered by a 1200W platinum level power supply, giving you one of the most reliable and efficient workstations available today.

    Product Specifications

    Product SKUs
    SuperWorkstationSYS-740A-T
    Motherboard
    Super X12DAI-N6
    Processor
    CPUDual Socket P+ (LGA-4189)
    3rd Gen Intel® Xeon® Scalable processors
    Core CountUp to 40C/80T; Up to 60MB Cache per CPU
    NoteSupports up to 270W TDP CPUs (Air Cooled)
    GPU
    Max GPU CountUp to 2 double-width or 2 single-width GPU(s)
    Supported GPUNVIDIA PCIe: RTX A6000, RTX A5000, RTX A4000, RTX 5000
    View GPU Options
    CPU-GPU InterconnectPCIe 4.0 x16 Switch Single-Root
    System Memory
    MemorySlot Count: 16 DIMM slots
    Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Supports Intel® Optane™ persistent memory 200 series
    View Memory Options
    Memory Voltage1.2V
    On-Board Devices
    SATASATA (6Gbps) ; RAID 0/1/5/10 support
    ChipsetIntel® C621A
    Network Connectivity2 RJ45 1GbE
    View AOC Options
    Input / Output
    LAN2 RJ45 1 GbE LAN port(s) (IPMI shared on LAN port 1)
    USB4 USB 3.2 Gen1 port(s) (rear)
    2 USB 3.2 Gen1 port(s) (front)
    Video1 VGA port(s)
    DOM2 SATADOM(Disk on Module) port(s)
    Audio7.1 HD Audio
    System BIOS
    BIOS TypeAMI 32MB SPI FLASH ROM
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsACPI/APM Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    System Lockdown
    PC Health Monitoring
    FANFans with tachometer monitoring
    Status monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    CPUMonitors for CPU Cores, Chipset Voltages, Memory.
    Chassis
    Form Factor4U Tower Rackmount
    ModelCSE-745BTS-R1K23BP3
    Dimensions and Weight
    Height17.8" (452 mm)
    Width7" (178 mm)
    Depth25.5" (647 mm)
    Package24.6" (H) x 14" (W) x 31.3" (D)
    WeightGross Weight: 62 lbs (28.12 kg)
    Net Weight: 59 lbs (26.76 kg)
    Available Colorblack

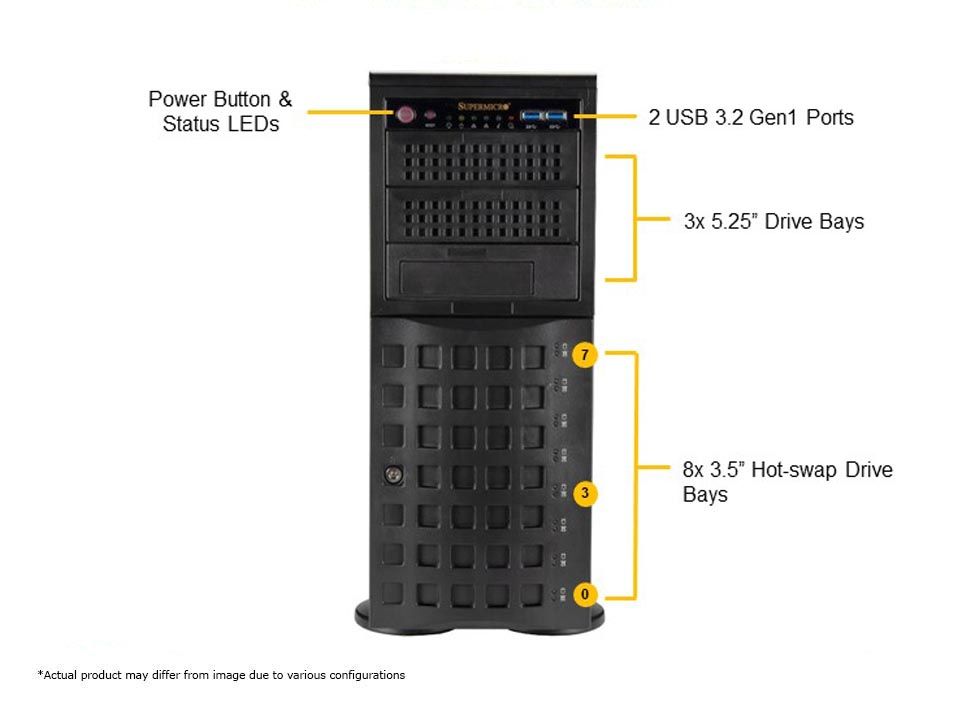

    Front Panel
    LEDHDD activity LED
    Network activity LEDs
    Power status LED
    ButtonsPower On/Off button
    Reset button
    Expansion Slots
    PCI-Express (PCIe) ConfigurationDefault5 PCIe 4.0 x16 FHFL slot(s)1 PCIe 4.0 x8 FHHL slot(s)
    View AOC Options
    Drive Bays / Storage
    Drive Bays ConfigurationDefault: Total 8 bay(s)4 front hot-swap 3.5" SAS*/SATA drive bay(s)4 front hot-swap 3.5" NVMe*/SATA drive bay(s)
    (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    View Drive Options
    M.22 M.2 NVMe slot(s) (M-key)
    View M.2 Options
    Peripheral Bays3 5.25" peripheral bay(s) (optional)
    System Cooling
    Fans5x 8cm heavy duty fans with optimal fan speed control
    Power Supply
    1x 1200W1x 1200W Redundant Titanium Level (96%) power supplyDimension (WxHxL)76 x 40 x 336 mmAC Input1000W: 100-127Vac / 50-60Hz1200W: 200-240Vac / 50-60Hz1200W: 200-240Vdc / 50-60Hz (for CCC only)+12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)5V SBMax: 4A / Min: 0AOutput TypeBackplanes (gold finger)
    1x 1200W1x 1200W Redundant Titanium Level (96%) power supplyDimension (WxHxL)76 x 40 x 336 mmAC Input1000W: 100-127Vac / 50-60Hz1200W: 200-240Vac / 50-60Hz1200W: 200-240Vdc / 50-60Hz (for CCC only)+12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)5V SBMax: 4A / Min: 0AOutput TypeBackplanes (gold finger)
    Operating Environment
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X12DAI-N61Super X12DAI-N6 Motherboard
    CSE-745BTS-R1K23BP314U Tower Chassis
    Backplane
    Part NumberQuantityDescription
    BPN-SAS3-743A-N418-port 4U/Tower (SC743/745) 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane, 4 of 8 ports support NVMe devices
    Cable
    Part NumberQuantityDescription
    CBL-SAST-06312Cross-over Mini SAS HD to 4 SATA w/SB, S. 55cm. 30AWG
    Parts
    Part NumberQuantityDescription
    MCP-260-00115-0N1Standard I/O Shield for X11DAi with EMI Gasket
    Manual
    Part NumberQuantityDescription
    MNL-2378-QRG1740A-T Quick Reference Guide
    Heatsink / Retention
    Part NumberQuantityDescription
    SNK-P0080AP424U Active CPU Heat Sink for X12 Generation DP Workstations and 4U Servers

    Optional Part List

    DVD-RW Drive
    Part NumberQuantityDescription
    DVM-LITE-DVDRW24-HBT1-BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE (adding a DVD drive will limit the total number of SATA drives to 7)
    Gen3 8-ports SAS Raid controller kit
    Part NumberQuantityDescription
    1x AOC-S3108L-H8IR-16DD and 2x CBL-SAST-0593•-Enables the 8x hot-swap drive bays to support SAS drives
    Gen4 8-ports SAS Raid controller kit
    Part NumberQuantityDescription
    1x AOC-S3908L-H8IR-16DD-P and 1x CBL-SAST-1264-100-Enables the 8x hot-swap drive bays to support SAS drives
    Management Software
    Part NumberQuantityDescription
    SFT-DCMS-SINGLE•-Supermicro System Managment Software Suite - 1 per node
    Middle Fan
    Part NumberQuantityDescription
    FAN-0182L4•-9.4K RPM, Hot-swappable Middle Cooling Fan for supporting GPU, PMem or 128GB and larger memory sizes
    NVMe Cable
    Part NumberQuantityDescription
    CBL-SAST-0816•-SLIMLINE x8 to 2x Oculink x4 (1 cable supports 2x 2.5" NVMe drives in hotswap drive bays, connects to JNVMe1 on motherboard)
    CBL-SAST-1154-85•-SLIMLINE x8 to 2x Oculink x4 (1 cable supports 2x 2.5" NVMe drives in hotswap drive bays, connects  to JNVMe2 on motherboard)
    OOB License
    Part NumberQuantityDescription
    SFT-OOB-LIC•-License for out of band management
    Rail Kit for rackmount
    Part NumberQuantityDescription
    CSE-PT26L-B•-4U Chassis Rail Kit (w/ 2pcs Black Chassis Ears)
    Rear Fan
    Part NumberQuantityDescription
    FAN-0180L4•-9.4K RPM, Hot-swappable Rear Exhaust Fan for supporting PMem
    SATA Cable
    Part NumberQuantityDescription
    CBL-SAST-0624•-70cm SATA Cable (1pc required for DVD Drive)
    SATA Power adapter
    Part NumberQuantityDescription
    CBL-0082L•-Y SPLIT SATA POWER ADAPTER (1pc required for DVD Drive)
    SuperCap kit for AOC-S3108L-H8IR-16DD
    Part NumberQuantityDescription
    1x BTR-TFM8G-LSICVM02 and 1x BKT-BBU-BRACKET-05-SuperCap and mounting bracket for SAS RAID controller AOC-S3108L-H8IR-16DD
    SuperCap kit for AOC-S3908L-H8IR-16DD-P
    Part NumberQuantityDescription
    1x BTR-CVPM05 and 1x BKT-BBU-BRACKET-05-SuperCap and mounting bracket for SAS RAID controller  AOC-S3908L-H8IR-16DD
    TPM security module
    Part NumberQuantityDescription
    AOM-TPM-9670V-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
