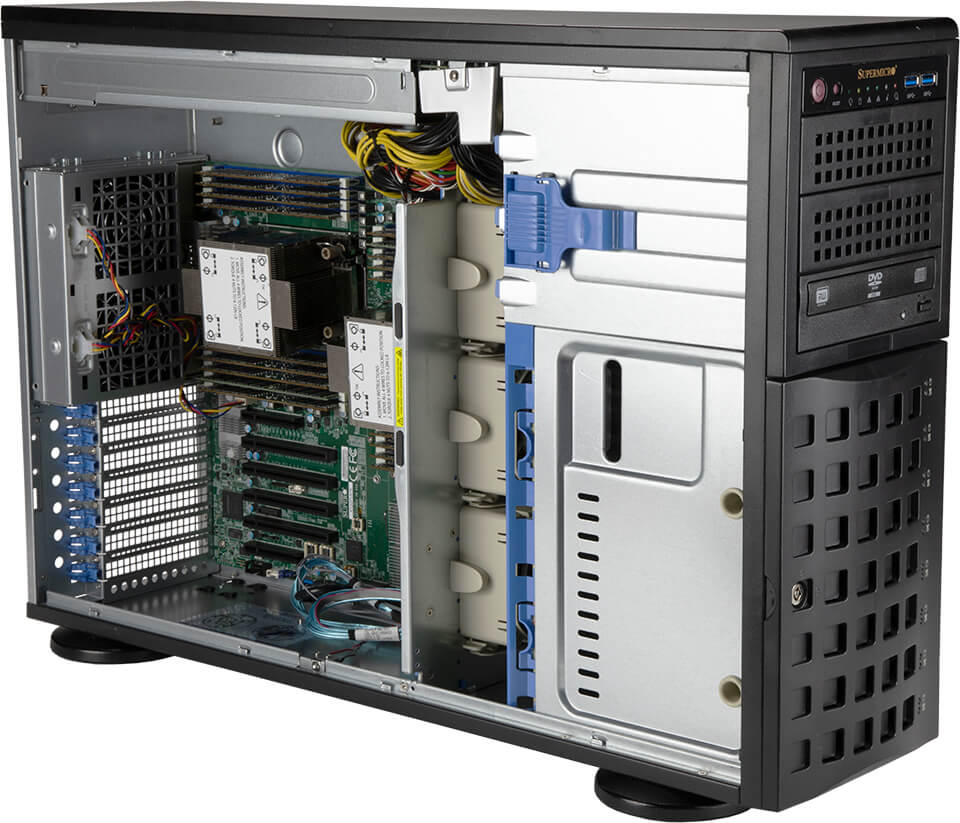

X12DPI-N6-P, CSE-745BTS-R1K23BP,4U TowerMainstreamServer

SYS-740P-TR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10517/image_1920?unique=f7d9088

kr 22,263.54 22263.54 NOK kr 22,263.54

kr 22,263.54

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-740P-TR is a versatile 4U/tower server designed for enterprise applications. It supports dual 3rd Gen Intel® Xeon® Scalable processors, up to 4TB of DDR4 memory, Intel® Optane™ persistent memory, and extensive I/O and storage options.

    Key Features

    • Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors;CPU TDP supports Up to 270W TDP;3 UPI up to 11.2 GT/s
    • Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz ;- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
    • 4 PCIe 4.0 x16 Full Height (FH);2 PCIe 4.0 x8  Full Height (FH)
    • Dual Gigabit LAN with Intel® i350 Ethernet Controller
    • Three 80mm high-performance 9.4K RPM Hot-swappable Middle Cooling Fans;Two 80mm 9.4K RPM Rear Exhaust Fans;1 air shroud
    • 1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc, Whisper-Quiet
    • 1 rear VGA, 1 Type A port, 1 COM Port (rear) and 6 USB ports (2 front USB 3.0 and 4 rear USB 3.0)

    Key Applications

    • Enterprise Server
    • Application and data serving
    • Model analysis
    • Compute Intensive Applications
    • Office environment

    Description

    The Supermicro SYS-740P-TR is a robust server solution engineered for demanding enterprise applications and data serving. This 4U/tower server supports dual 3rd Gen Intel® Xeon® Scalable processors, with up to 36 cores and 72 threads, offering powerful computing capabilities. It can handle up to 4TB of ECC DDR4-3200 memory, with support for Intel® Optane™ persistent memory, ensuring exceptional performance for memory-intensive tasks. It features multiple high-speed PCIe slots and diverse storage configurations, accommodating up to 8 hot-swap 3.5” SATA/SAS drive bays, and optional NVMe drive bays, providing flexibility and scalability. The SYS-740P-TR is equipped with dual Gigabit LAN ports, redundant power supplies, and advanced cooling systems, making it a reliable and efficient choice for enterprise environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-740P-TR
    Motherboard
    Installed Motherboard
    • Super X12DPi-N6
    Processor
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 36C/72T; Up to 60MB Cache per CPU
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    On-Board Devices
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 1GbE
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 2.0 port(s) (front)
    • 4 USB 3.0 port(s) (rear)
    Video
    • 1 VGA port(s)
    DOM
    • 2 Super DOM (Disk on Module) port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • Tower/4U
    Model
    • CSE-745BTS-R1K23BP
    Dimensions and Weight
    Height
    • 17.8" (452 mm)
    Width
    • 7" (178 mm)
    Depth
    • 25.5" (647 mm)
    Package
    • 24.6" (H) x 14" (W) x 31.3" (D)
    Weight
    • Gross Weight: 73.5 lbs (33.9 kg)
    • Net Weight: 56 lbs (25.9 kg)
    Available Color
    • Black
    Front Panel
    LED
    • HDD activity
    • Network activity
    • Power status
    • System information (overheat/UID)
    Buttons
    • Power On/Off
    • System Reset
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 4 PCIe 4.0 x16 LP slots
    • 2 PCIe 4.0 x8 LP slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 8 bays:
    • 8 front hot-swap 3.5" SAS*/SATA drive bays

    Option A: Total 10 bays:
    • 8 front hot-swap 3.5" SAS*/SATA drive bays
    • 2 front fixed 3.5" NVMe*/SATA* drive bays

    • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 1 M.2 NVMe slot (M-key)
    Peripheral Bays
    • 1 5.25" DVD bay (optional)
    System Cooling
    Fans
    • 3 middle Fan(s)
    • 2 rear Fan(s)
    Power Supply
    1x 1200W Redundant Titanium Level (96%) power supply
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1200W: 200-240Vac / 50-60Hz
    • 1200W: 200-240Vdc / 50-60Hz (for CCC only)

    +12V:
    • Max: 83A / Min: 0A (100Vac-127Vac)
    • Max: 100A / Min: 0A (200Vac-240Vac)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12DPi-N61Super X12DPi-N6 Motherboard
    CSE-745BTS-R1K23BP1Tower/4U Chassis
    Backplane
    BPN-SAS3-743A18-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane fo
    Parts
    MCP-260-00042-0N1STD I/O shield for X9 socket R server MB with Gasket.
    MCP-290-74502-0B1Plastic feet (4 pcs set) for 4U tower chassis, black color
    Manual
    MNL-2242-QRG1SYS-740P-TR(T) Quick Reference Guide
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0078P22U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    Cable
    CBL-SAST-0508-01OR2Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG
    CBL-SAST-0508-02-Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG
    CBL-00871CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-0216L34 TO 4 PIN FAN POWER CABLE, 210MM
    CBL-0471L1USB3.0 Internal Cable-80cm (19pin Female to 19pin Female)
    *Power Supply
    PWS-1K23A-SQ21U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac
    *Power Distributor
    PDB-PT747-46481POWER DISTRIBUTOR FOR SC747 W/ GRAPHIC OUTPUT FEATURE
    *Fan
    FAN-0180L4280x80x38 mm, 9.4K RPM, Hot-swappable Rear Exhaust Fan for X11 Purley Platform Newly Enabled 4U Chassis
    FAN-0182L4380x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 4U Chassis
    *Drive Tray(s)
    MCP-220-00193-0N8SC743/SC745/SC822/SC823 Gen2 2.5"/3.5" 2-in-1 HDD tray
    *Air Shroud
    MCP-310-49001-0N1SC745 Intel DP X9, X8 PC air shroud 1368x13/12x13MB

    Optional Part List

    Part Number Quantity Description
    BTR kit for AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR with SYS-740P-TR
    use 1x BTR-TFM8G-LSICVM02 and 1x BKT-BBU-BRACKET-05  with AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR1SuperCap and mounting bracket used for SAS raid controllers AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR
    BTR kit forAOC-S3908L-H8IR-16DD-P orAOC-S3916L-H16IR-32DD with SYS-740P-TR
    use BTR-CVPM05 and 1x BKT-BBU-BRACKET-05 with AOC-S3908L-H8IR-16DD-P andAOC-S3916L-H16IR-32DD1SuperCap and mounting bracket used for SAS raid controllers AOC-S3908L-H8IR-16DD-P andAOC-S3916L-H16IR-32DD
    Optional Gen3 8-ports SAS Raid controller kit for SYS-740P-TR
    add 1x AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0531-011Convert 8x hotswap SATA drives to SAS drives
    Optional Gen4 8-ports SAS Raid AOC kit for SYS-740P-TR (backplane is Gen3)
    add 1x AOC-S3908L-H8IR-16DD-P and 1x CBL-SAST-1264-1001Convert 8x hotswap SATA drives to SAS drives
    Optional Mounting Rails
    CSE-PT26L-B14U Chassis Rail Kits SC743,745, w/ 2pcs Black Chassis Ears
    Optional parts needed to support 2x fixed NVMe drives
    1x MCP-220-00160-0N (Dual 2.5" Drive BKT) and 1x CBL-SAST-0953 (Slimline x8 to PCIe 2x SFF-8639 Power)11x MCP-220-00160-0N can support 2x NVMe fixed drives in 1x 5.25 inch drive bay and 1x CBL-SAST-0953 can support 2x 2.5 inch NMVe drives
    Optional parts needed to support 2x fixed SATA drives
    1x MCP-220-00160-0N (Dual 2.5" Drive BKT), 2x CBL-0044L(SATA CABLE 61CM FLAT S-S PBF.26AWG flat), 1x CBL-0234L (Y CABLE FOR 4-PIN HDD) and 1x CBL-0082L (Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG)11x MCP-220-00160-0N can support 2x 2.5 inch fixed drives in 1x 5.25 inch drive bay, 1x CBL-0044L can support 1x 2.5 inch SATA drives and 1x CBL-0082L can support 2x 2.5 inch SATA drives
